DK31C4DPPDUE

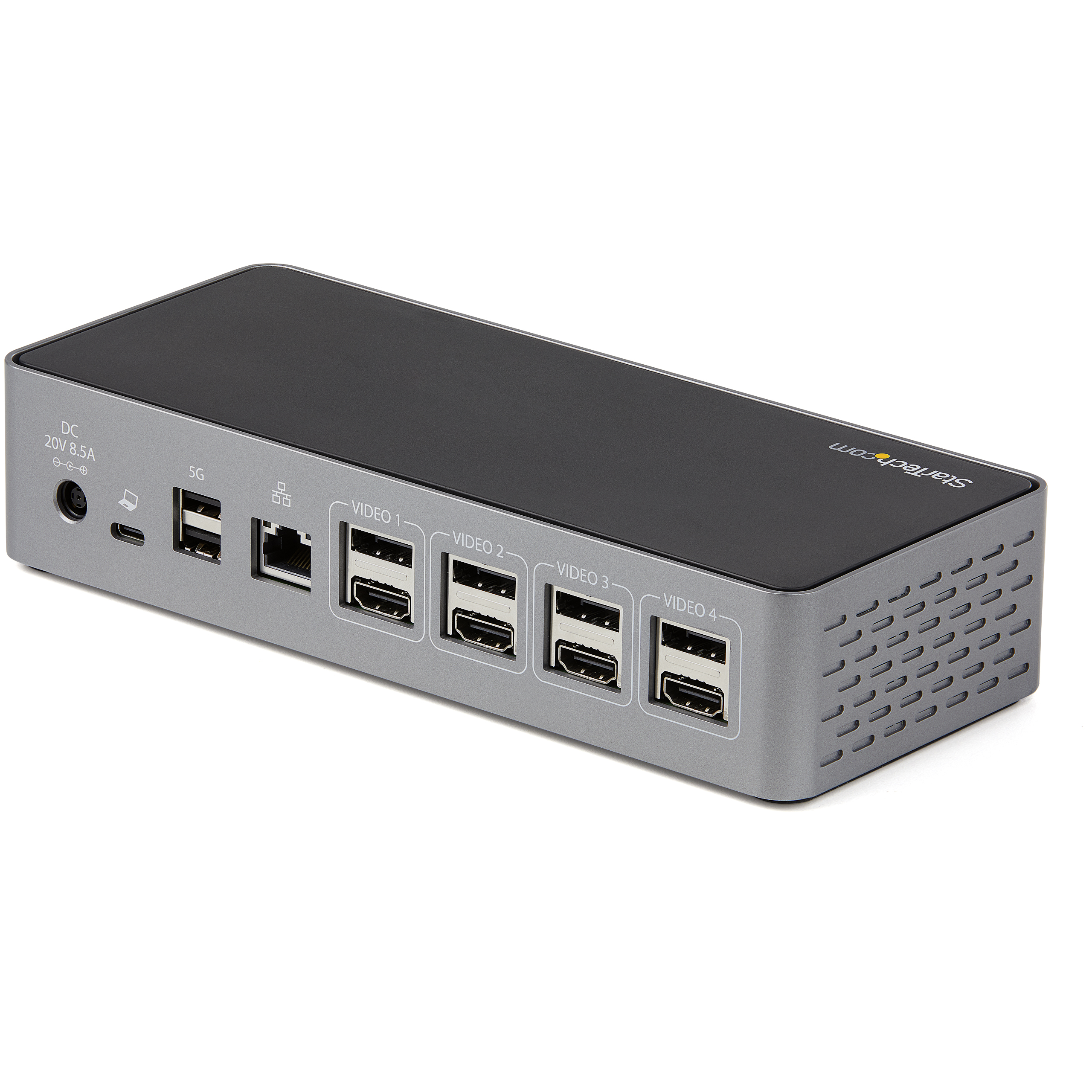

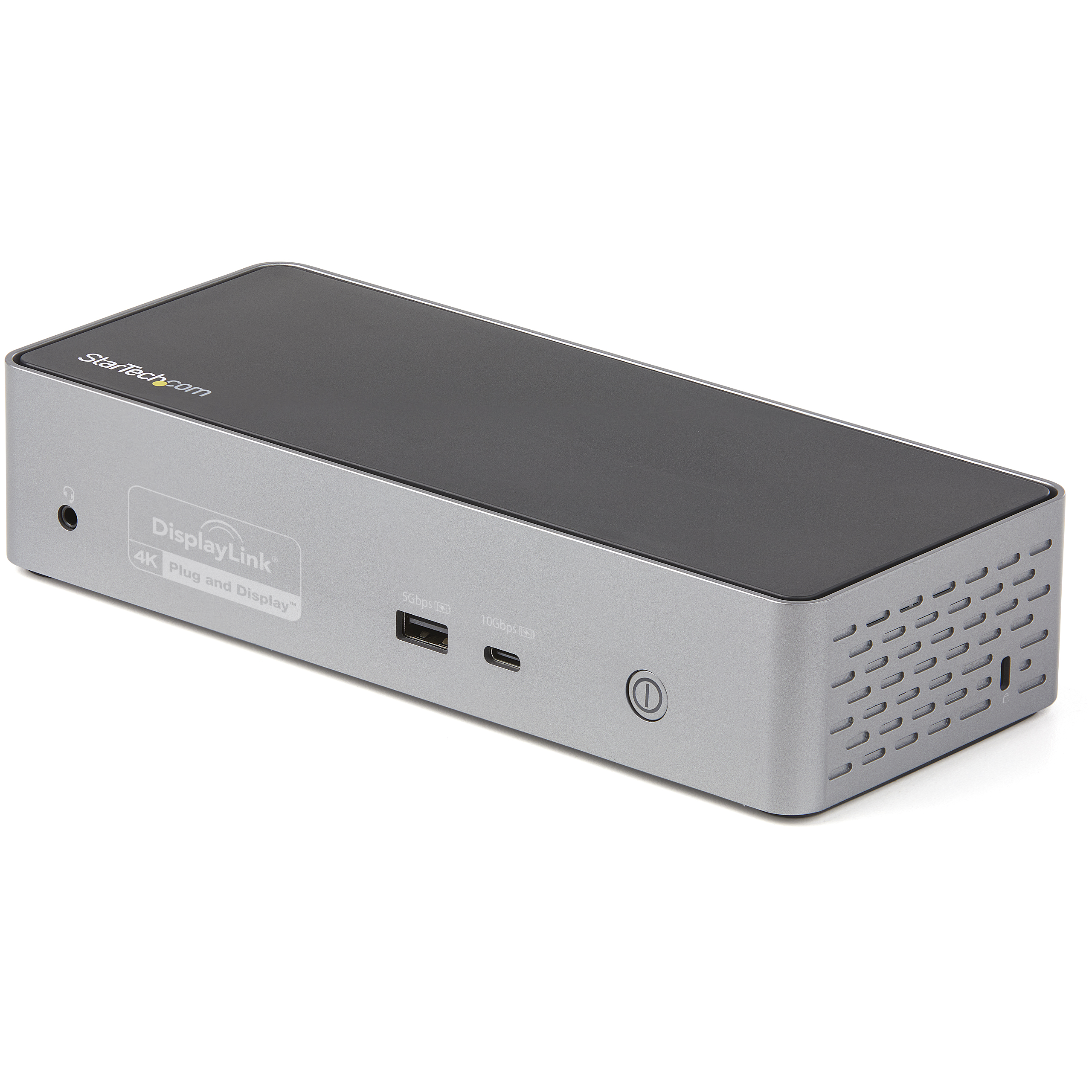

Quad 4K USB-C Docking Station
USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | 4K 60Hz DisplayPort | 100W Power Delivery
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Quad 4K USB-C Docking Station Product Number DK31C4DPPDUE UPC 065030876278 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family No Family Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) Quad USB-C Dock 4K60 Product Title (Short) USB-C Dock - 4K Quad Monitor - 100W PD Product Title (Medium) USB-C Dock 4K 60Hz Quad Monitor DP/HDMI - Universal USBC Docking Station 100W PD Product Title (Standard) USB-C Dock, 4K 60Hz Quad Monitor DisplayPort & HDMI, Universal USB C Docking Station, 100W Power Delivery, USB Hub 1C/3A, GbE Product Title (Long) USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio Product Title (AMZ) USB-C Quad Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 & Windows, Universal 4K 60Hz HDMI DP Dock, Thunderbolt Compatible, 100W Laptop Charging Title Ingram (Part 1) Universal USB-C Dock Quad Video Title Ingram (Part 2) Quad 4K 60Hz DP or HDMI, 100W PD Website Product Headline USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | 4K 60Hz DisplayPort | 100W Power Delivery Bullet 1 QUAD MONITOR USB-C DOCK: USB Type-C dock supports up to four (4K 60Hz) monitors, including quad, triple or dual extended displays, using any combo of 4x DisplayPort (DP) and/or 4x HDMI 2.0 outputs or Dual 5K 60Hz (2x DP per display); 100W Power Delivery Bullet 2 COMPATIBILITY: Supports Windows, macOS, ChromeOS, Linux and hardware platforms including Intel, AMD and the Apple M-Series, enabling four external displays even on laptops that natively only support one; Driver installation required on Windows and macOS Bullet 3 INCREASE PRODUCTIVITY: DisplayLink Certified dock with 4-port USB hub includes 3x USB-A 5Gbps (1x fast-charge 1.5A), 1x USB-C up to 10Gbps (15W 3A smartphone/tablet charging) port, Gigabit Ethernet (PXE Boot & WoL), and a 3.5mm TRRS audio headset/mic jack Bullet 4 EASY SETUP & MANAGEMENT: Quadruple display docking station with 3.3ft (1m) USB-C host cable (USB-IF certified), front On/Off button, K-slot & mounting holes, ; optimized ventilation for enhanced cooling Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout Bullets (Compact) Quad monitor USB C docking station - 4x DisplayPort and/or 4x HDMI displays/monitors at 4K 60Hz - USB C Dock w/ 100W Power Delivery for USB Type-C/Thunderbolt laptops - 1xC 10Gbps, 3xA 5Gbps, GbE, TRRS Audio; DisplayLink Certified - Win/mac/Chrome Bullets (Consolidated) - Quad monitor DisplayLink Certified USB-C docking station; Quadruple displays 4K 60Hz video; 4x DisplayPort and/or 4x HDMI monitors - 1x USB-C 10Gbps (15W charging); 3x USB-A 5Gbps (1x fast-charge 1.5A) - 100W Power Delivery USB C Dock to power/charge USB Type-C/Thunderbolt laptop - Works w/ Lenovo X1/Dell XPS/MacBook Pro/Air (Intel, base M-Series)/Surface; Works w/ USB4/TB4 host device; GbE (PXE Boot/WoL); TRRS headset/mic; K-slot; MAC address changer - Compatible w/ Windows, macOS, ChromeOS Marketing Copy Marketing Copy (No HTML) Website Search Keyword - usb c quad displayport 4k 60hz dock
- usb c quad dp dock
- usb c quad monitor dock 4k 60hz
- usb c dock 100w
- usb c docking station 100w pd
- usb c docking station quad dp
- usb c docking station quad monitor
- quad displayport 4k 60hz docking station
- quad 4k 60hz dp dock
- 4 monitor docking station
- usb 3.2 gen 2 dock
- 10gbps docking station
- trading desk dock
- finance docking station
- Docking Stations
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery) Accessory Products - ARMQUADPS
- ARMBARQUAD
- ARMQUADSS
- ARMQUAD
- DOCK-NUC-VESA-MOUNT
Related Products - DK31C3HDPD
- DK31C2DHSPD

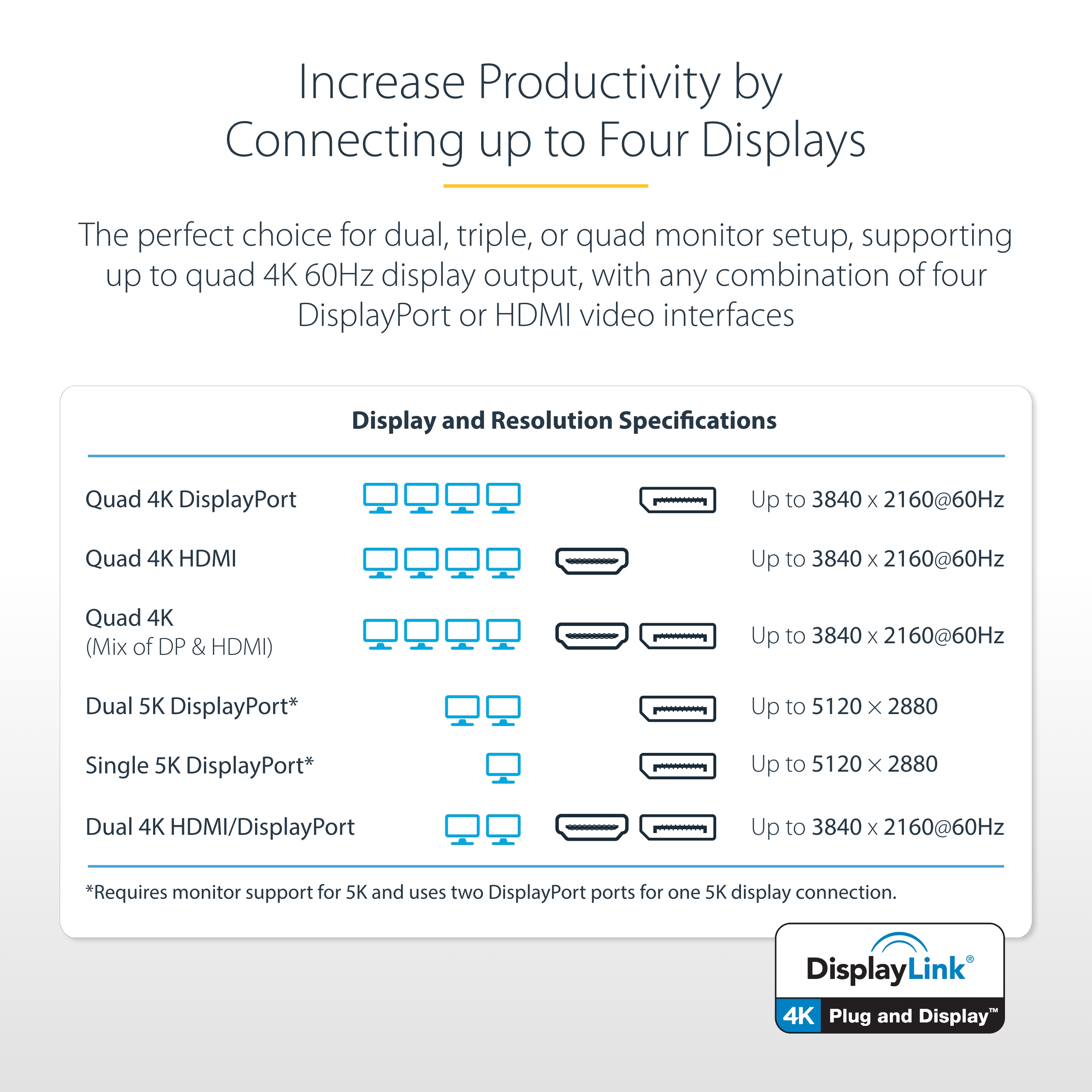

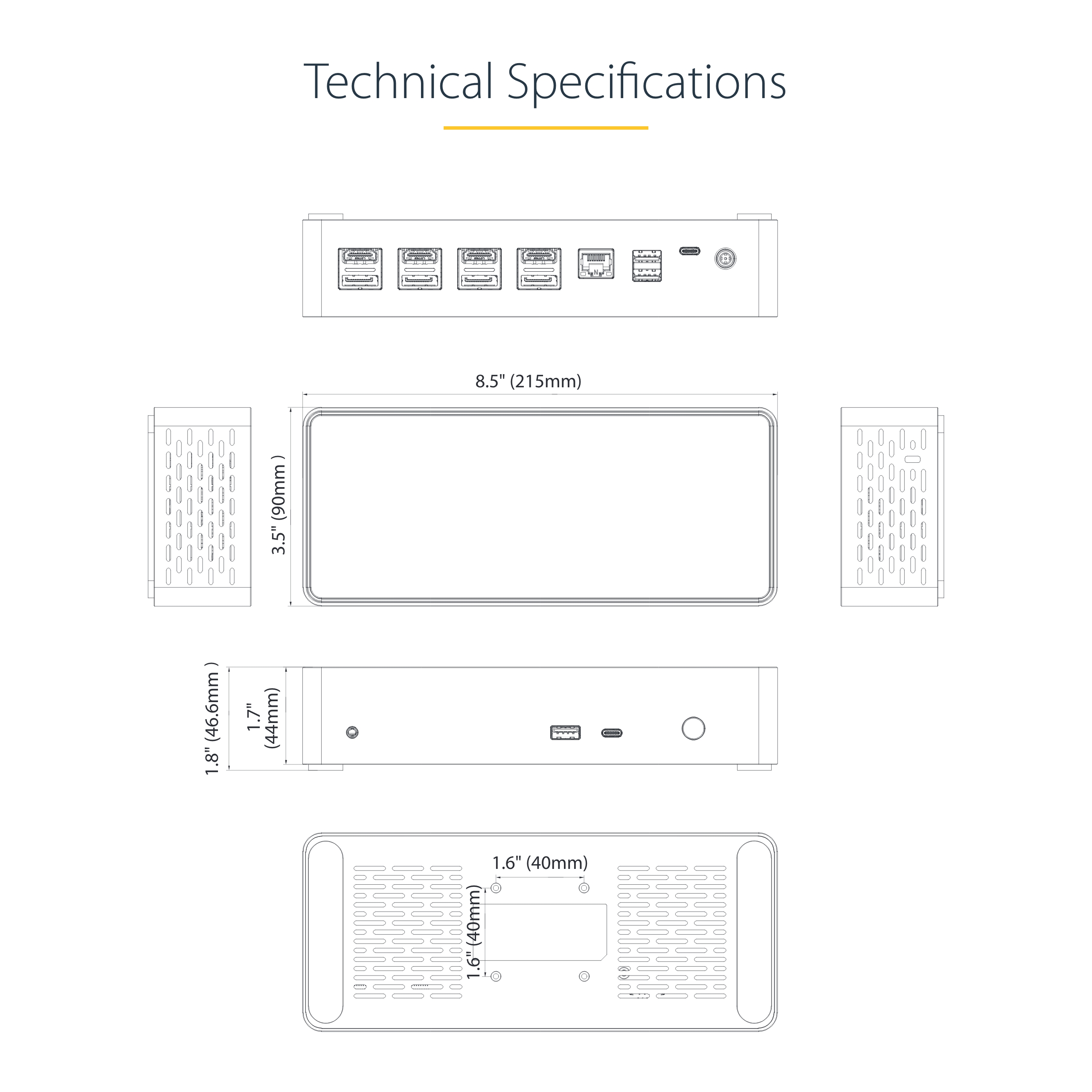

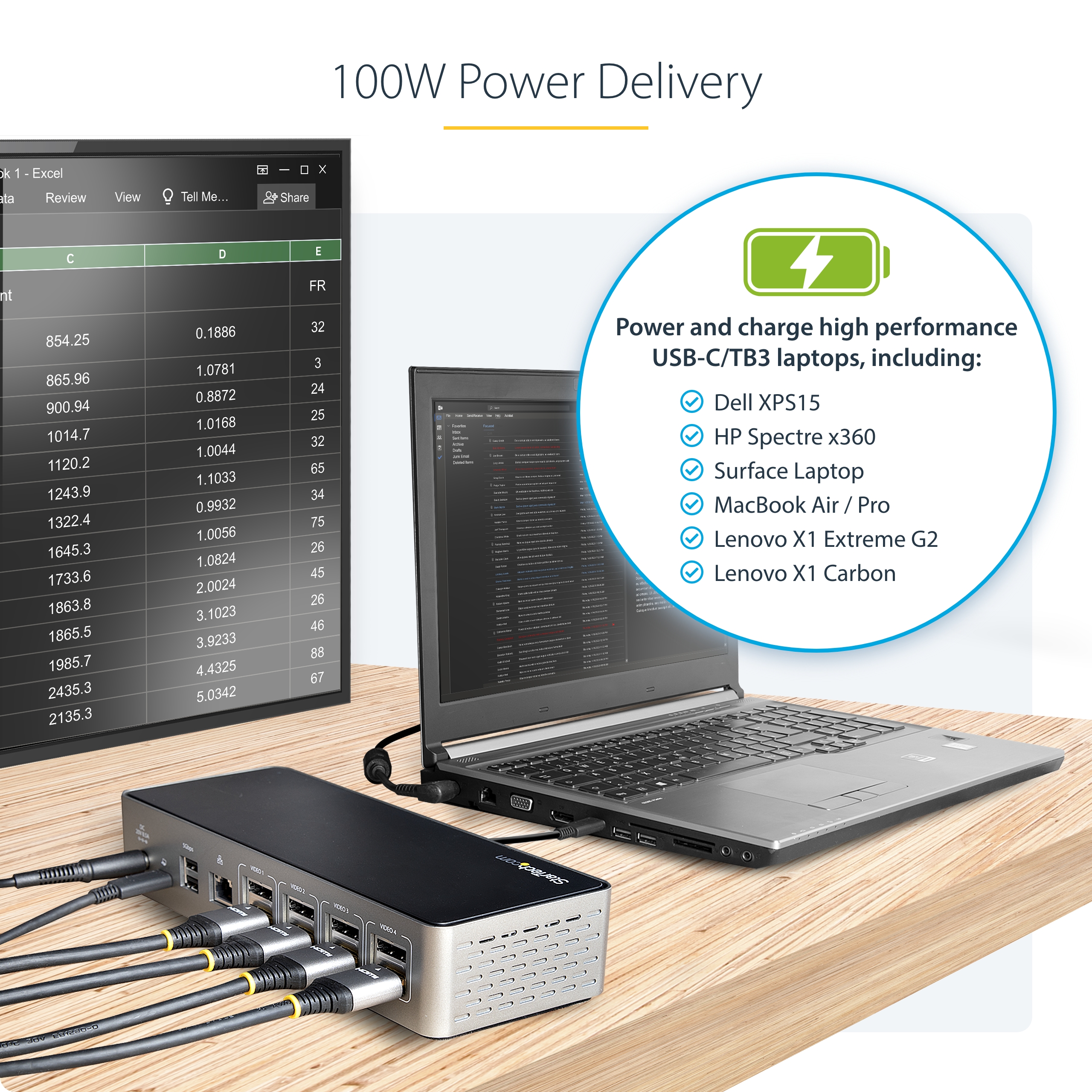

Input Voltage 110V-240V AC Output Current 8.5A Output Voltage (V) 20V DC Power Delivery 100W Power Source AC Adapter Included Color Black & Space Gray Humidity 0% to 95% (non-condensing) at 25°C Operating Temperature 0 to 50°C Primary Material Plastic Product Length (mm) 215.000 Product Width (mm) 90.000 Product Height (mm) 47.000 Product Weight (g) 543.000 Storage Temperature -20 to 70°C TAA Compliant No Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Maximum Data Transfer Rate 10 Gbps Maximum Digital Resolutions 3840 x 2160p @ 60Hz, 5120 × 2880 (with 2x DP Connection) Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 11
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- Chrome OS
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Ubuntu

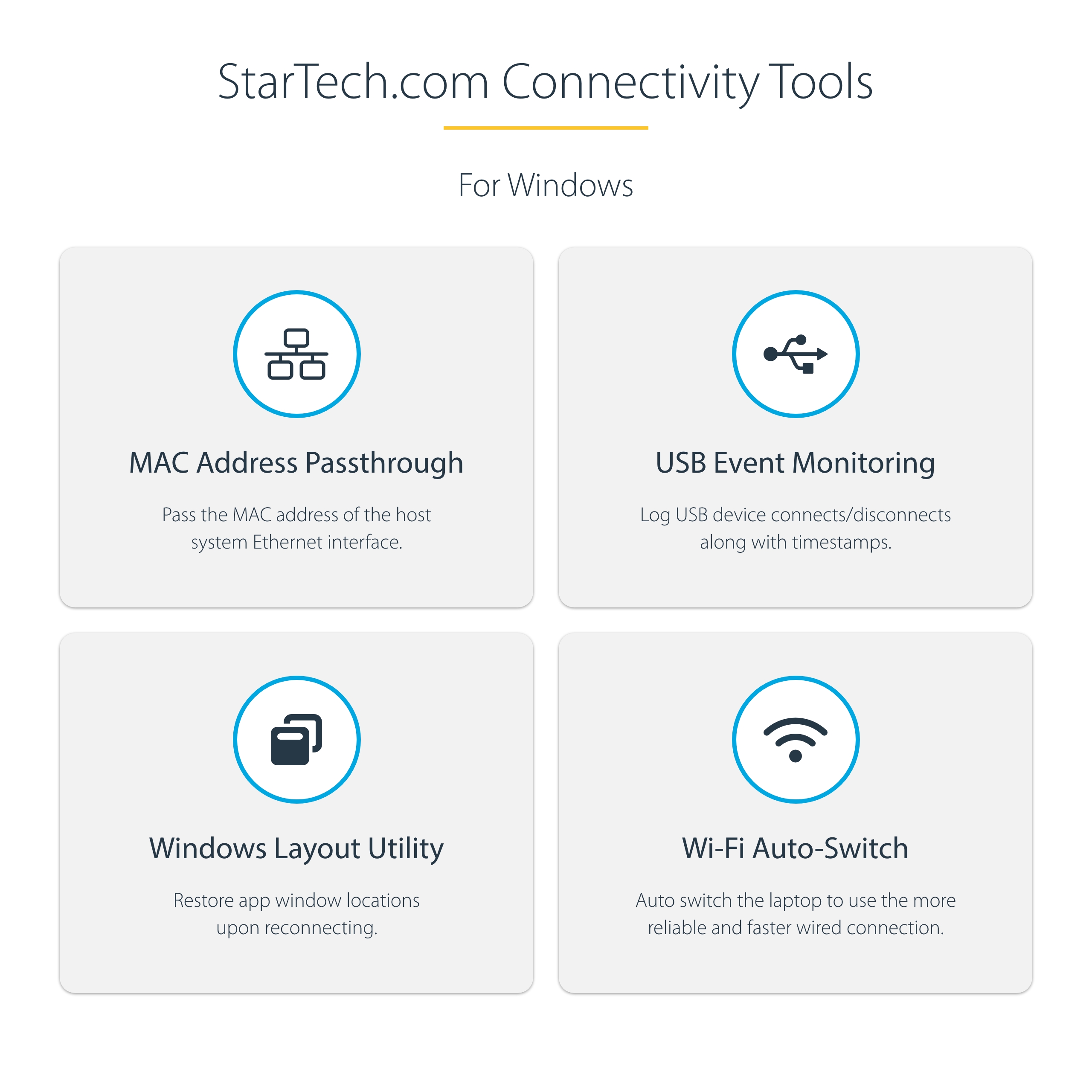

PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs - BC 1.2 (1.5A)
- USB-C (15W)
USB Speed - USB 3.2 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps)
USB Type and Rate - USB 5Gbps
- USB 10Gbps
Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Wake-On-LAN (WOL) Yes Audio Yes Bus Type - USB 3.2 Gen 1
- USB 3.2 Gen 2
Chipset ID - DisplayLink - DL6910
- Realtek - RTS5423
- Realtek - RTS5411T
- Realtek - RTL8153

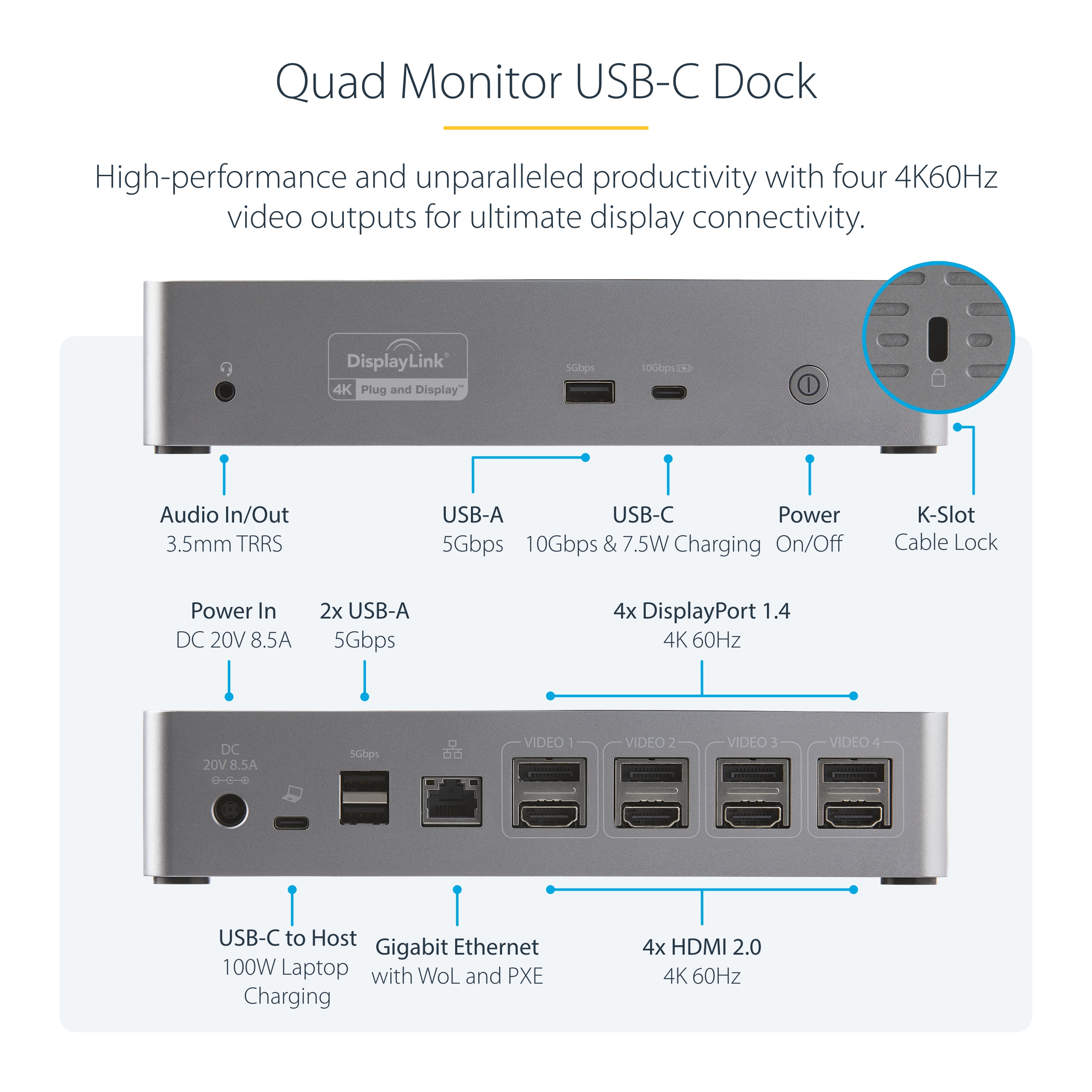

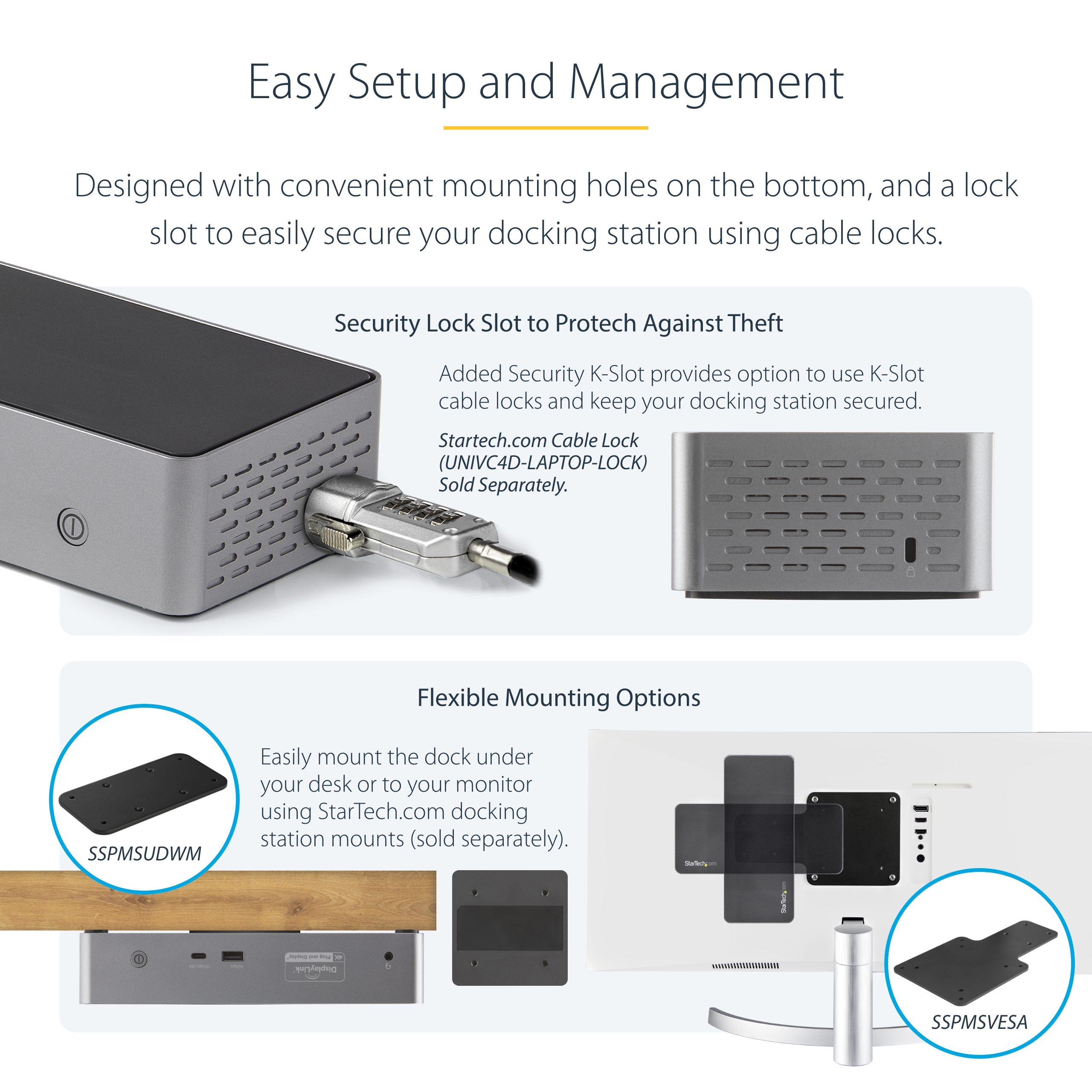

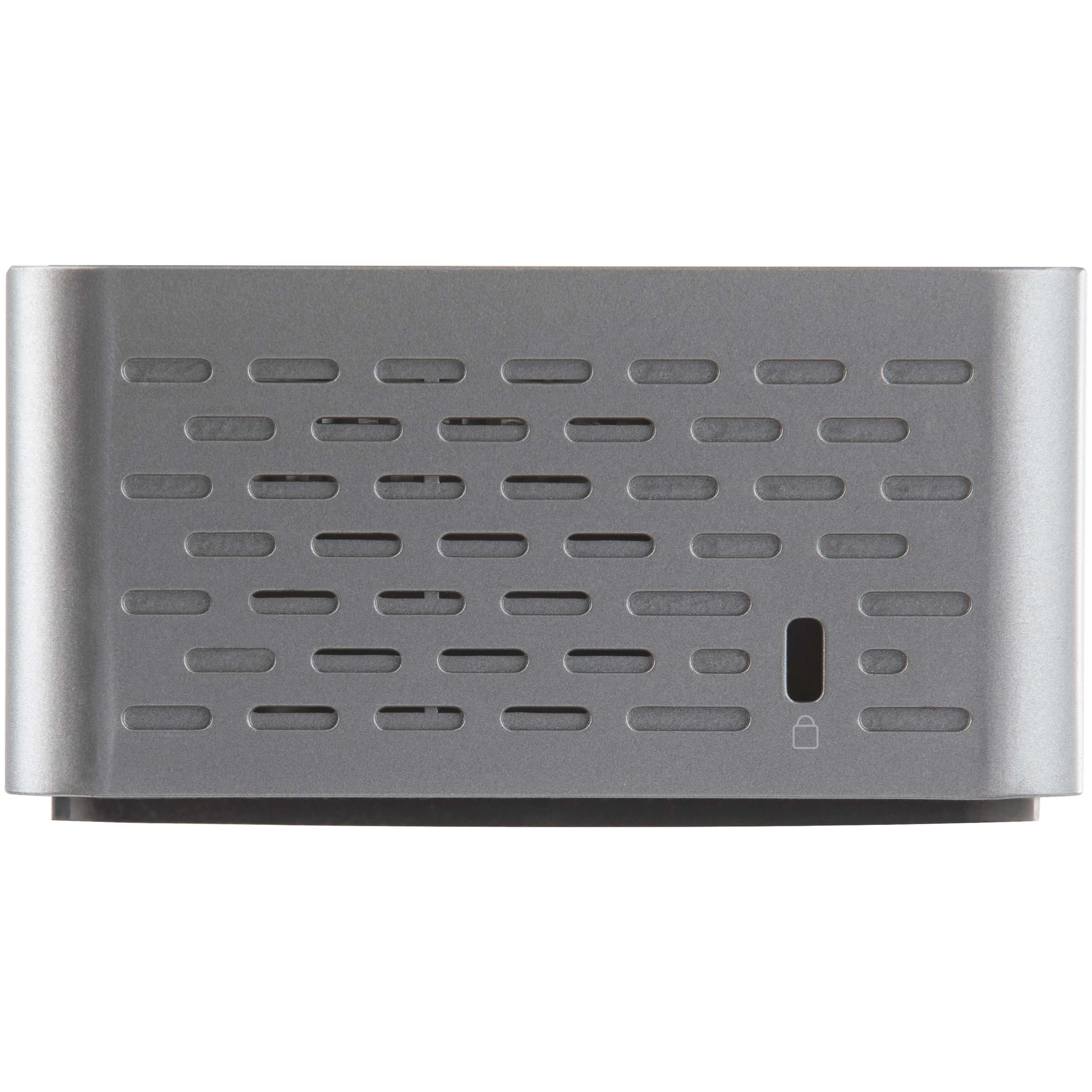

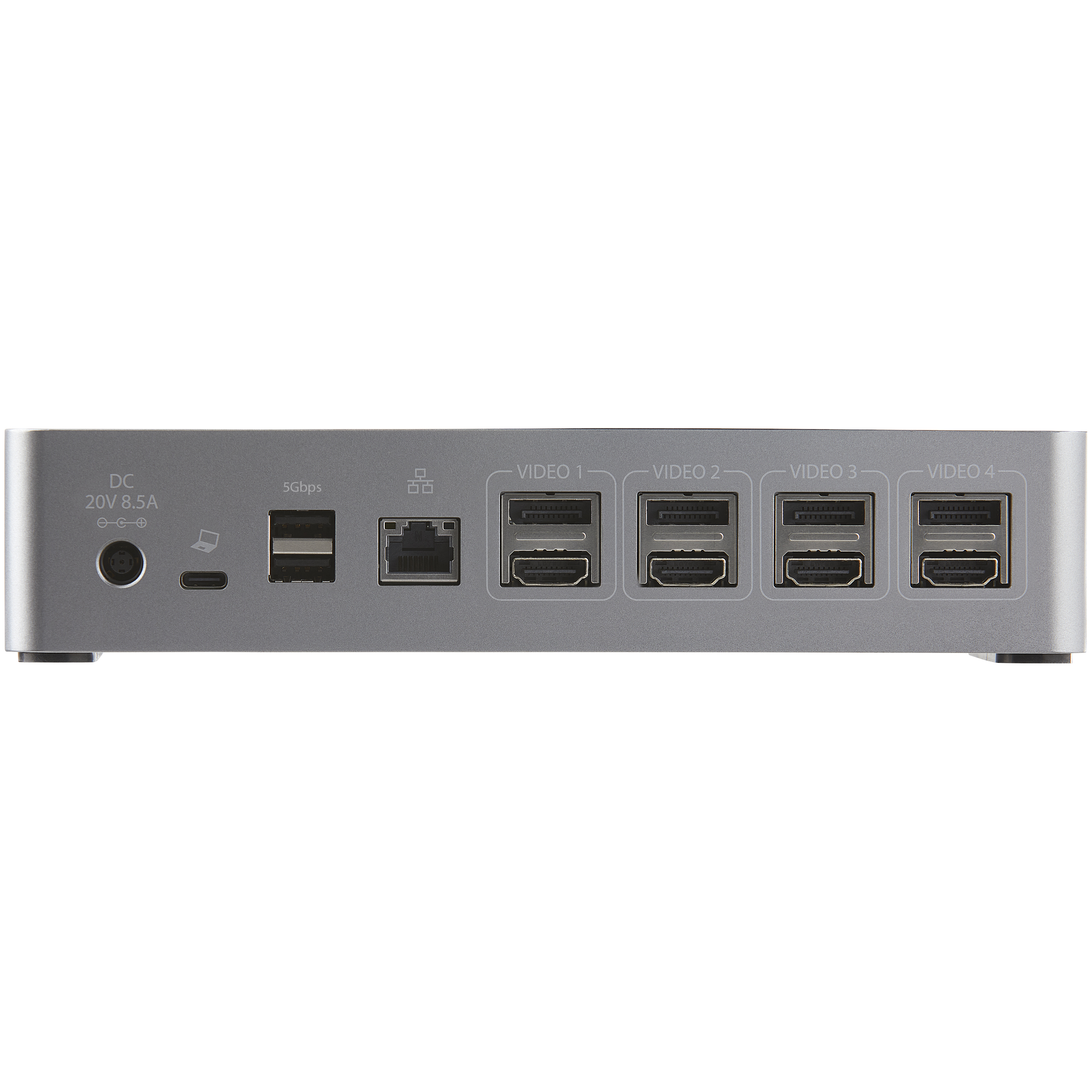

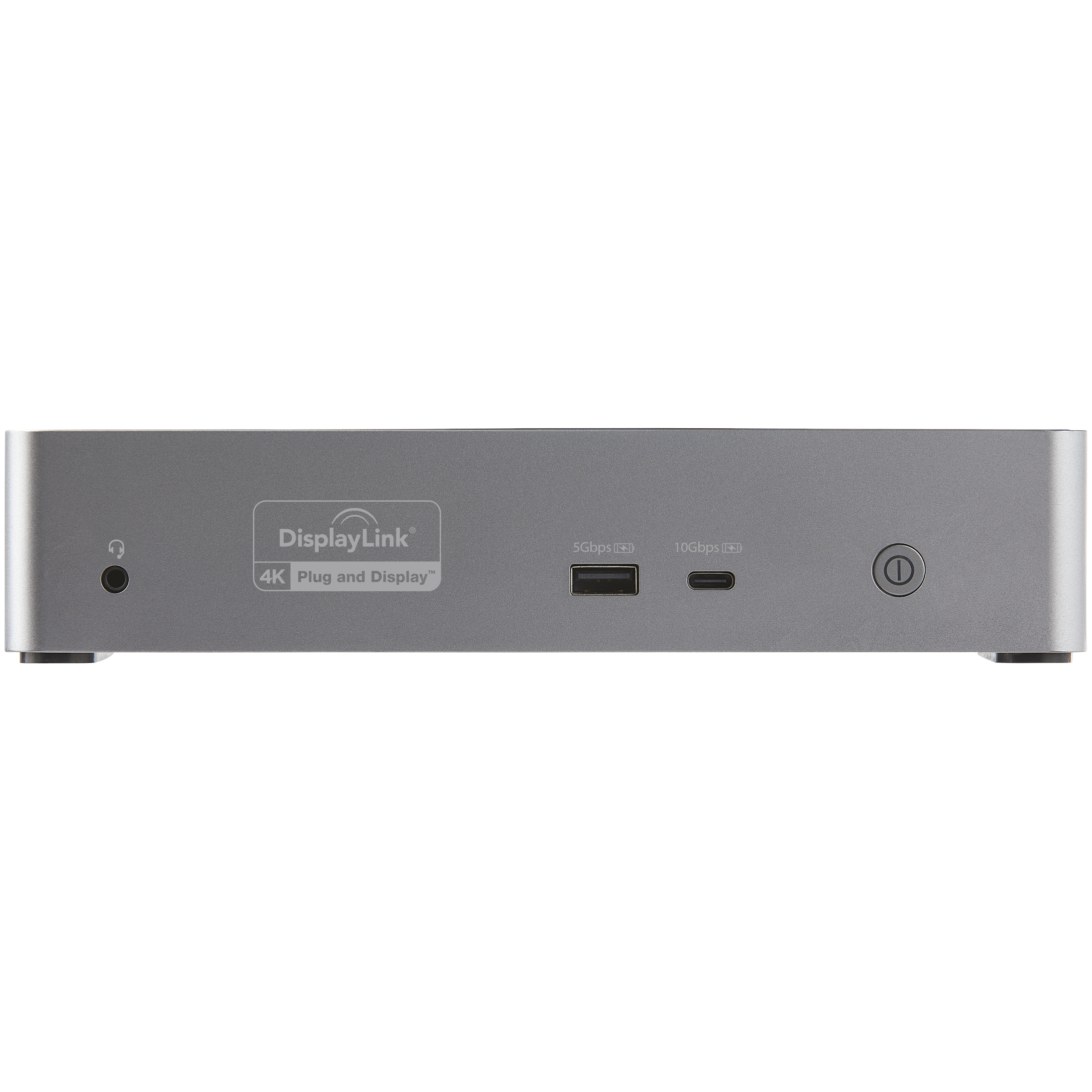

Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port USB-C Interface/Bridge USB 3.2 Gen 2 Laptop Dock 4K Support Yes Laptop Dock Number of Displays 4 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power On/Off Number of Battery Charge 1.2 Ports 2 Number of Displays 4 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

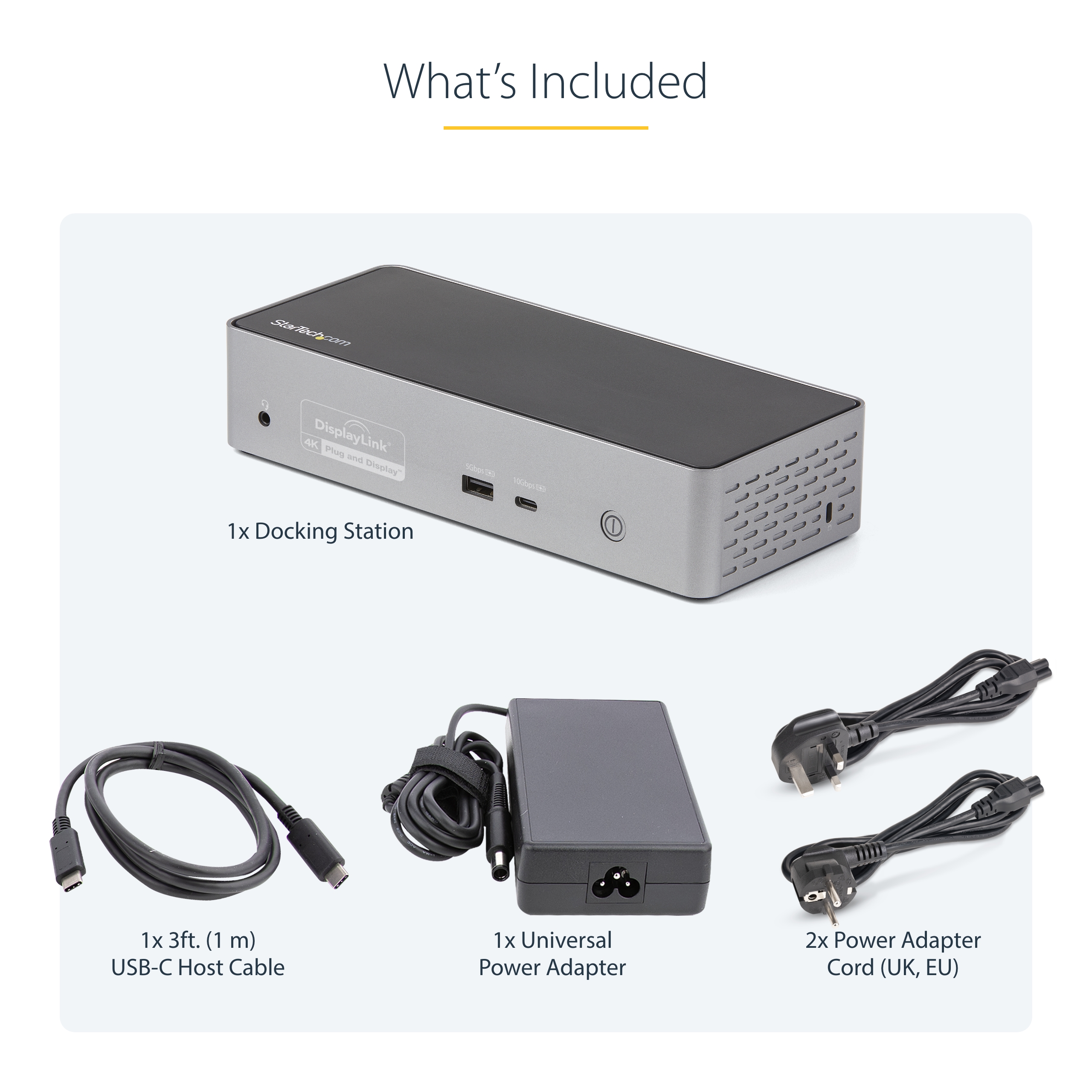

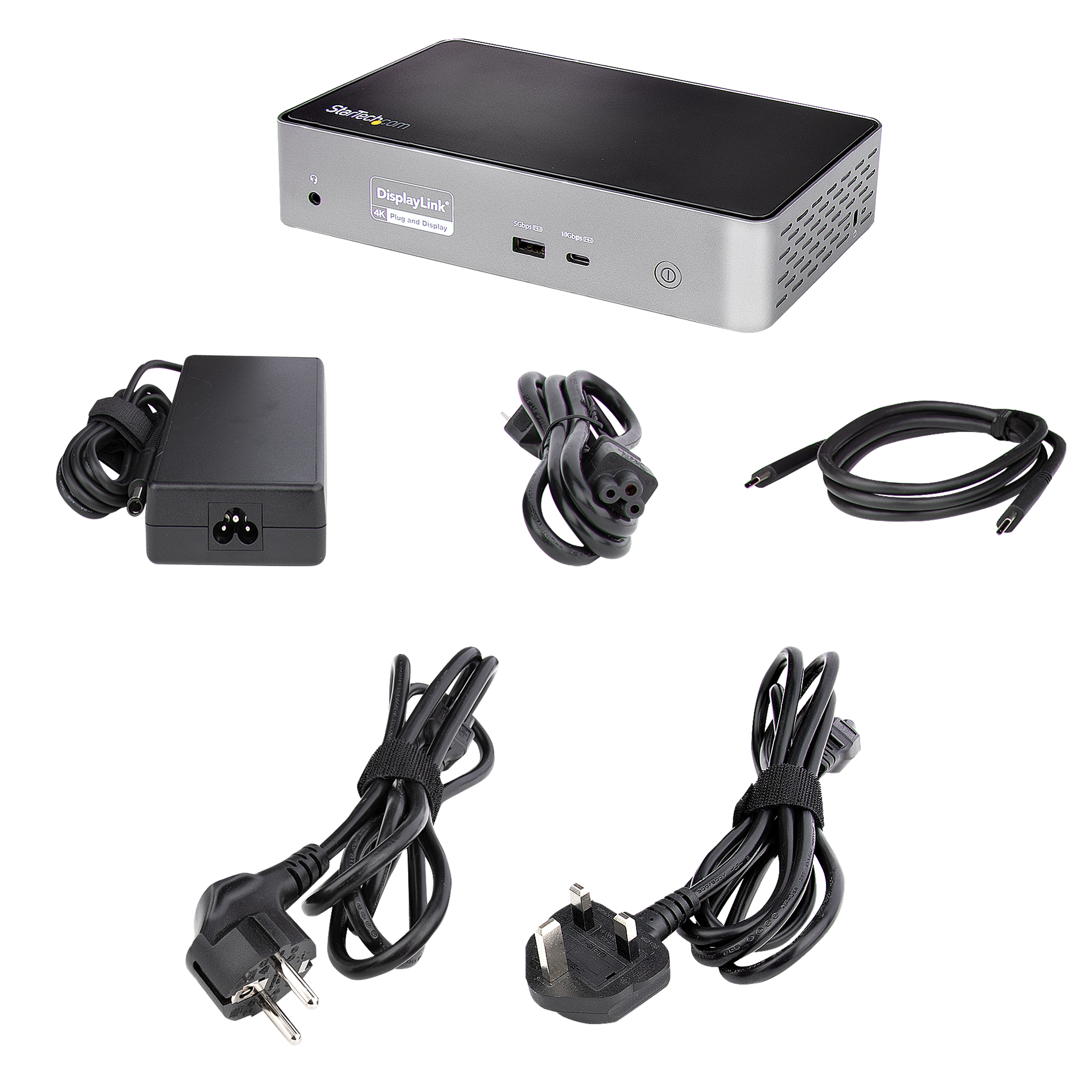

Carton Depth (mm) 240 Carton Height (mm) 160 Carton Quantity 4 Carton Weight Gross (g) 6634 Included in Package - 1 - Docking Station
- 1 - Host Cable
- 1 - Universal Power Adapter
- 2 - Power Adapter Cords (UK & EU)
- 1 - User Manual
Package Depth (mm) 145 Package Height (mm) 100 Package Width (mm) 233 Package Quantity 1 Package Weight (g) 1581 Packaging Description USB-C Quad-4K Dock - DP/HDMI - 100W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-06-07 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK Primary Technology - USB-C
- HDMI 2.0 / 4K 60 Hz and HDR
- USB 3.2 Gen 2 / 10Gbps
- Power Delivery
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Latest
