DKM30CHDPD
USB-C Single Monitor mini dock
Laptop Docking Station | Mac, Windows® & Chrome OS™ | 65W Power Delivery | DisplayPort (4K 30Hz) or VGA (1080p 60Hz)
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB-C Single Monitor mini dock Product Number DKM30CHDPD UPC 065030887038 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Single-Monitor Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Ultra-Short) USB C Dock DP or VGA Product Title (Short) USB C Dock, DisplayPort 4K 30/VGA/65W PD Product Title (Medium) USB C Dock, DisplayPort 4K30Hz or VGA, 65W PD3.0, 4-Port USB 5Gbps Hub, Ethernet Product Title (Standard) USB C Dock, USB-C to DisplayPort 4K 30Hz or VGA, 65W PD3.0, 4-Port USB 3.1 Gen 1 Hub, GbE, Universal Docking Station, TAA Product Title (Long) USB C Dock - USB-C to DisplayPort 4K 30Hz or VGA - 65W USB Power Delivery Charging - 4-Port USB 3.1 Gen 1 Hub - Universal USB-C Laptop Docking Station with Ethernet - TAA Product Title (AMZ) USB C Dock - USB-C to DisplayPort 4K 30Hz or VGA - 65W USB Power Delivery Charging - 4-Port USB 3.1 Gen 1 Hub - Universal USB-C Laptop Docking Station w/ Ethernet , TAA Title Ingram (Part 1) USB C Dock, DisplayPort 4K 30Hz Title Ingram (Part 2) or VGA/65W PD/4-Port USB Hub/GbE Website Product Headline Laptop Docking Station | Mac, Windows® & Chrome OS™ | 65W Power Delivery | DisplayPort (4K 30Hz) or VGA (1080p 60Hz) Bullet 1 PERFORMANCE: USB C Single Monitor mini dock with DisplayPort 1.2 4K 30Hz or VGA outputs, 3x USB-A (USB 3.1 Gen 1, 5Gbps with one BC 1.2 port), 1x USB-C (5Gbps), 65W Power Delivery 3.0, 3.5mm Headset/Audio port & Gigabit Ethernet (PXE Boot & WoL) Bullet 2 VERSATILE & COMPACT: USB C Docking Station with DisplayPort or VGA offers variety of monitor options for single video workstations - The USB C Mini Dock has a small footprint (145mm x 91mm) which takes up less space but provides essential connectivity Bullet 3 SCREW-LOCKING CABLE: This mini dock features side & top screw locking host port on the dock - Incl. detached 1m USB-C screw locking cable prevents cables from going missing and being easily disconnected from Host - Nano & Regular K-Slot for added security Bullet 4 EASY SETUP: No driver installation required - Various mounting options in small workspaces (SSPMSUDWM or SSPMSVESA sold separately) - Isolated HID USB port prevents electromagnetic interference (EMI) on your wireless keyboard & mouse adapters Bullet 5 WIDE COMPATIBILITY: Fully compatible with USB-C Laptops, Ultrabooks & Chromebooks, plus Thunderbolt 3 laptops from HP, Dell, Lenovo, Surface and MacBooks (Intel processor and M1 chip) - Works with Windows, macOS, iPadOS, Android and Chrome OS Bullets (Compact) USB C Mini Dock with DP 1.2 4K 30Hz or VGA/3x USB-A 5Gbps/BC 1.2/1x USB-C 5Gbps data/65W PD/Audio/GbE/Isolated HID USB port - Small footprint (145mmx91mm); Mounting options (Sold Separately) - Incl. 1m USB-C screw locking cable - K-Slots for security Bullets (Consolidated) USB C Mini Dock w/DP 1.2 4K 30Hz or VGA - 3x USB-A 3.1 5Gbps | BC 1.2 support | 1x USB-C 5Gbps data | 65W PD 3.0 | 3.5mm Audio | Gigabit Ethernet/PXE Boot/WoL | Isolated HID USB port - Small footprint (145mmx91mm) w/essential connectivity; Mounting options (SSPMSUDWM or SSPMSVESA Sold Separately) - Incl. detached 1m USB-C screw-lock cable prevents disconnections/missing cables; K-Slots for security - No driver installation - Windows/macOS/iPadOS/Android/Chrome - Connectivity Tools App incl Marketing Copy Marketing Copy (No HTML) Applications - Home office IT deployment, where VGA or DisplayPort monitors may be used by different users
- Charge your tablets and smartphones from the B.C 1.2 USB-A port
Website Search Keyword - 4k docking station
- 4k docking station for laptops
- 4k usb c dock
- displayport docking station
- dock usb c displayport
- docking station power delivery
- docking station with power delivery
- dp docking station
- laptop charging docking station
- laptop docking station
- laptop port replicator
- mini dock
- mini dock usb c
- mini docking station for laptop
- mini docking station usb c
- mini usb c dock
- thunderbolt 3 dock
- thunderbolt 3 docking station
- thunderbolt 3 laptop docking station
- type c dock
- type c docking station
- universal docking station
- universal usb c dock
- universal usb c docking station
- usb 3.0 dock
- usb 3.1 dock
- usb 3.1 docking station
- usb 3.1 gen 1 dock
- usb 3.1 gen 1 type c dock
- usb 3.1 type c dock
- usb 3.1 type c docking station
- usb c 4k docking station
- usb c displayport dock
- usb c displayport docking station
- usb c dock
- usb c dock audio
- usb c dock displayport
- usb c dock displayport ethernet
- usb c dock DP
- usb c dock ethernet
- usb c dock power delivery
- usb c dock VGA
- usb c dock with charging
- usb c dock with displayport
- usb c dock with ethernet
- usb c dock with PD
- usb c dock with power
- usb c dock with power delivery
- usb c dock with VGA
- usb c docking station
- usb c docking station displayport
- usb c docking station ethernet
- usb c docking station with displayport
- usb c docking station with power
- usb c fast charging dock
- usb c laptop dock
- usb c laptop docking station
- usb c mini dock
- usb c mini docking station
- usb c port replicator
- usb c thunderbolt 3 dock
- usb c to displayport dock
- usb c to vga dock
- usb c vga dock
- usb type c dock
- usb type c docking station
- usb type c mini dock
- usb type c port replicator
- usb-c docking station
- usb-c docking station with power delivery
- usb-c mini docking station
- vga docking station
- asus mini dock usb c
- chromebook dock
- chromebook docking station
- dell docking station usb c
- dell mini usb c dock
- dell usb c dock
- dell usb c mini dock
- dell xps 15 docking station
- google pixel dock
- hp docking station usb c
- hp mini dock
- hp usb c dock
- ipad pro dock
- ipad pro docking station
- lenovo mini dock
- lenovo mini usb c dock
- lenovo usb c dock
- macbook air docking station
- macbook displayport dock
- macbook dp dock
- macbook pro 2019 docking station
- macbook pro dock
- macbook pro docking station
- macbook pro mini dock
- macbook pro usb c dock
- macbook usb c dock
- macbook vga dock
- microsoft surface dock
- microsoft surface docking station
- samsung dex dock
- samsung galaxy dock
- samsung galaxy docking station
- surface dock
- surface docking station
- surface pro 3 docking station
- surface pro 4 docking station
- surface pro 6 docking station
- surface pro 7 docking station
- surface pro dock
- surface pro docking station
- surface usb c dock
- usb c dock macbook pro
- usb c hub displayport power delivery
- usb c hub with displayport and ethernet
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery and DP alt mode). Related Products - DKT30CHSDPD
- DKT30CMHSDPD
- CDP2HDUACP
- CDP2HDUACPW
- CDP2VGAUACP
- DK30A2DH
- DK30C2DAGPD
- DK30C2DPEP
- DK30C2DPPD
- DK30C2HAGPD
- DK30CH2DEP
- DK30CH2DPPD
- DK30CHDDPPD
- DK30CHDPD
- DK31C3HDPD
- DKT30CDVPD
- DKT30CHCPD
- DKT30CHD
Constrained SKU Alternatives (Limited Stock) DKT31CHDVCM Equivalent Part Number in the EU DKM30CHDPDUE Equivalent Part Number in the UK DKM30CHDPDUE Input Current 2.9 A Input Voltage 110V-240V AC Output Current 6.15 A Output Voltage (V) 19.5V DC Power Consumption (In Watts) 119.925 Power Delivery 65W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Space Gray Humidity 0~85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 91.000 Product Width (mm) 145.000 Product Height (mm) 27.000 Product Weight (g) 313.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 11
- Windows 10
- Windows 8.1
- Windows 8
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Monterey (12.0)
- macOS Sierra (10.12)
- Chrome OS
- Android
- Linux
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- iPadOS
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes Supported Charging Outputs BC 1.2 (1.5A) UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Video Output Port - DisplayPort
- DVI
Video Transport Technology USB-C (DP Alt-Mode) Wake-On-LAN (WOL) Yes Audio Yes Bus Type USB 3.2 Gen 1 Chipset ID - Genesys Logic - GL3523-S
- Cmedia - CM6533
- Realtek - RTL8153B
- Etron - EJ279S
- Parade - PS8338B
- ITE - IT6516BFN
Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port USB-C Interface/Bridge USB 3.2 Gen 1 Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power LED (White) Number of Battery Charge 1.2 Ports 1 Number of Displays 1 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
USB Port Type - USB-C
- USB-A

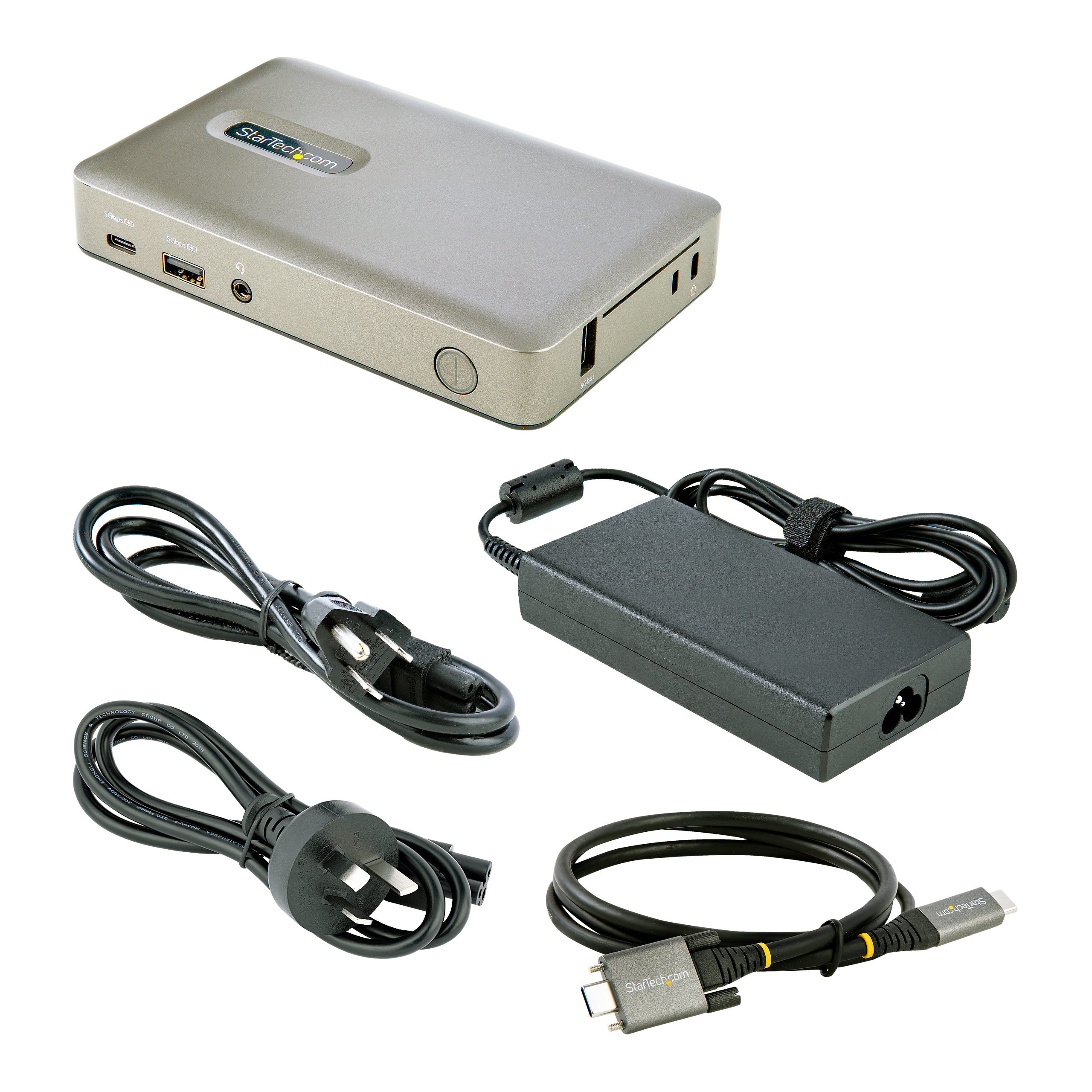

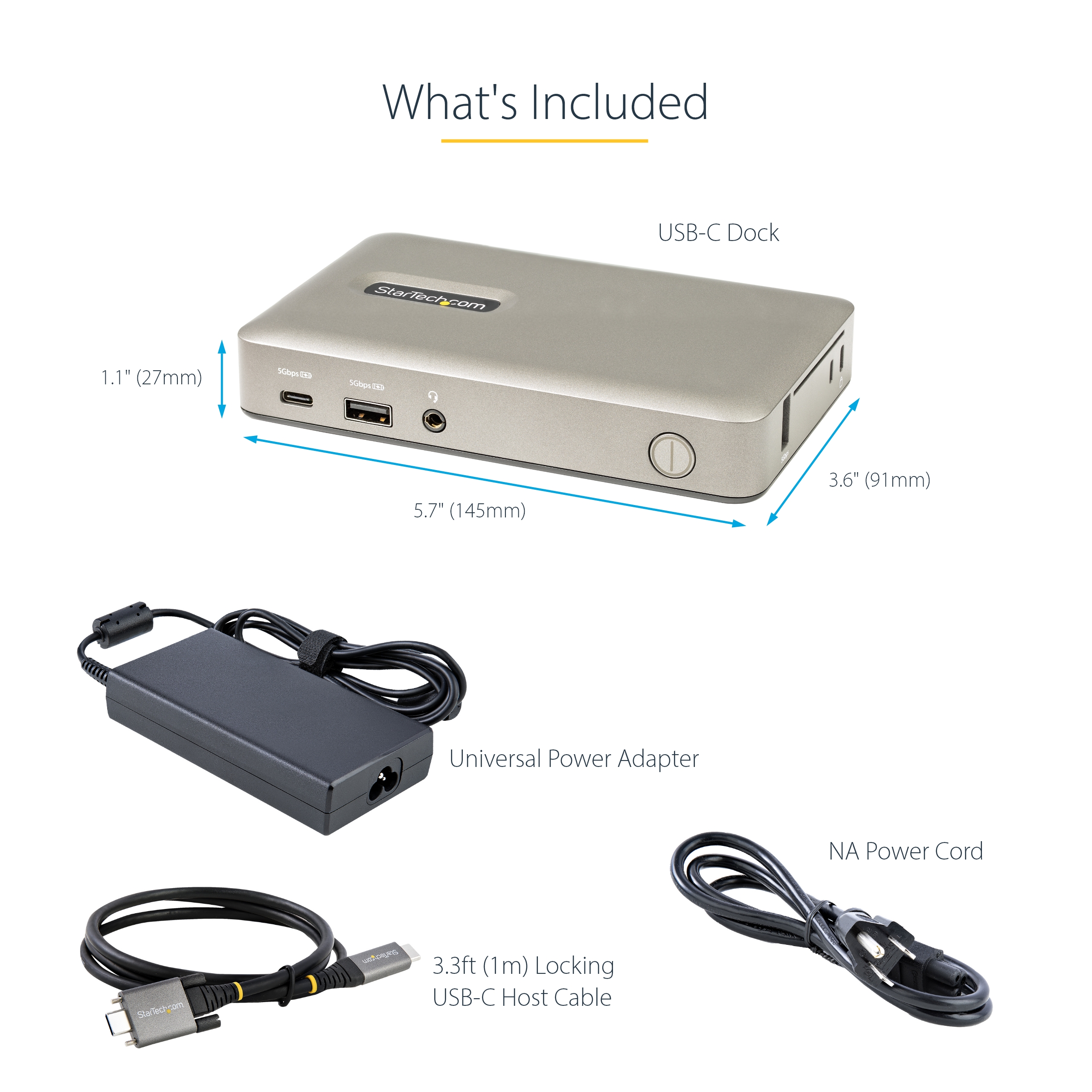

Carton Depth (mm) 370 Carton Height (mm) 500 Carton Quantity 10 Carton Weight Gross (g) 14200 Included in Package - 1 - USB-C Dock
- 1 - Quick-Start Guide
- 1 - Universal Power Adapter (NA/JP, ANZ)
- 1 - 3.3 ft [1 m] Locking USB-C Host Cable

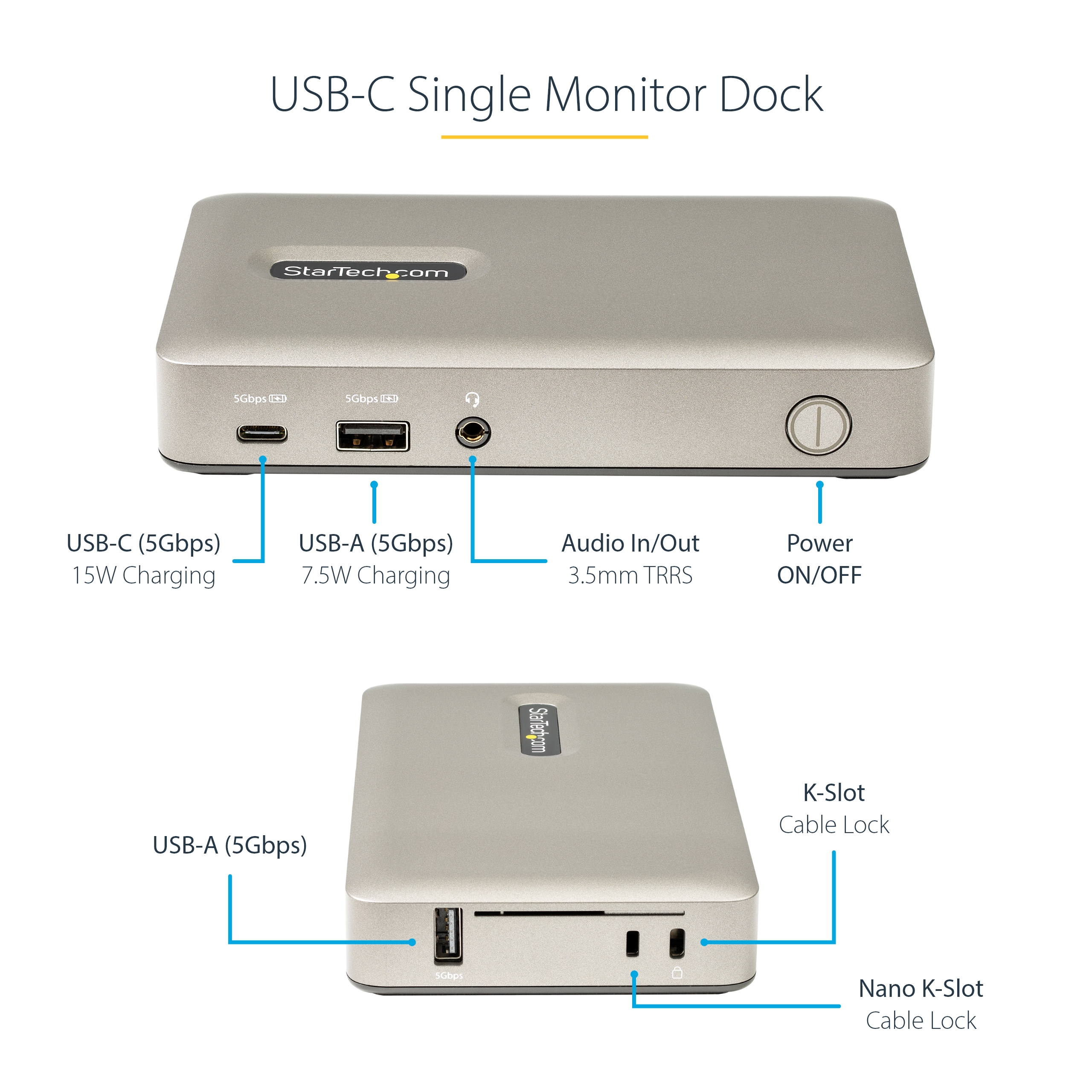

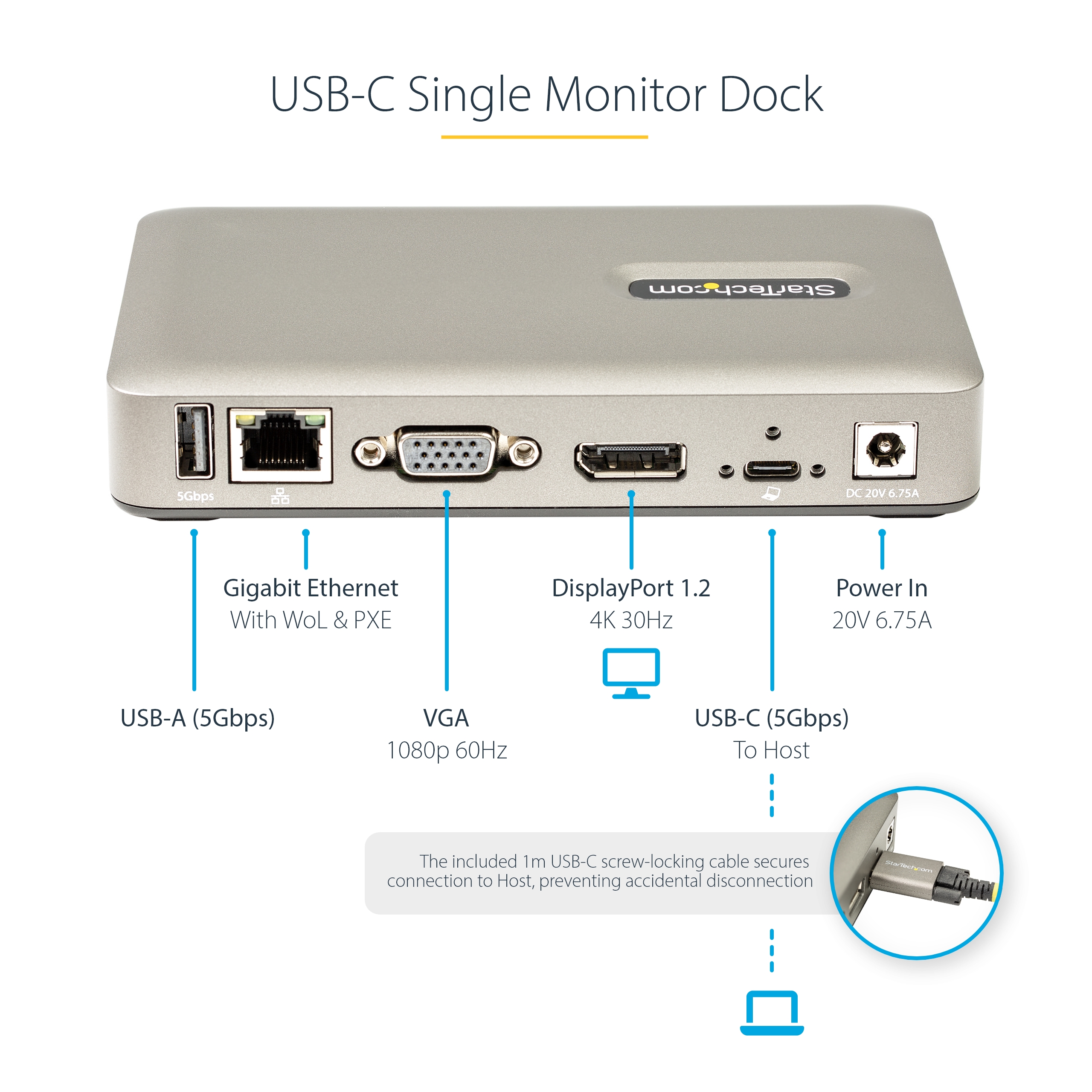

Package Depth (mm) 173 Package Height (mm) 97 Package Width (mm) 253 Package Quantity 1 Package Weight (g) 1358 Packaging Description USB-C™ Single Monitor Dock - DP/VGA - 65W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Host Connector 1 USB-C (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (5Gbps, 4.5W) Host Connector 2 (Quantity) 3 Host Connector 3 3.5mm (4 Conductors, TRRS) Host Connector 4 RJ-45 Host Connector 5 VGA Host Connector 6 DisplayPort Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Not Required Artwork Due Date 2021-03-21 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2021-12-14 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AU,CA,JP,MX,NZ,US Primary Technology - USB-C
