DKM31C3HVCPD
Triple Monitor Mini Docking Station Based on PWC Feedback
Portable Docking Station | Up to 4K 60Hz HDMI | VGA | GbE | Thunderbolt™ 3 & 4 Compatible
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Product Name Triple Monitor Mini Docking Station Based on PWC Feedback Product Number DKM31C3HVCPD UPC 065030887014 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-C Multiport Adapters Category Level 3 USB-C Multiport Adapters - 10Gbps Family USB-C Multiport Adapters - 10Gbps - Dual Video Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) USB-C Mini Dock Product Title (Short) USB-C Multiport Adapter/Hub, 4K HDMI/VGA Product Title (Medium) USB-C Multiport Adapter w/USB-C Video/4K HDMI/VGA, Dual Monitor Docking Station Product Title (Standard) USB-C Multiport Adapter w/USB-C DP Alt Mode Video/4K HDMI/VGA, USB-C Dual Monitor Docking Station, Mini Dock/MST Hub, TAA Product Title (Long) USB-C Dual Monitor Multiport Adapter up to 4K 60Hz USB-C DP Alt Mode Video Output & HDMI 2.0, or 1080p VGA, 100W PD Pass-Through, USB Type C Mini Dock, USB-C Docking Station, MST Hub - TAA Product Title (AMZ) USB-C Docking Station for Windows and ChromeOS, Dual Monitor 4K 60Hz USB-C / HDMI or 1080p VGA, HDR10, USB 10Gbps Hub, 100W Laptop Charging, GbE - TAA Title Ingram (Part 1) USB-C Multiport Adapter w/USB-C Title Ingram (Part 2) DP Alt Mode Video - 4K HDMI/VGA Website Product Headline Portable Docking Station | Up to 4K 60Hz HDMI | VGA | GbE | Thunderbolt™ 3 & 4 Compatible Bullet 1 DUAL MONITOR MULTIPORT ADAPTER: Multi monitor 4K UHD mini dock with USB-C DP Alt mode video output, HDMI 2.0b, or VGA, 2 x USB-A hub, 100W USB-C PD Pass-Through (80W laptop charging), Gigabit Ethernet; USB-C video port also supports USB 10Gbps data Bullet 2 USB-C VIDEO OUTPUT: USB-C hub with downstream USB-C port (video + 10Gbps data) supports USB-C or desktop monitors; NOTE: Host system must support USB-C Power Delivery and DP alt mode. For a multi-monitor configuration, the computer must support MST Bullet 3 VIDEO PERFORMANCE: Dual Monitor support up to 1 x 4K 30Hz & 1 x 1440p 60Hz through USB-C & HDMI with Intel 11th Gen DP 1.4 Alt Mode or higher Processors & Discreet GPU, Works w/DP 1.2 laptops supporting 2x 1080p; Single display on Apple M1/M2/M3 Pro/Max Bullet 4 RELIABLE PERFORMANCE: Adapter is designed to bus power the portable USB-C monitor upto 12W; 100W USB-C PD Pass-Through w/20W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs Bullet 5 OUR ADVANTAGE: Includes IT Pro Connectivity Tools to improve network performance and security - featuring MAC Address passthrough, USB Event Monitoring, Windows Layout, and Wi-Fi Auto Switch; Works w/ USB-C, Thunderbolt 3/4, Windows, Linux, ChromeOS Bullets (Compact) USB-C Multiport Adapter to 4K60Hz HDMI 2.0/USB-C DP 1.4 Alt Mode/1080p VGA (GPU dependent) - 2x USB-A 3.2 Gen 2 10Gbps hub | Gb Ethernet | 100W Power Delivery charging - 10in cable - Compact Type-C Travel Digital AV Mini docking station - Win/Chrome Bullets (Consolidated) USB-C Multiport Adapter w/multi video via MST DP 1.4 Alt Mode - Discrete DP 1.4 GPU: 1x 4K 60Hz HDMI or USB-C DP Alt Mode video/2x 4K 30Hz HDMI + USB-C | Integrated DP 1.4 GPU: 1x 4K 30Hz HDMI or USB-C/1x 4K 30Hz + 1x 1080p 60Hz | DP 1.2 GPU: 1x 4K 30Hz HDMI or USB-C/2x 1080p - 2pt USB 10Gbps Hub | 1080p VGA - USB Type-C port for USB-C display or 10Gbps USB - 100W USB PD Pass-Through (88W charging) | GbE Marketing Copy Marketing Copy (No HTML) Applications - Connect a portable USB-C monitor as an extended display during on-the-go travel between your office desk, home office, hotel desk, or the boardroom
- Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA port(s) to connect external monitor(s)
- Charge your tablets and smartphones from the 10W USB-C port

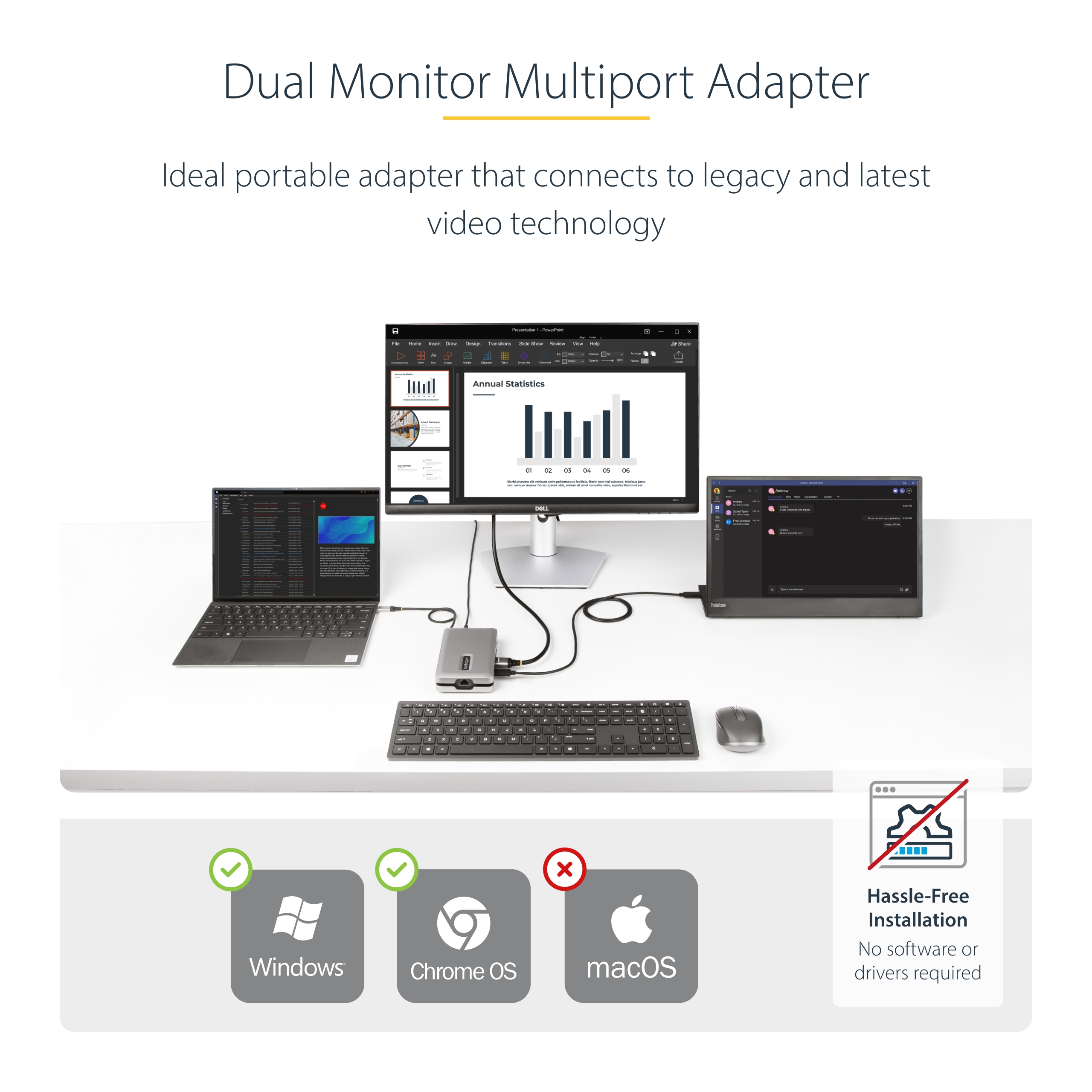

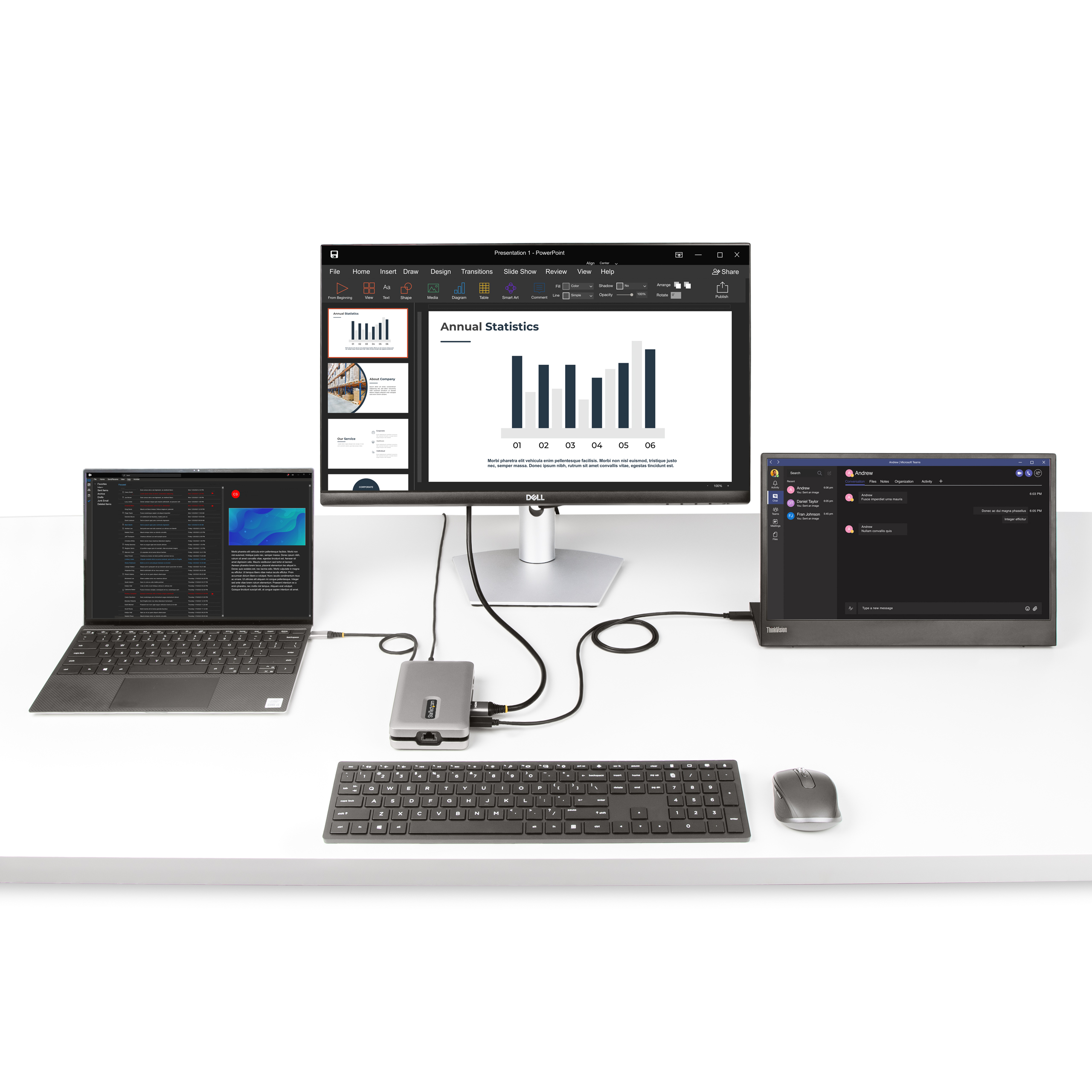

- Home office IT deployment, ideal for traveling between the home and office
Website Search Keyword - mst docking station
- mst hub
- triple monitor docking station
- usb-c compact docking station
- usb-c docking station with power delivery
- usb-c hub multiport adapter
- usb-c mobile adapter
- usb-c multiport adapter
- usb-c to hdmi 2.0 adapter
- usb-c to vga multiport adapter
- usb-c travel docking station
- apple
- apple M3
- M3 Pro
- M3 Max
- Apple M3 Pro
- Apple M3 Max
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
- The adapter can connect to USB-C ports that don't support USB PD. PD will not occur without a connection to a PD capable USB-C port. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
- A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
- A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
- USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode).
- For a multi-monitor configuration, the computer must support MST
- Optional: USB-C power adapter (e.g., your laptop's USB-C based power adapter).
Accessory Products - HDDVIMF8IN
- HDMM1MP
- HDMIDVIMF
- HDMM2MP
- 45PATCH10WH
- RJ45PATCH10
- N6LPATCH10BK
- WCH1C
- WCH1CEU
- WCH1CUK
- 45PATCH25WH
- 45PATCH25GR
- 45PATCH25BK
- HDMM6
- HDMM10
- HDMM15
- HD2DPVGADVI
- HD2VGAMICRO
- MXT101MM
- MXT101MMHQ
- MXT101MM10
- CDP2HD4K60H
- USBC-HDMI-CDP2HD4K60
- CDP2DPEC
- CDP2DVIEC
- CDP2VGAEC
- HDMMV2M
Related Products - DKT30CHPD
- DKT30CSDHPD
- DKT30CHV
- DKT30CDVPD
- CDP2VGAUACP
- CDP2HDUACP
- 115B-USBC-MULTIPORT
- DK30BACDD
- USB3SMDOCKHV
- DKT30CHPDW
- USB31GEHD
- USB3SMDOCKV
- CDP2HDUACPW
- DKT30CHD
- MST30C2DPPD
- CDPVGDVHDBP
- CDPVGDVHDB
- CDPVGDVHDMDP
- DKT30CHSDPD1

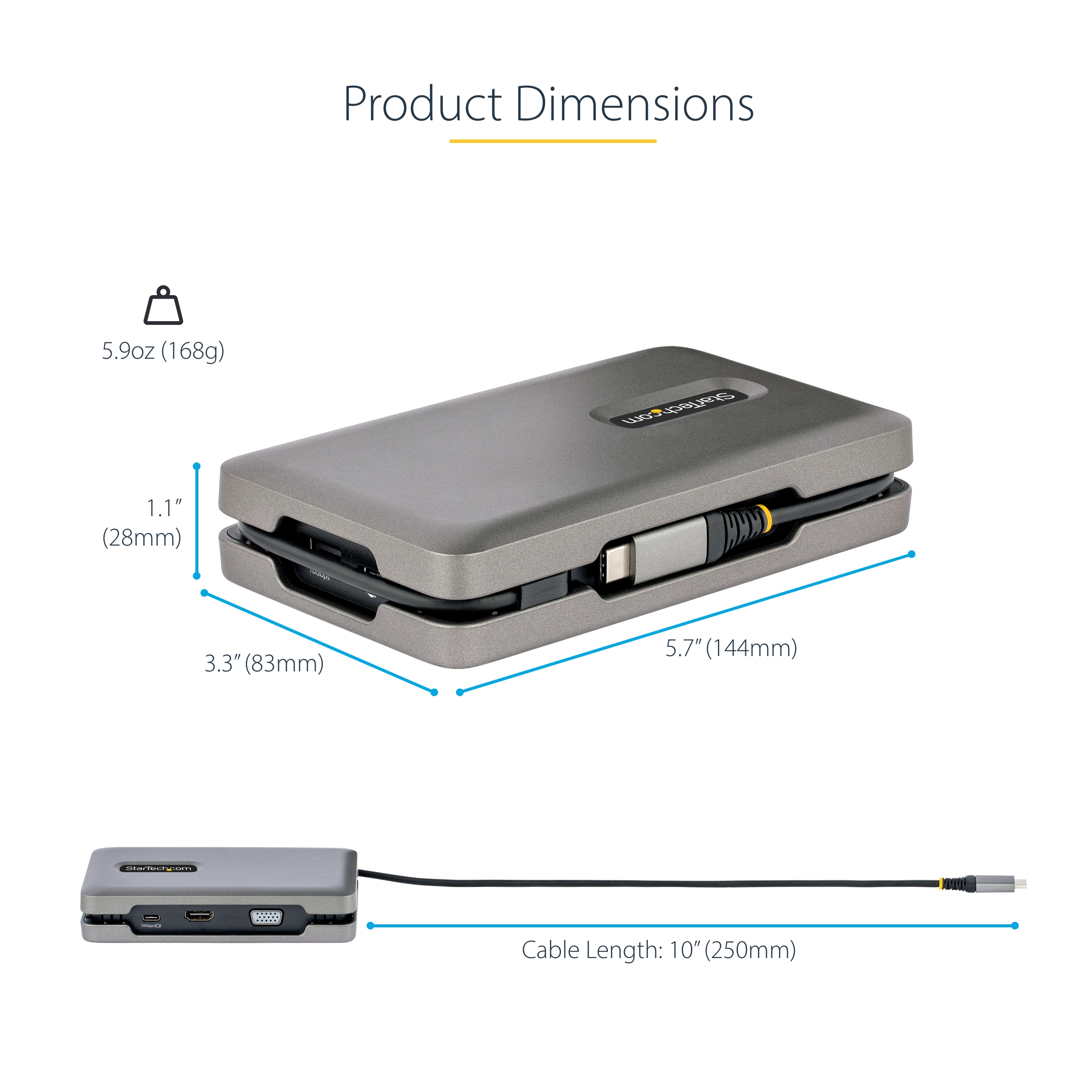

Constrained SKU Alternatives (Limited Stock) DKT31CHDVCM Output Voltage (V) 5 DC Power Consumption (In Watts) 20W Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Cable Length (mm) 250 Color Space Gray Humidity <90% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 144.000 Product Width (mm) 83.000 Product Height (mm) 28.000 Product Weight (g) 168.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Full Duplex Support Yes General Specifications Maximum Laptop Charging: 80W Maximum Data Transfer Rate 10Gbps Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 40,030 Hours OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Chrome OS
- Windows 11 ARM
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch

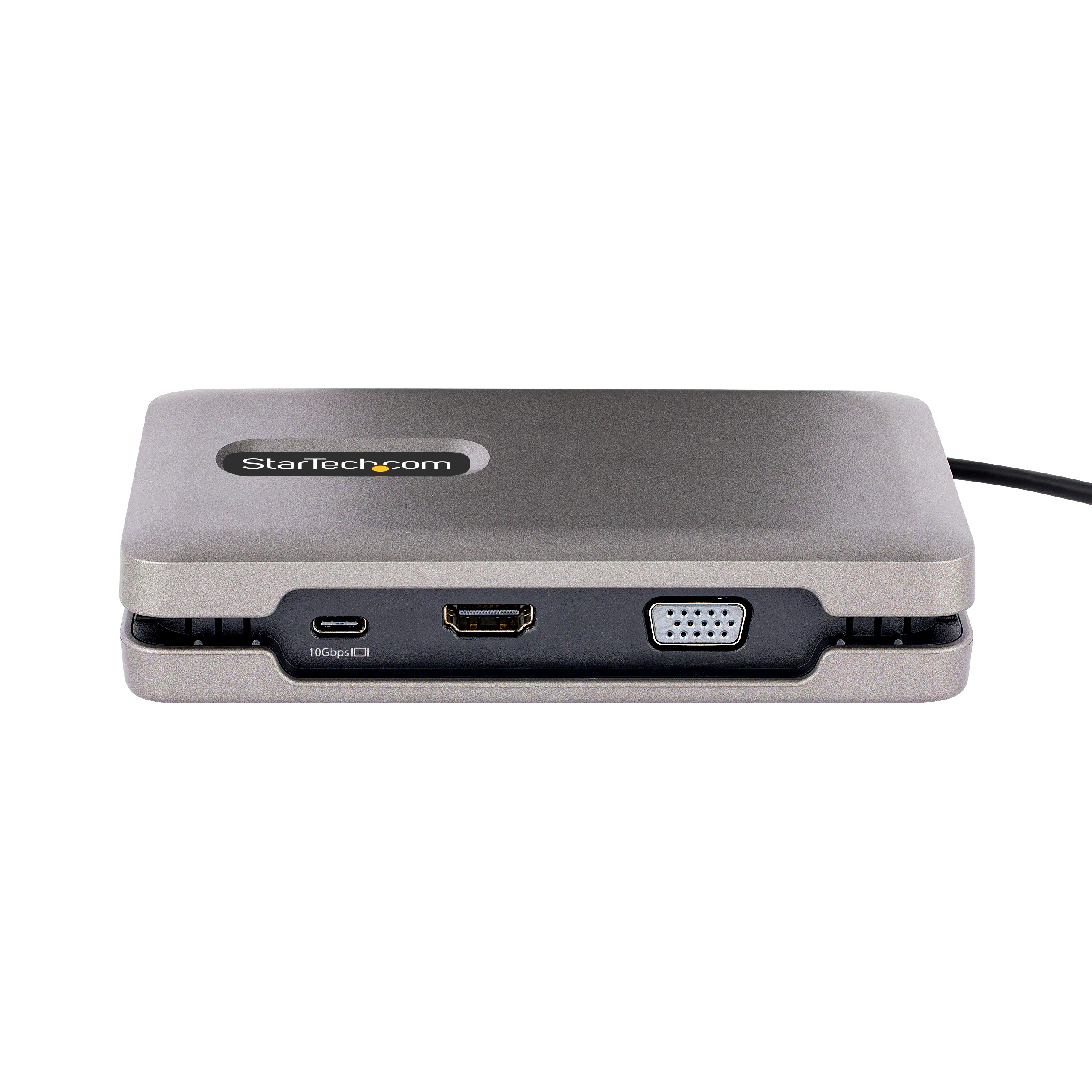

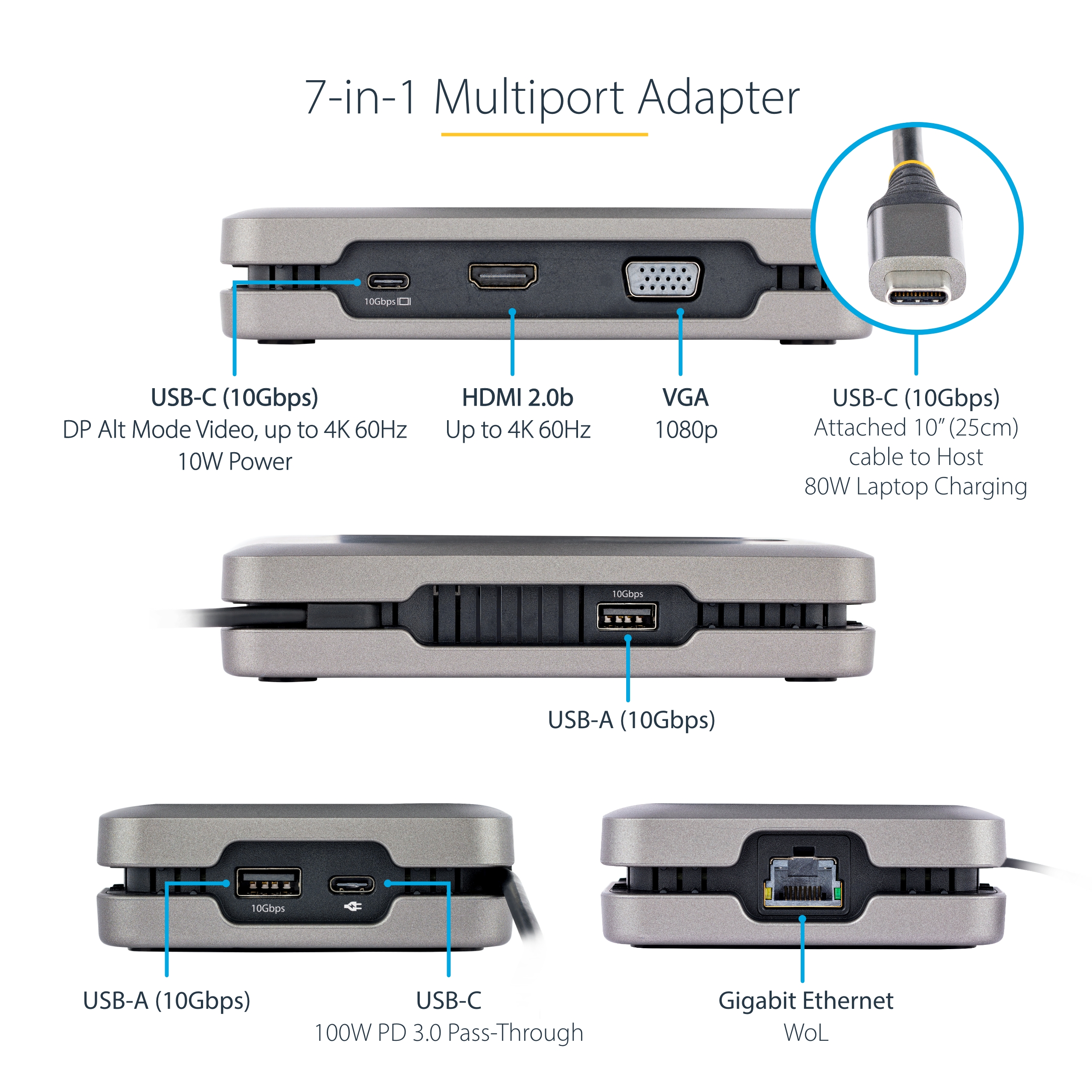

UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Video Output Port - HDMI
- VGA
- USB-C (DP Alt-Mode)
Video Transport Technology USB-C (DP Alt-Mode) Wake-On-LAN (WOL) Yes Bus Type USB-C Chipset ID - Genesys Logic - GL3590
- Genesys Logic - GL9510-UFP
- Genesys Logic - GL9510-DFP
- Realtek - RTD2142
- Realtek - RTL8153
Host Connection Port USB-C Industry Standards - HDMI 2.0b
- HDR10
- DisplayPort 1.4
- USB 3.2 Gen 2 (10Gbps)
- USB Power Delivery Specification Rev. 3.0
Interface/Bridge USB 3.2 Gen 2 (10 Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Network Link LED
- 1 - Network Activity LED (Amber)
Number of Displays 2 Other Ports Gigabit Ethernet USB Port Type USB-A, USB-C Carton Depth (mm) 425 Carton Height (mm) 330 Carton Quantity 20 Carton Weight Gross (g) 5850 Included in Package - 1 - Docking Station
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Docking Station
- 1 - Quick-Start Guide
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 262 Packaging Description USB-C™ 10Gbps Triple Monitor Mini Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2021-09-09 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Gen 1 / Dual HDMI / 2 x 1080p / WIN only / 1m Detached cable Comparable SKU 2 Comment Gen 1 / Dual HDMI / up to Dual 4K 60Hz / WIN & Chrome / SD Digital Content Due Date 2022-06-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology - USB-C
- HDMI 2.0 / 4K 60 Hz and HDR
- USB 3.2 Gen 2 / 10Gbps
- Power Delivery
Priority New Product 1 Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2021-08-27 Target Production Release 2022-04-01 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
