DKT30CHD
USB-C Adapter - With 4K HDMI, GbE, USB-C, USB-A
Portable Docking Station | Windows® & Mac | 4K | GbE | TAA Compliant
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name USB-C Adapter - With 4K HDMI, GbE, USB-C, USB-A Product Number DKT30CHD UPC 065030868266 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-C Multiport Adapters Category Level 3 USB-C Multiport Adapters - 5Gbps Family USB-C Multiport Adapters - 5Gbps - Single Video - <6 ports Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) USB C Adapter - HDMI Product Title (Short) USB C Multiport Adapter 4K HDMI/GbE/USB Product Title (Medium) USB C Adapter - USB-C Multiport Adapter - 4K HDMI - GbE - USB-C - USB-A Product Title (Standard) USB C Multiport Adapter, Portable USB Type-C Mini Dock to 4K UHD HDMI Video, GbE, USB 3.0 Hub, Thunderbolt 3 Compatible, TAA Product Title (Long) USB C Multiport Adapter - Portable USB-C Mini Dock 4K HDMI Video - Gigabit Ethernet, USB 3.0 Hub (1x USB-A 1x USB-C) - USB Type-C Multiport Adapter - Thunderbolt 3 Compatible - TAA Product Title (AMZ) USB C Multiport Adapter - Portable USB-C Mini Dock 4K HDMI Video - Gigabit Ethernet, USB 3.0 Hub (1x USB-A 1x USB-C) - USB Type-C Multiport Adapter - Thunderbolt 3 Compatible , TAA Title Ingram (Part 1) USB-C Multiport Adapter - With Title Ingram (Part 2) 4K HDMI, GbE, USB-C, USB-A Ports Website Product Headline Portable Docking Station | Windows® & Mac | 4K | GbE | TAA Compliant Bullet 1 DOCKING STATION WITH ESSENTIAL PORTS: 4-in-1 USB C multiport adapter with 4K 30Hz HDMI video output, Gigabit Ethernet port, USB 3.0 Hub 5Gbps (1x USB-A and 1x USB-C ports); USB bus-powered Bullet 2 EXTRA LONG CABLE: Mini dock has an attached 13 in (34cm) cable to provide extended reach to reduce connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite or laptops on riser stands Bullet 3 DESIGNED FOR PORTABILITY: USB-C port expander w/ ultra compact square design for presentations in meeting rooms connected to a TV/display/monitor, working from home or on the go Bullet 4 WIDE DEVICE COMPATIBILITY: USB-C and Thunderbolt 3 laptops, ultrabooks, USB-C Chromebook, tablets and phones for brands such as HP, Dell, Lenovo, MacBooks, iPad Pro, Surface, Samsung and Pixelbook Bullet 5 WIDE OS COMPATIBILITY & EASY SETUP: Universal USB Type-C multiport adapter features automatic driver installation & supports major operating systems like Windows, macOS, Chrome OS, iPadOS and Android Bullets (Compact) Portable 4-in-1 USB C multiport adapter USB bus-powered - 4K 30Hz HDMI video/Gigabit Ethernet/1x USB-A 1x USB-C USB 3.0 5Gbps - USB-C mini dock for USB Type-C and Thunderbolt 3 devices - Auto driver install - Windows/macOS/Chrome OS/iPadOS/Android Bullets (Consolidated) 4-in-1 USB-C multiport adapter w/ 4K 30Hz HDMI video/Gigabit Ethernet/USB 3.0 Hub 5Gbps (1x USB-A 1x USB-C); USB bus-powered - Attached 34cm (13") cable provides extended reach to reduce connector strain on 2-in-1 devices or laptops on risers - USB-C travel dock w/ ultra compact and portable square design - For USB Type-C and Thunderbolt 3 laptops Ultrabooks USB-C Chromebook tablets phones; works w/ HP Dell Lenovo MacBook Surface - Auto driver install - Windows/macOS/Chrome OS/iPadOS/Android Marketing Copy Marketing Copy (No HTML) Applications - Ideal for mobile use
- Integrate into small workspaces in offices and home offices
Website Search Keyword - USB C adapter
- USB-C adapter
- USB-C multiport adapter
- travel adapter
- hot desk laptop docking station
- laptop travel adapter
- travel laptop adapter
- usb 3.0 laptop mini dock
- hot desk dock
- multiport adapter
- hot desk docking station
- portable docking station
- usb type-c multiport adapter
- mobile docking station
- laptop multiport adapter
- travel dock
- travel docking station
- USB 3 Laptop Docking Station
- laptop dock
- laptop adapter
- port replicator
- Macbook adapter
- Dell XPS adaper
- U444-06N-H4GUSC
- U442DOCK13S
- U444-T6N-H4GUBC
- U444-06N-H4GUBC
- U444-06N-H4GU-C
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
- A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- The USB Type-C connector (female) is data only.
System and Cable Requirements Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode). Accessory Products - HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- HDMM25
- HDMM30
- DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- DVIDDMM25
- UUSBHAUB1
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- USB2CC50CM
- USB2CC1M
- USB2CC2M
- USB2CC3M
- USB31CC1M
- USB31C5C1M
- USB315CC2M
- USB2C5C4M
- USB2CC1MR
- N6PATCH1BL
- N6PATCH3BL
- N6PATCH6BL
- N6PATCH15BL
- N6LPATCH10BK
Related Products - DKT30CHV
- DKT30CDVPD
- CDP2VGAUACP
- DKT30CHVW
- DKT30CHPDW
- CDP2HDUACP
- CDP2HDUACPW
- DKT30CHPD
- DKT30CSDHPD
- MST30C2DPPD
- CDPVGDVHDBP
- CDPVGDVHDB
- CDPVGDVHDMDP

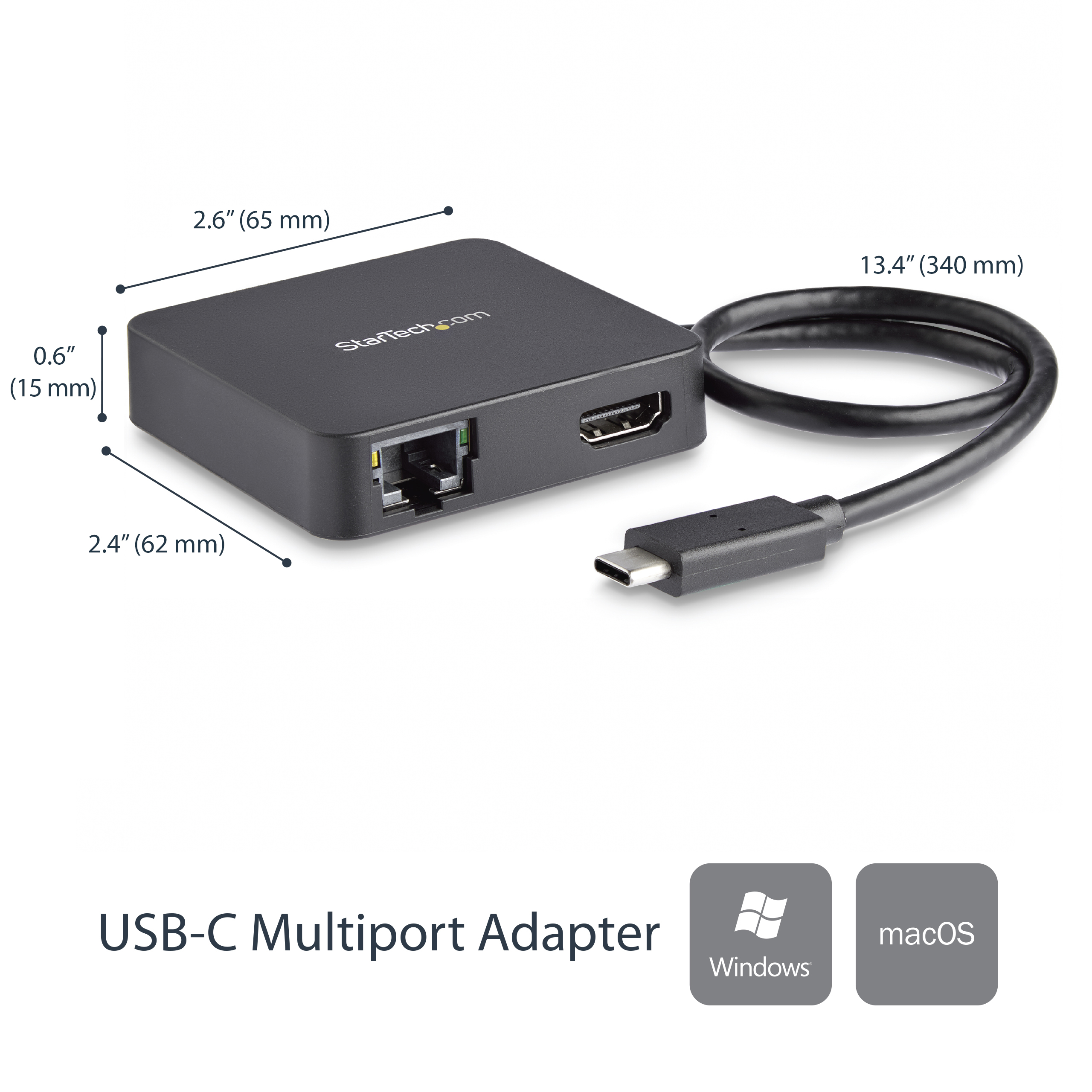

Output Voltage (V) 5 DC Power Delivery No PD Pass-Through Power Source USB-Powered Cable Length (mm) 340 Color Black Humidity 5~90% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 65 Product Width (mm) 62 Product Height (mm) 15 Product Weight (g) 52 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Chrome OS
- Windows 7
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

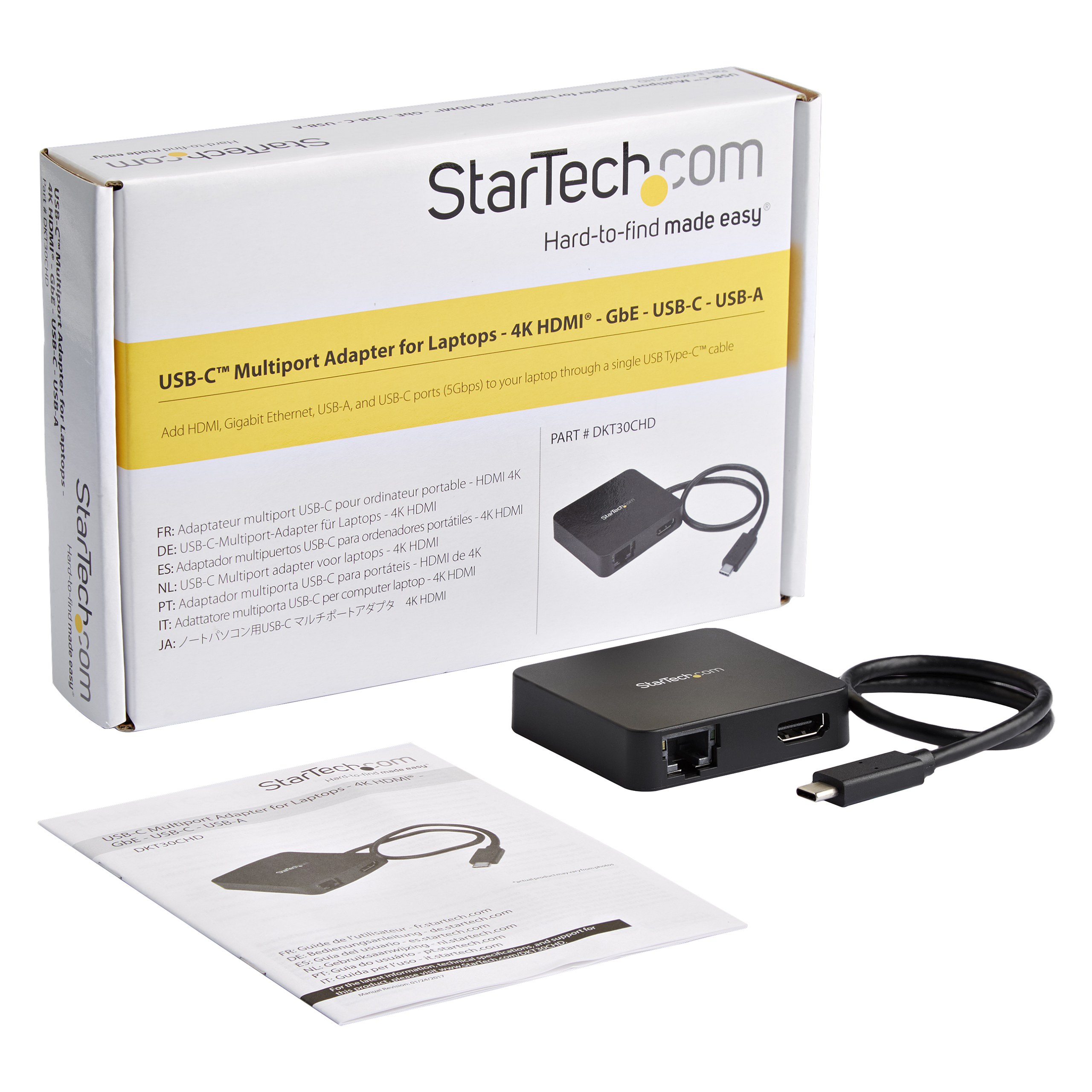

UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port HDMI Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID Host Connection Port USB-C Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No Number of Displays 1 Other Ports Gigabit Ethernet Carton Depth (mm) 237 Carton Height (mm) 334 Carton Quantity 20 Carton Weight Gross (g) 3932 Included in Package - 1 - USB-C multiport adapter
- 1 - quick-start guide
Included In Package for Label - 1 - USB-C Multiport Converter
- 1 - Quick-Start Guide
Package Depth (mm) 145 Package Height (mm) 42 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 168 Packaging Description USB-C Multiport Adapter for Laptops - 4K HDMI Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-01-25 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU DKT30CHV Digital Content Due Date 2017-04-07 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-01-13 Target Production Release 2017-01-27 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream
