DKT30CHVSCPD
USB-C Multiport - HDMI/VGA - USB - SD
Add video output, three USB 3.0 ports, SD/micro SD card readers, and GbE port to your laptop through a single USB-C port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name USB-C Multiport - HDMI/VGA - USB - SD Product Number DKT30CHVSCPD UPC 065030879170 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-C Multiport Adapters Category Level 3 USB-C Multiport Adapters - 5Gbps Family USB-C Multiport Adapters - 5Gbps - Single Video - 9+ ports Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) USB-C Adapter - SD Product Title (Short) USB C Multiport Adapter 4K HDMI/VGA/USB Product Title (Medium) USB-C Multiport Adapter with HDMI and VGA - Mac / Windows - 3x USB 3.0 - SD - PD Product Title (Standard) USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA Video - 100W PD Passthrough, 3x USB 3.0, GbE, SD & MicroSD Product Title (Long) USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA 1080p Video - 100W Power Delivery Passthrough, 3-port USB 3.0 Hub, GbE, SD & MicroSD - Laptop Travel Dock Product Title (AMZ) USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA 1080p Video - 100W Power Delivery Passthrough, 3-port USB 3.0 Hub, GbE, SD & MicroSD - Laptop Travel Dock (DKT30CHVSCPD) Title Ingram (Part 1) USB-C Multiport Adapter w/ HDMI Title Ingram (Part 2) and VGA - Mac / Windows - SD - PD Website Product Headline Add video output, three USB 3.0 ports, SD/micro SD card readers, and GbE port to your laptop through a single USB-C port Bullet 1 9-IN-1 USB-C PORTABLE MINI DOCK: Eliminates the hassle of carrying multiple adapters w/ 4K 30Hz HDMI or 1080p VGA video, 3x 5Gbps USB-A, SD slot, microSD slot, 1x Gigabit Ethernet Bullet 2 POWER FLEXIBILITY: Travel dock is USB bus powered and supports up to 100W Power Delivery 3.0 Passthrough; 15W reserved for dock and up to 85W for laptop charging using your USB-C power adapter Bullet 3 SIMULTANEOUS SD & MICRO SD ACCESS: USB-C multiport adapter provides both a SD/SDHC/SDXC and a MicroSD card reader for additional data storage or backup, and provides access to both simultaneously Bullet 4 FAST CHARGE PORTS: Portable docking station w/3x USB 3.0 Type-A ports support BC 1.2 1.5A fast-charge to charge tablets or smartphones on any one of the ports, w/USB-C power adapter & laptop connected Bullet 5 WIDE DEVICE & OS COMPATIBILITY: All-in-one adapter dongle works with HP, Dell, Lenovo, MacBook, iPad Pro, Surface, Chromebooks & Samsung Galaxy devices on Windows, macOS, Chrome OS, iPadOS & Android Bullets (Compact) USB-C Multiport adapter with 4K 30Hz HDMI or 1080p VGA video/3x USB-A 3.0 (support BC 1.2 1.5A fast-charge)/SD/microSD/GbE - Mini Travel Dock w/up to 100W Power Delivery passthrough - Auto driver setup Windows macOS ChromeOS iPadOS Android Bullets (Consolidated) USB-C Multiport Adapter with 4K 30Hz HDMI or 1080p VGA video/3x 5Gbps USB-A Hub/SD/MicroSD/Gigabit Ethernet - Mini travel dock w/up to 100W Power Delivery passthrough | 15W for adapter and remainder to power laptop - Simultaneous access to SD and microSD card readers - USB 3.0 Type-A port supports BC 1.2 1.5A fast-charge to charge tablets/smartphones - Works w/ HP Dell Lenovo MacBook iPad Pro Surface Chromebooks and Samsung Galaxy devices on multiple OS - Auto-driver setup Marketing Copy Marketing Copy (No HTML) Applications - Create a mobile workstation, connected to an HDMI or VGA monitor
- Give presentations by connecting to an HDMI monitor in the boardroom or classroom
- Connect to Gigabit internet where Wi-Fi® isn't available
- Ideal for working with SD and microSD flash media used in cameras and smartphones
- Compact size with essential ports for smaller or temporary workspaces
Website Search Keyword - USB-C Multiport Adapter with HDMI and VGA
- USB-C Multiport Adapter
- USB C Multiport Adapter
- USBC Multiport Adapter
- usb c adapter
- usb c hub
- usb c dongle
- macbook pro hdmi adapter
- usb c sd card reader
- macbook pro usb c adapter
- macbook pro vga adapter
- usb c to usb 3.0 adapter
- usb c to gigabit ethernet adapter
- USB type C Multiport Adapter
- usb c travel dock
- macbook pro multiport adapter
- usb c accessories for macobook
- U442-DOCK3-B
- U444-06N-HV4GUB
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP Alt Mode.
- The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, if your laptop’s USB-C port supports USB Power Delivery 2.0, it will still support PD pass-through, but it will not support Fast Role Swap. If you laptop's USB-C port does not support Power Delivery, then it will not support PD pass-through.
- A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- Your laptop might have specific charging requirements. The USB-C adapter supports USB Power Delivery 3.0 to provide up to 85W of charging power, when using a 100W power adapter. Charging power will be less when using a lower-wattage power adapter.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP Alt Mode)
- USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Accessory Products - HDMM6
- MXT101MMHQ
- HDMIDVIMM6
Constrained SKU Alternatives (Limited Stock) - DKT30CHVPD2
- DKT31CVHPD3
Output Voltage (V) 5 DC Power Delivery 100W Power Source USB-Powered Cable Length (mm) 118 Color Black Humidity 10%-85%RH Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 122.000 Product Width (mm) 70.000 Product Height (mm) 14.000 Product Weight (g) 129.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes General Specifications - Supports Fast Role Swap of PD 3.0, to ensure the connected devices will not be disconnected when your power adapter is disconnected from the multiport adapter.
- Each one of the three USB 3.0 (Type A) ports is also a fast-charge and sync port to charge your tablet or smartphone. Only one fast-charge port can be used at a time.
- Each USB 3.0 port provides up to 7.5W of charging power, with a combined total of 10W when all 3 ports are in use. The charge provided depends on the number of devices connected and the amount of current each device draws.
Maximum Analog Resolutions 1920 x 1200p @ 60Hz (VGA) Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Chrome OS
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- VGA
Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 1 Other Ports - Gigabit Ethernet
- SD Card Reader

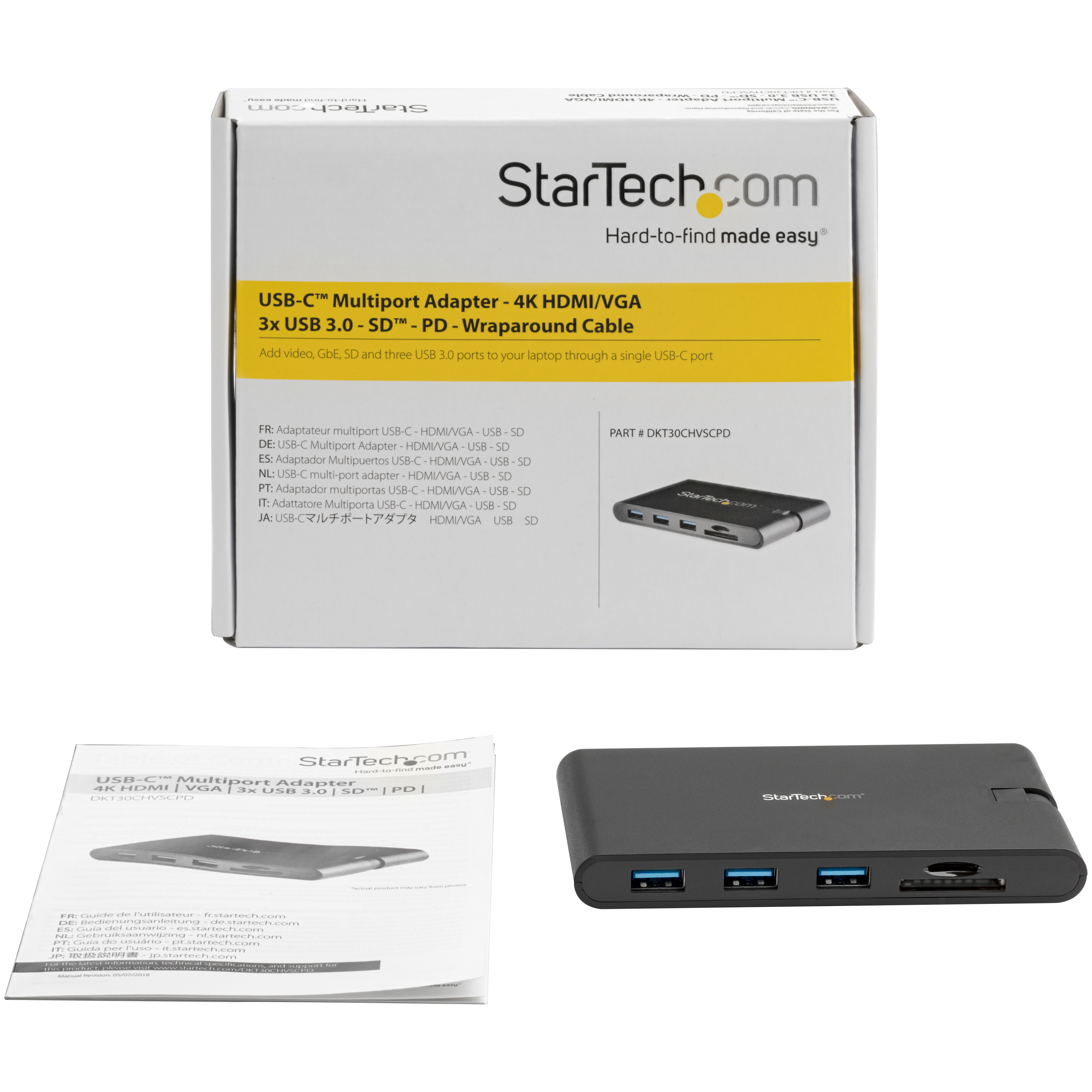

Carton Depth (mm) 338 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 11430 Included in Package - 1 - multiport adapter
- 1 - User manual
Included In Package for Label - 1 - multiport converter
- 1 - User manual
Package Depth (mm) 146 Package Height (mm) 32 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 170 Packaging Description USB-C Multiport Adapter - HDMI/VGA - USB - SD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-04-25 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-05-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2018-04-06 Target Production Release 2018-04-27 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream
