DKT30CSDHPD3
USB C Multiport SD Card Reader PD 3 0
Portable Docking Station | Mac & Windows® | 4K | GbE | Thunderbolt™ 3 Compatible
Main Image
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name USB C Multiport SD Card Reader PD 3 0 Product Number DKT30CSDHPD3 UPC 065030880022 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-C Multiport Adapters Category Level 3 USB-C Multiport Adapters - 5Gbps Family USB-C Multiport Adapters - 5Gbps - Single Video - 6-8 ports Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) USB C Adapter - HDMI Product Title (Short) USB C Multiport Adapter Mini Travel Dock Product Title (Medium) USB C Multiport Adapter with HDMI - 4K - SD Reader - 2x USB-A 1x USB-C - PD 3.0 Product Title (Standard) USB C Multiport Adapter - USB Type-C Travel Dock to 4K HDMI, 3x USB Hub, SD, GbE, 60W PD 3.0 Pass-Through - Mini Laptop Dock Product Title (Long) USB C Multiport Adapter - USB-C Travel Dock to 4K HDMI, 3x USB 3.0 Hub, SD/SDHC, GbE, 60W PD 3.0 Pass-Through - Portable USB-C Mini Docking Station USB Type-C/Thunderbolt 3 Product Title (AMZ) USB C Multiport Adapter, USB-C Travel Dock to 4K HDMI, 3x USB-A 3.0 Hub, SD/SDHC, GbE, 60W PD 3.0 Pass-Through, Portable USB Type-C Mini Docking Station, Thunderbolt Compatible Title Ingram (Part 1) USB C Multiport Adapter - HDMI Title Ingram (Part 2) 4K - 2xA 1xC - SD Reader - PD 3.0 Website Product Headline Portable Docking Station | Mac & Windows® | 4K | GbE | Thunderbolt™ 3 Compatible Bullet 1 USB-C MULTIPORT ADAPTER: Portable USB C travel docking station with 4K 30Hz HDMI video output; aluminum space gray design complements Macbook Air, MacBook Pro, Dell XPS, HP EliteBook laptops Bullet 2 6-IN-1 USB-C HUB: This USB C multiport adapter features 4K HDMI (UHD), 2x USB-A 3.0 (5Gbps) and 1x USB-C (Data or Power Delivery 3.0 Pass Through), SD / SDHC / SDXC card reader slot & Gigabit Ethernet Bullet 3 60W PD 3.0 PASS THROUGH: Use a USB-C power adapter to charge laptop (up to 88W) & power the dock (12W); Prevents USB device drop out when the power is added/removed on PD 3.0 laptops like MacBook Pro Bullet 4 WIDE DEVICE COMPATIBILITY: USB-C mini dock works w/ Thunderbolt 3 (TB3) laptops/ultrabooks; USB-C laptops, ultrabooks, chromebooks, tablets & phones for brands like MacBook, HP, Dell, Lenovo, Surface Bullet 5 WIDE OS COMPATIBILITY & EASY SETUP: This USB Type-C Multiport adapter has automatic driver installation & supports Windows, macOS, Chrome OS and Android; ideal for business travel and work from home Bullets (Compact) USB-C multiport adapter to 4K HDMI, GbE, 2 USB-A, USB-C (Data/60W Power Delivery 3.0 Passthrough), SD/SDXC/SDHC - Driverless - Windows macOS Chrome OS - USB C travel dock for TB3/USB-C laptop, Ultrabook, Chromebook - MacBook Pro/Air, Lenovo, Dell, HP Bullets (Consolidated) USB C multiport adapter w/ 4K 30Hz HDMI/Gigabit Ethernet/2x USB-A 5Gbps/USB-C (Data or 60W Power Delivery 3.0 Pass Through) - USB-C travel dock w/ SD/SDHC/SDXC card reader - Use laptop's USB Type-C power adapter to charge laptop (48W) and power dock (12W) - USB-C Mini dock w/ PD 3.0 Fast Role Swap prevents USB drop outs when the power is added/removed - Automatic drivers Windows macOS Chrome OS - Thunderbolt 3/USB-C laptops + Ultrabooks like MacBook Pro HP Dell Lenovo Surface Chromebook Marketing Copy Marketing Copy (No HTML) Applications - Ideal for meetings and making presentations in the boardroom
- Transfer photos, videos or other files from your SD cards to your USB-C laptop, tablet or other device
- Use an HDMI port-equipped television in a hotel room as an external display
- Power the adapter and your laptop through USB-C, using your laptop’s power adapter
- Ideal for small workspaces in offices, home offices as well as office hoteling
Website Product Alert Website Search Keyword - USB-C Multiport Adapter with HDMI
- USB-C HDMI Multiport Adapter
- USB-C adapter
- USB C adapter
- USBC adapter
- USB C SD card reader
- USB C to USB 3.0 hub
- USB Type-C Multiport Adapter
- USB C all in one adapter
- USB C to Gigabit Ethernet
- Portable docking station for laptop
- USB C to GbE
- USB C multiport adapter with Ethernet
- USB C multiport adapter with HDMI
- U442-DOCK5-GY
- U442-DOCK40-6
- U444-06N-H4GUBC
- U442-DOCK5D-GY
- U444-06N-H4GU-C
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or higher and DP alt mode.
- The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
- A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
- Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Accessory Products - HDDVIMF8IN
- HDMIDVIMF
- N6LPATCH6BK
- RJ45PATCH10
- 45PATCH10GR
- 45PATCH25WH
- 45PATCH25GR
- 45PATCH25BK
- HDMM6
- HDMM10
- HDMM15
- HD2DPVGADVI
- HD2VGAMICRO
- HDMMV2M
- USB31CCV50CM
Related Products - DKT30CSDHPD
- DKT30CHPD
- DKT30CHV
- CDP2VGAUACP
- CDP2HDUACP
- DK30BACDD
- USB3SMDOCKHV
- USB31GEHD
- USB3SMDOCKV
Output Voltage (V) 5 DC Power Delivery 60W Power Source USB-Powered Cable Length (mm) 152 Color Space Gray Humidity 5~90% RH (Non-condensing) Material Aluminum Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Aluminum Product Length (mm) 270.000 Product Width (mm) 45.000 Product Height (mm) 15.000 Product Weight (g) 85.000 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) Memory Media Type - Secure Digital Card
- SDHC (Secure Digital High Capacity)
- SDXC (Secure Digital eXtended Capacity)
- microSD (Micro Secure Digital) (adapter required)
- microSDHC (Micro Secure Digital High Capacity) (adapter required)
- microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
OS Compatibility - macOS High Sierra (10.13)
- Mac OS X El Capitan (10.11)
- Windows 10
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- Chrome OS
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- Android
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port HDMI Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID - VIA/VLI - VL817S
- Genesys Logic - GL3224
- Parade - PS178
- Realtek - RTL8153B
- VIA Labs - VL163
- VIA/VLI - VL163
Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No Number of Displays 1 Other Ports - Gigabit Ethernet
- SD Card Reader

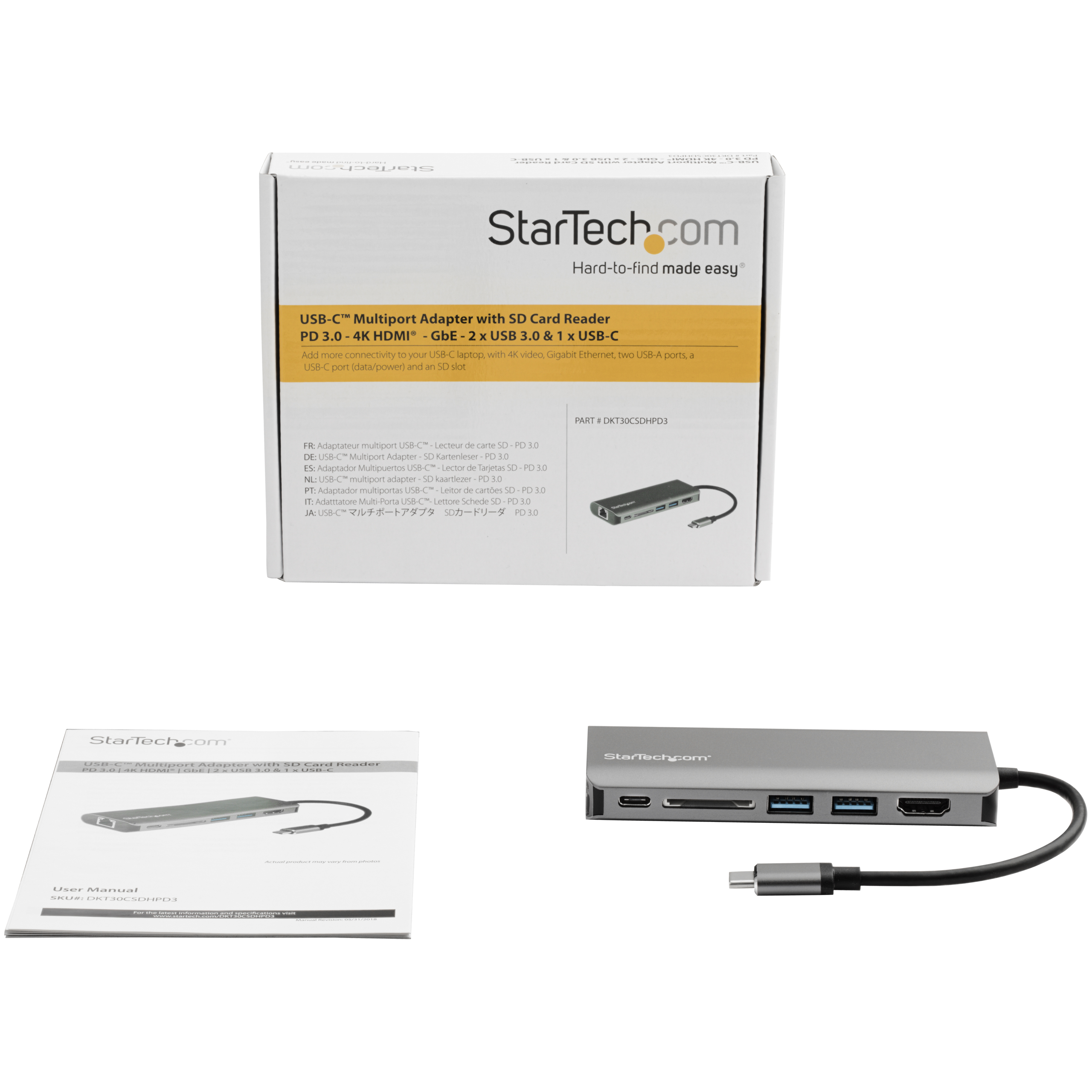

Carton Depth (mm) 490 Carton Height (mm) 444 Carton Quantity 80 Carton Weight Gross (g) 12802 Included in Package - 1 - multiport adapter
- 1 - quick-start guide
Included In Package for Label - 1 - multiport converter
- 1 - quick-start guide
Package Depth (mm) 162 Package Height (mm) 33 Package Width (mm) 122 Package Quantity 1 Package Weight (g) 144 Packaging Description USB-C Multiport Adapter - SD Card Reader - PD 3.0 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-05-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-07-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2018-08-14 Target Production Release 2018-06-01 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
