DKT3CHSD4GPD
HDMI SD USB A GbE PD
Add more connectivity to your USB-C laptop, with HDMI, an ultra high-speed SD 4.0 card reader, Gigabit Ethernet and a USB 3.0 port, plus power and charge as you work
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name HDMI SD USB A GbE PD Product Number DKT3CHSD4GPD UPC 065030874304 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 USB-C Multiport Adapters Category Level 3 USB-C Multiport Adapters - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Multiport Adapter Product Title (Short) Multiport Adapter USB C, HDMI, SD UHS-II Product Title (Medium) USB C Multiport Adapter - 4K HDMI - SD (UHS-II) - PD - USB C Adapter - USB C Hub Product Title (Standard) USB C Multiport Adapter - 4K HDMI - SD / SDHC / SDXC Slot (UHS-II) - Power Delivery - GbE - USB 3.0 Port - USB C Adapter - USB C Hub Product Title (Long) USB-C Multiport Adapter - SD (UHS-II) Card Reader - 100W Power Delivery - 4K HDMI - GbE - 1x USB 3.0 Product Title (AMZ) USB C Multiport Adapter - 4K HDMI - SD / SDHC / SDXC - Power Delivery (USB PD) - USB-C to USB Adapter - USB Type C Adapter (DKT3CHSD4GPD) Title Ingram (Part 1) USB C Multiport Adapter - Mac / Title Ingram (Part 2) Windows - 4K HDMI USB 3.0 - SD Slot Website Product Headline Add more connectivity to your USB-C laptop, with HDMI, an ultra high-speed SD 4.0 card reader, Gigabit Ethernet and a USB 3.0 port, plus power and charge as you work Bullet 1 Expand the connectivity of your MacBook Pro, Chromebook™, Dell XPS, or other USB-C enabled laptop Bullet 2 Power both the multiport adapter and your laptop with up to 100W Power Delivery, using your laptop’s USB-C based power adapter (supports USB PD 2.0) Bullet 3 Supports 4K Ultra HD HDMI (4096 x 2160p or 3840 x 2160p), one USB 3.0 port, a Gigabit Ethernet port and an SD card reader Bullet 4 SD and microSD (with adapter) memory card reader, supports SD 4.0 and UHS-II (backward compatible with older SD card versions) Bullet 5 Sleek, compact and USB-powered for easy portability Bullets (Compact) Add more connectivity to your USB-C laptop with 4K HDMI, an ultra high-speed SD 4.0 card reader, GbE and a USB 3.0 port, plus power and charge - USB C Multiport Adapter - Mac/Windows - SD/SDHC/SDXC Slot (UHS-II) - 100W PD - USB C adapter / USB C hub Bullets (Consolidated) Add more connectivity to your USB-C laptop with 4K HDMI and an ultra high-speed SD 4.0 card reader plus GbE and USB 3.0 port - Supports 100W USB Power Delivery to power both the multiport adapter and your laptop simultaneously - USB C Multiport Adapter for Mac and Windows ideal for MacBook Pro and Dell XPS or other USBC laptop - Connect your USB Type-C laptop to a 4K monitor - SD/SDHC/SDXC memory card slot - 4K Ultra HD HDMI - Thunderbolt 3 USB C adapter/USB C hub/USB-C to USB Adapter Marketing Copy Applications - Connect your MacBook, Ultrabook™, or Chromebook™ to wired Gigabit internet, in locations where Wi-Fi® isn't available

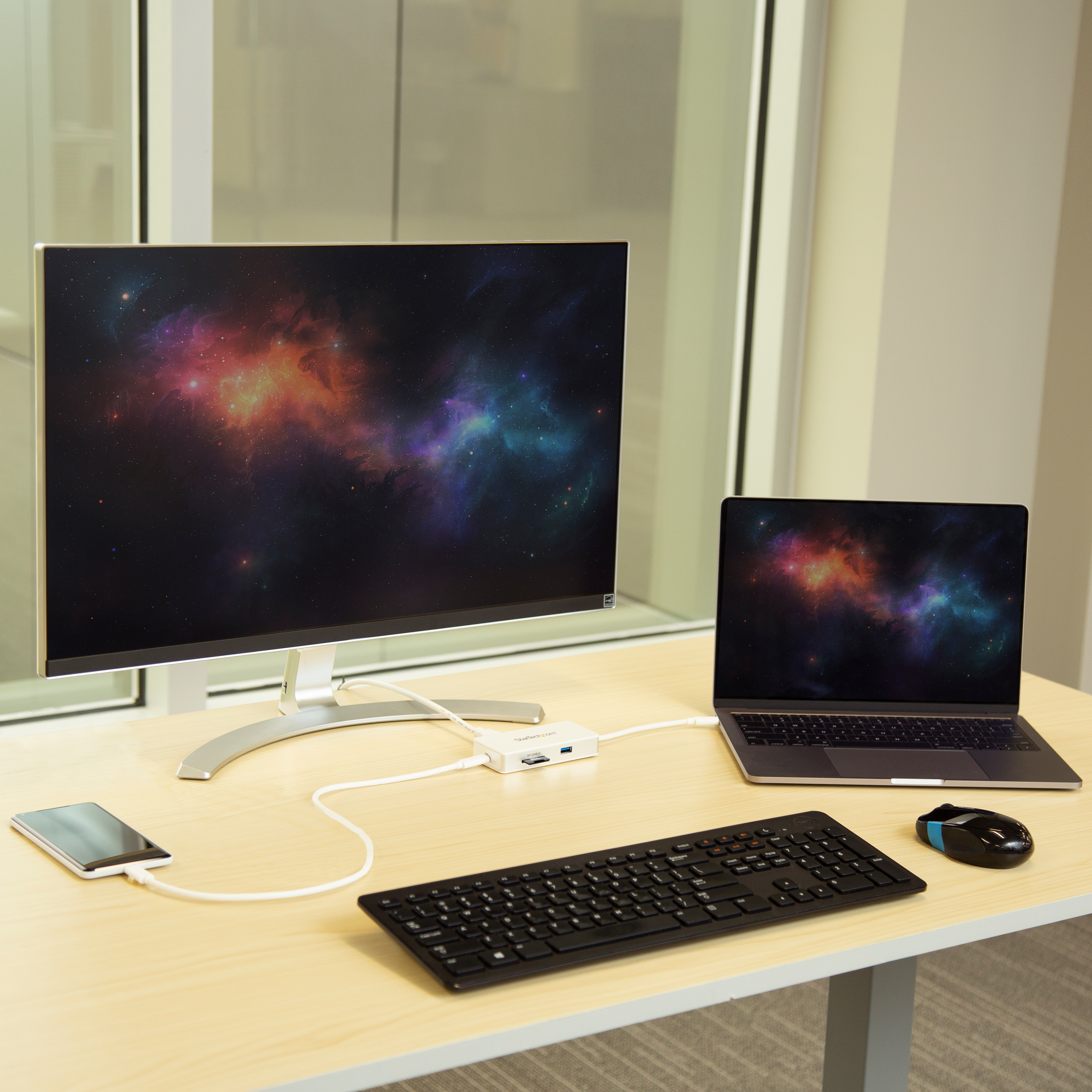

- Integrate the compact adapter into small workspaces in offices and home offices
- Connect your laptop to a projector and enjoy multimedia content at home, or display engaging presentations in boardrooms and classrooms
- Use an HDMI port-equipped television in a hotel room as an external display when traveling
- Transfer photos, videos or other files from your SD cards to your USB-C enabled tablet, laptop or other device
Website Search Keyword - acer aspire v nitro
- acer predator 15
- aluminum
- apple accessories
- apple av adapter
- apple dongle
- apple multiport adapter
- apple usb c
- apple usb c adapter
- apple usb c to hdmi
- apple usb-c
- asus rog
- asus zenbook pro ux501vw
- av to hdmi adapter
- av to usb adapter
- coworking laptop desk
- coworking laptop space
- dell adapter
- dell da200
- dell usb c
- dell usb c adapter
- dell usb c dock
- dell wd15
- dell xps 13
- dell xps 13 accessories
- dell xps 15
- desk sharing
- gigabit ethernet
- Google Pixel 2
- hdmi adapter
- hdmi multi port
- hdmi port
- high speed SD
- hp spectre
- hp spectre x360
- hp zbook 15
- hp zbook 17
- laptop dock
- laptop docking station
- laptop mini dock
- laptop travel adapter
- Lenovo P50
- Lenovo P70
- mac adapter
- Macbook 2015
- macbook accessories
- macbook adapter
- macbook adapter usb-c
- macbook docking station
- macbook pro accessories
- macbook pro adapter
- macbook pro dongle
- macbook pro usb c adapter
- macbook usb c adapter
- mj1k2am/a
- mobile laptop docking station
- multi port adapter
- multi port usb hub
- multi usb adapter
- multifunction adapter
- multiport adapter
- multiport adapter dock
- New Macbook
- office hoteling
- Pass through charging
- PD
- port expander
- portable docking station
- power delivery
- Power pass through
- rj45 port
- SD 4.0
- SDHC
- SDXC
- thunderbolt 3 adapter
- thunderbolt 3 dock
- thunderbolt 3 hub
- thunderbolt 3 to hdmi
- travel adapter for laptops
- travel dock
- travel docking station for laptops
- Type C
- type c docking station
- UHS-II
- ultrabook docking station
- universal laptop dock
- universal laptop docking station
- usb c adapter
- usb c adapter with power
- usb c adapter with usb and sd
- usb c card reader + usb
- usb c dock
- usb c docking station
- usb c dongle
- usb c hdmi
- usb c hub
- usb c laptop dock
- usb c multifunction adapter
- usb c multiport adapter
- USB C PD
- usb c port expander
- usb c port expansion
- usb c to ethernet
- usb c to gigabit ethernet
- usb c to hdmi
- usb c to hdmi + ethernet
- usb c to hdmi + Ethernet + usb + sd
- usb c to hdmi + LAN
- usb c to hdmi + usb + sd
- usb c to hdmi + usb adapter
- usb c to sd
- usb c to sd adapter
- usb c to usb
- usb c travel dock
- usb hub + card reader
- usb hub + sd
- usb multiport
- usb multiport adapter
- USB PD
- usb port expander
- usb port hub
- usb to video adapter
- usb type c dock
- usb type c docking station
- usb type c hub
- usb type c laptop dock
- usb type c to ethernet
- usb type c to hdmi
- usb type c to type a
- usb type c to usb
- usb video adapter
- usb-c adapter
- usb-c adapter with usb and sd
- usb-c card reader
- usb-c digital av multiport adapter
- usb-c dock
- usb-c dock adapter
- usb-c docking station
- usb-c docking station adapter
- usb-c hdmi
- usb-c laptop dock
- usb-c multifunction adapter
- usb-c multiport adapter
- usb-c port expander
- usb-c port expansion
- usb-c sd adapter
- usb-c to hdmi
- usb-c to hdmi _ ethernet
- usb-c to hdmi + gbe
- usb-c to hdmi + usb hub
- usb-c to hdmi adapter
- usb-c to usb
- usb-c to usb 3.0
- usb-c to usb adapter
- usb-c to usb-a
- usbt type c to hdmi
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
- The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
- A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
- Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Accessory Products - HDMMV2M
- HDMMV3M
- N6LPATCH6GR
Replacement Product DKT30CHSDPD1 Constrained SKU Alternatives (Limited Stock) - DKT30CSDHPD3
- DKT30CSDHPD

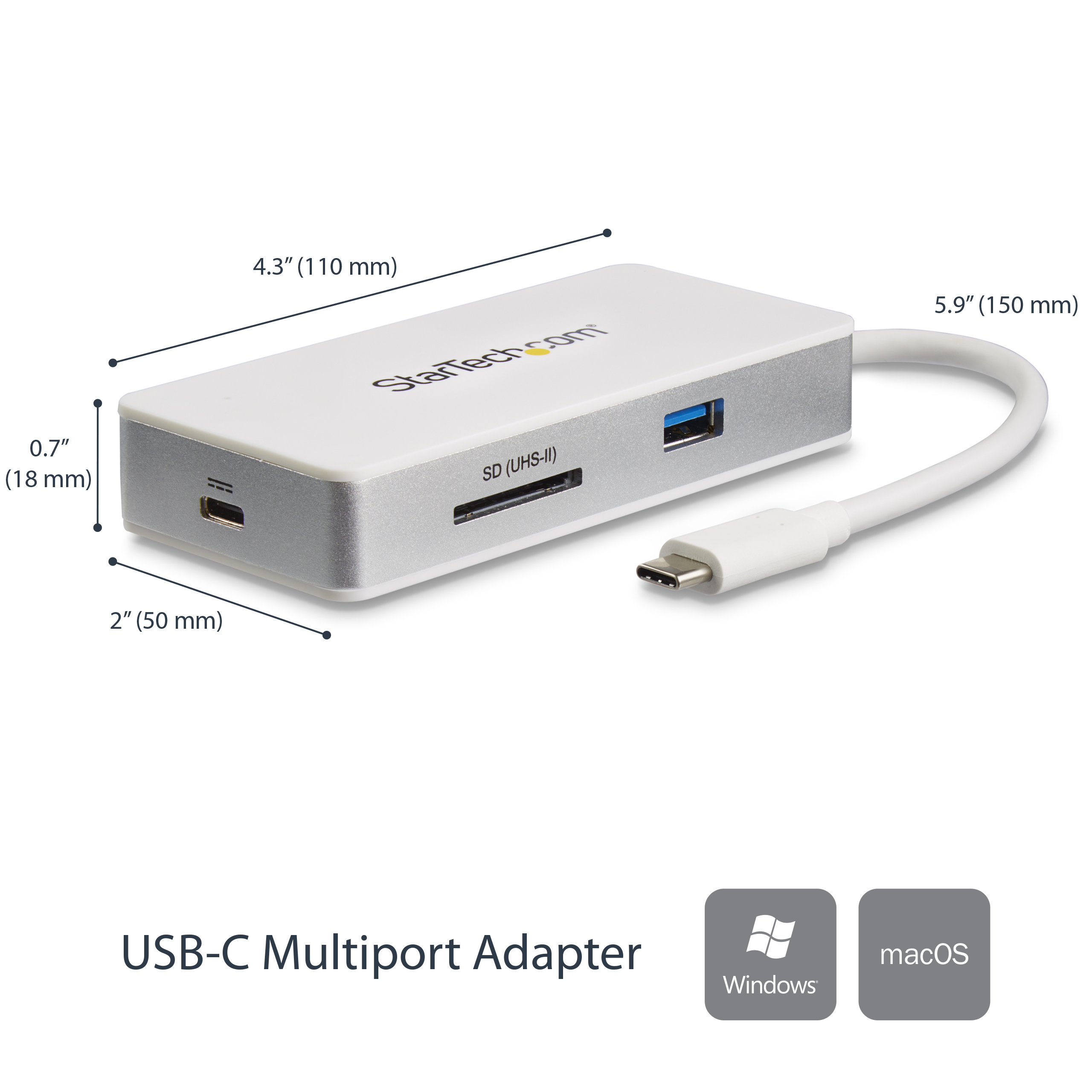

Output Voltage (V) 5 DC Power Delivery 100W Power Source USB-Powered Cable Length (mm) 150 Color Silver & White Humidity 20~80% RH Material Aluminum and Plastic Operating Temperature 5⁰C to 35⁰C (41°F to 95°F) Product Length (mm) 110.000 Product Width (mm) 50.000 Product Height (mm) 18.000 Product Weight (g) 92.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes General Specifications Supports SD 4.0 and UHS-II (Ultra High Speed) for high speed file transfers, with bus speed up to 312MB/s Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) Memory Media Type - SD/MMC (Secure Digital/Multimedia Card)
- SDHC (Secure Digital High Capacity)
- SDXC (Secure Digital eXtended Capacity)
- microSD (Micro Secure Digital) (adapter required)
- microSDHC (Micro Secure Digital High Capacity) (adapter required)
- microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Chrome OS
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port HDMI Video Transport Technology USB-C (DP Alt-Mode) Wake-On-LAN (WOL) Yes Bus Type USB-C Chipset ID Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No Number of Displays 1 Other Ports - Gigabit Ethernet
- SD Card Reader

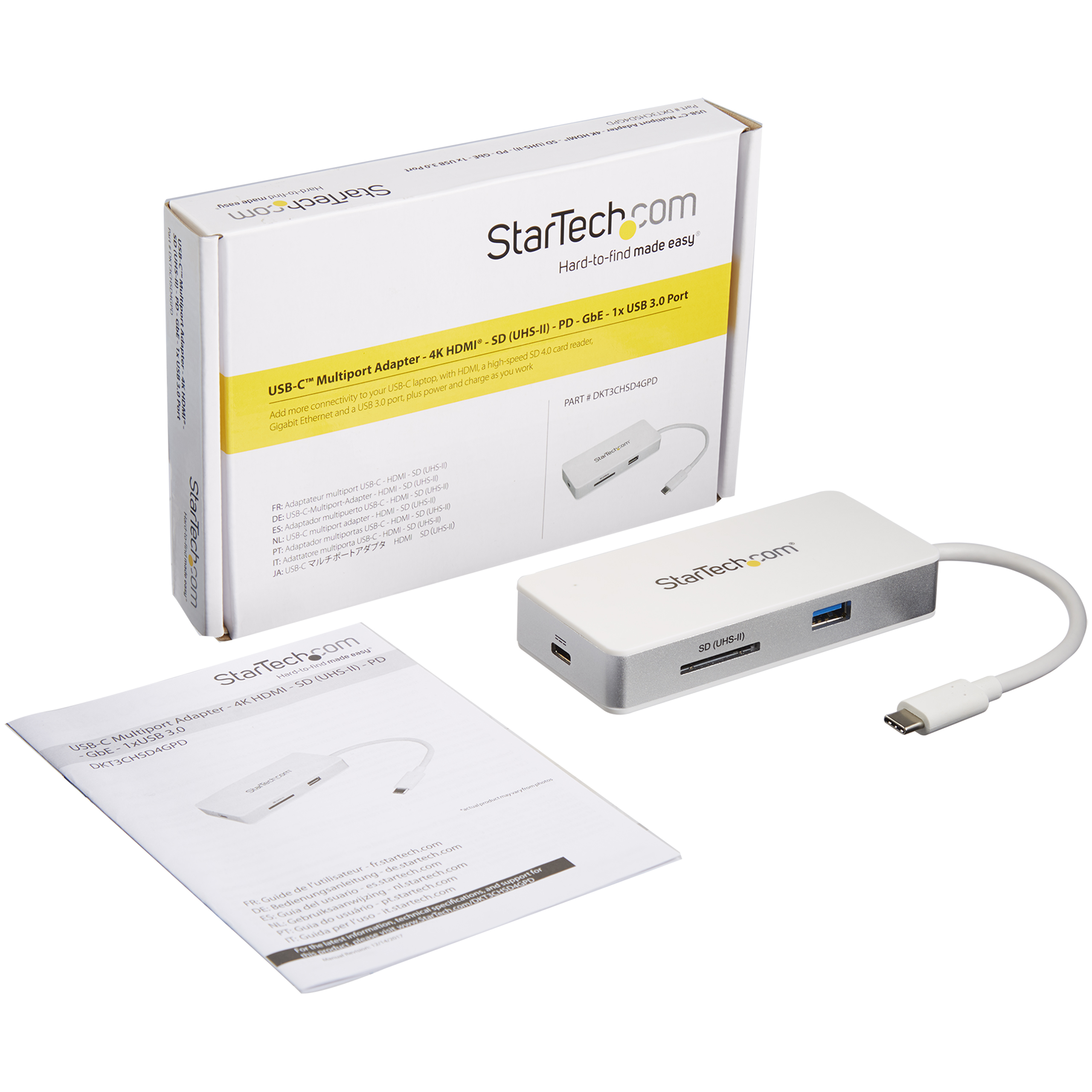

Carton Depth (mm) 285 Carton Height (mm) 400 Carton Quantity 60 Carton Weight Gross (g) 10320 Included in Package - 1 - USB-C multiport adapter
- 1 - quick-start guide
Package Depth (mm) 116 Package Height (mm) 25 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 153 Packaging Description USB-C Multiport Adapter - HDMI - SD (UHS-II) Packaging Description India USB-C Multiport Adapter - HDMI - SD (UHS-II) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 SD Card Slot Connector 5 (Quantity) 1 Connector 6 USB-C (100W PD Only) Connector 6 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-07-21 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-12-15 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-12-15 Target Production Release 2017-12-15 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
