DKTBRSPMPD

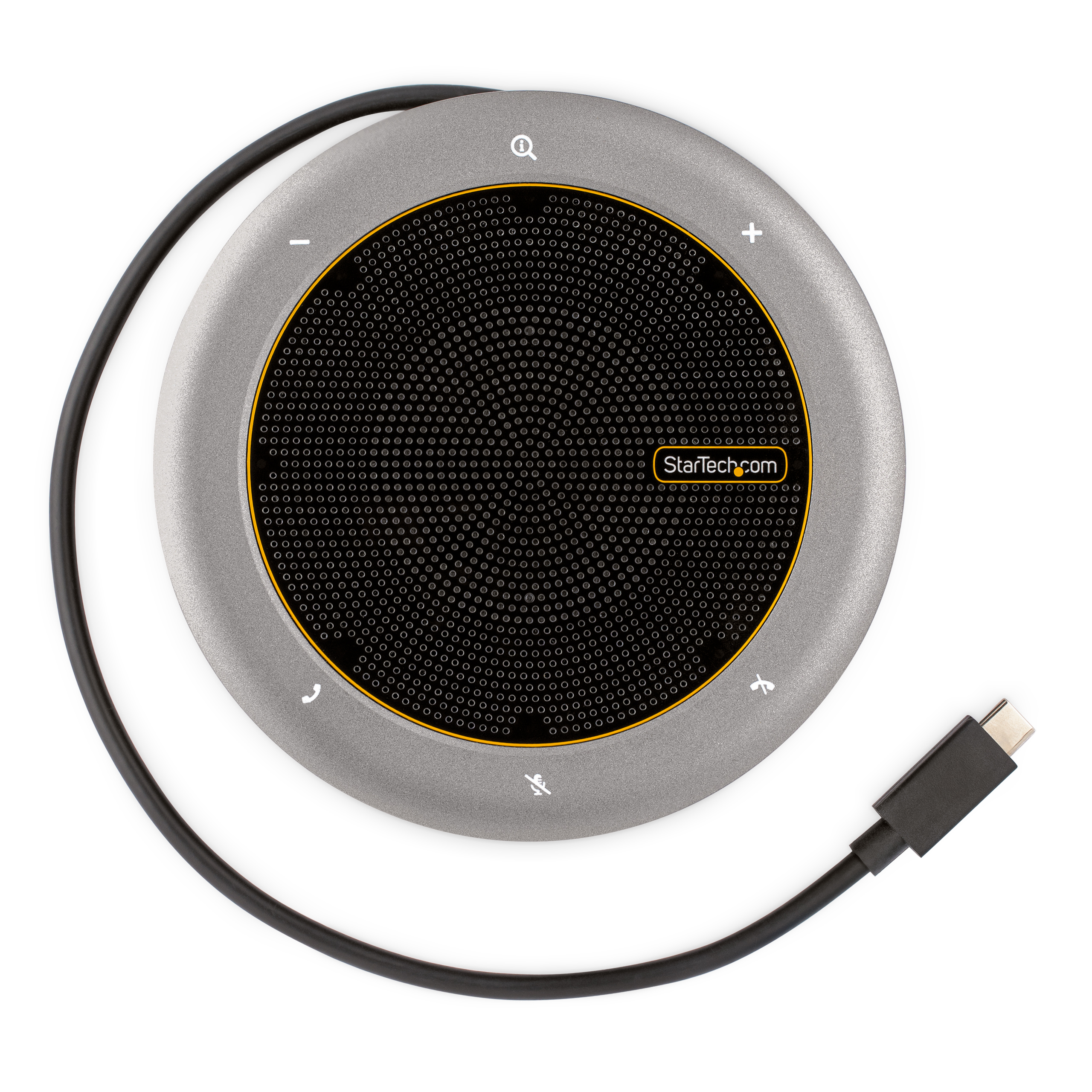

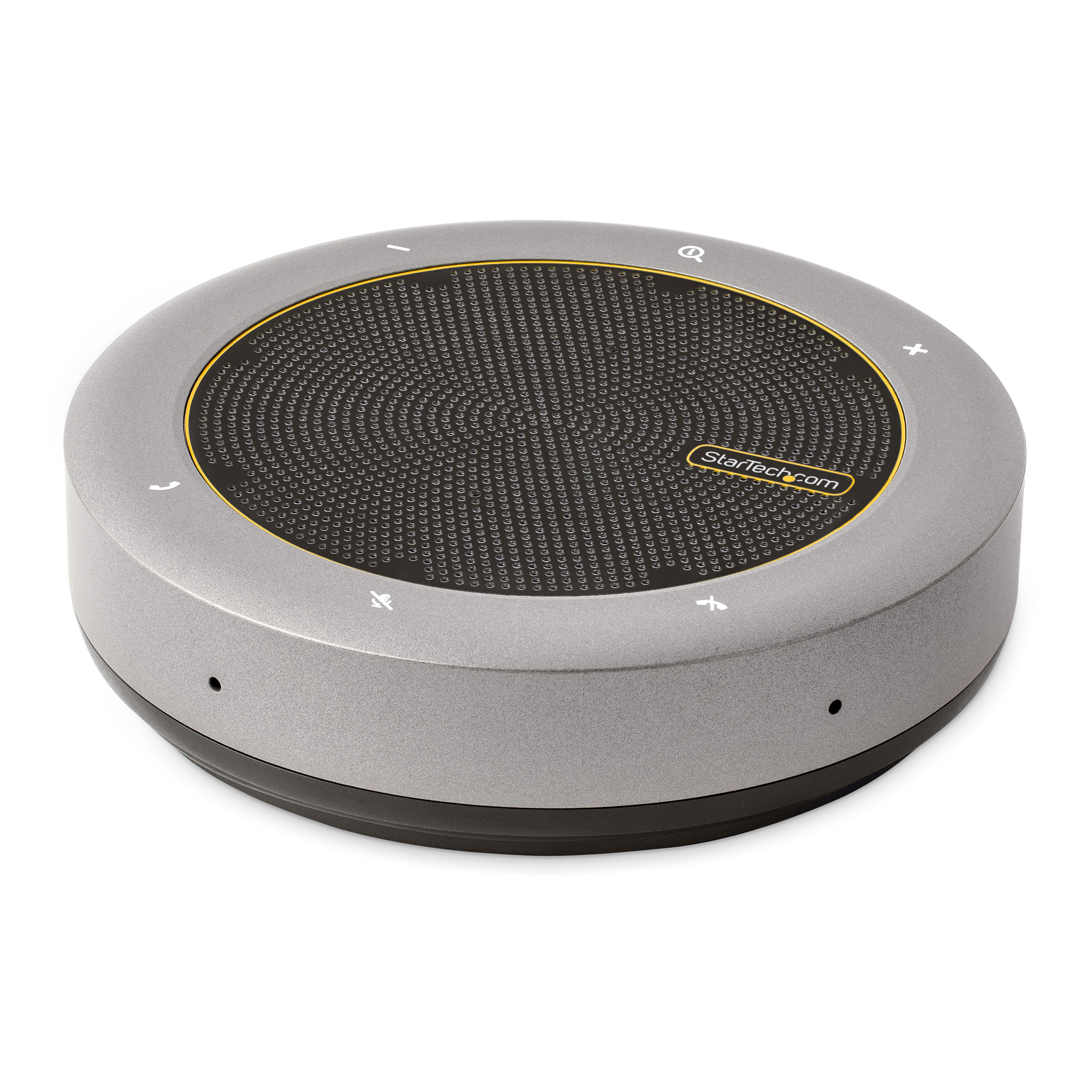

Boardroom dock with conference speaker and mic - with PD

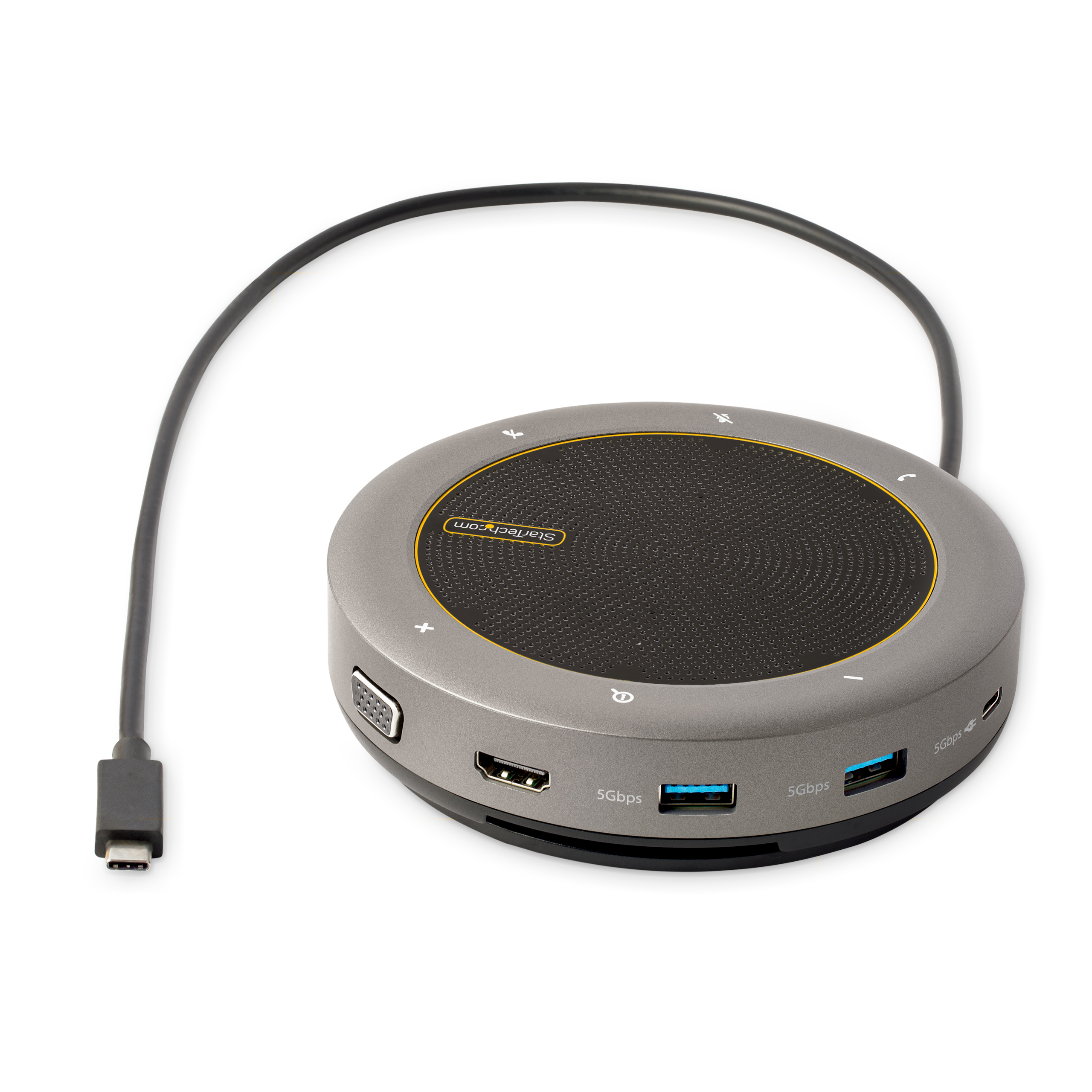

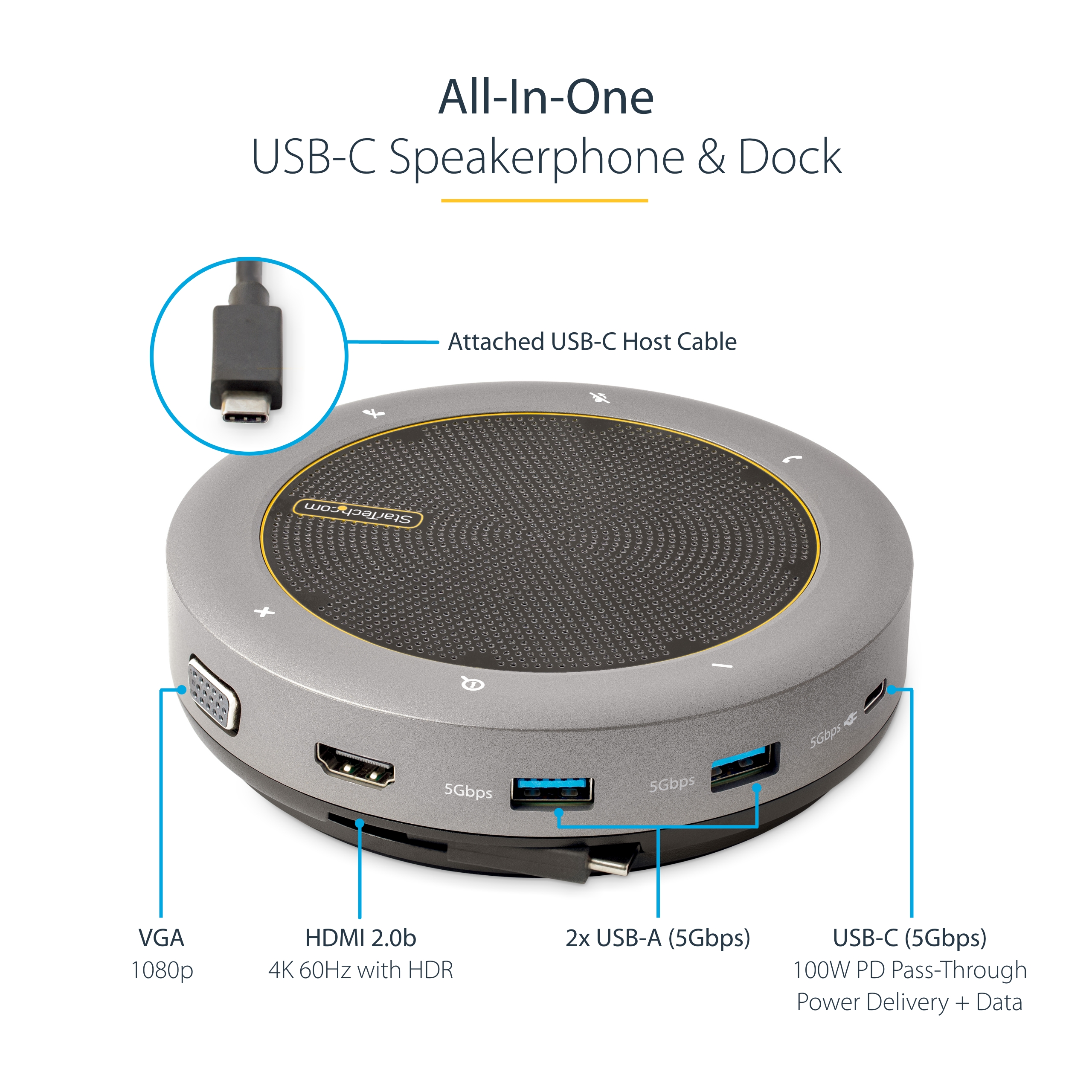

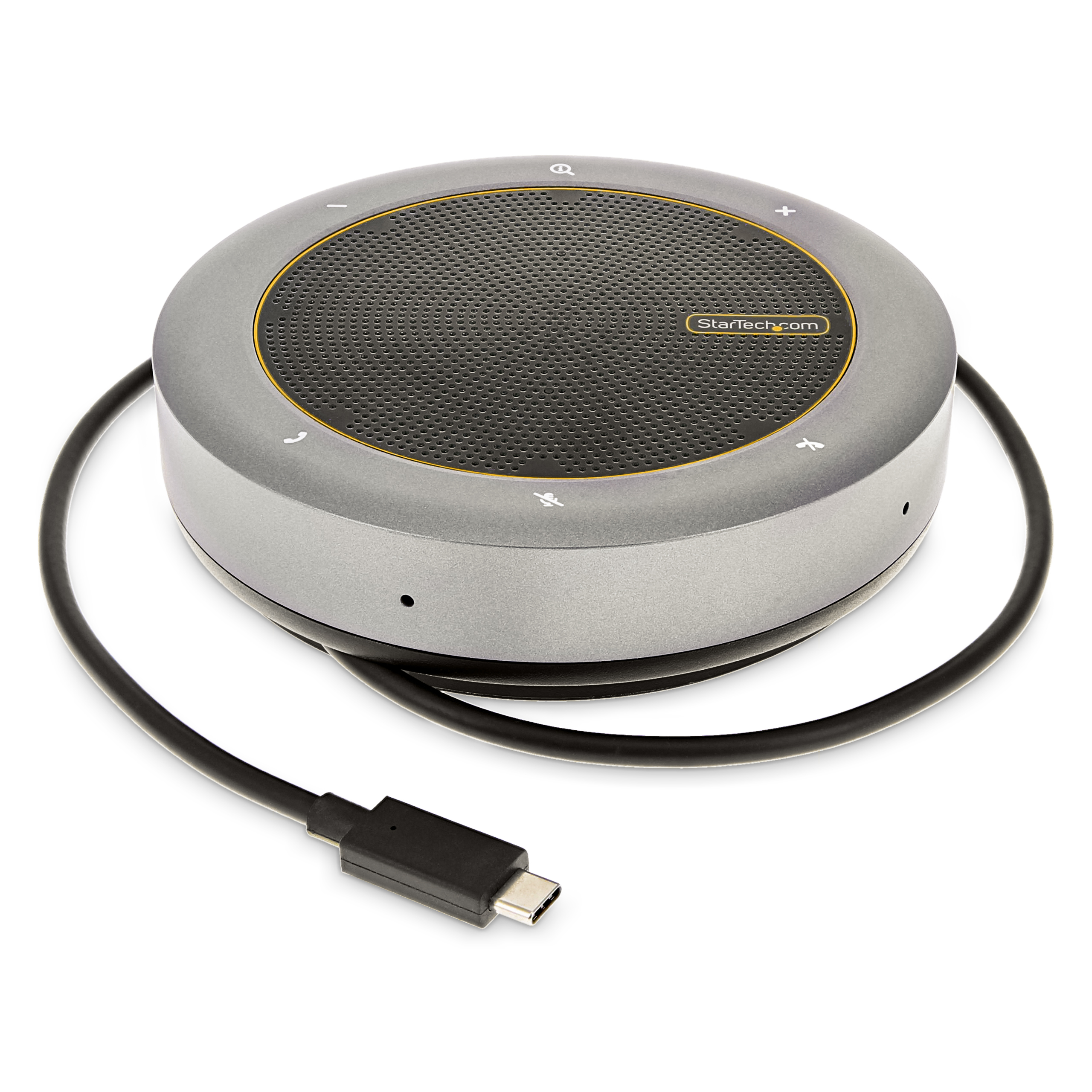

Dual Omni-Directional Microphones | USB Type-C to HDMI or VGA (DP Alt Mode) | Built-in 22in (56cm) Wraparound Cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name Boardroom dock with conference speaker and mic - with PD Product Number DKTBRSPMPD UPC 065030882149 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 USB-C Multiport Adapters Category Level 3 USB-C Multiport Adapters - 5Gbps Family USB-C Multiport Adapters - 5Gbps - Single Video - <6 ports Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Product Title (Ultra-Short) USB-C Speakerphone Product Title (Short) USB-C Speakerphone Docking Station, HDMI Product Title (Medium) USB-C Speakerphone Docking Station, Mini Portable Conference Dock, Teams/Zoom Product Title (Standard) USB-C Speakerphone Docking Station, Mini Portable Conference Speaker/Audio Dock, VGA/4K HDMI, USB Hub, Teams/Zoom/Softphone Product Title (Long) USB-C Speakerphone Docking Station, Mini Portable Conference Speaker and Audio Dock, USB-C to VGA/4K HDMI, 2x USB-A Hub, Mic/Speaker, Teams/Zoom/Softphone Speakerphone Product Title (AMZ) USB-C Speakerphone Docking Station for MacBook Pro M1 M2 M3 M4 and Windows, 4K 60Hz HDMI or 1080p VGA Video, USB 5Gbps Hub, 100W Laptop Charging, Portable Speaker Title Ingram (Part 1) USB-C Speakerphone Docking Title Ingram (Part 2) Station - Softphone Mini Dock Website Product Headline Dual Omni-Directional Microphones | USB Type-C to HDMI or VGA (DP Alt Mode) | Built-in 22in (56cm) Wraparound Cable Bullet 1 RECREATE A CONFERENCE ROOM EXPERIENCE: Ideal for hybrid travel use between the office, shared workspaces, huddle and boardrooms & work-from-home (WFH) virtual meetings; Converts any desk into a tele-conference space Bullet 2 OPTIMIZED FOR MS TEAMS: Optimized for Microsoft Teams and fully compatible with other UC/softphone applications like Zoom, Skype & Google Meet; Call control buttons work with UC platform software (+/- volume, answer/hang up, mute) Bullet 3 FLEXIBLE SETUP: USB bus powered or USB Power Delivery (100W) with external USB-C power adapter (15W for dock); 22in (56cm) wraparound cable for extended reach to reduce connector strain on 2-in-1 devices (Surface Pro 7 & up) or laptops on riser stands Bullet 4 COMPATIBILITY: Thunderbolt 4 & 3, USB Type C; HP/Lenovo/Dell/MacBook/Chromebook; Supports Windows, macOS, iOS (iPhone 15 [Plus/Pro/Max] and up), Chrome OS, HDMI 4K 60Hz output (DP 1.4 Alt Mode); Intel 11th / 12th Gen Processors, Apple M1 / M2 / Pro / Max Bullet 5 ALL-IN-ONE USB-C SPEAKERPHONE: USB-C speaker, microphone & multiport adapter, HDMI 4K 60Hz HDR (DP 1.4 alt mode)/4K 30Hz (DP 1.2 alt mode) or VGA, 2x USB-A 3.2 Gen 1 hub (5Gbps), Shared USB-C 5Gbps port or 100W PD pass-through (85W laptop charging) Bullets (Compact) USB-C speakerphone mini dock; HDMI 4K 60Hz/1080p VGA video - 2x USB-A 3.2/3.1 5Gbps Hub - USB Type-C power/5Gbps data port/100W PD Pass-Through - 22in (56cm) wraparound cable; 2x microphone - Tele conference travel multiport adapter Skype/Teams Bullets (Consolidated) - Ideal for travel use between the office, shared workspaces - Optimized for Microsoft Teams and fully compatible w/ applications like Zoom, Skype or Google Meet - USB bus powered or USB Power Delivery (100W) w/ external USB-C power adapter (15W for dock); 22in (56cm) cable reduces connector strain -TB4/3, USB Type C laptops; Windows, macOS, iOS (iPhone 15 [Pro] and up), ChromeOS - USB-C speaker, microphone & multiport adapter, HDMI 4K 60Hz HDR (DP 1.4 alt mode)/4K 30Hz (DP 1.2 alt mode) or VGA Marketing Copy Marketing Copy (No HTML) Applications - Ideal for hybrid travel use between the office, and work-from-home virtual meetings

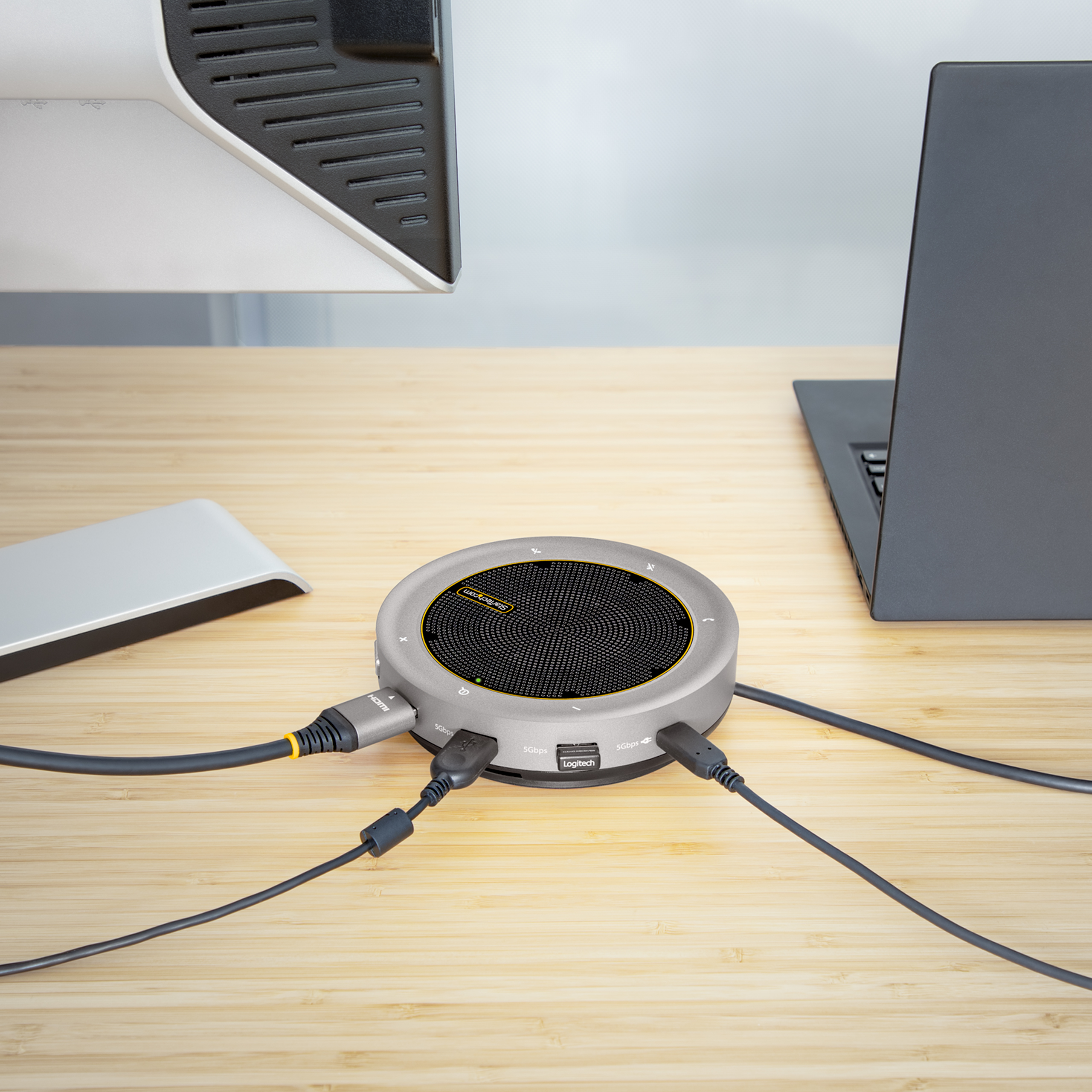

- Connect a USB-C peripheral to the downstream 5Gbps USB-C port, while using the HDMI or VGA port to connect an external monitor

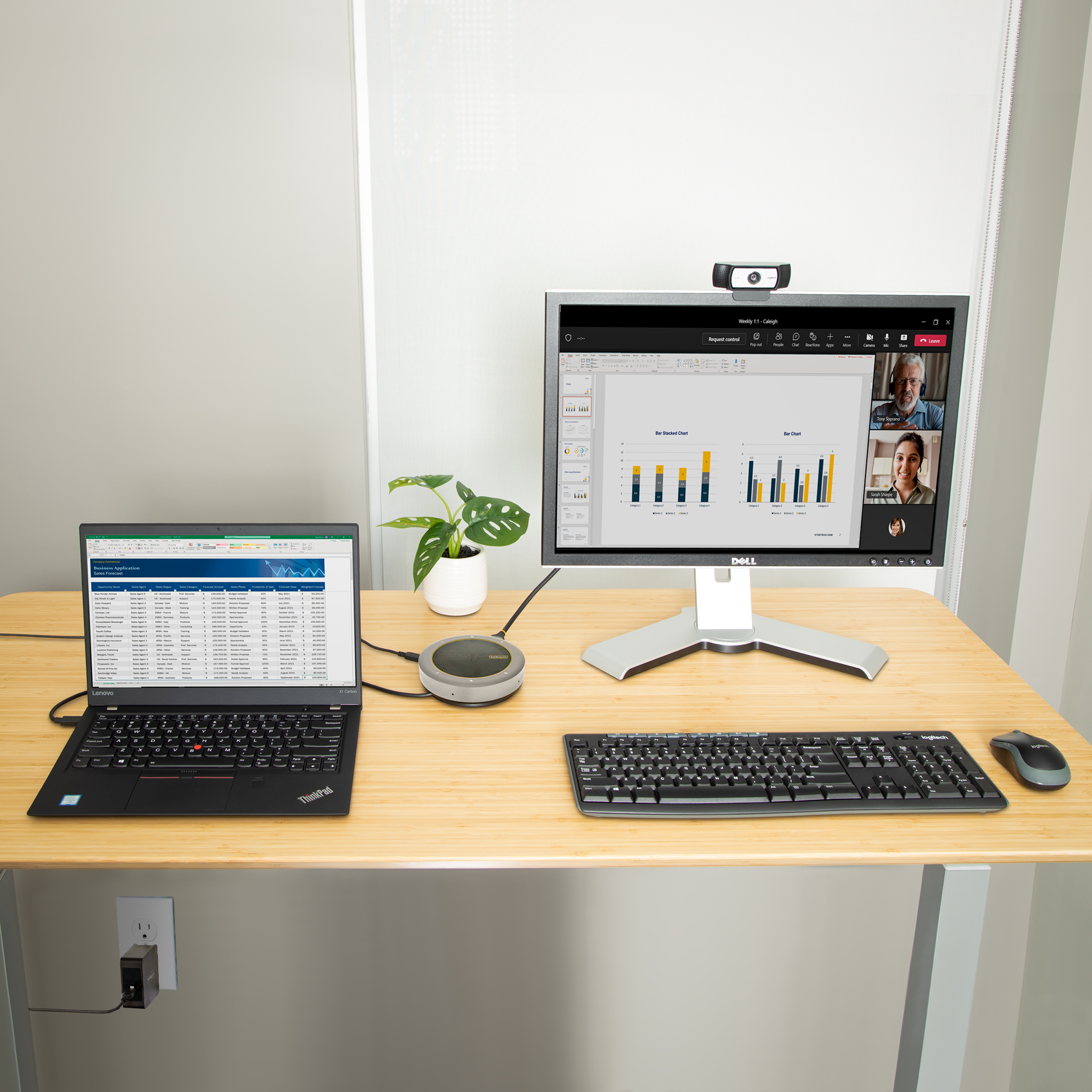

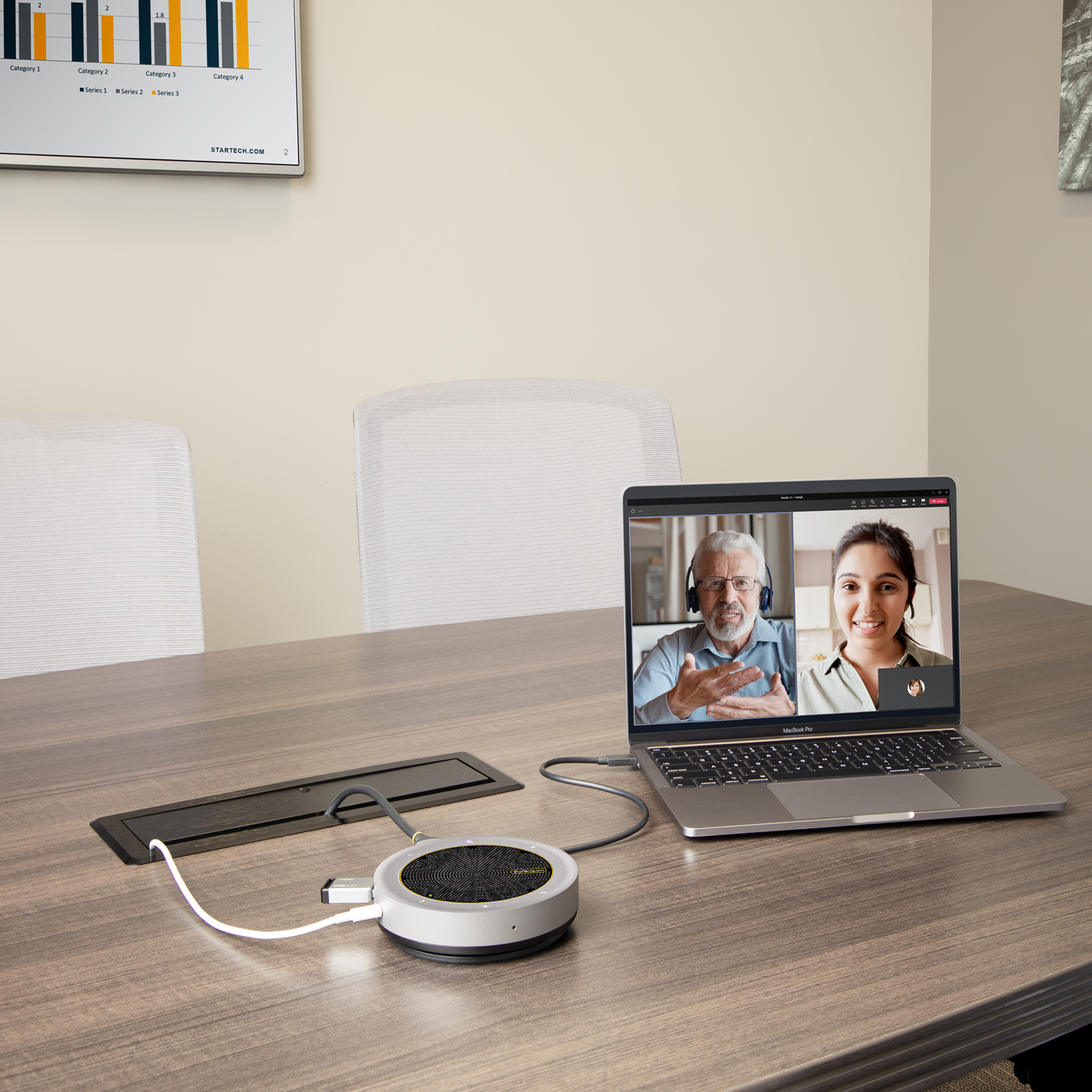

- Convert any workstation into a teleconferencing space
Website Search Keyword - boardroom speaker
- conference speaker
- skype speakerphone
- softphone speaker
- teams speakerphone
- usb c hdmi multiport adapter
- usb c mini dock
- usb c to vga and usb
- zoom speakerphone
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
- The dock can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
- A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
- USB 3.2 Gen 1 (5Gbps) is also known as USB 3.0 (5Gbps).
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode).
- Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Accessory Products - HDDVIMF8IN
- HDMM1MP
- HDMIDVIMF
- HDMM2MP
- WCH1C
- WCH1CEU
- WCH1CUK
- HDMM6
- HDMM10
- HDMIDVIMM6
- HD2DPVGADVI
- HD2VGAMICRO
- MXT101MM
- MXT101MMHQ
- MXT101MM10
- HDMMV2M
Related Products - DKT30CHPD
- DKT30CSDHPD
- DKT30CHV
- DKT30CDVPD
- CDP2VGAUACP
- CDP2HDUACP
- 115B-USBC-MULTIPORT
- DK30BACDD
- USB3SMDOCKHV
- DKT30CHPDW
- USB31GEHD
- USB3SMDOCKV
- CDP2HDUACPW
- DKT30CHD
- MST30C2DPPD
- CDPVGDVHDBP
- CDPVGDVHDB
- CDPVGDVHDMDP
- DKT30CHSDPD1

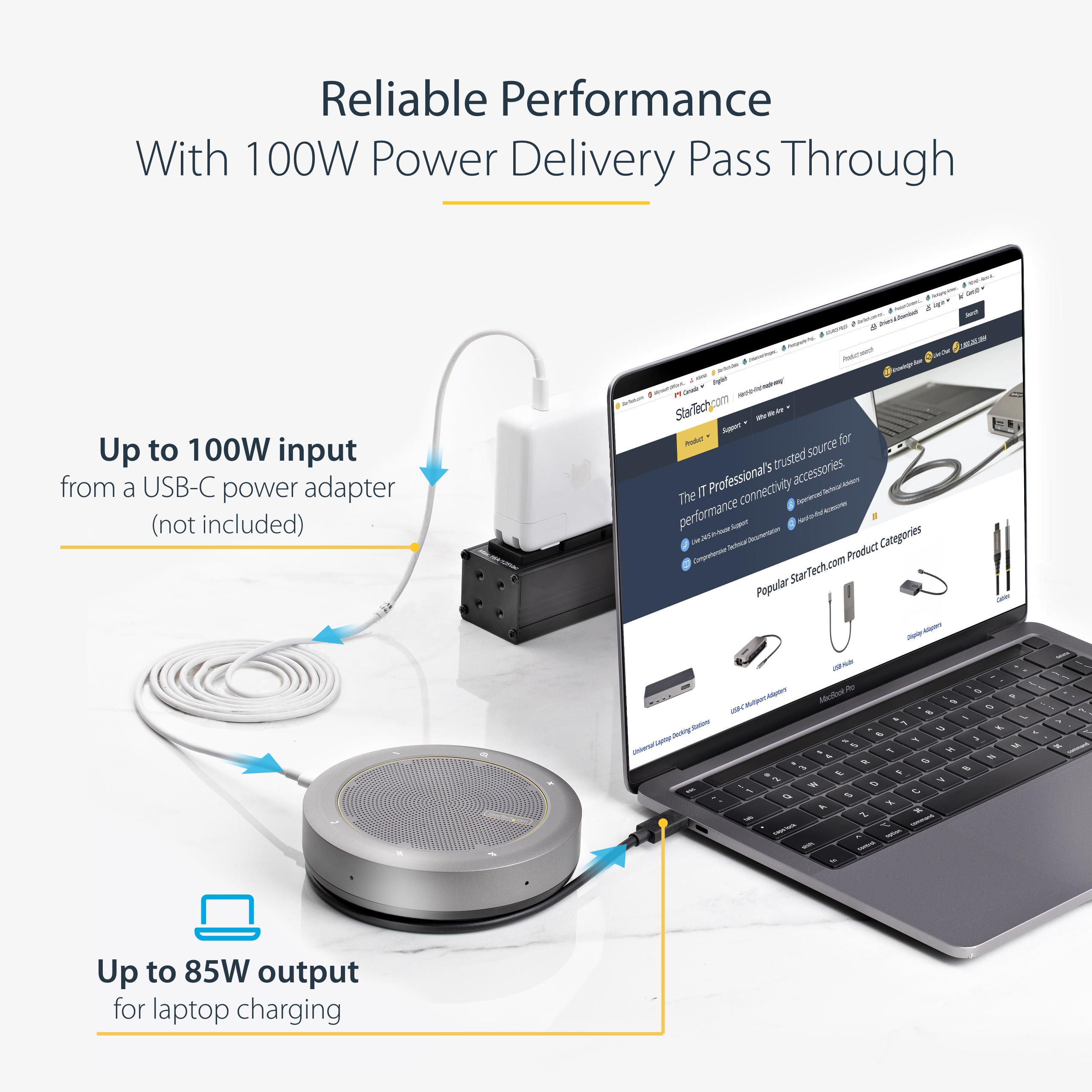

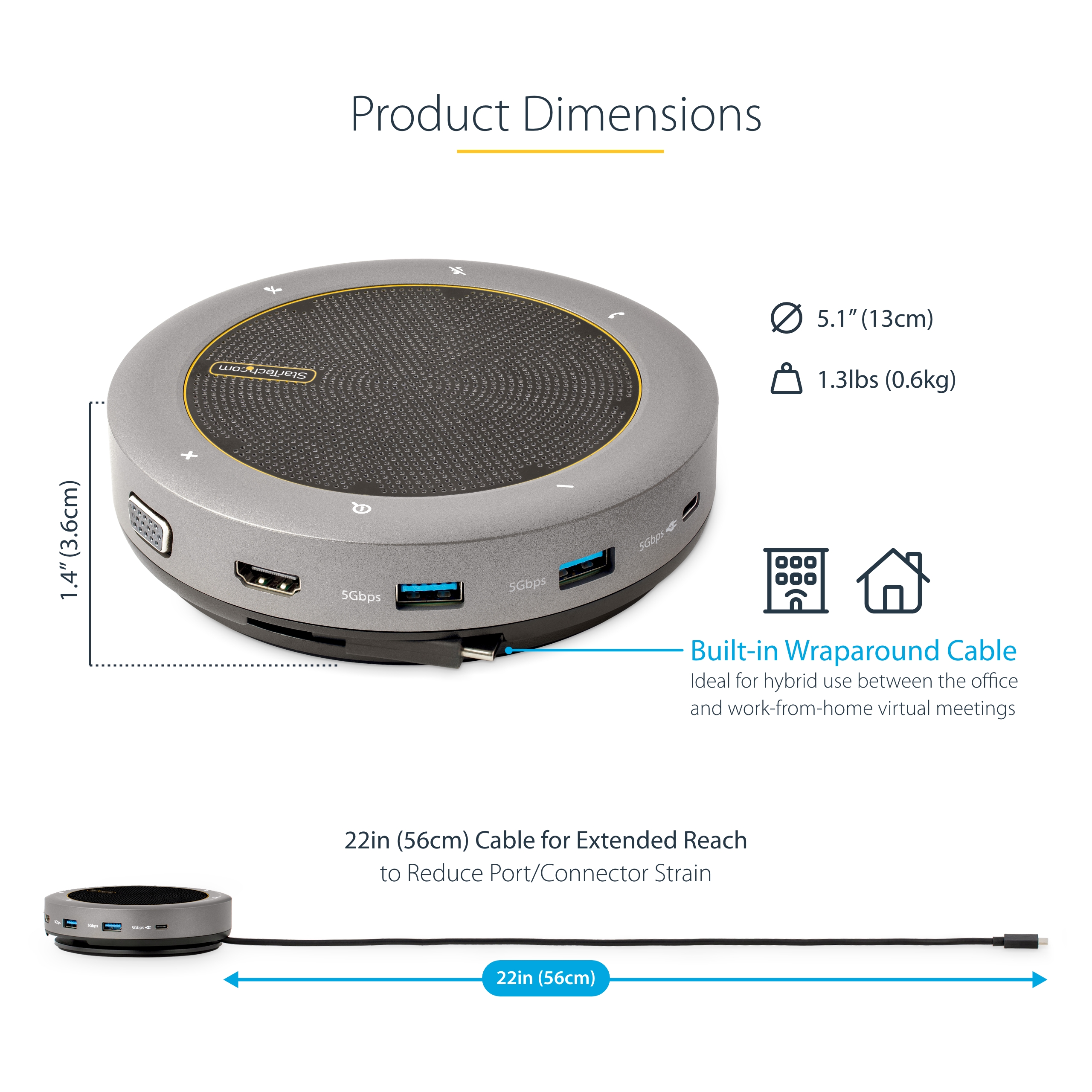

Power Consumption (In Watts) 15W Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Cable Length (mm) 560 Color Space Gray Humidity 0% ~ 95% (non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 130.000 Product Width (mm) 130.000 Product Height (mm) 36.000 Product Weight (g) 390.000 Storage Temperature -20°C to 65°C (-4°F to 149°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) General Specifications - Maximum Laptop Charging: 85W

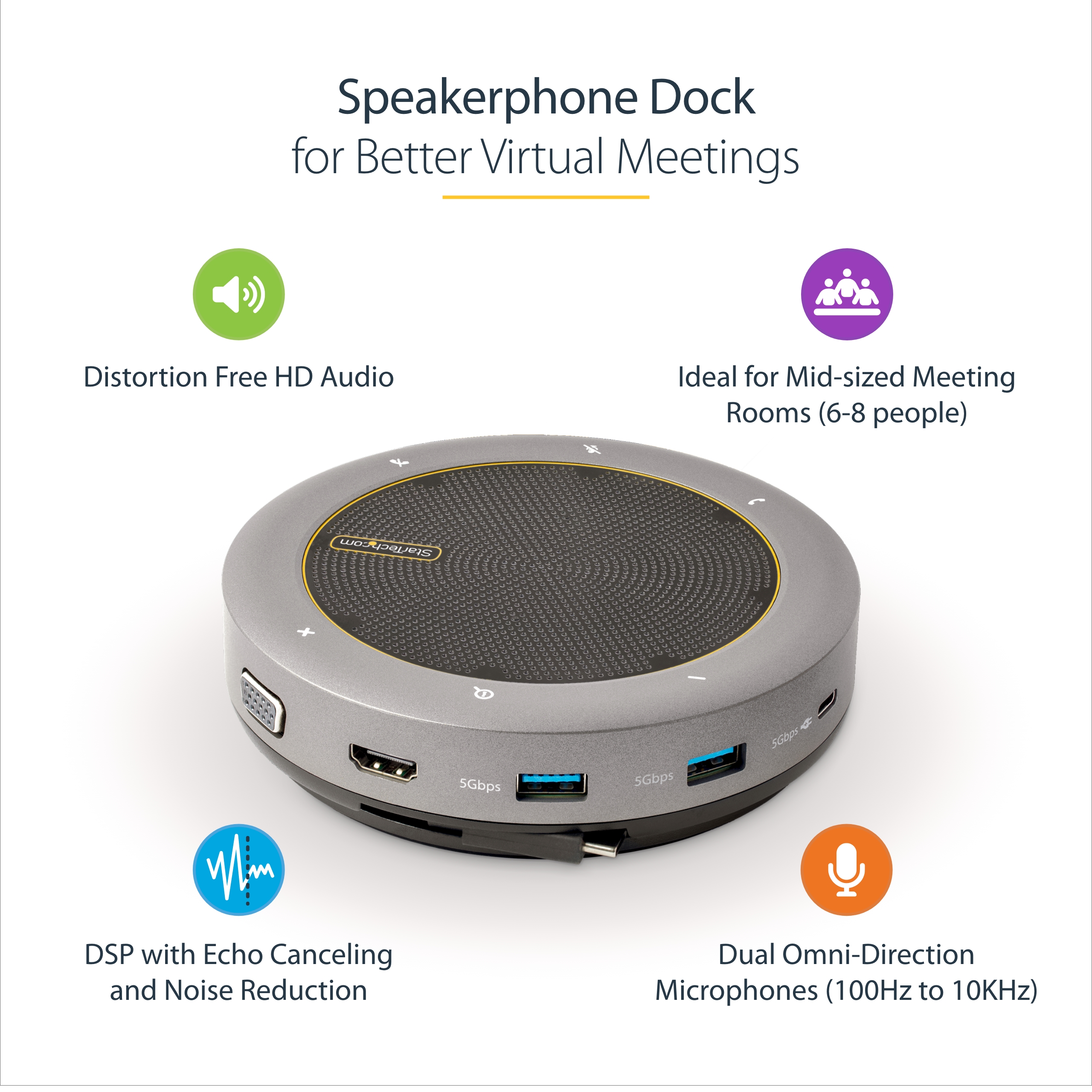

- Speaker Output/Frequency: 89dB/100Hz to 20kHz
- Microphones: 2x Omni-Directional (100Hz to 10kHz)
- Microphone Range: 7.5 ft [2.3 m] radius (6-8 people)
- SPL dB Rating: 89dB
- Speaker Size: 42mm (Diameter), 11.5mm (Thick)
Maximum Data Transfer Rate 5Gbps Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 11
- Windows 10
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- Linux
- Chrome OS
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

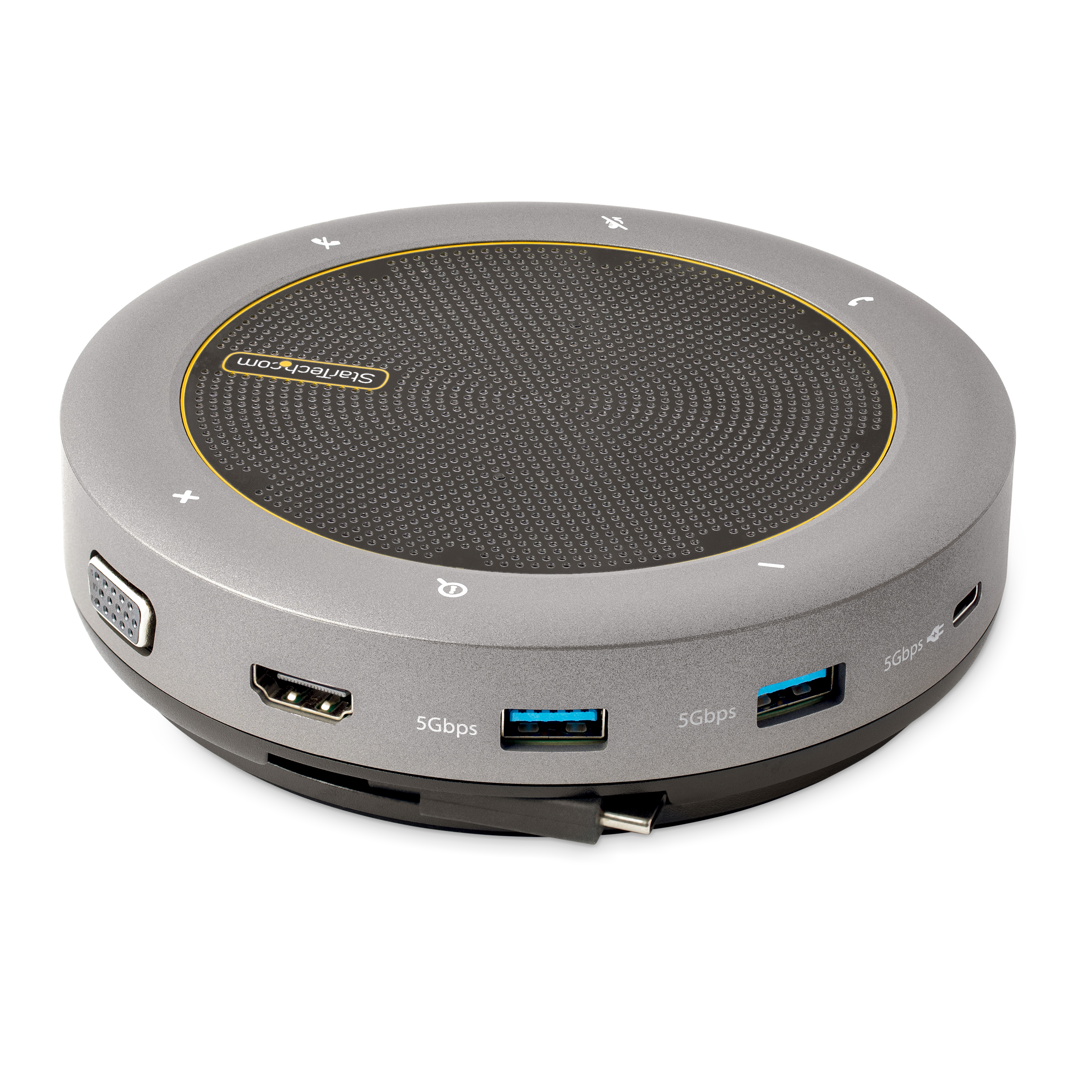

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Video Output Port - HDMI
- VGA
Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID - VIA - VL103
- VIA - VL817-Q7
- VIA - VL163
- Realtek - RTD2142
- Realtek - ALC5684
- Realtek - ALC5520
- Realtek - ALC1011
Host Connection Port USB-C Industry Standards - HDMI 2.0
- USB 3.2 Gen 1 (5Gbps)
- USB Power Delivery Specification Rev. 3.0
Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No Number of Displays 1 USB Port Type - USB-A
- USB-C
Carton Depth (mm) 455 Carton Height (mm) 170 Carton Quantity 12 Carton Weight Gross (g) 6902 Included in Package - 1 - Speakerphone Dock
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Speakerphone Dock
- 1 - Quick-Start Guide
Package Depth (mm) 199 Package Height (mm) 46 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 494 Packaging Description USB-C™ Speakerphone Multiport Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2021-07-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-10-12 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-03-25 Target Production Release 2022-04-01 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Required
