Main Image
DKWG30DPHPDU
Dual Monitor USB C Dock, 60W PD - DisplayPort/HDMI
Create a dual-monitor or single 4K workstation with 4x USB ports and GbE, plus power and charge your laptop as you work
Main Image
Product Images
Product Images
BOM Image
Product Name Dual Monitor USB C Dock, 60W PD - DisplayPort/HDMI Product Number DKWG30DPHPDU UPC 065030868419 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) Dual USB C Dock - PD Product Title (Short) Dual Monitor USB-C Dock - 60W PD - 4K Product Title (Medium) Dual Monitor USB C Dock - 60W Power Delivery - 4K - Laptop Docking Station Product Title (Standard) Dual Monitor USB C Dock - 60W Power Delivery - 4K - Laptop Docking Station - USB C Hub - USB C to DisplayPort - USB C to HDMI Product Title (Long) Dual Monitor USB-C Dock - 60W Power Delivery - 4K Product Title (AMZ) Wireless (WiGig) or USB-C Dual-Monitor Docking Station for Laptops - Power Delivery - Wireless Docking Station - USB-C Dock (DKWG30DPHPDU) Title Ingram (Part 1) Dual Monitor USB C Dock - USB Title Ingram (Part 2) PD 60W - DisplayPort / HDMI - 4K Website Product Headline Create a dual-monitor or single 4K workstation with 4x USB ports and GbE, plus power and charge your laptop as you work Bullet 1 Power and charge your laptop with support for USB Power Delivery (up to 60 watts) when connected through USB-C Bullet 2 Supports dual monitors with 1920 x 1200p @ 60Hz resolution on each display (DisplayPort and HDMI), or a single 4K monitor 3840 x 2160p @ 30Hz Bullet 3 Connect your peripherals with 4x USB-A ports (2x USB 3.0, 2x USB 2.0) including a front-panel fast-charge and sync port (supports USB Battery Charging Specification 1.2) Bullet 4 Transform your USB-C enabled Windows 10 laptop into a full-sized workstation Bullet 5 Compact design (8” x 4.8”) sits either upright (in solid stand) or horizontal Bullets (Compact) Create a dual-monitor or single 4K workstation with 4x USB ports and GbE, plus power and charge your laptop through USB-C (5Gbps) - Dual-Monitor USB-C dock for Windows 10 laptops with USB-C - 60W USB PD - DisplayPort and HDMI- Laptop Docking Station Bullets (Consolidated) Create a dual-monitor or single 4K workstation with 4x USB ports and Gigabit Ethernet (with PXE Boot support), plus power and charge your laptop through USB-C (5Gbps) - Dual monitor USB C dock for Windows 10 based USB-C or Thunderbolt 3 laptops - 60W USB Power Delivery - Supports two monitors (DisplayPort/HDMI) 1920x1200p @ 60Hz resolution or single 4K monitor 3840x2160p @ 30Hz - Set up vertically in supplied stand or horizontally - Laptop dock supports WiGig wireless docking where supported Marketing Copy Applications - Power and charge your USB-C equipped laptop, using only the dock’s power adapter (through USB-C only)
- Deploy in offices and business settings or create hot desk workstation
- An essential accessory for the latest USB-C equipped laptops such as the HP® Spectre x360, Dell XPS™ 15, 13, or 12, Dell Latitude™ laptops and 2-in-1s
- Also supports laptops with WiGig wireless docking, ideal for those who travel to and from the office
Website Search Keyword - Wigig dock
- dell docking station
- laptop docking station
- usb c hub
- usb 3.0 docking station
- usb c dock
- usb c docking
- usb-c dock
- universal docking station
- usb dock
- laptop dock
- usb c dock station
- usb c docking station
- usb type c hub
- Dell wireless dock
- wireless dock station
- wireless docking station
- usb type c docking
- wireless docking
- wireless charging dock
- Wireless dock
- dell usb c dock
- docking station usb 3.0
- usb type c dock station
- usb type c docking station
- dual monitor docking station
- hp docking station dual monitors
- laptop docking station dual monitor
- usb charging dock
- dell wireless dock d5000
- dell docking station dual monitor
- dell laptop docking station dual monitor
- dell usb 3.0 superspeed dual video docking station
- dual video docking station
- hp laptop docking station dual monitors
- wigig docking station
- wigig dock lenovo
- dell wigig dock
- universal docking station dual monitor
- usb c charging dock
- usb c port replicator
- docking station usb c
- docking station wireless
- wireless laptop docking station
- intel wigig dock
- laptop usb docking station
- universal laptop docking station dual monitor
- usb 3.0 laptop docking station
- wireless docking station dell
- usb type c charging dock
- wireless docking station for laptop
- wireless docking station laptop
- wireless usb dock
- dock wireless
- usb c docking station dell
- wireless usb docking station
- wireless laptop dock
- wireless laptop docking
- wireless dock charger
- wigig dock dell
- wigig dock hp
- wigig dock thinkpad
- wigig enabled docking station
- wireless dock adapter
- usb type c laptop dock
- wireless notebook docking station
- wireless docking system
- usb c laptop dock
- laptop wireless docking station
- docking station usb type c
- best usb c docking station
- laptop docking station usb c
- laptop usb c docking station
- laptop usb type c docking station
- docking station with power delivery
- dual video docking station with power
- dual monitor usb c docking station
- universal usb c docking station
- usb c docking station dual monitor
- usb c docking station for laptop
- usb c laptop docking station
- usb c notebook docking station
- usb c laptop charging dock
- usb c docking station with power
- usb c dual video docking station
- usb c dock with power
- usb type c dock with displayport
- usb c universal docking station
- Wireless Dual Video Docking Station for Laptops
- usb type c laptop docking station
- usb type c notebook docking station
- usb type c universal docking station
- USB-C and WiGig Dual Video docking station
- USB-C and WiGig Dual Video docking station for laptops
- USB-C and WiGig Dual Video docking station for laptops - Power Delivery
- usb type c docking station dual monitor
- usb type c dual video docking station
- usb-c or wireless docking station for laptops
- usb-c or wireless dual video docking station for laptops
- WiGig and USB-C Dual Video Docking Station for Laptops
- WiGig and USB-C Dual Video Docking Station for Laptops - Power Delivery
- WiGig and USB-C Dual Video Docking Station with Power Delivery
- wigig dual video docking station
- wigig wireless docking station
- Wireless (WiGig) and USB-C Docking Station for Laptops - Dual Video - Power Delivery
- Wireless (WiGig) and USB-C Dual Video Docking Station for Laptops
- Wireless and USB-C Dual Video Docking Station for Laptops
- wigig laptop dock
- wigig laptop docking station
- usb-c docking station
- usb type-c docking station
- usb type-c dock
- usb type-c docking
- notebook docking station
- notebook dock
- 4k laptop dock
- 4k laptop docking station
- port replicator
- laptop accessory
- lenovo docking station
- hp docking station
- dell dock
- dell laptop dock
- dell laptop docking station
- power delivery dock
- power delivery docking station
- dell xps
- dock with power delivery
- laptop dock with power delivery
- laptop docking station with power delivery
- dock power delivery
- docking station power delivery
- usb power delivery 2.0
- USB PD 2.0
- USB PD
- usb power delivery
- Docking Stations
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - The dock can connect to a host laptop’s USB-C port even if it doesn’t support USB Power Delivery 2.0 and DP alt mode. However, without support for these two protocols, the dock will not pass power through to your host laptop or support video output.
- The dock’s DisplayPort port only supports active DisplayPort video adapters.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
- A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- Video output capabilities are dependent on the video card and hardware specifications of the host laptop it’s connected to. Certain video cards have limited video support, and some monitors will also limit the available resolution.
- When connected to your host laptop through WiGig the dock only supports 2-channel audio (5 and 7-channel audio is not supported).
- HDCP content is not supported when connected in WiGig mode.
- USB Power Delivery is only supported when connected through USB-C, and is not supported when connected through WiGig.
- For WiGig mode, the dock must be positioned vertically.
System and Cable Requirements A USB-C equipped host laptop (the host USB-C port must support USB Power Delivery 2.0 in order to power and charge your laptop, it must also support DP alt mode to enable video output) or a WiGig (IEEE 802.11ad) equipped host laptop. Accessory Products - DP2HD4KS
- DP2VGA3
- DP2DVIS
- HDMM2M
- HDMIDVIMM6
- HDMM6
- HDMM15
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT15L
- ST103008U2C
- S252BU33R
Related Products - MST30C2DPPD
- CDP2HDUACPW
- CDP2HDUACP
- CDP2VGAUACP
- DK30BACDD
- USB3DOCKH2DP
Input Current 2 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 20V DC Power Consumption (In Watts) 100 Power Delivery 60W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black & Silver Humidity 0~95% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 121.000 Product Width (mm) 52.000 Product Height (mm) 203.000 Product Weight (g) 655.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 1080p OS Compatibility - Windows 10
- Windows 11
PXE Yes UASP Support Yes USB Type and Rate - USB 3.0 (5Gbps)
- USB 2.0 (480Mbps)
Video Output Port - HDMI
- DisplayPort
Video Transport Technology USB Graphics Wake-On-LAN (WOL) Yes Bus Type - USB-C
- WiGig
Chipset ID Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power
- 1 - Status
Number of Displays 2 Other Ports - Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

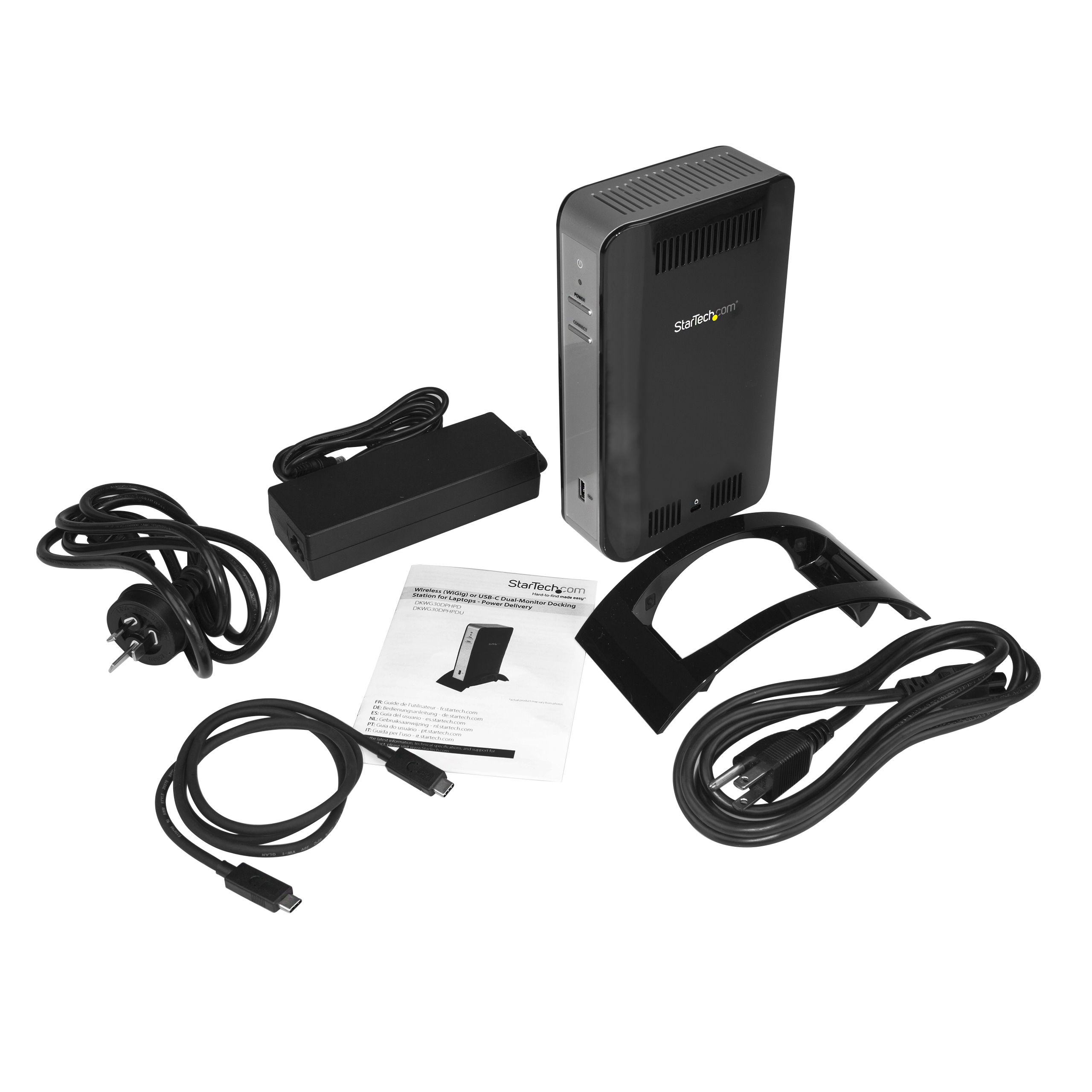

Carton Depth (mm) 390 Carton Height (mm) 224 Carton Quantity 6 Carton Weight Gross (g) 13036 Included in Package - 1 - laptop dock
- 1 - stand
- 1 - USB-C 3.3 ft [1016 mm] cable
- 1 - universal power adapter
- 2 - power cords (EU, UK)
- 1 - instruction manual
Package Depth (mm) 205 Package Height (mm) 100 Package Width (mm) 368 Package Quantity 1 Package Weight (g) 2009 Packaging Description Wireless (WiGig) or USB-C Dual-Monitor Laptop Dock Packaging Description India Wireless (WiGig) or USB-C Dual-Monitor Laptop Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 USB-A (480Mbps, 2.5W) Connector 6 (Quantity) 2 Connector 7 3.5mm (4 Conductors, TRRS) Connector 7 (Quantity) 1 Connector 8 RJ-45 Connector 8 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-11-18 Buying Center - End User Compute Yes Digital Content Due Date 2016-12-08 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FR,IE,IT,NL,SE,UK Primary Technology USB-C Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2016-11-11 Target Production Release 2016-11-18 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
