DP14A-10M-DP-CABLE

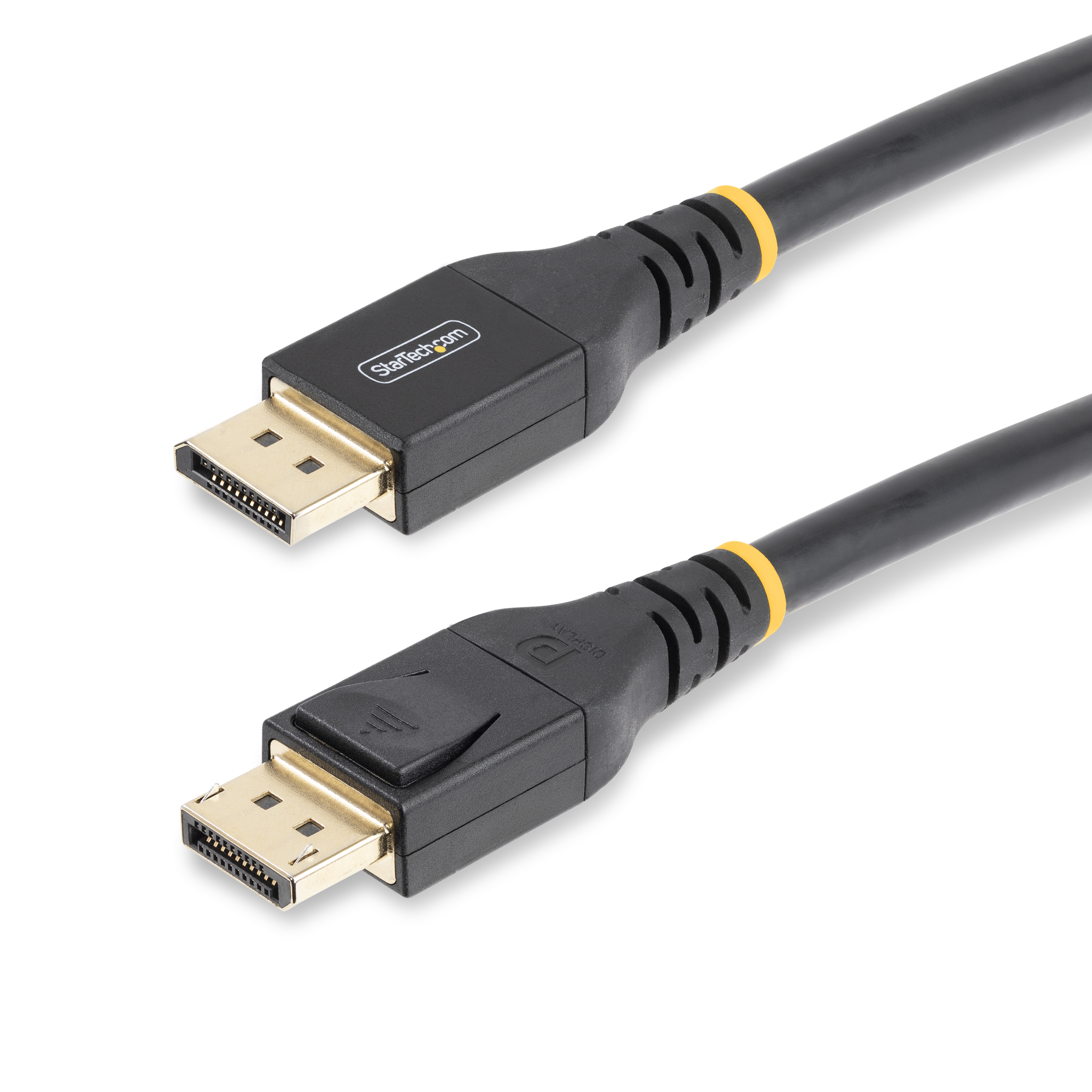

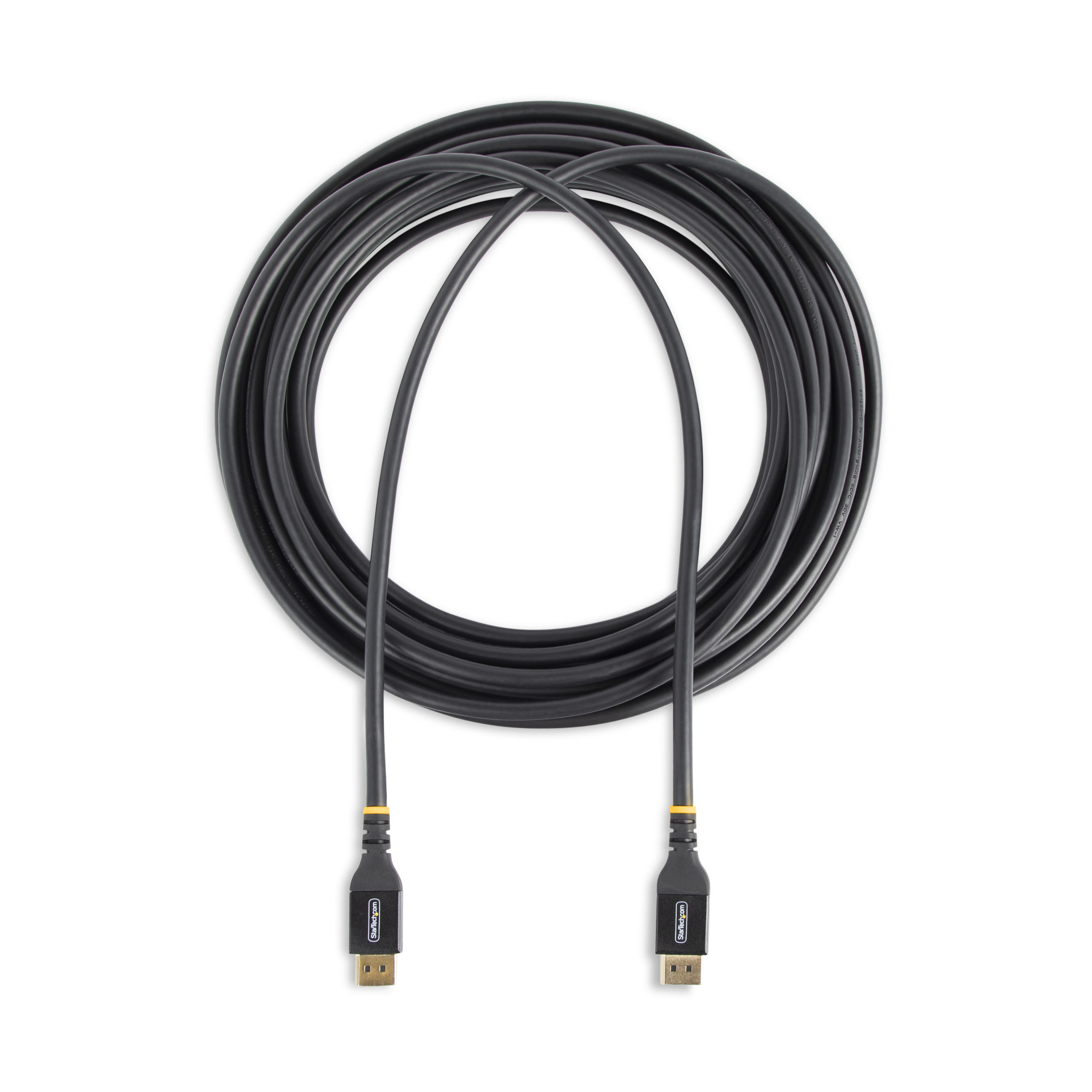

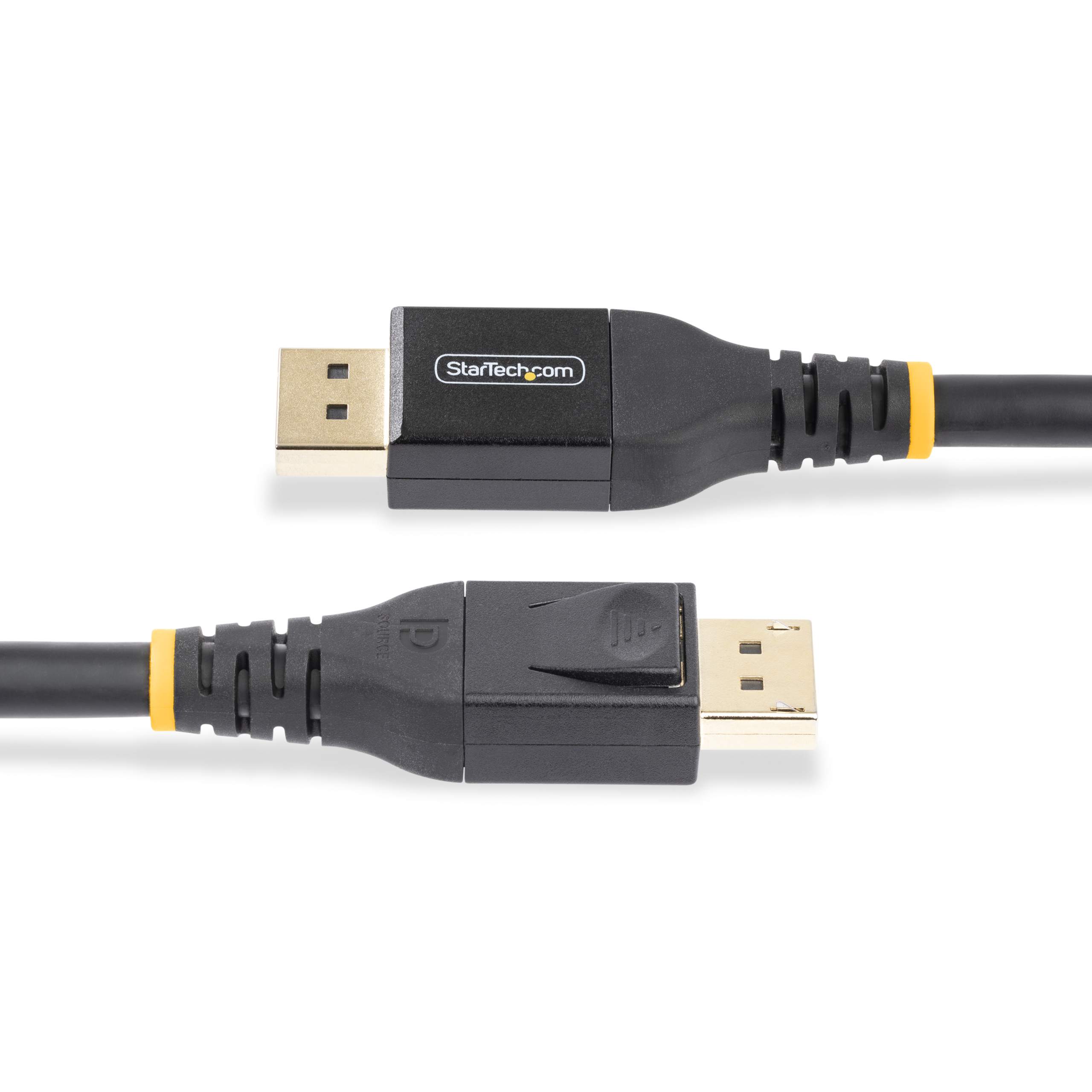

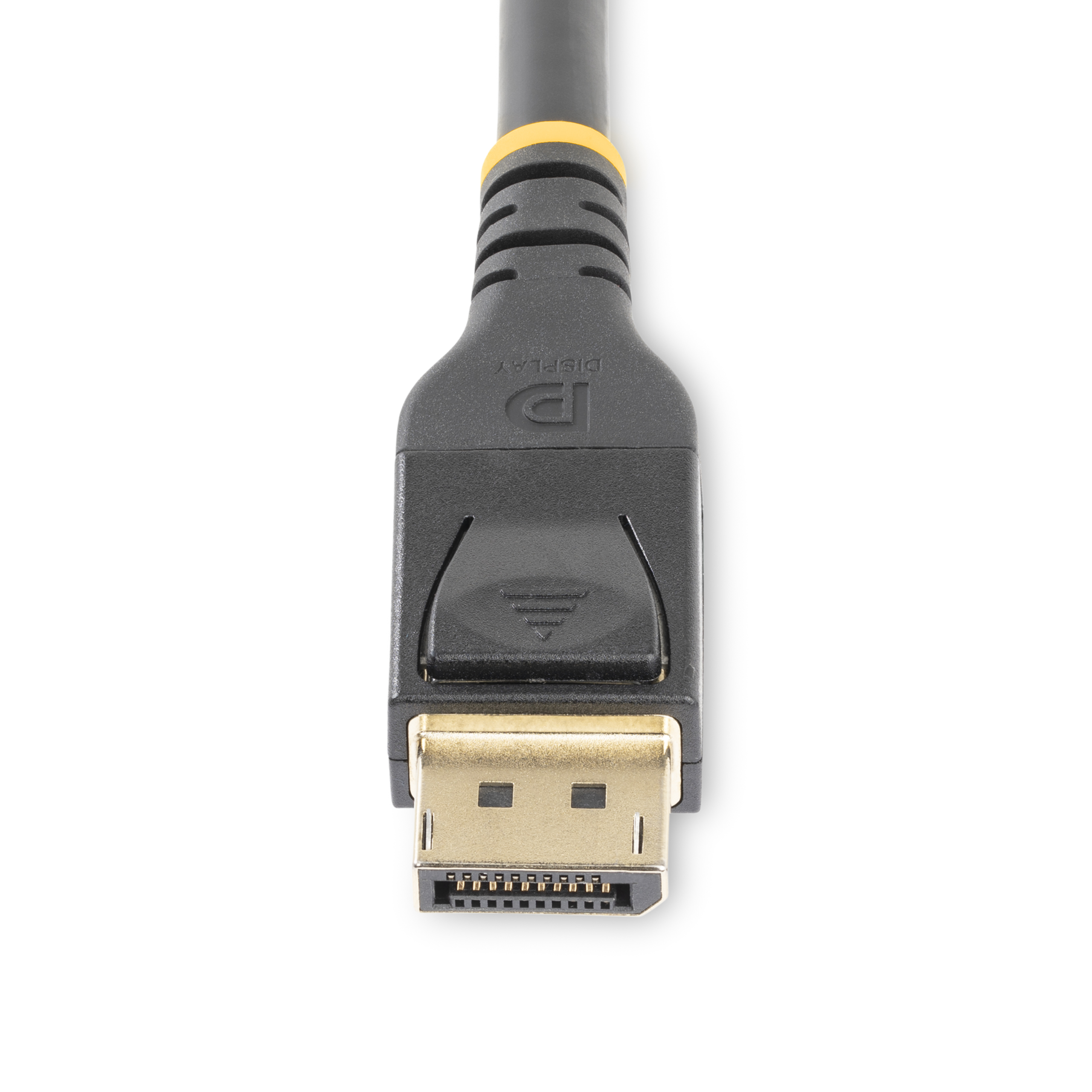

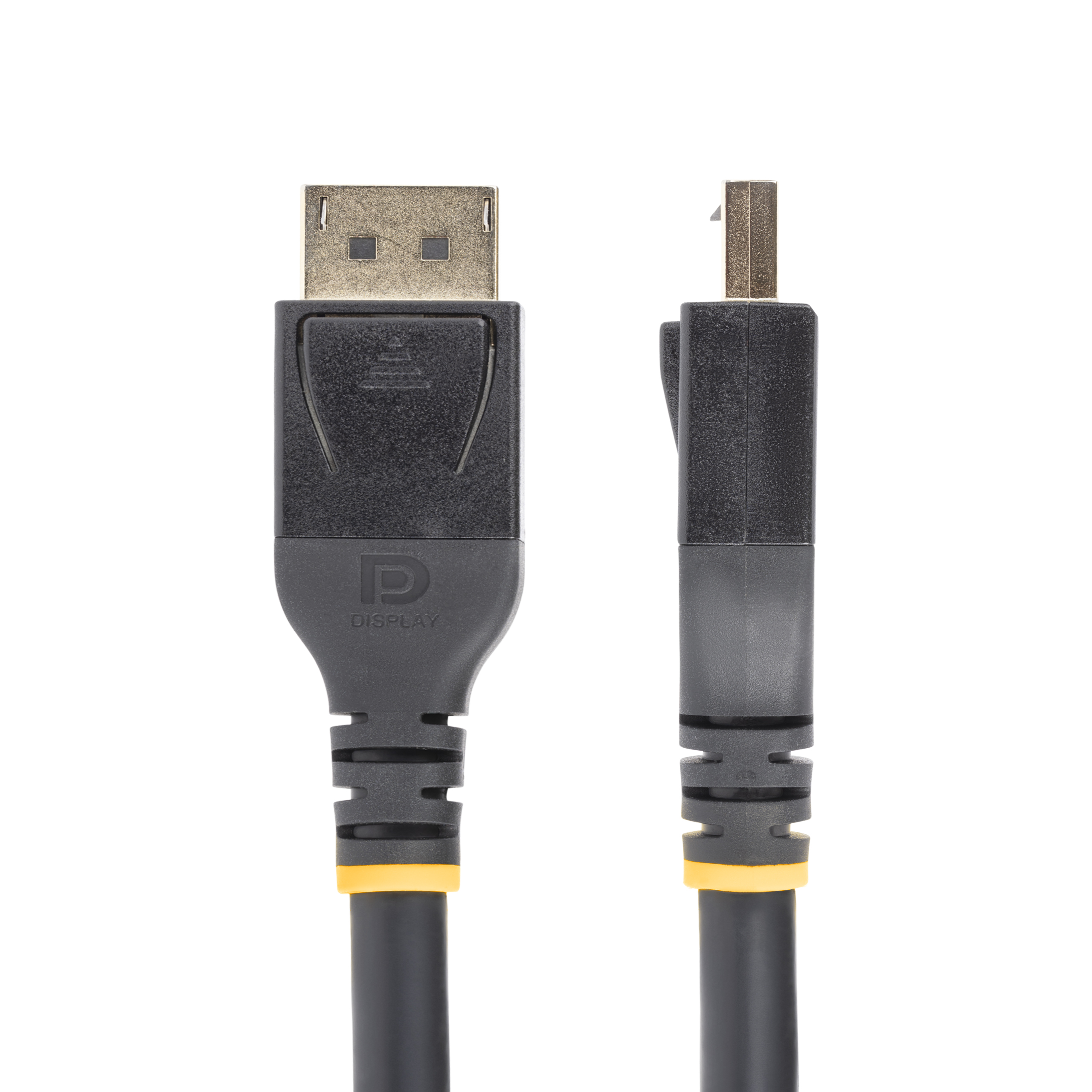

10m Active DisplayPort Cable DP to DP M M

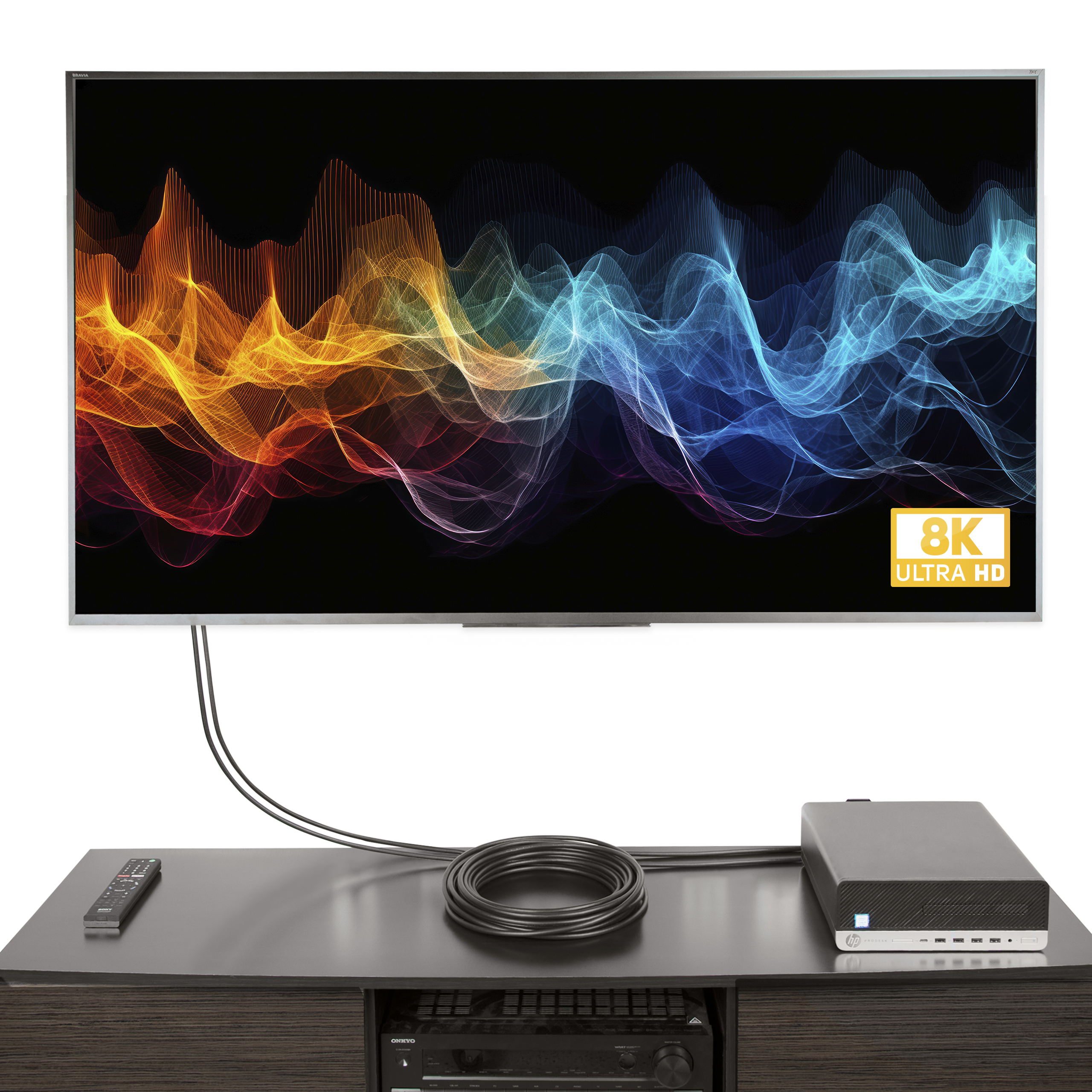

Facilitate a longer 8K connection without requiring an external power source
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 10m Active DisplayPort Cable DP to DP M M Product Number DP14A-10M-DP-CABLE UPC 065030899963 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - Active Family Active DP 1.4 Cables, Partial VBL, 8K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX048X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX184X Product Title (Ultra-Short) Active DP 1.4 Cable Product Title (Short) 10m Active DisplayPort 1.4 Cable - 4K/8K Product Title (Medium) 10m (33ft) Active DisplayPort Cable - DisplayPort 1.4 Cable - 8K - DP Cable Product Title (Standard) 10m (33ft) Active DisplayPort 1.4 Cable, DP8K with HBR3/HDR10/MST/DSC 1.2/HDCP 2.2, 8K 60Hz, 4K 120Hz, Active DP 1.4 Cable Product Title (Long) 10m (33ft) Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M Product Title (AMZ) 10m (33ft) Active DisplayPort 1.4 Cable, 8K DP Cable with HBR3, HDR10,8K 60Hz, 4K 120Hz - M/M DP Cord Title Ingram (Part 1) Active DisplayPort Cable 4K/8K Title Ingram (Part 2) 10m Active DP 1.4 Cable Website Product Headline Facilitate a longer 8K connection without requiring an external power source Bullet 1 DESIGNED FOR LONG RANGE: 10m (32.8ft) Active DisplayPort 1.4 Cable delivers 8K video beyond the length of passive cables; Integrated self-powered signal booster enables consistent performance without the need for a DP booster or external power source Bullet 2 DURABLE CONSTRUCTION: Latching gold-plated connectors with robust strain reliefs to prevent accidental disconnects; TPE outer cable jacket is flexible, non-toxic, halogen-free, and RoHS compliant; Shielded cable and connector for enhanced EMI protection Bullet 3 VERSATILE INSTALLATION: This active DP 1.4 cable is unidirectional, with conveniently labeled connectors for source and display; 7.5mm Cable O.D. is identical to passive cables and improves flexibility; VW-1 Fire rated jacket enhances flame resistance Bullet 4 APPLICATIONS: Ideal for high resolution 8K displays; Up to 120Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a UHD docking station Bullet 5 SPECS: Black; 10m (32.8ft); Unidirectional cable; DP8K supports HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 8K 60Hz, 4K 120Hz, 1440p 240Hz w/DSC; Backward Compatible w/ DP 1.3/1.2; Cable O.D.: 7.5mm; Gold-Plated Connectors; Rugged TPE Jacket w/Aluminum Mylar Shield Bullets (Compact) Active DisplayPort 1.4 cable with integrated signal booster - Ideal for boardrooms/video walls; Latching gold-plated connectors - TPE jacket w/ Al-mylar shield - Black; DP8K with HBR3/HDR10/MST/DSC 1.2/HDCP 2.2 - 8K 60Hz/4K 120Hz/1440p 240Hz Bullets (Consolidated) - Active DisplayPort 1.4 cable w/integrated signal booster delivers 8K performance at up to 32.8ft (10m) length without external power - Ideal for boardrooms/video walls/signage TVs; Simplify a long DP connection using fewer components - Latching gold-plated connectors; TPE jacket w/ Aluminum-mylar shield - 10m (32.8ft); Black; Unidirectional; DP 1.4 w/HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 8K 60Hz / 4K 120Hz / 1440p 240Hz; Backward Compatible w/DP 1.2; Cable O.D.: 7.5mm Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 8K Displayport Cable
- Displayport 1.4 Cable
- Displayport 1.4 HBR3 Cable
- displayport 1.4 hdr cable
- displayport cable male to male
- displayport cord
- displayport monitor cable
- displayport to displayport cable
- displayport video cable
- dp 1.4 cable
- vesa certified displayport 1.4 cable
- best displayport 1.4 cable for gaming
- cable matters 8k displayport to displayport cable
- club3d displayport 1.4
- dell displayport 1.4
- displayport 1.2 cable
- displayport 1.4 cable amazon
- monoprice displayport 1.4
- ugreen displayport 1.4 cable
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
System and Cable Requirements DSC (Display Stream Compression) technology reduces the bandwidth required to transmit video signals, enabling higher resolutions and faster refresh rates without compromising visual quality Cable Length (mm) 10000 Cable OD 7.5 Color Black Connector Style Latching Humidity 0%~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 10000 Product Width (mm) 20.500 Product Height (mm) 12.6 Product Weight (g) 608 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Wire Gauge 24/28 AWG Audio Specifications DisplayPort - 7.1 Channel Audio DisplayPort Version DP 1.4 (HBR3) General Specifications Maximum Bandwidth: 32.4 Gbps HDR Support HDR10 Maximum Data Transfer Rate 25.92 Gbps Maximum Digital Resolutions Supported Protocols DisplayPort 1.4 </br> DisplayPort 1.2 Active or Passive Adapter Active Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Aluminum-Mylar Foil with Braid Cable Type Active Copper Cable Chipset ID SPECTRA7® VR8300B0-C-R Connector Plating Gold Connectors DisplayPort to DisplayPort Fire Rating VW-1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 437 Carton Height (mm) 300 Carton Quantity 16 Carton Weight Gross (g) 11250 Included in Package 1 - Active DisplayPort 1.4 8K Cable Included In Package for Label 1 - ACtive Displayport 1.4 8K Cable Package Depth (mm) 249 Package Height (mm) 54 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 646 Packaging Description 33ft/10m DisplayPort 1.4 Cable - 8K UHD Packaging Description India 33ft/10m DisplayPort 1.4 Cable - 8K UHD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2022-08-11 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment T12 @226K Comparable SKU 2 Comment N/A Digital Content Due Date 2023-08-22 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology DisplayPort 1.4 Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-07-26 Target Production Release 2023-05-15 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
