DP14MDPMM10F

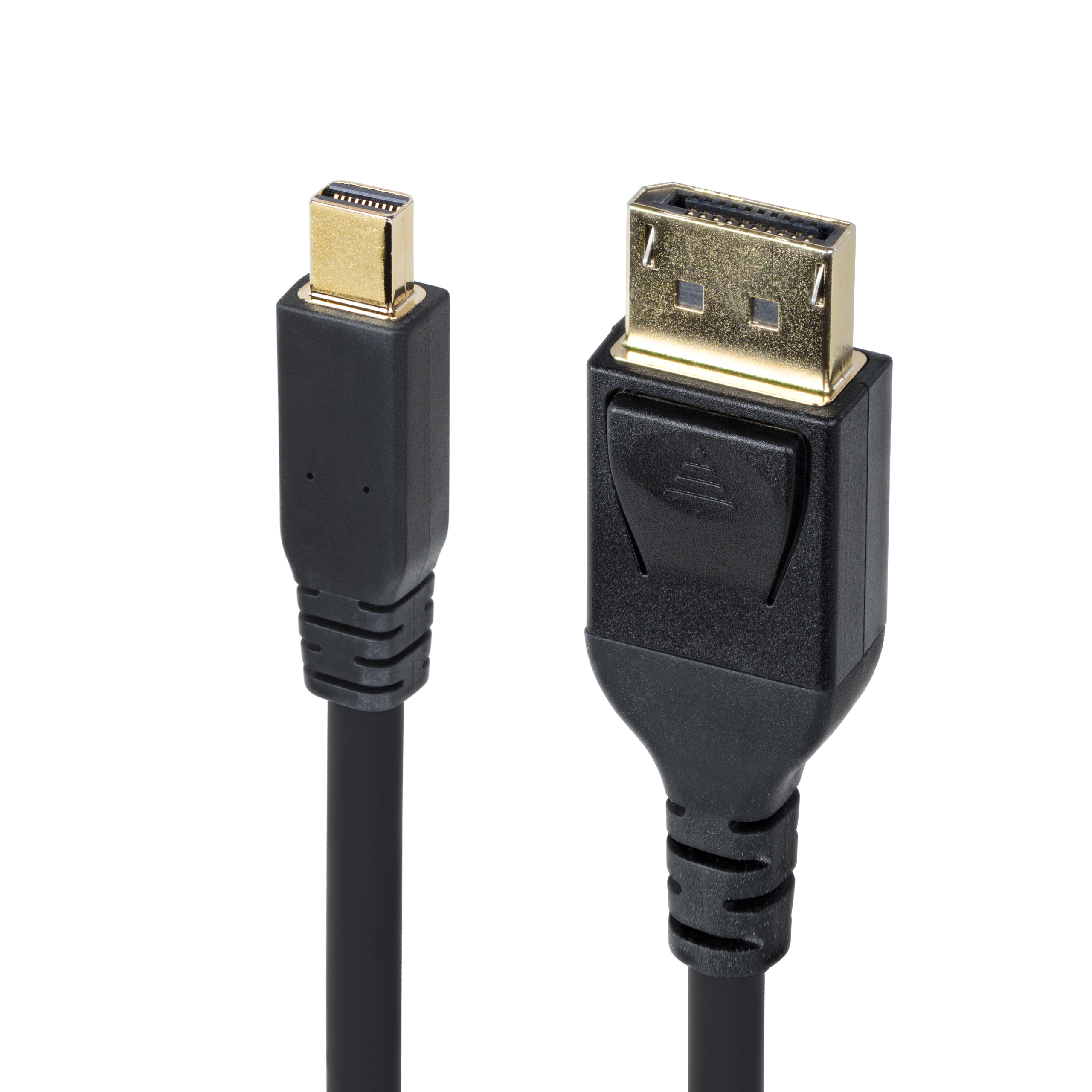

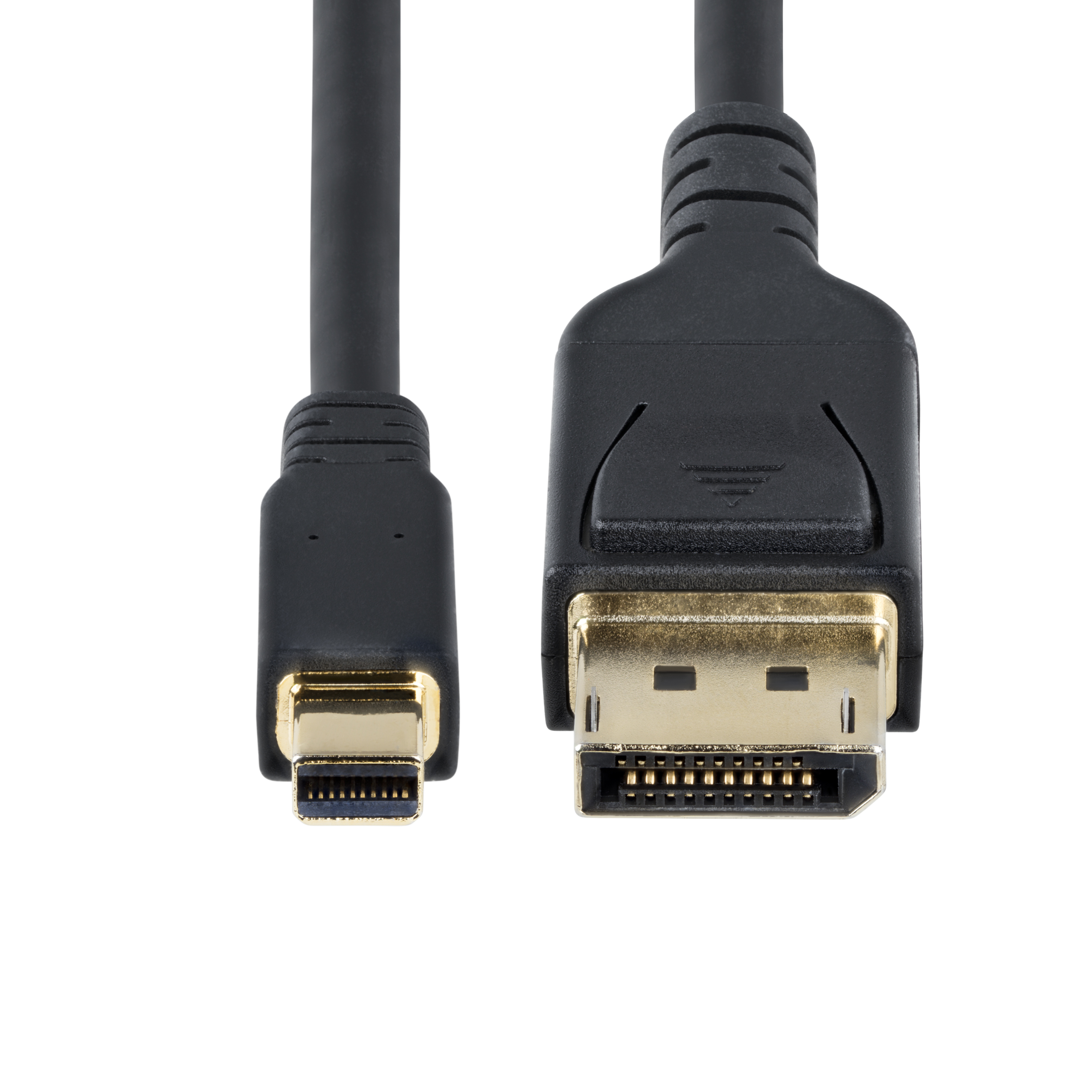

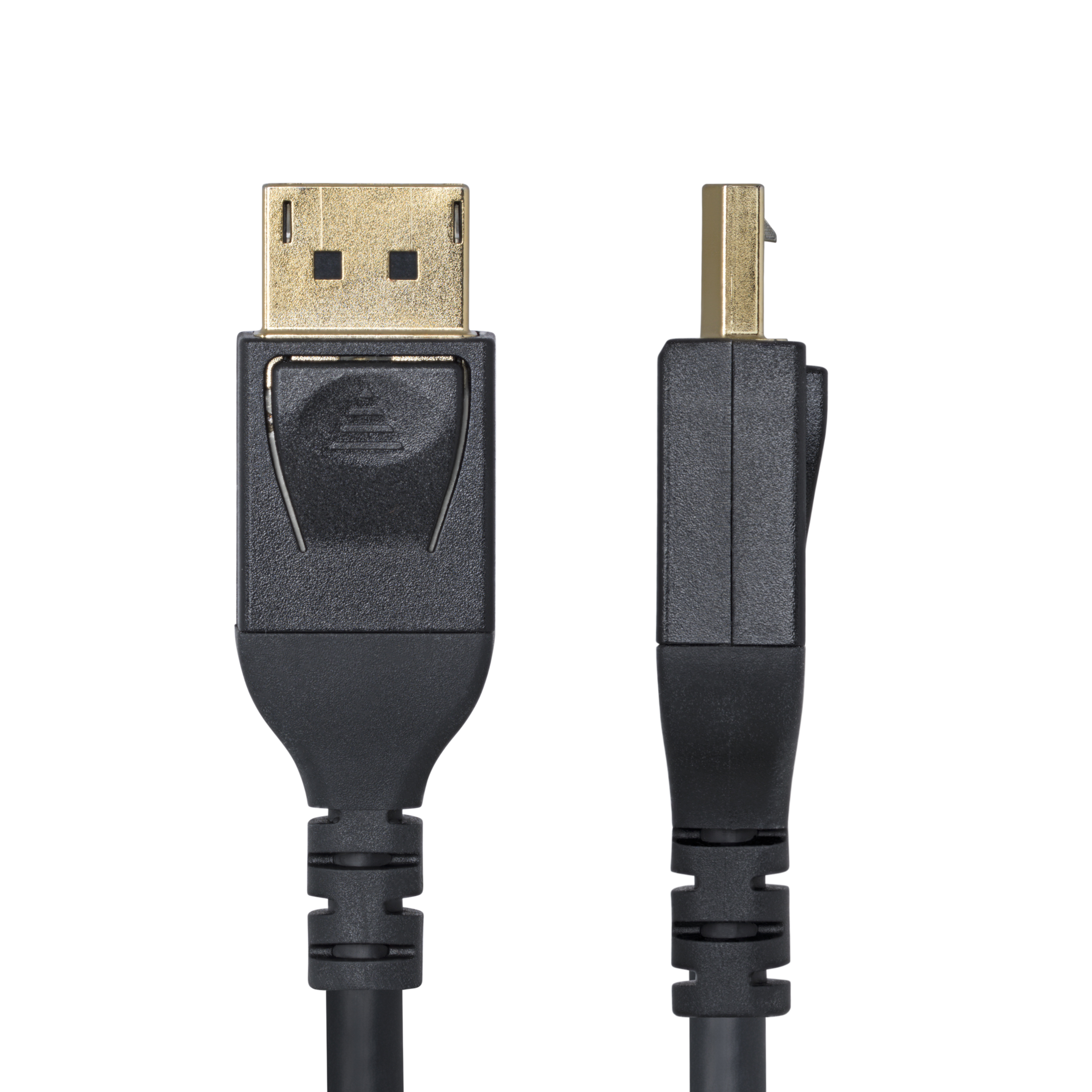

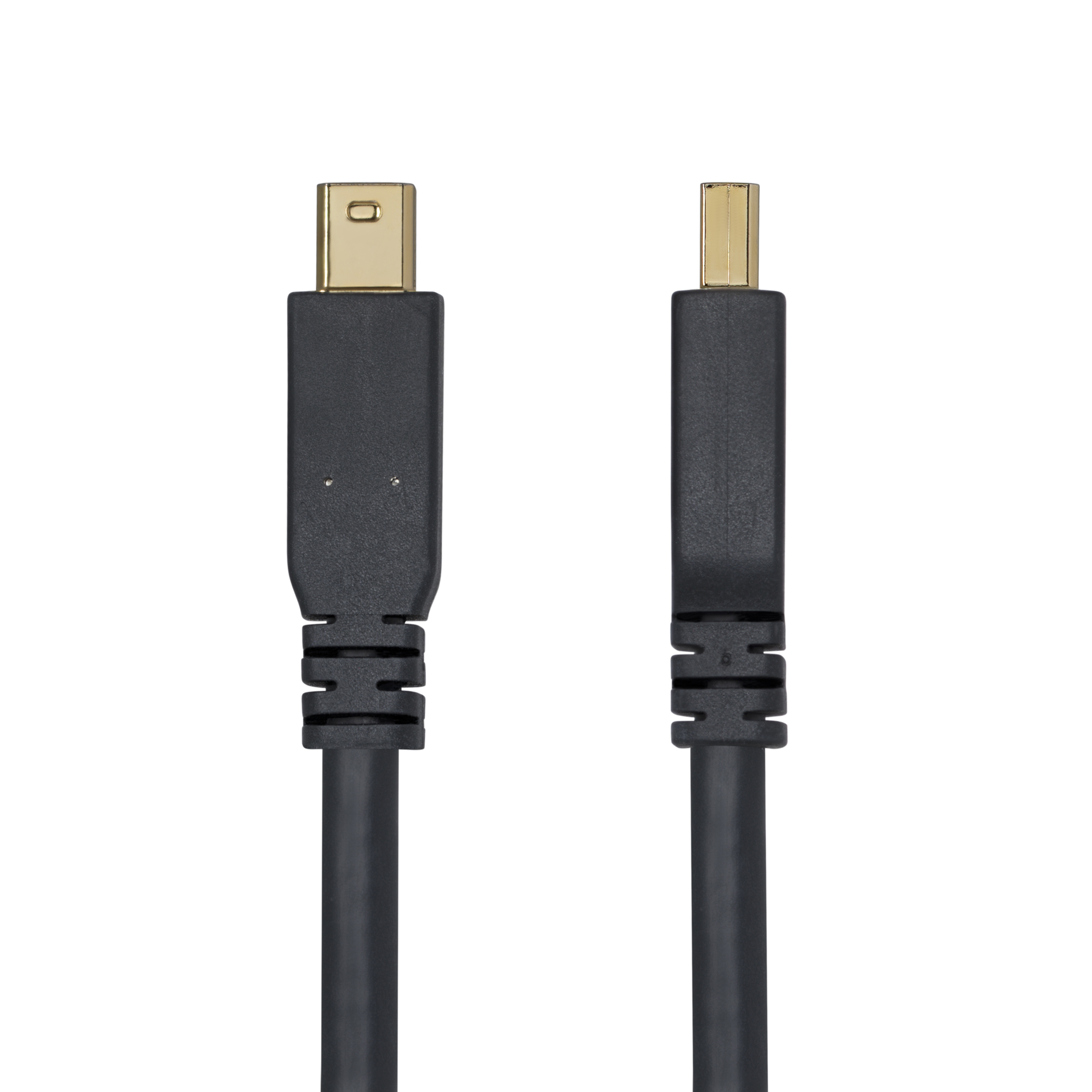

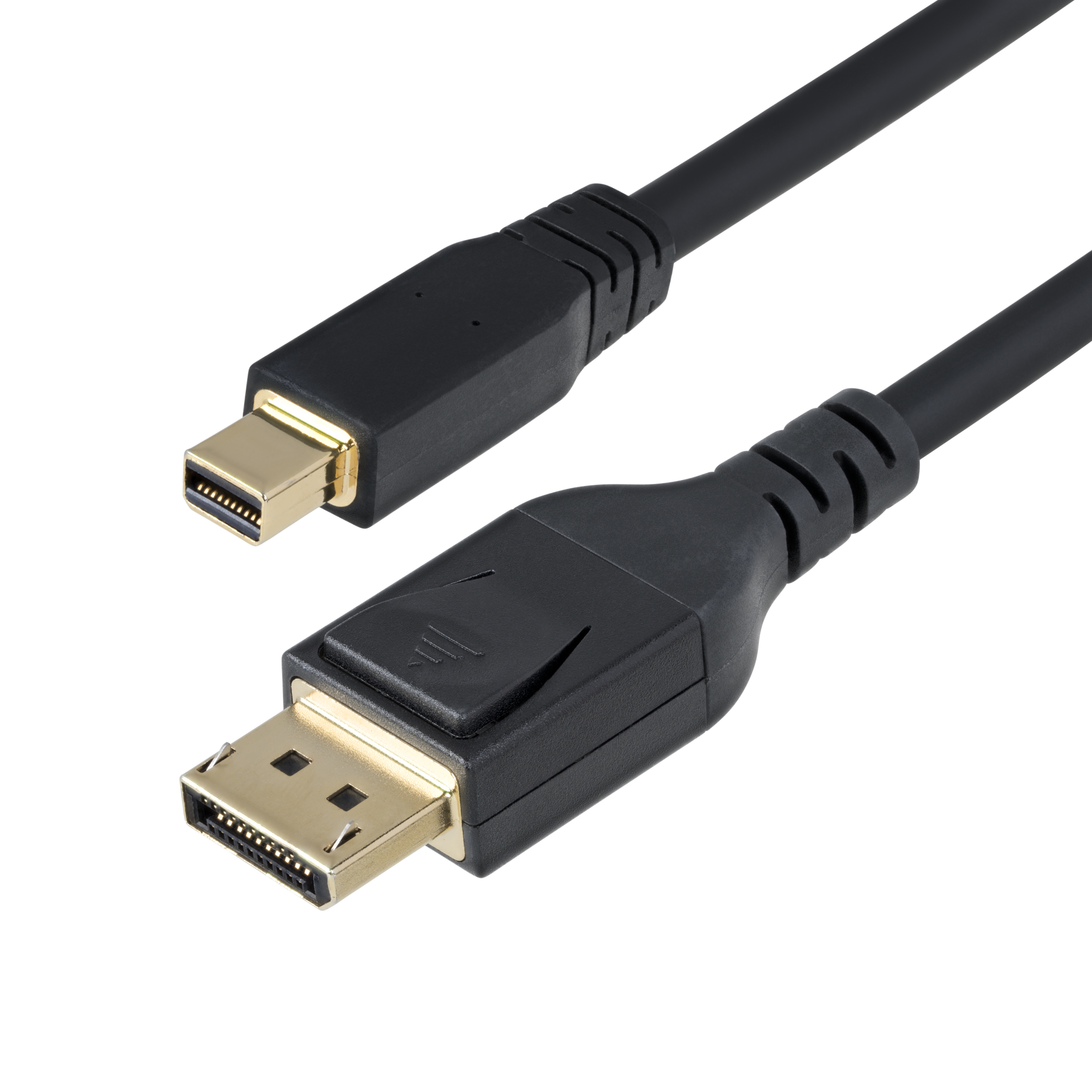

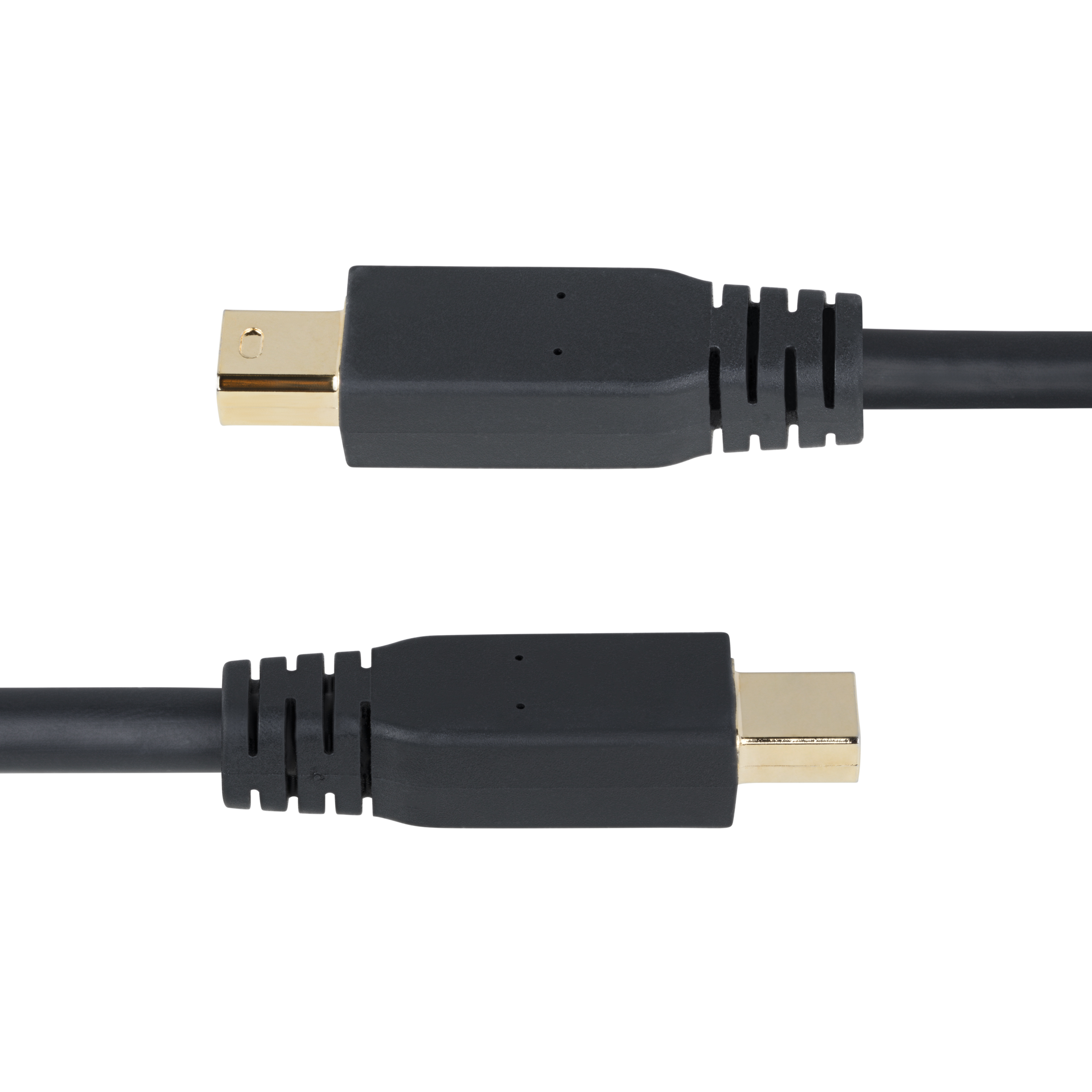

3m 10ft MiniDP to DP 1 4 Certified cable

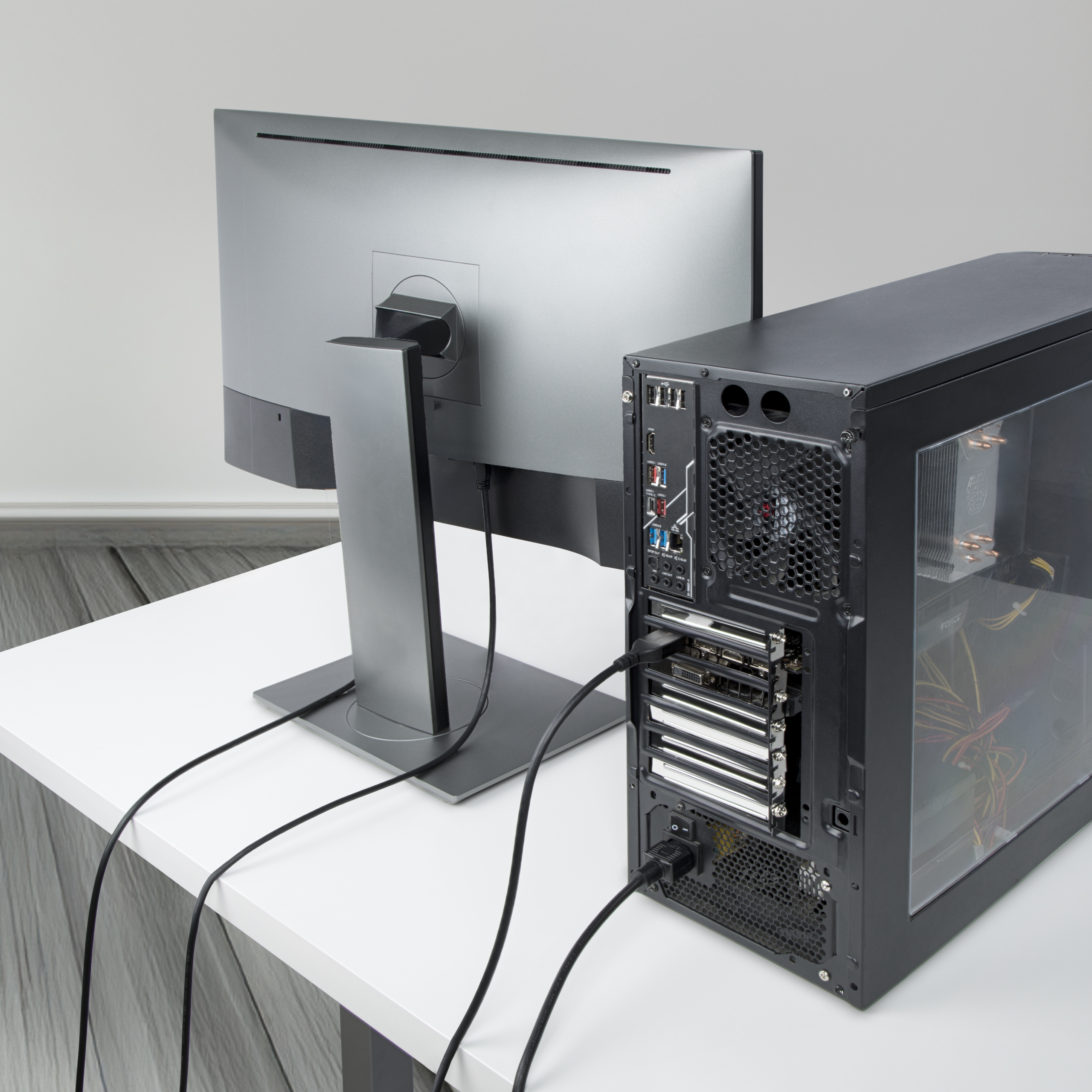

Create high-resolution 8K connections with HBR3 support between your Mini DisplayPort and DisplayPort devices
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 3m 10ft MiniDP to DP 1 4 Certified cable Product Number DP14MDPMM10F UPC 065030910118 Lifecycle status Active Warranty Lifetime Weighted Opportunity 0 Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - 8K HDR Family Certified mDP 1.4 to DP Cables, 8K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) DisplayPort 1.4 Cbl Product Title (Short) 10ft 8K Mini DP to DisplayPort 1.4 Cable Product Title (Medium) 10ft (3m) Mini DisplayPort to DisplayPort 1.4 Cable 8K 60Hz HBR3 4K Product Title (Standard) 10ft (3m) Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, UHD 4K 120Hz, mDP to DP Cord Product Title (Long) 10ft (3m) Mini DisplayPort to DisplayPort 1.4 Cable - 8K 60Hz/4K 120Hz HBR3 HDR, UHD mDP to DP 1.4 Cord, Ultra HD Monitor/Video Cable Product Title (AMZ) 10ft (3m) Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz/4K 120Hz HBR3 HDR, UHD mDP to DP 1.4 Cord Title Ingram (Part 1) Mini DisplayPort to DisplayPort Title Ingram (Part 2) 1.4 Cable 8K HBR3 Video Cord 3m Website Product Headline Create high-resolution 8K connections with HBR3 support between your Mini DisplayPort and DisplayPort devices Bullet 1 MDP to DP 1.4 CABLE: 10ft (3m) DisplayPort 1.4 cable with 32.4Gbps bandwidth; 8K 60Hz (7680x4320) w/ DSC, 4K 120Hz (3840x2160), HDR meta transport, HBR3, 32 ch audio, MST monitor daisy-chain, FEC error control; Works with DisplayHDR certified Monitors Bullet 2 RELIABLE: Built with internal wire manager to ensure signal integrity; Al-Mylar foil with Braid and metal connector sub-structure provide EMI shielding; Latching connector on DP end to prevent accidental disconnection Bullet 3 DURABLE: PVC jacket (outer diameter: 5.7mm) video cable (30 AWG) absorbs stress of frequent bends with strain relief protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnish Bullet 4 BROAD COMPATIBILITY: Works with Nvidia Quadro: P620, P600, P400, and AMD Radeon Pro: VII, SSG, WX9100/4100/3200/3100/2100, W5700/5500 & FirePro: W9100/900/600/4100; Works with mDP 1.2 and Thunderbolt 2 host device (1080p/4K) Bullet 5 SPECS: 10-foot (3-meter); Black; DisplayPort 1.4; Mini DP Male to DP Male; 30 AWG; Jacket: PVC; EMI Shielding; Supported Protocols: HBR 3, 4:4:4 Chroma Subsampling, DSC 1.2, HDCP 2.2, MST Bullets (Compact) 10ft Mini DP to DisplayPort 1.4 cable; 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2; HDR HBR3 HDCP 2.2; 32ch audio; Strain relief absorbs bend stress; 30 AWG cable; Works w/ mDP 1.2/Thunderbolt 2 hosts; Nvidia/AMD video cards Bullets (Consolidated) 10ft (3m) Mini DP to DisplayPort 1.4 cable with 32.4Gbps bandwidth; 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2; HDR HBR3 HDCP 2.2; 4:4:4 chroma 32ch audio - Strain relief absorbs bend stress and protects 5.7mm (30 AWG) cable; gold plated connectors prevent oxidization - Works w/Nvidia Quadro (P620/P600/P400) and AMD Radeon VII/SSG/WX 9100/4100/3200/3100/W5700) video cards - Works w/mDP 1.2; Thunderbolt 2 hosts and DisplayHDR monitors - StarTech.com Lifetime Warranty Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 2m displayport cable
- 8K Displayport Cable
- 8K Video Cable
- Displayport 1.4 Cable
- displayport monitor cable
- HBR3 DisplayPort Cable
- mdp to dp cable
- mini displayport 1.4 cable
- mini displayport to displayport cable
- mini displayport to displayport cord
- slim displayport cable
- display port cords
- dp cord for monitor
- high quality displayport cable
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
VESA Certified Yes Cable Length (mm) 3050 Cable OD 4.5 Color Black Humidity 0%RH ~ 85%RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 3069.3 Product Width (mm) 20 Product Height (mm) 12.2 Product Weight (g) 134 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant No Wire Gauge 30 AWG DisplayPort Version DP 1.4 (HBR3) Maximum Cable Length (mm) 3050 Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Gold Connectors DisplayPort to Mini DisplayPort Number of Conductors 19 Carton Depth (mm) 400 Carton Height (mm) 270 Carton Quantity 50 Carton Weight Gross (g) 9100 Included in Package 1 - 10ft Mini DisplayPort to DisplayPort Cable Package Depth (mm) 220 Package Height (mm) 20 Package Width (mm) 200 Package Weight (g) 144 Packaging Description 10ft (3m) Mini DisplayPort to DisplayPort® Cable - 8K - DP 1.4 Packaging Description India 10ft (3m) Mini DisplayPort to DisplayPort® Cable - 8K - DP 1.4 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-12-13 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Longer Length Comparable SKU 2 Comment DP 1.2 Version Digital Content Due Date 2025-02-28 Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology DisplayPort 1.4 Priority New Product Medium Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-11-08 Target Production Release 2024-12-15 Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
