DP14MM1M

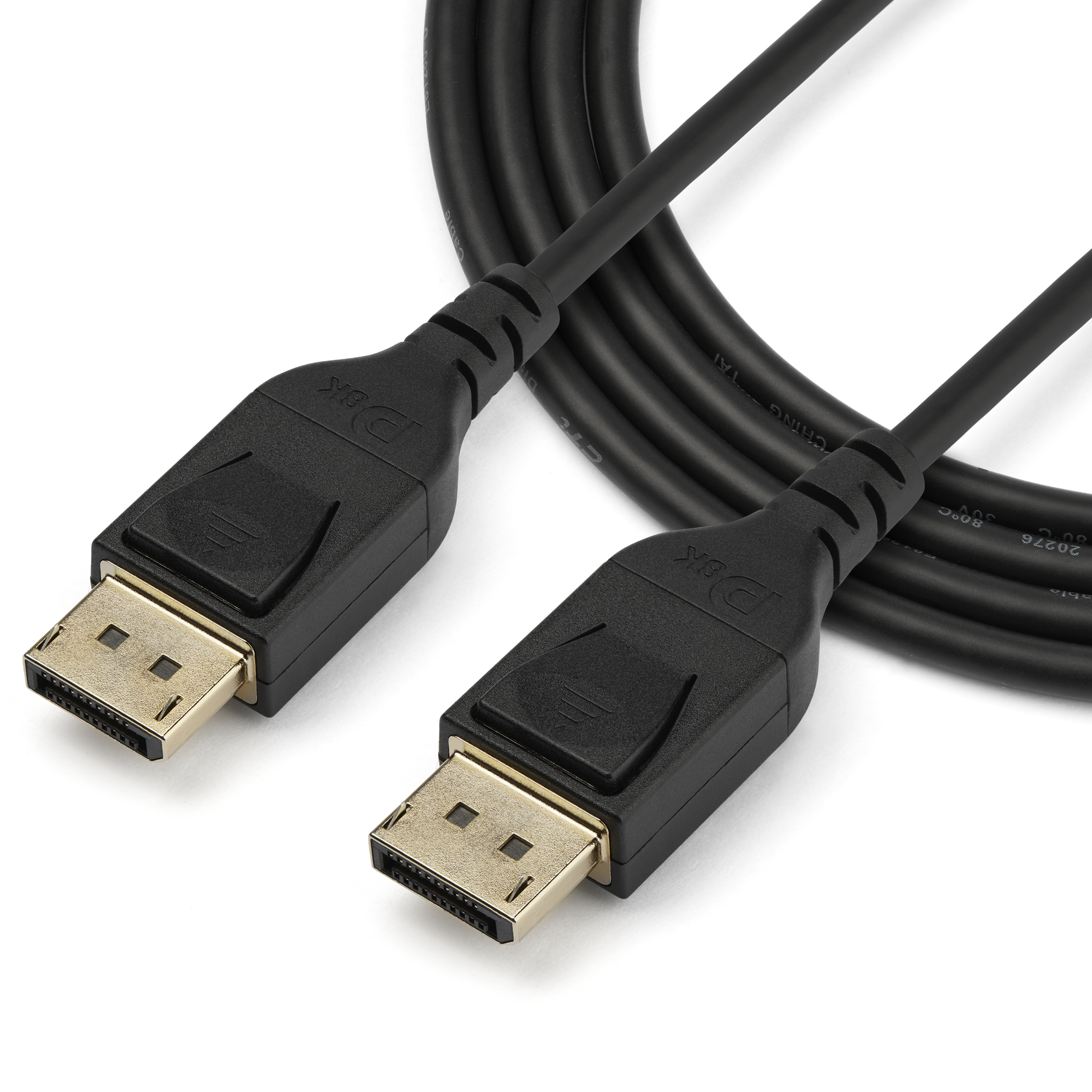

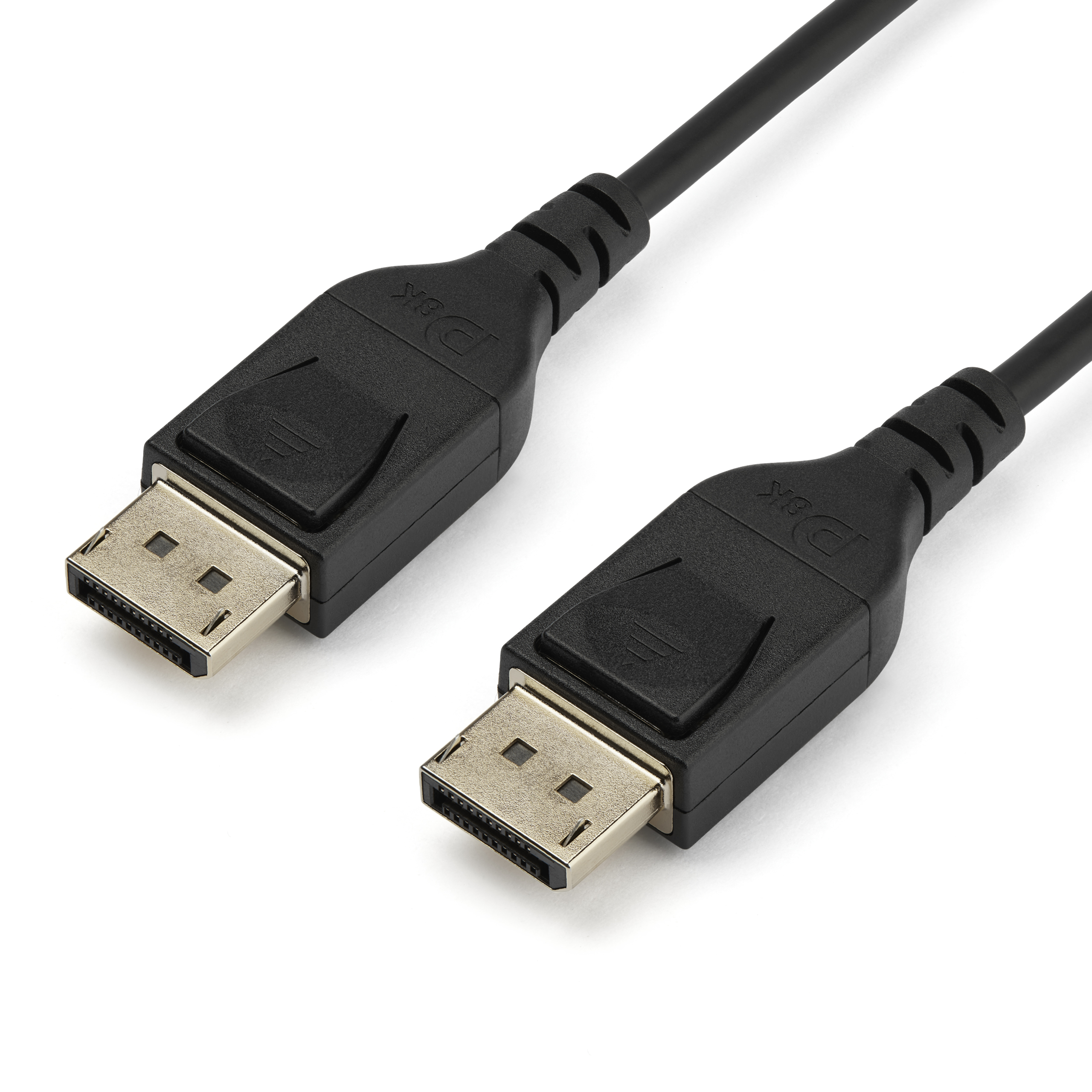

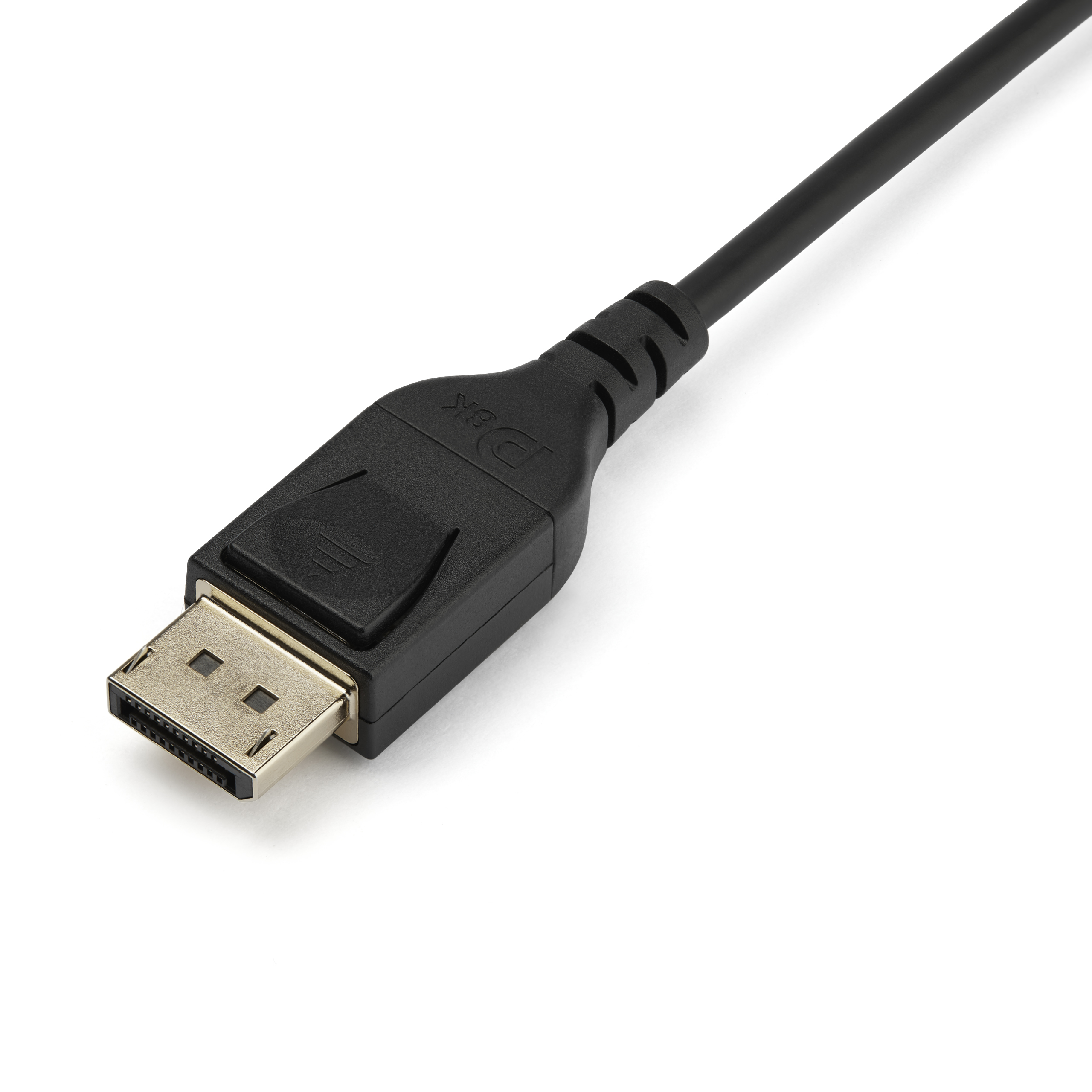

1m DisplayPort 1 4 Cable
Slim DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime Warranty
Main Image
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 1m DisplayPort 1 4 Cable Product Number DP14MM1M UPC 065030879248 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - 8K HDR Family Certified DP 1.4 Slim Cables, 8K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX048X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX170X Product Title (Ultra-Short) 1m DP 1.4 Cable Product Title (Short) 3ft Certified 8K DisplayPort 1.4 Cable Product Title (Medium) 1m 3.3 ft DisplayPort 1.4 Cable - VESA Certified - 8K@60Hz HBR3 - HDR - DP Cable Product Title (Standard) 1 m VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HBR3 HDR - 3 ft Super UHD 4K 120Hz - DP to DP Slim Video Monitor Cord M/M Product Title (Long) 3ft (1m) VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HBR3 HDR - UHD DisplayPort to DisplayPort Monitor Cord - Ultra HD 4K 120Hz DP 1.4 Slim Video Cable M/M DP Connector Product Title (AMZ) 1m VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HBR3 HDR - 3ft Super UHD DisplayPort to DisplayPort Monitor Cord - Ultra HD 4K 120Hz DP 1.4 Slim Video Cable M/M DP Connector (DP14MM1M) Title Ingram (Part 1) 1m DisplayPort 1.4 Cable - Title Ingram (Part 2) VESA Certified - 8K@60Hz - HBR3 Website Product Headline Slim DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime Warranty Bullet 1 HIGH PERFORMANCE CABLE: 3.3 ft (1 m) VESA Certified cable supports 8K 60Hz (7680x4320), 4K 120Hz (3840x2160), 32.4Gbps bandwidth, HDR10, HBR3, 32 Ch audio (5.1/7.1/Dolby TrueHD/Atmos), MST, GTC for precise audio channel timing; future-proof upgrade for 8K Bullet 2 RELIABLE DESIGN: Built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil with Braid (85% coverage) provide EMI shielding; Latching DP connectors prevent accidental disconnection Bullet 3 DURABLE: PVC jacket of this slim DisplayPort monitor cable absorbs stress of frequent bends protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnish, Lifetime Warranty Bullet 4 APPLICATIONS: Ideal for home/offices/boardrooms/classrooms, works with your professional workstations: Dell XPS 11th Gen, HP Z2 G8 Tower with Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo & NVIDIA Quadro P graphics cards; Use with UHD monitors/displays Bullet 5 SPECS: 1 meter (3.3 foot) | Black | DisplayPort 1.4 | DP Male to Male | 34 AWG | PVC Jacket | Al-Mylar foil with 85% Braid | HBR 3, DSC 1.2, HDCP 2.2, 3D Stereo (2560x1600p 120Hz) | Compatible with DP 1.1/1.2/1.3 (1080p/4K) cards & adapters | Lifetime Warranty Bullets (Compact) 1m/3.3ft VESA Certified DisplayPort 1.4 Cable - 8K 60Hz/HDR/HBR3/DSC1.2/HDCP2.2/4:4:4 chroma subsampling/PVC jacket/gold connectors - 1080p/4K Slim Video Monitor Cord Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo Bullets (Consolidated) 1m/3.3ft VESA Certified DisplayPort 1.4 cable w/32.4Gbps bandwidth/8K 60Hz (7680x4320)/HDR for high contrast ratio/HBR3/DSC 1.2/HDCP 2.2/4:4:4 chroma subsampling/32ch audio alternative to DISPL1M/DISPLPORT3L - PVC jacket protects core of slim 34 AWG monitor/video cord - Gold plated connectors prevent tarnish - Ideal for professional workstations w/Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo/Nvidia Quadro - Supports DP 1.1/1.2 1080p/4K cards and adapters to future-proof 8K - Lifetime Warr Marketing Copy Marketing Copy (No HTML) This DisplayPort 1.4 cable connects your DisplayPort laptop or desktop computer to a "super ultra-high definition" 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz. The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video. This VESA certified cable ensures full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability. 8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This 3.3 ft. cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure. StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. This DisplayPort cable is backed by a StarTech.com lifetime warranty. Applications - Delivering visually enriched presentations
- Displaying crisp digital signage walls
- Creating eye-catching visuals for photography, videography, cinematography
- Producing lifelike gaming
Website Search Keyword P580-003-V4 Required Marketing Compliance Marks VESA DisplayPort - Specification - Global - DP1.4 DP8K Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
VESA Certified Yes Related Products - DP14MM2M
- DP14MM3M
- DP14MM5M
Cable Length (mm) 1000 Color Black Connector Style Latching Humidity 0-95% RH Operating Temperature 0°C to 80°C (32°F to 176°F) Primary Material Plastic Product Length (mm) 1000.000 Product Width (mm) 19.8 Product Height (mm) 12.6 Product Weight (g) 56 Storage Temperature 0°C to 80°C (32°F to 176°F) TAA Compliant No Wire Gauge 34 AWG DisplayPort Version DP 1.4 (HBR3) HDR Support HDR10 Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Gold Connectors DisplayPort to DisplayPort Fire Rating VW-1 Number of Conductors 19 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 400 Carton Height (mm) 270 Carton Quantity 120 Carton Weight Gross (g) 8900 Included in Package 1 - DisplayPort Cable Included In Package for Label 1 - DisplayPort Cable Number of Sub-Cartons 12 Package Depth (mm) 230 Package Height (mm) 15 Package Width (mm) 200 Package Quantity 1 Package Weight (g) 68 Packaging Description 3.3ft (1m) DisplayPort 1.4 Cable - 8K UHD - Certified Packaging Description India 1m DisplayPort 1.4 Cable - 8K UHD - Certified Sub-Carton Depth (mm) 219 Sub-Carton Height (mm) 94 Sub-Carton Width (mm) 231 Sub-Carton Quantity 10 Sub-Carton Weight (g) 680 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-08-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-09-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-05-25 Target Production Release 2018-08-10 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
