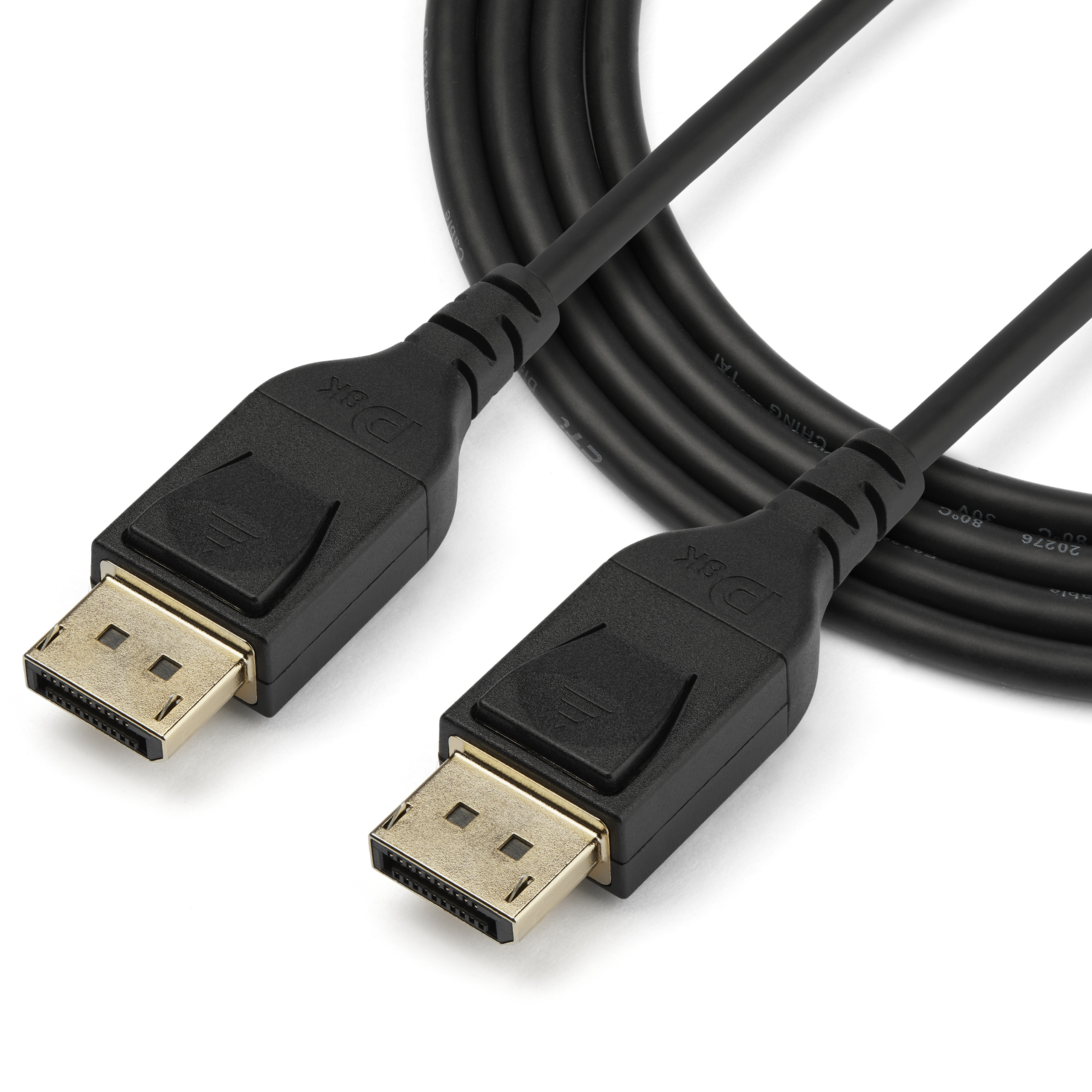

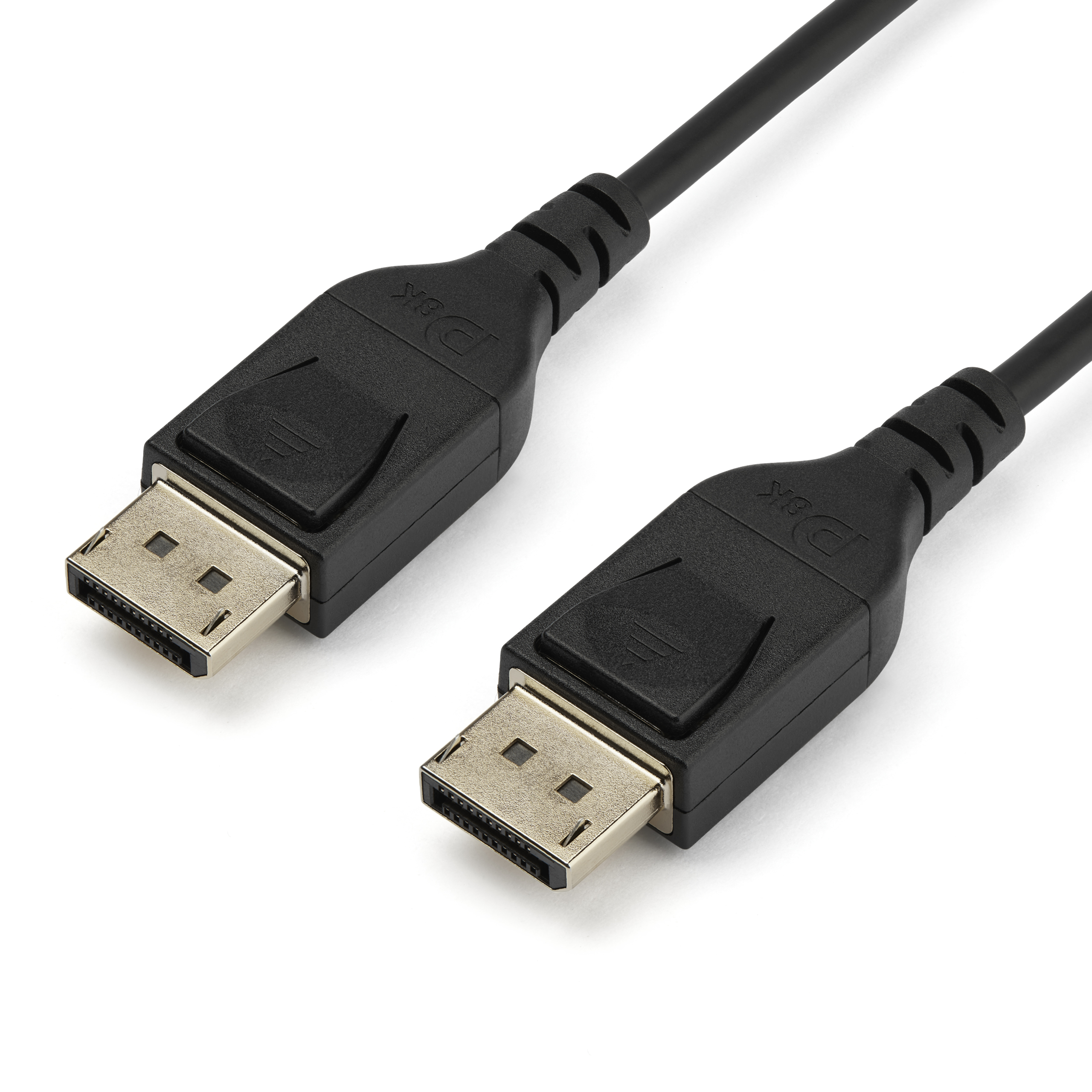

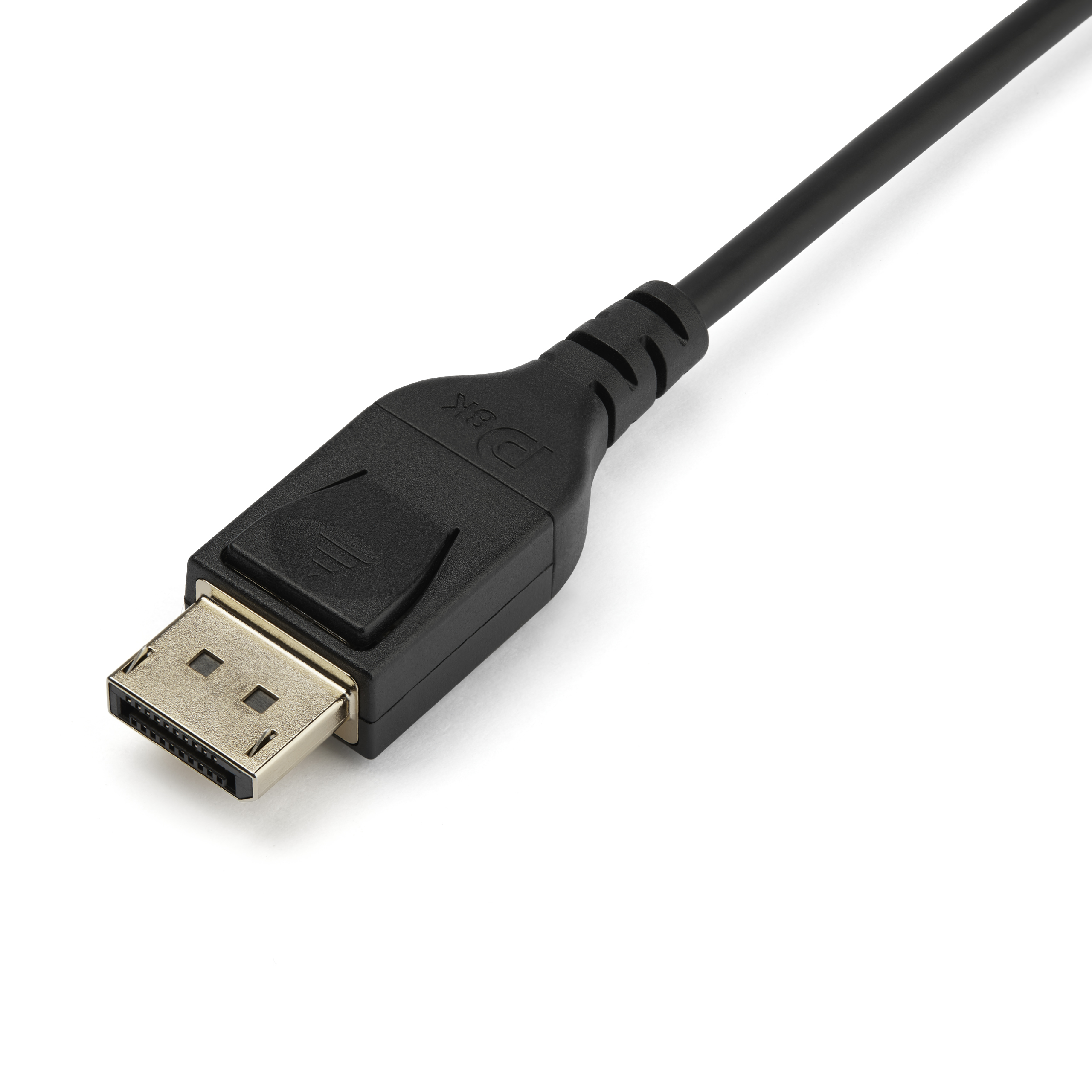

DP14MM2M-VAMZ
2m DisplayPort 1 4 Cable
Slim DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime Warranty
Main Image
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 2m DisplayPort 1 4 Cable Product Number DP14MM2M-VAMZ UPC 065030910675 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - 8K HDR Family Certified DP 1.4 Slim Vending Cables, 8K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX048X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX170X Product Title (AMZ) 2m (6.6ft) VESA Certified DisplayPort 1.4 Cable, 8K 60Hz, HBR3, HDR, UHD DisplayPort Monitor Cord, 4K 120Hz, M/M Website Product Headline Slim DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime Warranty Bullet 1 HIGH PERFORMANCE CABLE: 6.5 ft (2 m) VESA Certified cable supports 8K 60Hz (7680x4320), 4K 120Hz (3840x2160), 32.4Gbps bandwidth, HDR10 for high contrast ratio, HBR3, 32 ch audio, MST, GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz) Bullet 2 RELIABLE DESIGN: Built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil with Braid (85% coverage) provide EMI shielding; Latching DP connectors prevent accidental disconnection Bullet 3 DURABLE: PVC jacket of this slim (0.18"/4.5mm outer diameter) video cable absorbs stress of frequent bends protecting the core of the DisplayPort cord; corrosion resistant gold-plated connectors & 34 AWG wire for higher quality video and audio Bullet 4 APPLICATIONS: Ideal for home/offices/boardrooms/classrooms, works with your professional workstations: Dell XPS 11th Gen, HP Z2 G8 Tower with Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo & NVIDIA Quadro P graphics cards; Use with UHD monitors/displays Bullet 5 SPECS: 2 m (6.5 ft) | Black | DisplayPort 1.4 | DP Male to Male | 34 AWG | PVC Jacket | Al-Mylar foil with 85% Braid | HBR 3, DSC 1.2, HDCP 2.2, 3D Stereo (2560x1600p 120Hz) | Compatible with DP 1.1/1.2/1.3 (1080p/4K) cards & adapters | Lifetime Warranty Bullets (Consolidated) - 2m/6.6ft VESA Certified DisplayPort 1.4 cable w/32.4Gbps bandwidth/8K 60Hz (7680x4320)/HDR for high contrast ratio/HBR3/DSC 1.2/HDCP 2.2/4:4:4 chroma subsampling/32ch audio alternative to DISPL2M/DISPLPORT6L - PVC jacket protects core of slim 34 AWG monitor/video cord - Gold plated connectors prevent tarnish - Ideal for professional workstations w/Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo/Nvidia Quadro - Supports DP 1.1/1.2 1080p/4K cards and adapters to future-proof 8K - Lifetime Warr Marketing Copy Marketing Copy (No HTML) Applications - Delivering visually enriched presentations
- Displaying crisp digital signage walls
- Creating eye-catching visuals for photography, videography, cinematography
- Producing lifelike gaming
Required Marketing Compliance Marks FSC - Environmental - Canada / United States - FSC Mix Packaging (North America Bilingual EN FR Only) Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
Related Products DP14MM2M Cable Length (mm) 2000 Color Black Connector Style Latching Primary Material Plastic Product Length (mm) 2000.000 Product Width (mm) 19.800 Product Height (mm) 0.000 Product Weight (g) 82.000 TAA Compliant No Wire Gauge 34 AWG Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Gold Fire Rating VW-1 Rated Number of Conductors 19 Carton Depth (mm) 549 Carton Height (mm) 309 Carton Quantity 84 Carton Weight Gross (g) 10768 Included in Package 1 - DisplayPort Cable Package Depth (mm) 192 Package Height (mm) 22 Package Width (mm) 115 Package Weight (g) 138 Packaging Description DisplayPort 1.4 Cable - 8K UHD - Certified Packaging Description India 2m DisplayPort 1.4 Cable - 8K UHD - Certified Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Amazon Only SKU Yes Artwork Due Date 2024-08-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2024-08-30 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-08-07 Target Production Release 2024-08-14 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Designed for Vending Machine
