DP2DVI2

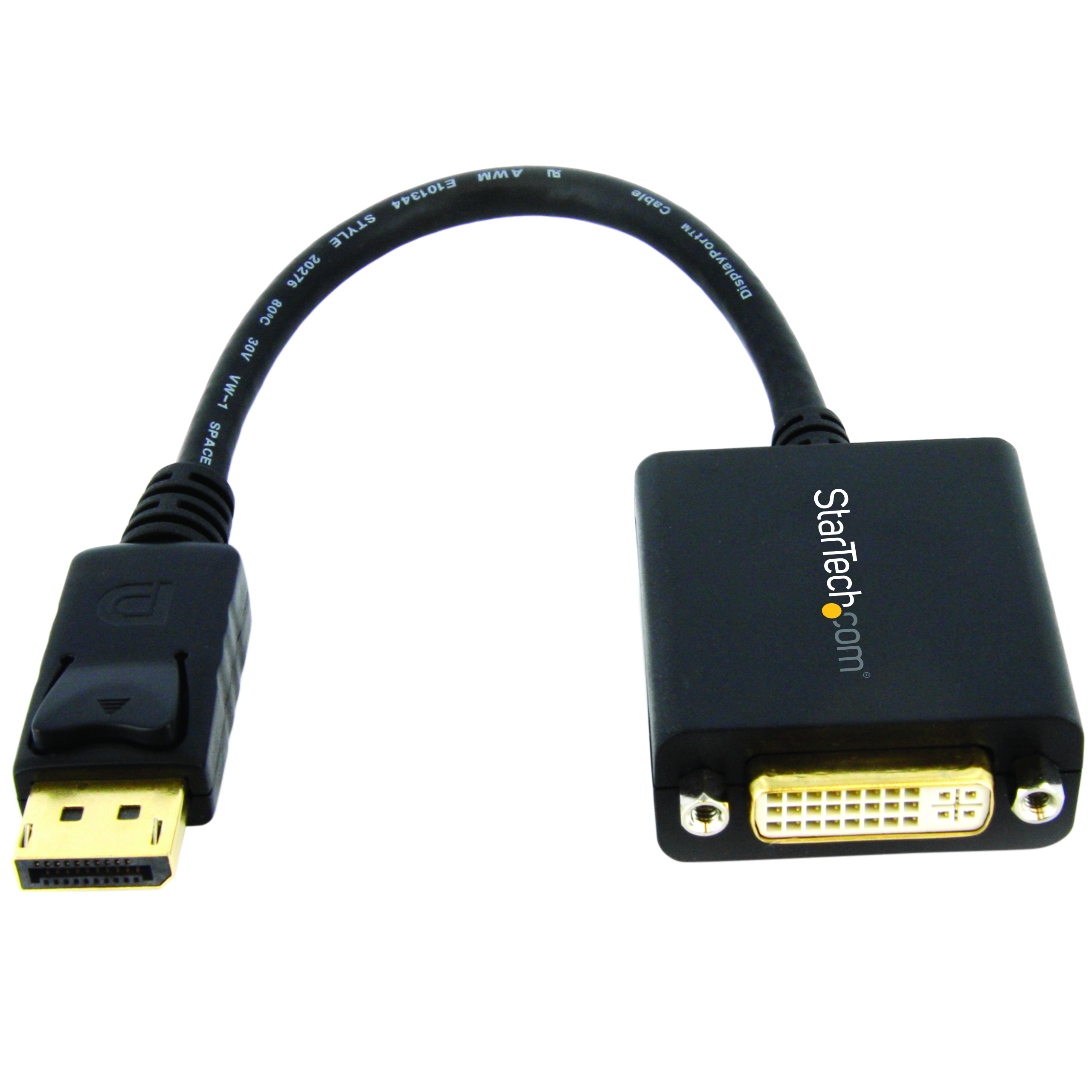

DisplayPort to DVI Converter
Connect your DVI monitor to a DisplayPort equipped computer
Main Image
Product Images
Product Images
Video Link YouTube
Product Name DisplayPort to DVI Converter Product Number DP2DVI2 UPC 065030836869 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to DVI Family DP to DVI Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Short) DisplayPort to DVI Adapter - DP to DVI-D Product Title (Medium) x Product Title (Standard) DisplayPort to DVI Adapter, DisplayPort to DVI-D Adapter/Video Converter 1080p, DP 1.2 to DVI Monitor, Latching DP Connector Product Title (Long) DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector Product Title (AMZ) DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector (DP2DVI2) Title Ingram (Part 1) DisplayPort to DVI Video Adapter Title Ingram (Part 2) Converter Website Product Headline Connect your DVI monitor to a DisplayPort equipped computer Bullet 1 DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector | 1920x1200/1080p 60Hz; HDCP 1.4 | 6" (15cm) attached cable | DisplayPort Certified Bullet 2 COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations Bullet 3 CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter | Tested w/ DVI cables up to 25ft | EDID & DDC pass-through ensure compatibility between source & display Bullet 4 LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | Compact design Bullet 5 EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS | DisplayPort male to DVI female adapter dongle | Connector is DVI-I, however only a digital signal (DVI-D) passes through Bullets (Compact) Passive DisplayPort 1.2 to DVI-D (DVI-I connector digital only) single-link adapter; 1920x1200/1080p 60Hz; HDCP 1.4; EDID/DDC - DisplayPort to DVI adapter for DP++ source - DP to DVI monitor video converter - Latching DP connector - DisplayPort Cert. Bullets (Consolidated) DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects DVI projector/monitor | 1920x1200/1080p @60Hz | HDCP 1.4 | DisplayPort Certified -Passive video converter supports DP++ source incl workstations/desktops (AMD/Nvidia)/laptops/docks -EDID/DDC pass-through ensure compatibility between source/display -DisplayPort to DVI Adapter w/ latching DP connector | Supports DVI screw locking cable -Compact DP to DVI adapter dongle -OS Independent | Connector is DVI-I (digital signal only) Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Keep your existing DVI monitor to be used with your new DisplayPort device
- Ideal for using your DVI monitor as a secondary display
Website Search Keyword - Adapter
- Converter
- Display Port
- DisplayPort
- DVI
- Video
- DP2DVI
- P134-001-GC
- P134-000
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
Related Products - DP2DVI
- DP2DVIS
- DP2DVID2
- DP2DVIMM6
- DP2DVIADAP
- DP2DVI2MM6
- DP2DVIMM10
- DP2DVIMM6BS
- DP2DVIMM3BS
- DP2HDMM2MB
- DP2HDMM1MB
- DP2HDMM5MB
- DP2HDMM3MB
- DP2HDMI
- DP2HDMIADAP
- DP2HDMI2
- DP2HD4KS
- DP2HD4KADAP
- DP2HD4K60S
- DP2HDMIUSBA
- DP2HDSW
- SLMPT2HD
Constrained SKU Alternatives (Limited Stock) DP2DVIS Cable Length (mm) 152.4 Color Black Humidity 10%-85%RH Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 254.000 Product Width (mm) 42.000 Product Height (mm) 17.000 Product Weight (g) 43.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p Supported Resolutions Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Passive Audio No AV Input DisplayPort - 1.2 AV Output DVI-I (Digital Only) - Single-Link Converter Type Adapters Host Connection Port DisplayPort Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 516 Carton Height (mm) 226 Carton Quantity 140 Carton Weight Gross (g) 8482 Included in Package 1 - DisplayPort to DVI Converter Included In Package for Label 1 - DisplayPort to DVI Converter Number of Sub-Cartons 14 Package Depth (mm) 196 Package Height (mm) 25 Package Width (mm) 197 Package Quantity 1 Package Weight (g) 50 Packaging Description DisplayPort to DVI Video Adapter Packaging Description India DisplayPort to DVI Converter Sub-Carton Depth (mm) 255 Sub-Carton Height (mm) 81 Sub-Carton Width (mm) 305 Sub-Carton Quantity 10 Sub-Carton Weight (g) 526 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
