DP2DVIADAP

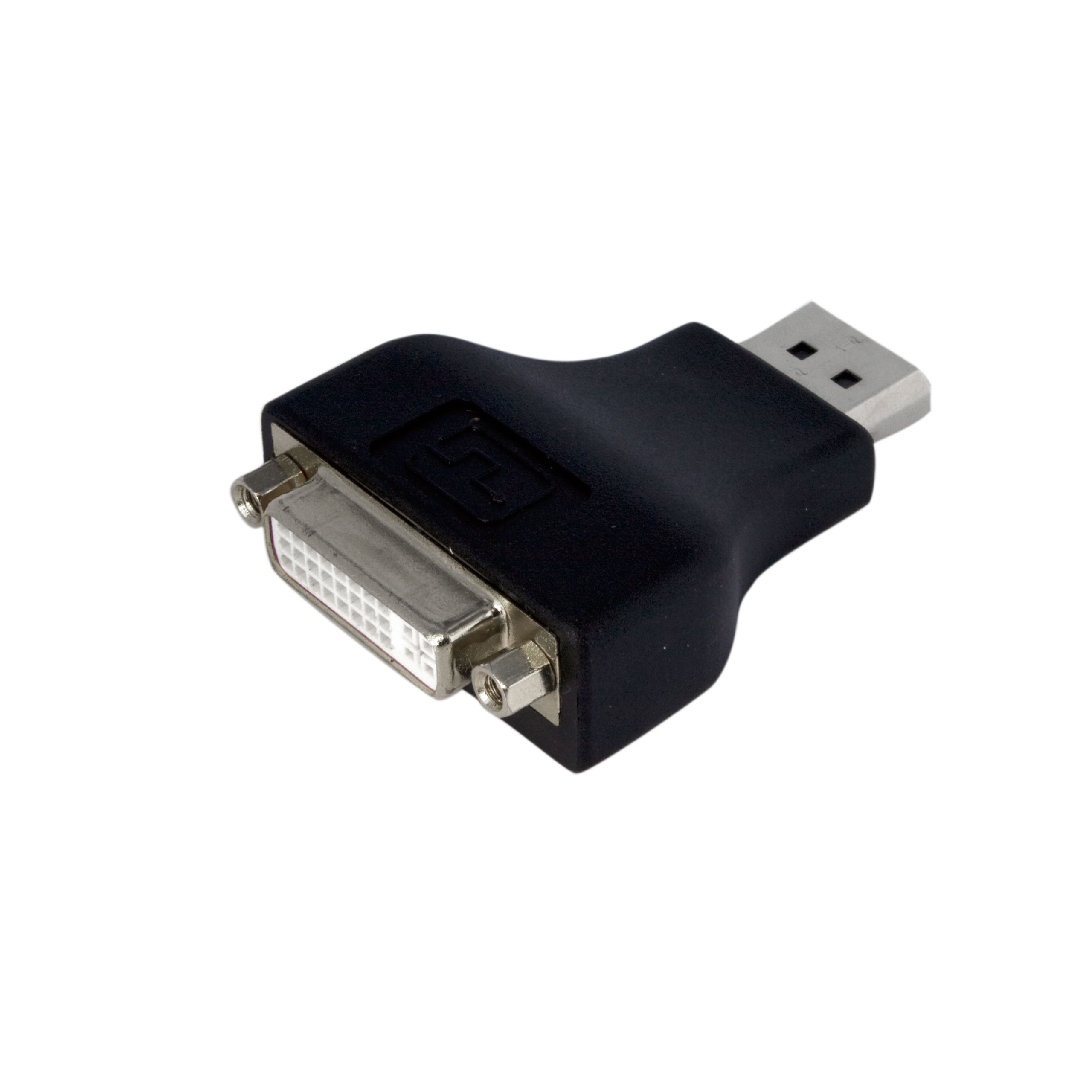

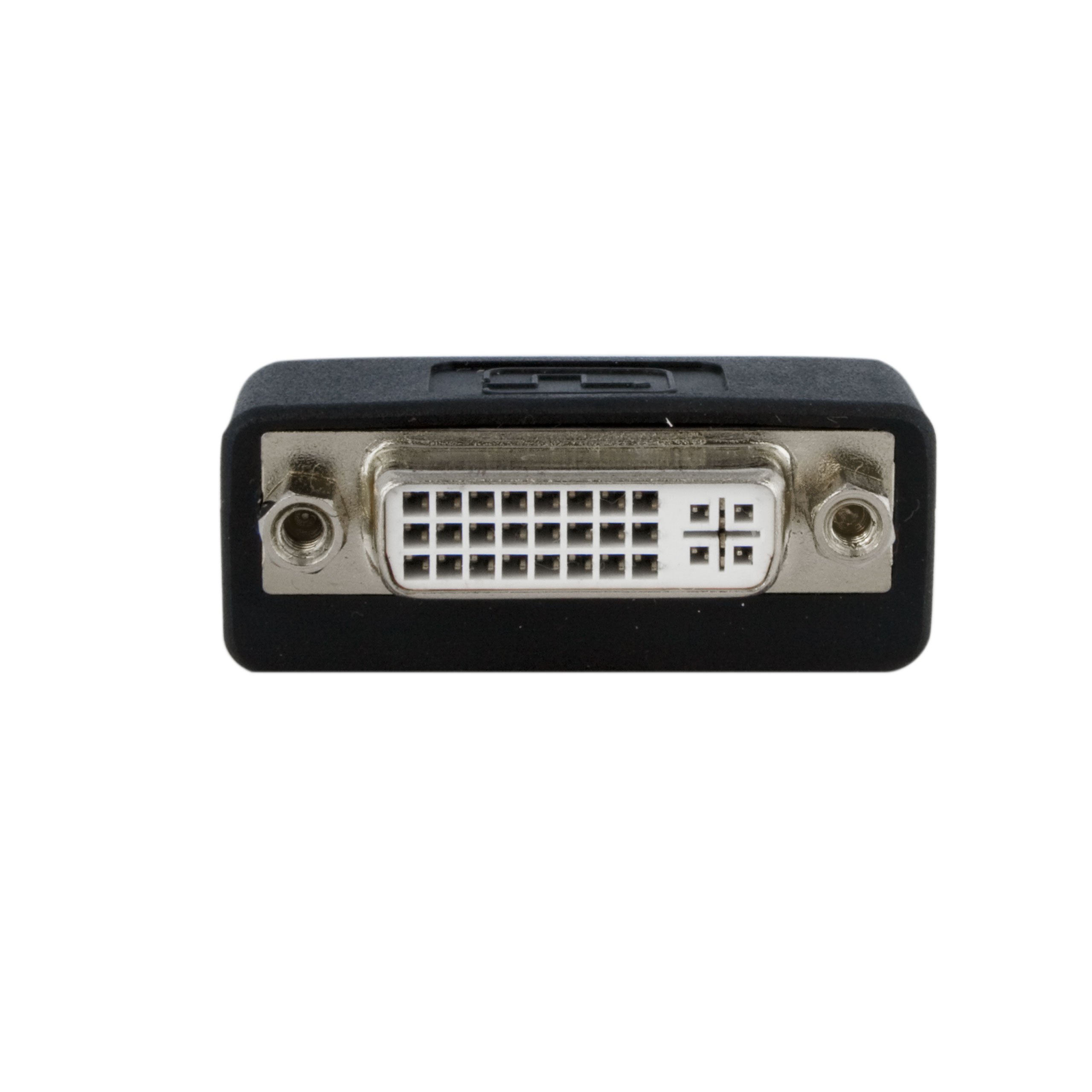

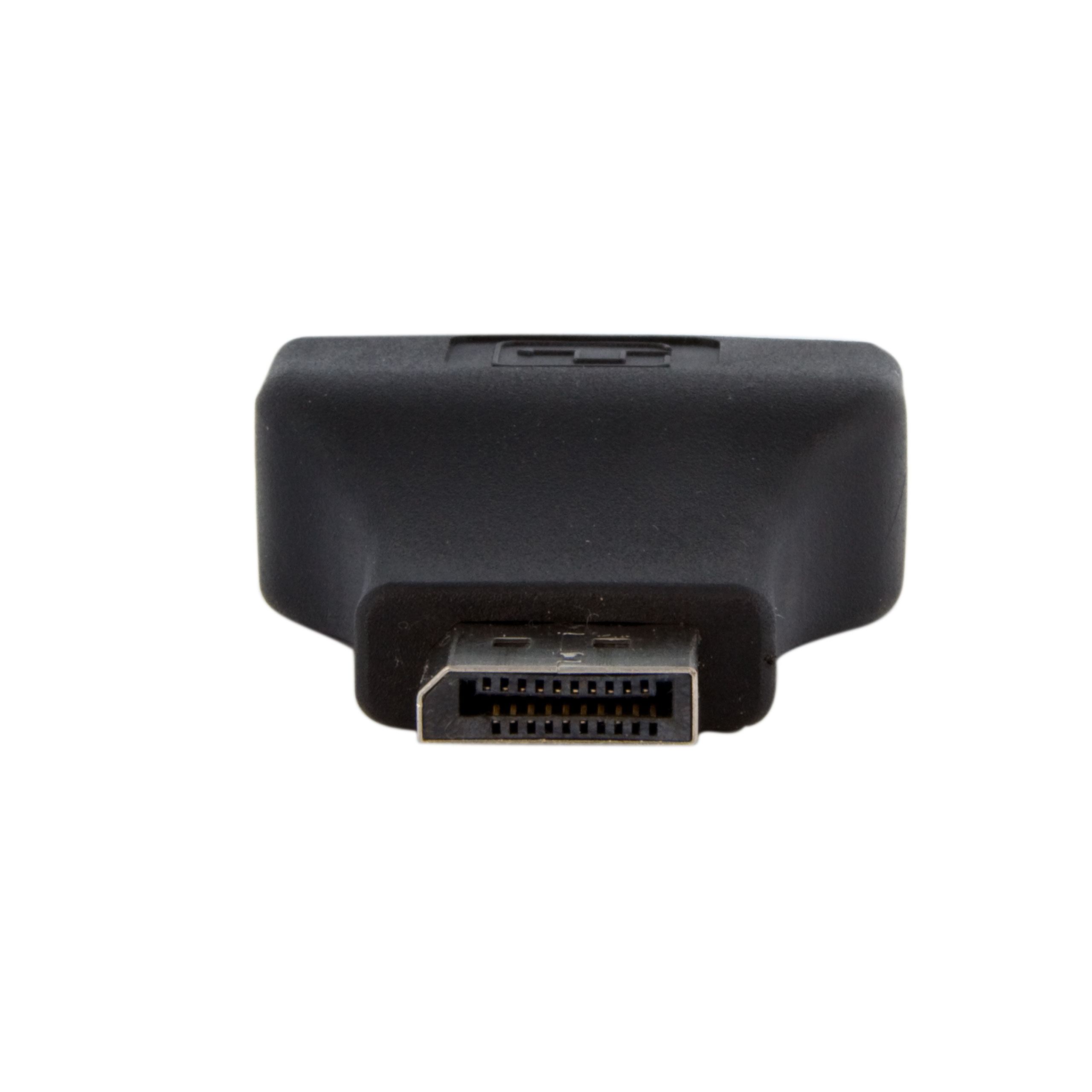

DisplayPort to DVI Video Adapter Converter M F
Connect your DVI monitor to a DisplayPort equipped computer
Main Image
Product Images
Product Images
Product Name DisplayPort to DVI Video Adapter Converter M F Product Number DP2DVIADAP UPC 065030835824 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to DVI Family DP to DVI Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Short) Compact DisplayPort to DVI Adapter DVI-D Product Title (Medium) x Product Title (Standard) Compact DisplayPort to DVI Adapter, DP 1.2 to DVI-D Adapter/Video Converter 1080p, DP to DVI Monitor, Latching DP Connector Product Title (Long) Compact DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter/Video Converter 1080p - DP to DVI Monitor/Display Adapter Dongle - DP to DVI Adapter - Latching DP Connector Product Title (AMZ) Compact DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter/Video Converter 1080p - DP to DVI Monitor/Display Adapter Dongle - DP to DVI Adapter - Latching DP Connector (DP2DVIADAP) Title Ingram (Part 1) DisplayPort DVI Video Adapter Co Title Ingram (Part 2) nverter Website Product Headline Connect your DVI monitor to a DisplayPort equipped computer Bullet 1 DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-I (digital only DVI-D) single-link adapter connects a DVI display, monitor or projector | 1920x1200/1080p at 60Hz; HDCP 1.3; EDID & DDC pass-through ensure compatibility between source & display Bullet 2 COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations Bullet 3 SMALL FORM FACTOR: With no attached cable, the adapter is ideal for permanent setups in boardrooms, connecting directly to your DVI cable | Use to connect primary or secondary display | Compact design makes it easy to carry between home and office Bullet 4 STABLE CONNECTION: Non-latching DP connector is easy to disconnect from a hard to reach source | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | Tested w/ DVI cables up to 25ft Bullet 5 EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS including Windows, Ubuntu & macOS; DisplayPort male to DVI female adapter dongle | Connector is DVI-I, however only a digital signal (DVI-D) passes through Bullets (Compact) Passive DisplayPort 1.2 to DVI-I (digital only DVI-D) single-link adapter 1920x1200/1080p 60Hz | HBR2/HDCP 1.3; EDID/DDC - DisplayPort to DVI adapter for DP++ source - Compact DP to DVI monitor video converter - Non-latching DP connector - Driverless Bullets (Consolidated) DisplayPort 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects DVI display/projector/monitor | 1920x1200/1080p @60Hz | HDCP 1.3 | EDID/DDC pass-through - Passive video converter supports DP++ source incl workstations/desktops (AMD/Nvidia)/laptops/docks - Compact DP to DVI Adapter Dongle | No attached cable | Ideal for permanent setups - DisplayPort to DVI Adapter | Non-latching DP connector | Supports DVI screw locking cable |Tested w/ 25' DVI cables - Windows/Ubuntu/macOS Marketing Copy Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Keep your existing DVI monitor to be used with your new DisplayPort device
- Ideal for using your DVI monitor as a secondary display
Website Search Keyword - DisplayPort DVI Adapter
- DVI DisplayPort Adapter
- Display Port
- DisplayPort
- DVI
- Video
- P134-000
- P134-000-DVI-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements DP++ (DisplayPort++) port required from video card or video source for DVI or HDMI pass-through Accessory Products - GCMDP2DPMF
- DVIMM6
- DVIDSMM10
- DVIDSMM15
Related Products - DP2DVIMM10
- DP2DVIMM6
- DP2HDMI
- DP2DVI
- DP2VGA
Color Black Primary Material Plastic Product Length (mm) 63.000 Product Width (mm) 40.000 Product Height (mm) 11.000 Product Weight (g) 18.000 TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p Video Output Port DVI Active or Passive Adapter Passive Audio No AV Input DisplayPort - 1.2 AV Output DVI-I (Digital Only) - Single-Link Converter Type Adapters Host Connection Port DisplayPort Number of Displays 1 Carton Depth (mm) 370 Carton Height (mm) 282 Carton Quantity 500 Carton Weight Gross (g) 20562 Included in Package 1 - DisplayPort to DVI adapter Number of Sub-Cartons 50 Package Depth (mm) 90 Package Height (mm) 19 Package Width (mm) 125 Package Quantity 1 Package Weight (g) 38 Packaging Description DisplayPort to DVI Video Adapter Packaging Description India DisplayPort to DVI Video Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 388 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
