DP2DVID2

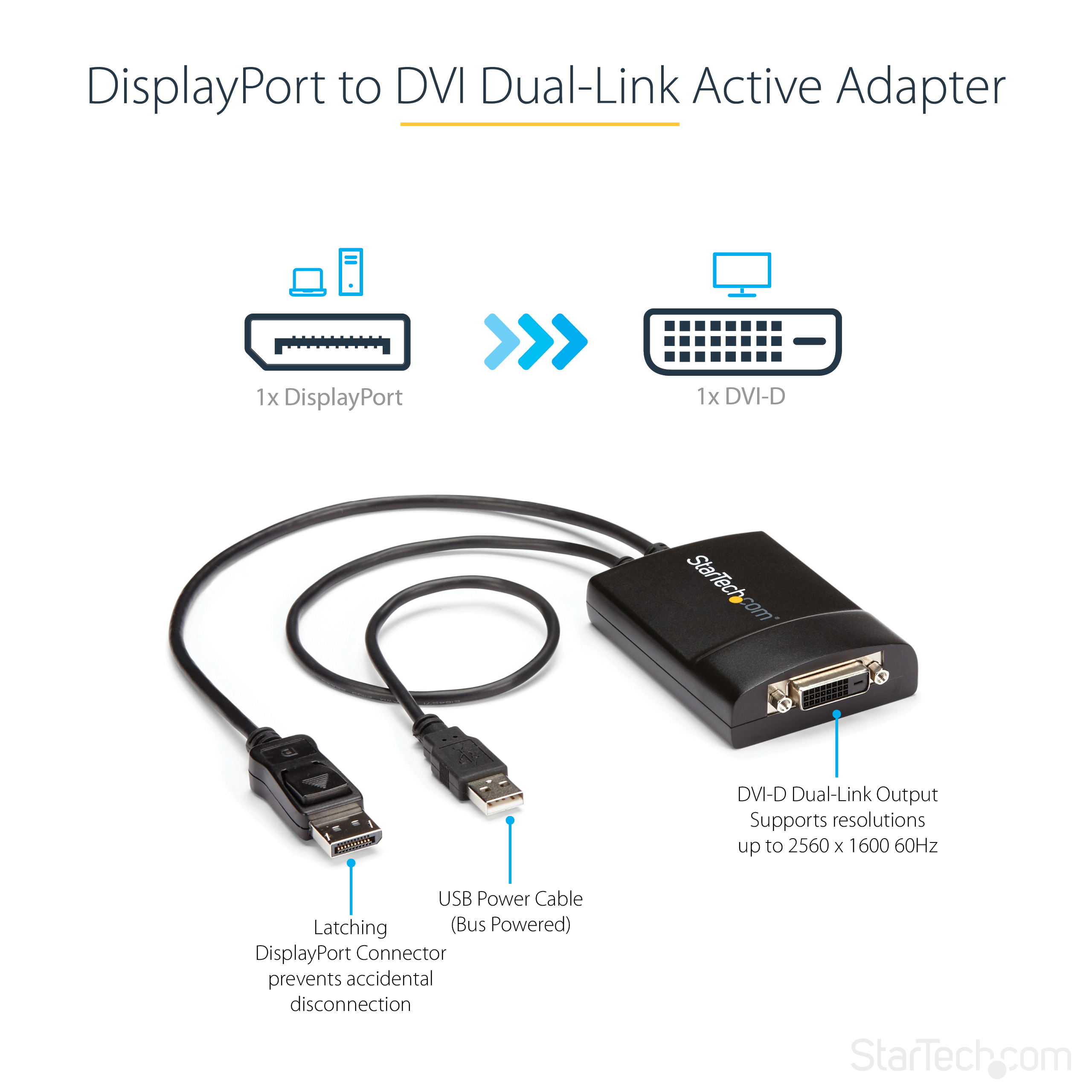

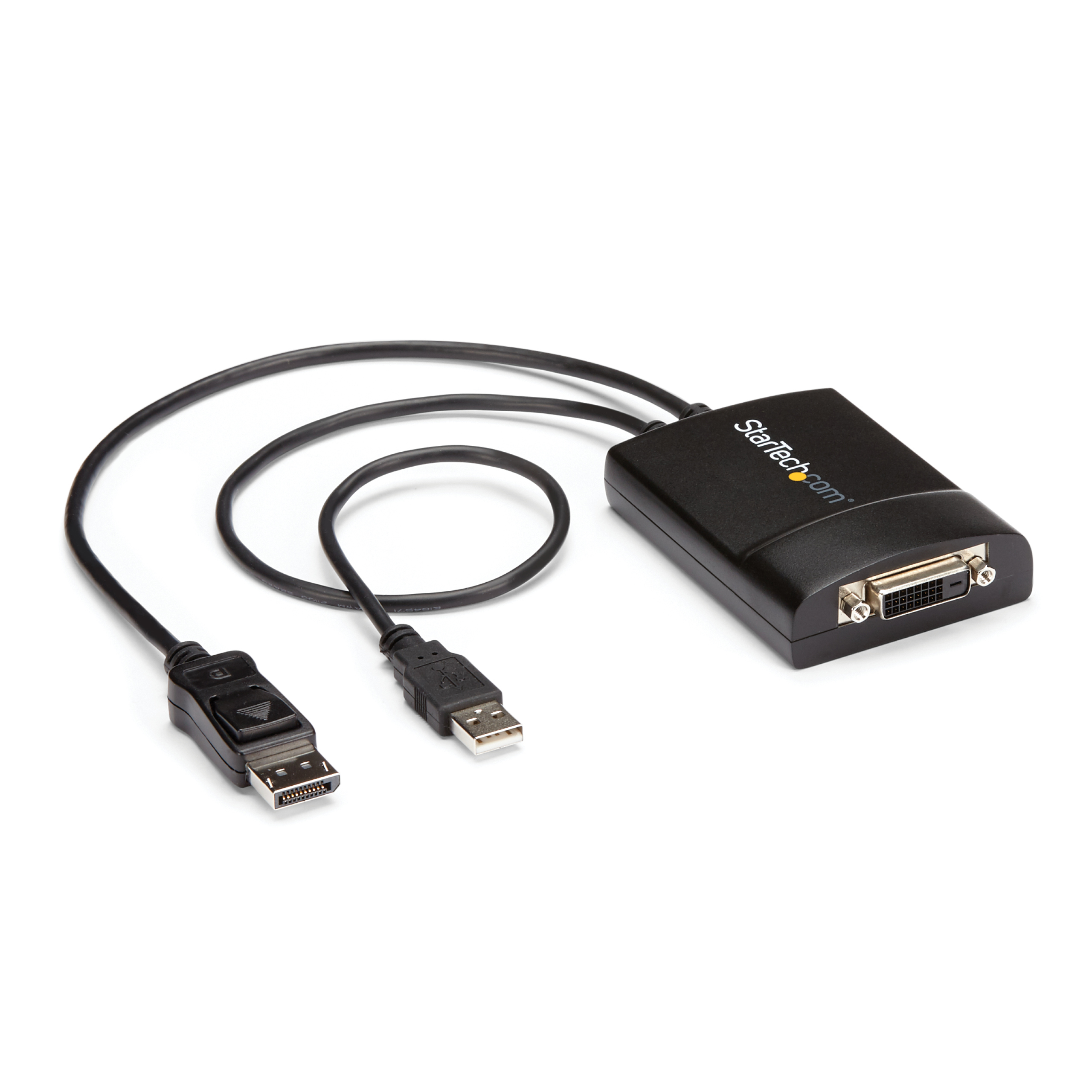

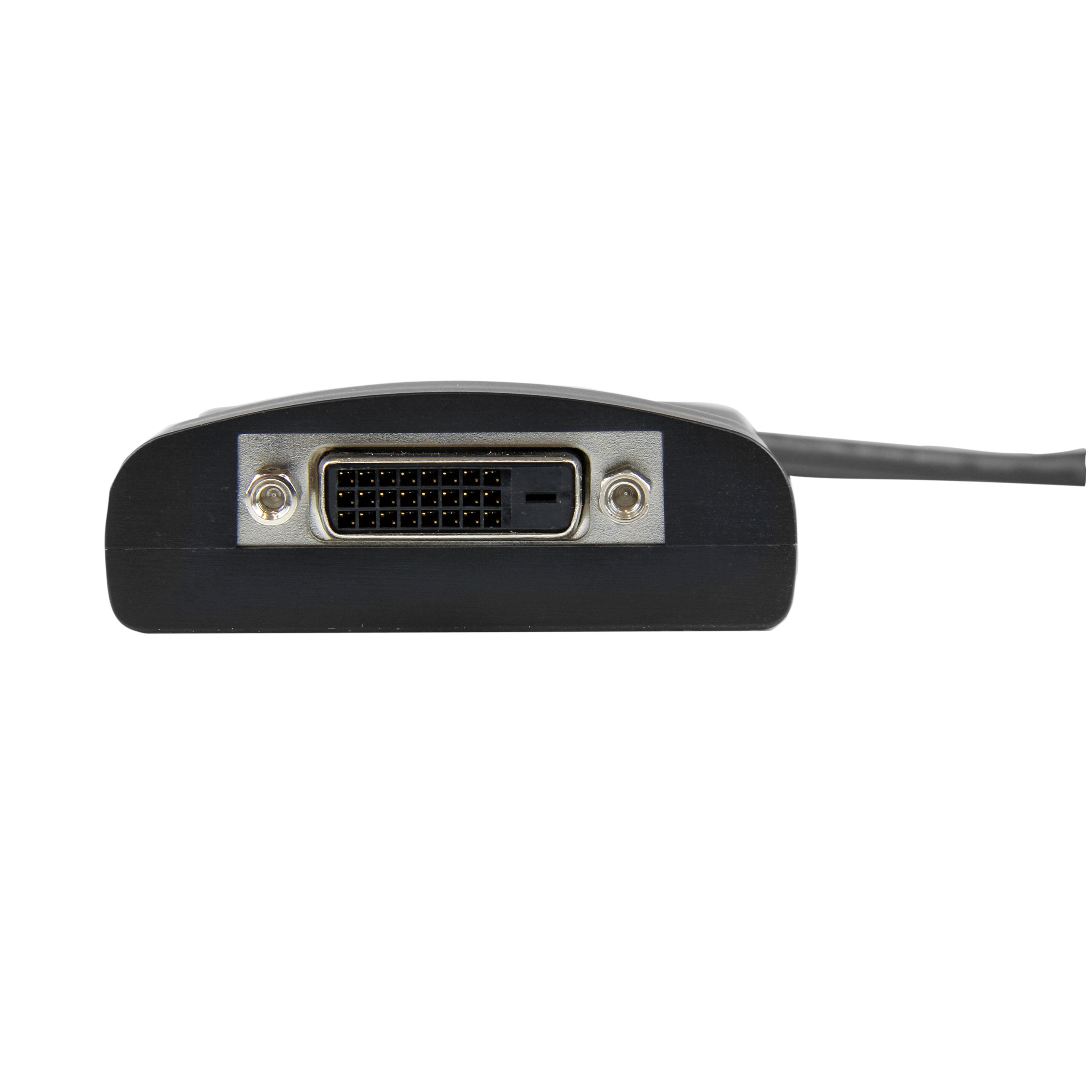

DisplayPort to DVI Dual Link Active Converter
Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name DisplayPort to DVI Dual Link Active Converter Product Number DP2DVID2 UPC 065030848749 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to DVI Family DP to DVI Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX170X Product Title (Ultra-Short) x Product Title (Short) DisplayPort to DVI Dual Link Adapter Product Title (Medium) x Product Title (Standard) DisplayPort to DVI Dual Link Active Adapter, DisplayPort to DVI-D Adapter/Video Converter 2560x1600 60Hz, DP to DVI Adapter Product Title (Long) DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector Product Title (AMZ) DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector (DP2DVID2) Title Ingram (Part 1) DisplayPort to Dual Link DVI Act Title Ingram (Part 2) ive Adapter DP to DVI-D Website Product Headline Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications Bullet 1 DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant; | 15" (37cm) attached cable | USB-Powered | EDID pass-through Bullet 2 COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations Bullet 3 CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation | Compact design |Tested w/ DVI cables up to 25ft | Supports widescreen/ultrawide & Apple Cinema Display HD | Ideal for digital signage Bullet 4 LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | 18" (46cm) USB cable Bullet 5 EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle Bullets (Compact) Active DisplayPort 1.2 to DVI-D dual-link adapter; 2560x1600 60Hz; HBR2; HDCP; EDID - DisplayPort to DVI adapter/video converter for DP/DP++ source supports ultrawide monitor/Apple Cinema Display - Nickel-plated latching DP connector - OS independent Bullets (Consolidated) DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI monitor/projector | 2560x1600 60Hz | HDCP compliant | 15" attached cable | USB-Powered | EDID - Active video converter supports DP single mode or DP++ multi-mode source incl workstations/desktops (AMD/Nvidia)/laptops/docks - DisplayPort to DVI adapter supports ultrawide/Apple Cinema Display HD - DP to DVI Adapter Dongle | Latching nickel-plated DP connector w/ gold-plated contacts| Supports DVI screw-locking cable - OS Independent Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays

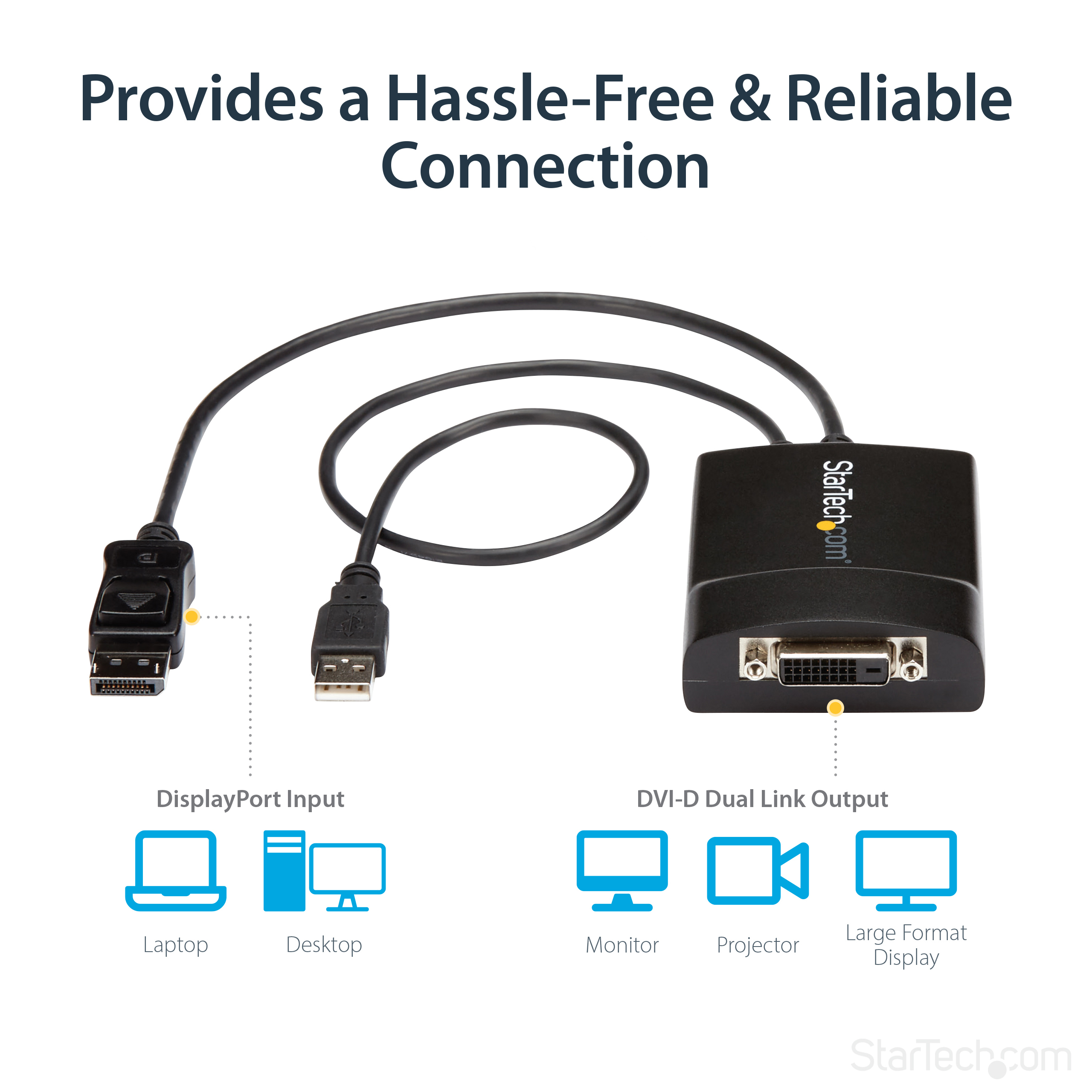

- Perfect for larger format screens that use high DVI resolutions with Dual-Link connectivity

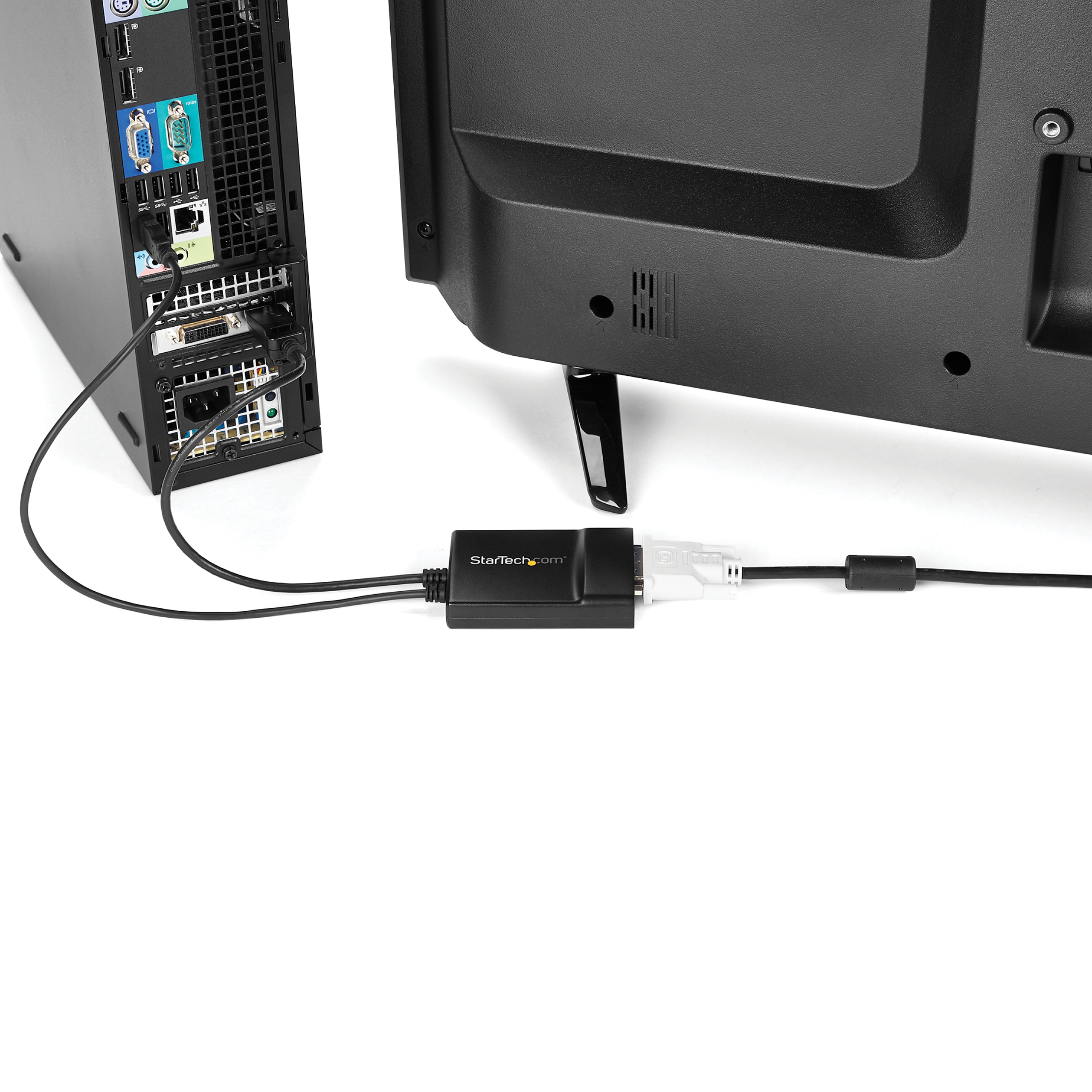

- Keep your existing DVI monitor to be used with your new DisplayPort device
- Ideal for using your DVI monitor as a secondary display
Website Search Keyword - Adapter
- Converter
- Display Port
- DisplayPort
- DVI
- Video
- Dual Link
- Active DisplayPort to DVI
- ATI Eyefinity
- for
- P134-06N-DVI-DL
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements 1 x DVI-D Cable (Destination) Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- DVIDDMM25
- DVIDDMM30
- DVIDDMM40
- DVIDDMM50
Related Products - DP2DVIS
- DP2DVI2MM6
- DP2DVI2
- MDP2DVID
- DP2DVI
- DP2DVIADAP
- DP2DVI2MM3
- DP2DVIMM6
- DP2DVIMM10
- DP2DVIMM3BS
- DP2DVIMM6BS

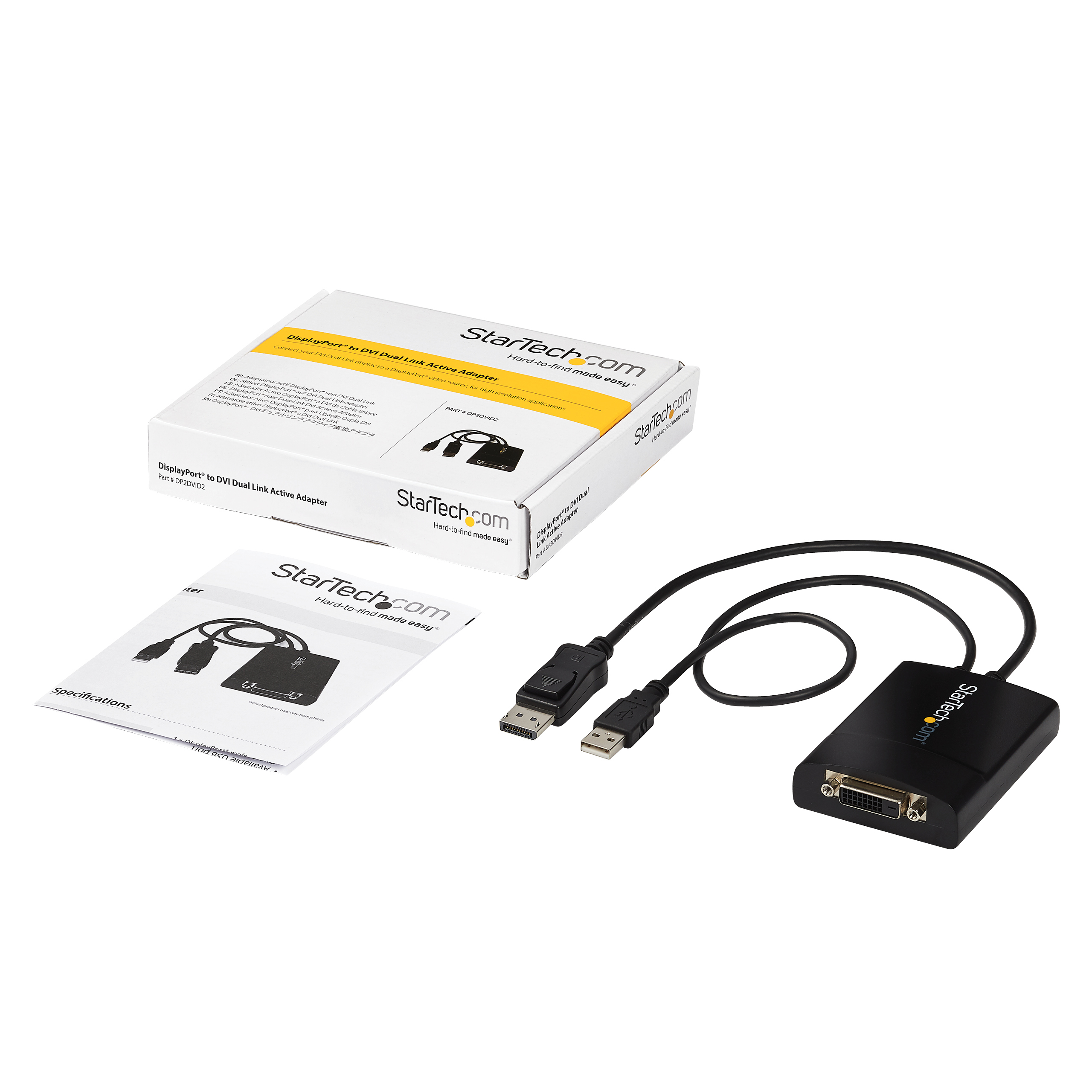

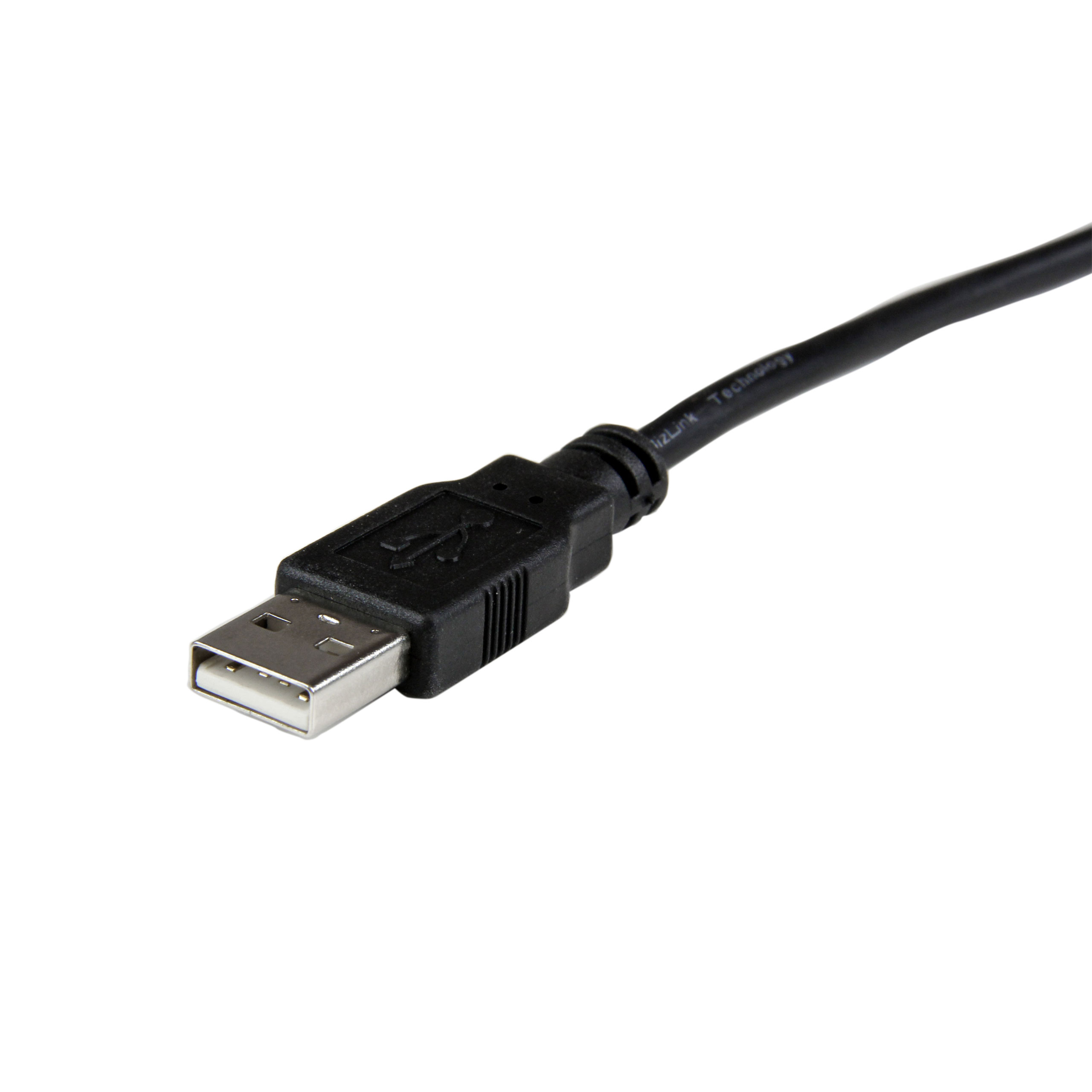

Power Source USB-Powered Cable Length (mm) 370 Color Black Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 549.000 Product Width (mm) 64.000 Product Height (mm) 22.000 Product Weight (g) 160.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Digital Resolutions 2560x1600 Maximum Supported Resolution 1080p Supported Resolutions Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input DisplayPort - 1.2 AV Output DVI-D - Dual-Link Chipset ID Synaptics VMM2326BJ6 Converter Type Adapters Host Connection Port DisplayPort Number of Displays 1 Carton Depth (mm) 512 Carton Height (mm) 228 Carton Quantity 28 Carton Weight Gross (g) 7376 Included in Package 1 - DisplayPort to DVI Adapter Included In Package for Label 1 - DisplayPort to DVI Converter Package Depth (mm) 175 Package Height (mm) 35 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 228 Packaging Description DisplayPort® to DVI Dual Link Active Adapter Packaging Description India DisplayPort® to DVI Dual Link Active Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 DVI-D Dual-Link (25-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
