DP2DVIMM3BS

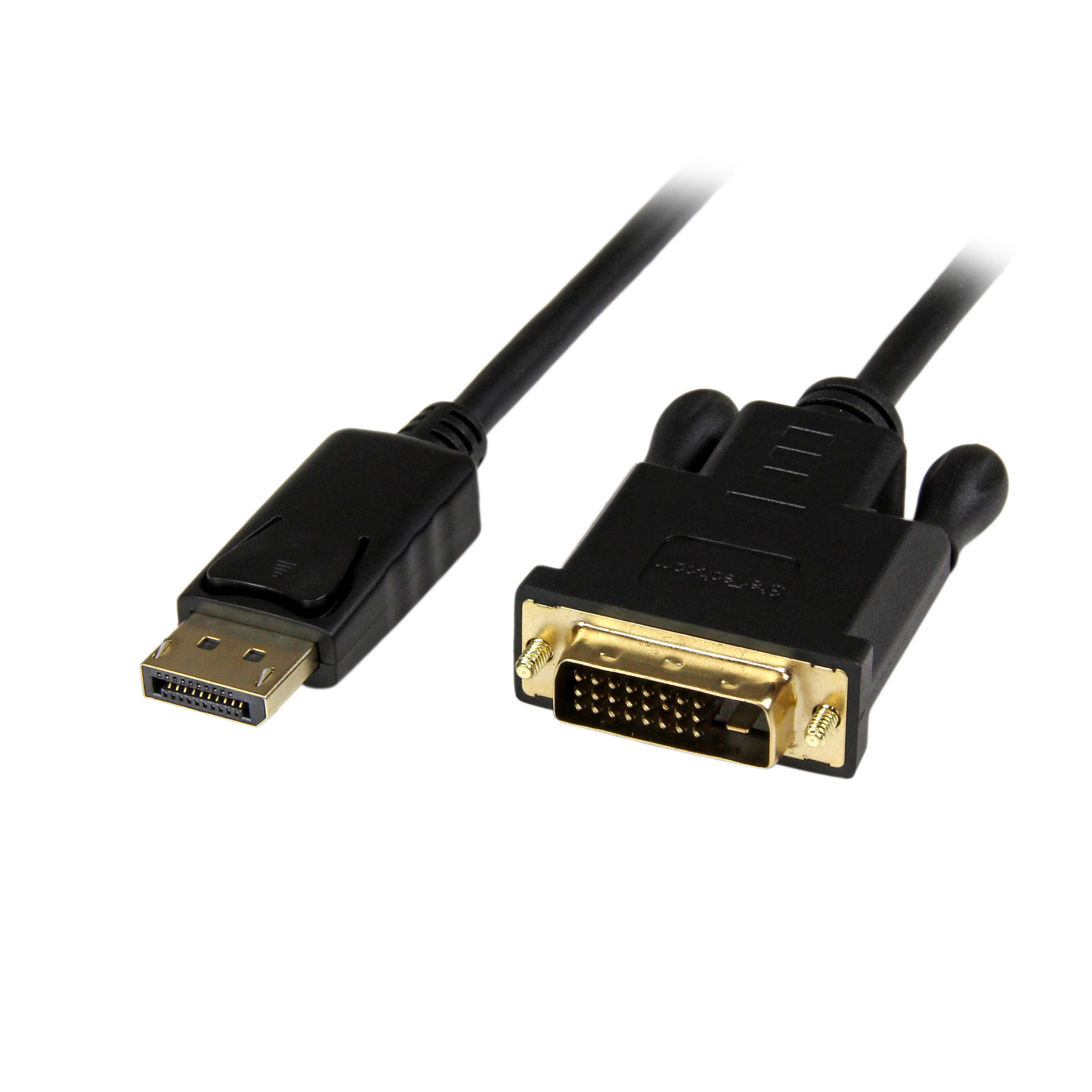

DisplayPort to DVI - 3ft - Active - Black
Eliminate excess cable clutter with a short 3ft DisplayPort to DVI active adapter
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name DisplayPort to DVI - 3ft - Active - Black Product Number DP2DVIMM3BS UPC 065030854900 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to DVI Family DP to DVI Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 3ft DP to DVI Cable Product Title (Short) 3ft DisplayPort to DVI Cable - Active Product Title (Medium) x Product Title (Standard) 3ft (1m) DisplayPort to DVI Cable, 1080p Video, Active DisplayPort to DVI-D Adapter/Converter Cable, DP to DVI Monitor Cable Product Title (Long) 3ft (1m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Converter Single Link - DP 1.2 to DVI Monitor Cable Product Title (AMZ) 3ft (1m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Converter Single Link - DP 1.2 to DVI Monitor Cable (DP2DVIMM3BS) Title Ingram (Part 1) 3 ft (0.9) DisplayPort to DVI Title Ingram (Part 2) Active Converter Cable – Black Website Product Headline Eliminate excess cable clutter with a short 3ft DisplayPort to DVI active adapter Bullet 1 DISPLAYPORT TO DVI CABLE: 3ft (0.9m) DisplayPort 1.2 (HBR2) to DVI-D single-link cable connects a DVI display, monitor or projector | 1920x1200/1080p 60Hz or 4K 30Hz (HDMI clock rate); EDID pass-through ensures compatibility between source & display Bullet 2 COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations Bullet 3 INTEGRATED DISPLAY CABLE: DisplayPort to DVI adapter cable has slim & flexible design w/ adapter chip built into DVI connector reducing clutter & providing a tidy install in the office, boardroom or home office Bullet 4 LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection, and chip built into DVI connector minimizes signal loss | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection Bullet 5 EASY TO USE: With no software or drivers required, the DP to DVI cable/cord works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI male cable Bullets (Compact) 3ft Active DisplayPort to DVI-D single-link cable connects DVI display/monitor | 1920x1200/1080p 60Hz; DP 1.2 HBR2; EDID - DisplayPort to DVI cable for DP/DP++ source – Video adapter cable prevents signal loss - Latching DP connector - OS independent Bullets (Consolidated) 3ft/0.9m DisplayPort 1.2 (HBR2) to DVI-D single-link adapter cable connects DVI display/projector/monitor | 1920x1200/1080p 60Hz or 4K 30Hz (HDMI clock-rate) | EDID pass-through - Active video converter supports DP (single mode) or DP++ (multi-mode) source incl workstations/desktops (AMD/Nvidia)/laptops/docks - Integrated video adapter prevents signal loss/provides flexible install - DisplayPort to DVI cable with latching DP connector | Supports DVI screw locking cord - Windows/Ubuntu/macOS Marketing Copy Applications - Connect your DVI display device (monitor, projector) directly to a DisplayPort output device
- Ideal for using your DVI monitor as a secondary display
- Use with single-mode DisplayPort video outputs that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity video cards
Website Search Keyword P581-003-V2 Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements - Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
- This adapter is not compatible for use with the Apple Cinema Display.
Related Products - MDP2DVIMM3BS
- MDP2DVIMM6BS
- MDP2DVIMM3WS
- MDP2DVIMM6WS
Replacement Product DP2DVIS Cable Length (mm) 915 Color Black Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 915.000 Product Width (mm) 40.000 Product Height (mm) 15.000 Product Weight (g) 80 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Cable Length (mm) 915 Maximum Digital Resolutions 1920 x 1200 Maximum Supported Resolution 1080p MTBF (hours) 1,291,679 hours Supported Resolutions Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input DisplayPort - 1.2 AV Output DVI-D - Single-Link Chipset ID Parade - PS171 Converter Type Cable Adapters Host Connection Port DisplayPort Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 414 Carton Height (mm) 420 Carton Quantity 220 Carton Weight Gross (g) 21450 Included in Package 1 - Active DisplayPort to DVI Adapter Number of Sub-Cartons 22 Package Depth (mm) 197 Package Height (mm) 27 Package Width (mm) 117 Package Quantity 1 Package Weight (g) 88 Packaging Description 3ft (0.9m) DisplayPort to DVI Active Adapter Packaging Description India 3ft (0.9m) DisplayPort to DVI Active Converter Sub-Carton Depth (mm) 237 Sub-Carton Height (mm) 97 Sub-Carton Width (mm) 211 Sub-Carton Quantity 10 Sub-Carton Weight (g) 912 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-10-04 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
