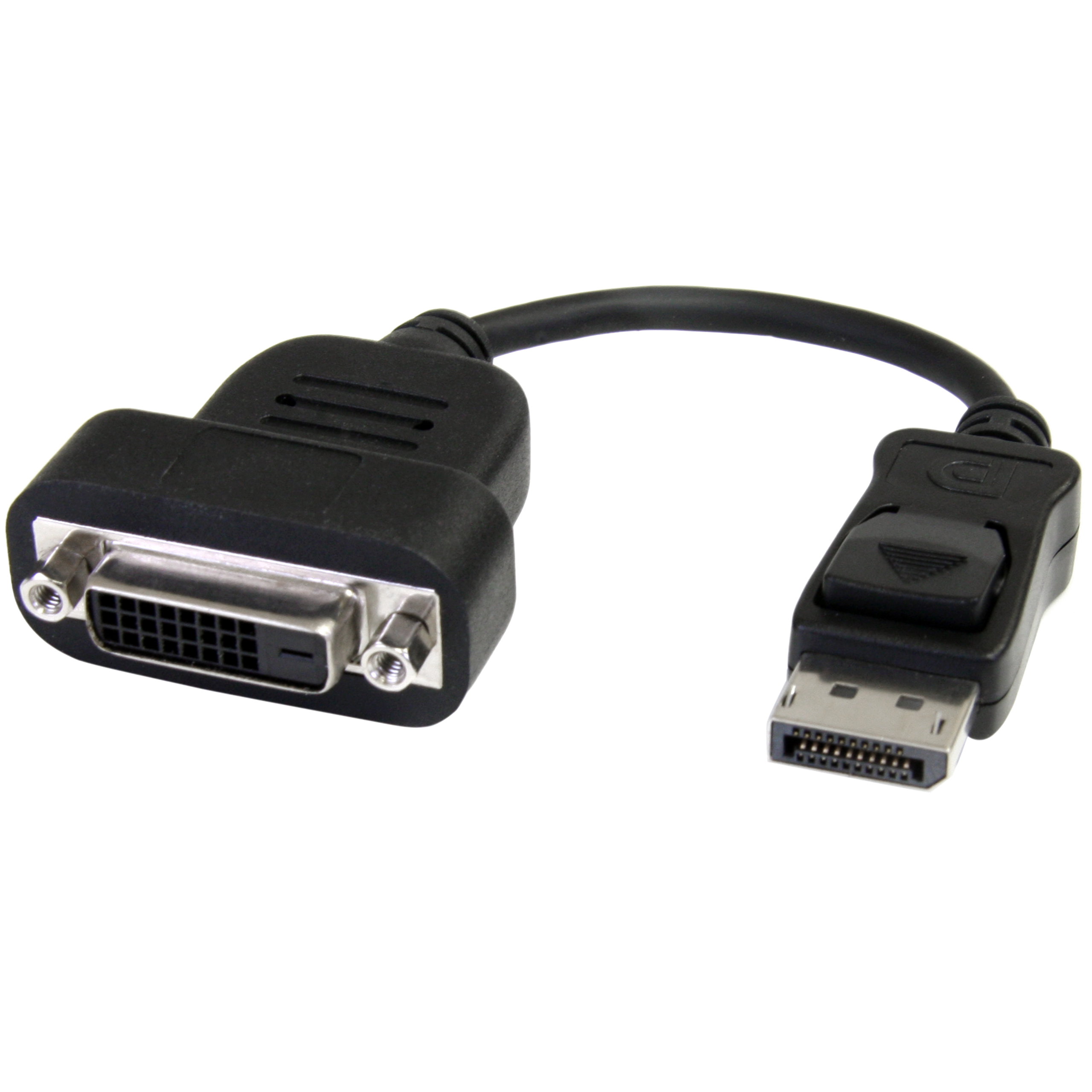

DP2DVIS
DisplayPort to DVI Active Converter
Connect a DVI monitor to a single-mode DisplayPort output from your computer
Main Image
Product Images
Product Images
Quick-Start Guide
Product Name DisplayPort to DVI Active Converter Product Number DP2DVIS UPC 065030842327 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to DVI Family DP to DVI Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX170X Product Title (Short) DisplayPort to DVI Adapter - Active Product Title (Medium) x Product Title (Standard) DisplayPort to DVI Adapter, Active DisplayPort to DVI-D Adapter Converter 1080p, DP 1.2 to DVI Adapter, Latching DP Connector Product Title (Long) DisplayPort to DVI Adapter - Active DisplayPort to DVI-D Adapter/Video Converter 1080p - DP 1.2 to DVI Monitor Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector Product Title (AMZ) DisplayPort to DVI Adapter - Active DisplayPort to DVI-D Adapter/Video Converter 1080p - DP 1.2 to DVI Monitor Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector (DP2DVIS) Title Ingram (Part 1) DisplayPort to DVI Active Adapte Title Ingram (Part 2) r Website Product Headline Connect a DVI monitor to a single-mode DisplayPort output from your computer Bullet 1 DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects a DVI display/projector supporting 1920x1200 & 1080p 60Hz | EDID/DDC pass-through ensures compatibility between source & display | 5.7" (15cm) attached cable Bullet 2 COMPATIBILITY: Active video converter supports DP or DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations | AMD Eyefinity Certified ideal for use with Radeon Pro Series Workstation Graphics Bullet 3 CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation | Compact design |Tested w/ DVI cables up to 25ft | Supports Apple Cinema Display HD Bullet 4 LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection Bullet 5 EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI female adapter dongle Bullets (Compact) Active DisplayPort 1.2 to DVI-D single-link adapter supports 1920x1200/1080p @ 60Hz; HBR2; EDID/DDC - DisplayPort to DVI adapter/video converter for DP/DP++ source supports ultrawide monitors/Apple Cinema Display HD – Latching DP connector Bullets (Consolidated) DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects DVI display/projector/monitor | 1920x1200/1080p 60Hz | EDID/DDC - Active video converter supports any DP/DP++ source using standard DP connector incl workstations/desktops (AMD/Nvidia)/laptops/docks - DP to DVI adapter dongle supports Apple Cinema Display HD - DisplayPort to DVI adapter w/ Latching DP connector | Supports DVI screw locking cable | 5.7" (15cm) attached cable - Driverless | Windows/Ubuntu/macOS Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Great for using your DVI monitor as a secondary display
- Keep your existing DVI monitor to be used with your new DisplayPort computer or source
- Perfect for larger format screens that use high DVI resolutions
- Adapt from graphics cards that are not capable of outputting DP++ (multi-mode) signals
Website Search Keyword - Active DisplayPort to DVI
- Adapter
- ATI Eyefinity
- Converter
- Display Port
- DisplayPort
- Single-Link
- DVI
- Video
- DP Adapter
- Active
- DP Converter
- DP
- Adaptor
- P134-06N-DVI-V2
- P134-06N-DVIACT
- P134-000
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - DO NOT USE - Packaging - General
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
Related Products - DP2DVI2
- DP2DVID2
- DP2DVIMM3BS
- DP2DVIMM6BS
- DP2DVI
- DP2DVIADAP
- DP2DVI2MM3
- DP2DVI2MM6
- DP2DVIMM6
- DP2DVIMM10
Cable Length (mm) 146 Color Black Humidity 80~90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 200 Product Width (mm) 44 Product Height (mm) 20 Product Weight (g) 48 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Digital Resolutions 1920x1200 Maximum Supported Resolution 1080p Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input DisplayPort - 1.2 AV Output DVI-D - Single-Link Chipset ID Parade PS 161 Converter Type Adapters Fire Rating LSZH Rated (Low Smoke Zero Halogen) Host Connection Port DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 512 Carton Height (mm) 233 Carton Quantity 90 Carton Weight Gross (g) 6584 Included in Package 1 - DisplayPort to DVI Adapter Included In Package for Label 1 - DisplayPort to DVI Converter Number of Sub-Cartons 9 Package Depth (mm) 199 Package Height (mm) 23 Package Width (mm) 106 Package Quantity 1 Package Weight (g) 64 Packaging Description DisplayPort to DVI Active Adapter Packaging Description India DisplayPort to DVI Active Converter Sub-Carton Depth (mm) 213 Sub-Carton Height (mm) 71 Sub-Carton Width (mm) 261 Sub-Carton Quantity 10 Sub-Carton Weight (g) 612 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
