DP2HD4K60H

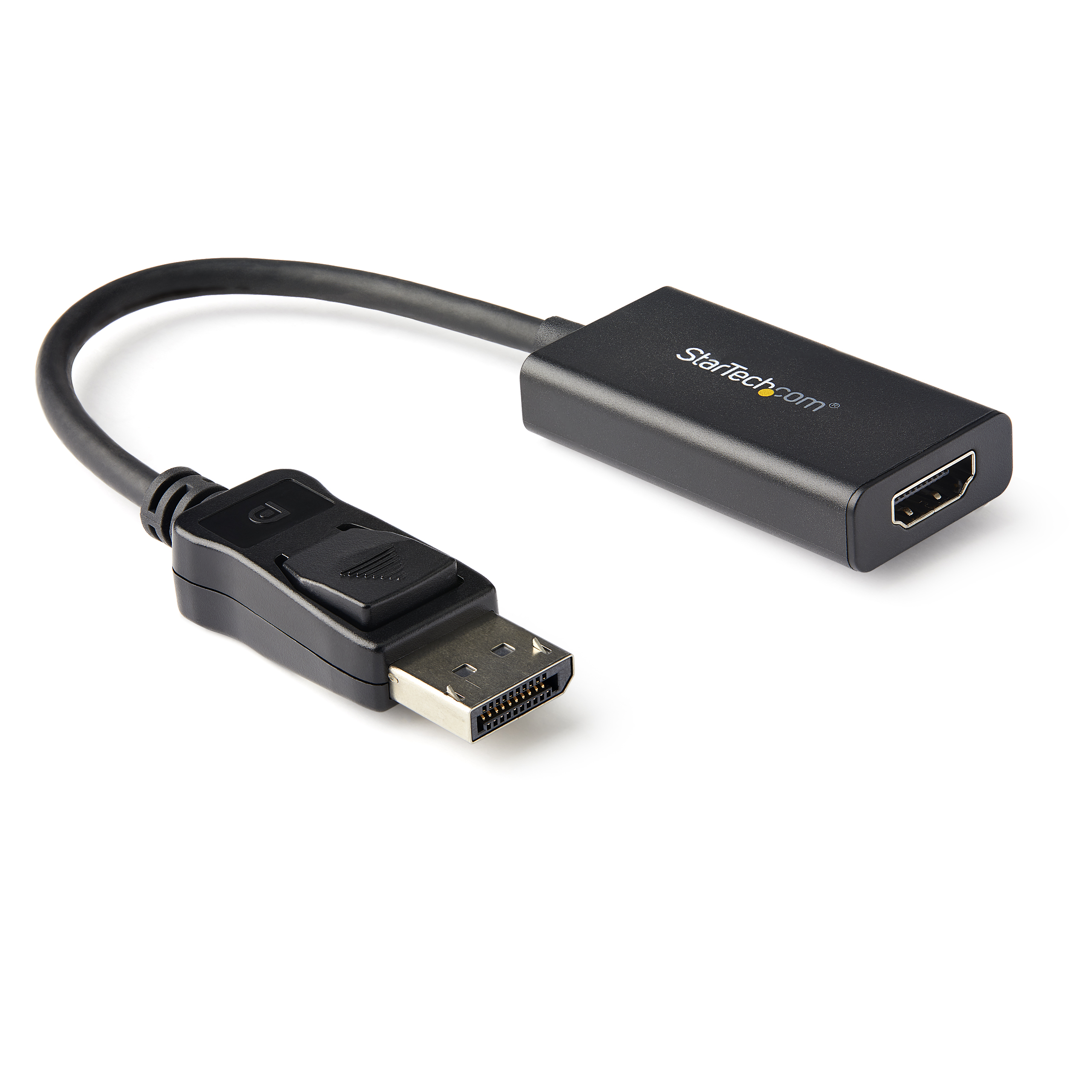

DisplayPort to HDMI Converter - HDR - 4K 60Hz
DisplayPort™ 1.4 Video Adapter | Ultra HD | Up to 18Gbps
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name DisplayPort to HDMI Converter - HDR - 4K 60Hz Product Number DP2HD4K60H UPC 065030879729 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to HDMI - 4K HDR Family DP to HDMI 2.0 Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) DP to HDMI Adapter Product Title (Short) DisplayPort to HDMI Adapter 4K 60Hz HDR Product Title (Medium) DisplayPort to HDMI Adapter with HDR - 4K 60Hz - Black Product Title (Standard) DisplayPort to HDMI Adapter, 4K 60Hz HDR10 Active DisplayPort 1.4 to HDMI 2.0b Converter, Latching DP Connector, DP to HDMI Product Title (Long) DisplayPort to HDMI Adapter - 4K 60Hz HDR10 Active DisplayPort 1.4 to HDMI 2.0b Video Converter - 4K DP to HDMI Adapter Dongle for Monitor/Display/TV - Latching DP Connector Product Title (AMZ) DisplayPort to HDMI Adapter - 4K 60Hz HDR10 Active DisplayPort 1.4 to HDMI 2.0b Video Converter - 4K DP to HDMI Adapter Dongle for Monitor/Display/TV - Latching DP Connector (DP2HD4K60H) Title Ingram (Part 1) DisplayPort to HDMI Adapter HDR Title Ingram (Part 2) 4K 60Hz - DP 1.4 - HDMI 2.0b Website Product Headline DisplayPort™ 1.4 Video Adapter | Ultra HD | Up to 18Gbps Bullet 1 PERFORMANCE: DisplayPort 1.4 to HDMI 2.0b adapter with HDR10 supports UHD 4K 60Hz (3840x2160), 18Gbps bandwidth supports YCbCr 4:4:4 8-bit chroma subsampling, 7.1ch Audio, HDCP 2.2, DPCP | 4.8" (12cm) attached cable | Backwards compatible w/ 1080p Bullet 2 CONTENT CREATION: HDR10 produces lifelike images with a higher contrast-ratio on HDMI 2.0b displays, making it ideal for creative professionals | Use the adapter to connect an HDMI monitor, TV or projector, or add a secondary display to your workstation Bullet 3 HOST COMPATIBILITY: Active DisplayPort to HDMI adapter supports DP/DP++ source including workstations, desktops (AMD Radeon Pro Workstation Graphics, Nvidia RTX/Quadro), small form factor computers & docking stations | Tested w/ HDMI cables up to 23' Bullet 4 LATCHING DISPLAYPORT CONNECTOR: DP to HDMI adapter dongle with a latching DP connector to ensure solid host connection | Features Electromagnetic Interference (EMI) shielding to protect from line noise/distortion Bullet 5 EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video converter works with any OS including Windows, Ubuntu and macOS; DP Male to HDMI Female Bullets (Compact) DisplayPort to HDMI adapter dongle w/HDR10 - 4K 60Hz (3840x2160)/1080p/18Gbps/4:4:4 chroma subsampling/7.1ch Audio/HDCP 2.2/DPCP - Compact Active DP 1.4 to HDMI 2.0b video converter supports any DP/DP++ source - Latching DP connector - OS Independent Bullets (Consolidated) DisplayPort 1.4 to HDMI 2.0b adapter with HDR10 supports 4K 60Hz (3840x2160) | 18Gbps | 4:4:4 chroma subsampling | 7.1ch Audio | HDCP 2.2/DPCP - Active DisplayPort to HDMI adapter dongle supports DP/DP++ | Compatible w/ AMD/Nvidia video graphics cards | Backwards compatible w/ 1080p - HDR10 for high-contrast ratio w/HDMI 2.0b displays/monitors/TVs | Ideal for content creators - DP to HDMI converter w/latching DP connector | Tested w/HDMI cables up to 23' - 4.8" attached cable - OS Independent Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - This video adapter is not compatible with cables that use RedMere™ technology.
- In order to achieve maximum performance of this product, both the source and destination devices must support the appropriate specifications
Accessory Products - HDMM50CMP
- HDMM1MP
- HDMM2MP
- RHDMM2MP
- HDMM5MP
- HDMM7MP
- HDMMV2M
- HDMIDVIMM6
Related Products - DP2HD4K60S
- MDP2HD4KS
- MDP2HD4K60S
Constrained SKU Alternatives (Limited Stock) DP2HD4KS Cable Length (mm) 122 Color Black Humidity 25%-60%RH Material Plastic Operating Temperature 5°C ~ 35°C (41 F°~95 F°) Primary Material Plastic Product Length (mm) 260 Product Width (mm) 28.6 Product Height (mm) 13.5 Product Weight (g) 39.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support Yes Maximum Cable Distance To Display 7000 Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input DisplayPort - 1.4 AV Output HDMI - 2.0 Chipset ID MegaChips - MCDP2900 Converter Type Adapters Host Connection Port DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 500 Carton Height (mm) 210 Carton Quantity 250 Carton Weight Gross (g) 12350 Included in Package 1 - DisplayPort to HDMI Adapter Included In Package for Label 1 - Displayport To HDMI Converter Number of Sub-Cartons 25 Package Depth (mm) 225 Package Height (mm) 14.1 Package Width (mm) 128 Package Quantity 1 Package Weight (g) 44 Packaging Description DisplayPort to HDMI Adapter - HDR - 4K 60Hz Packaging Description India DisplayPort to HDMI Converter - HDR - 4K 60Hz Sub-Carton Depth (mm) 208 Sub-Carton Height (mm) 58 Sub-Carton Width (mm) 285 Sub-Carton Quantity 10 Sub-Carton Weight (g) 450 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-08-02 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-12-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2018-09-28 Target Production Release 2018-10-05 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Latest
