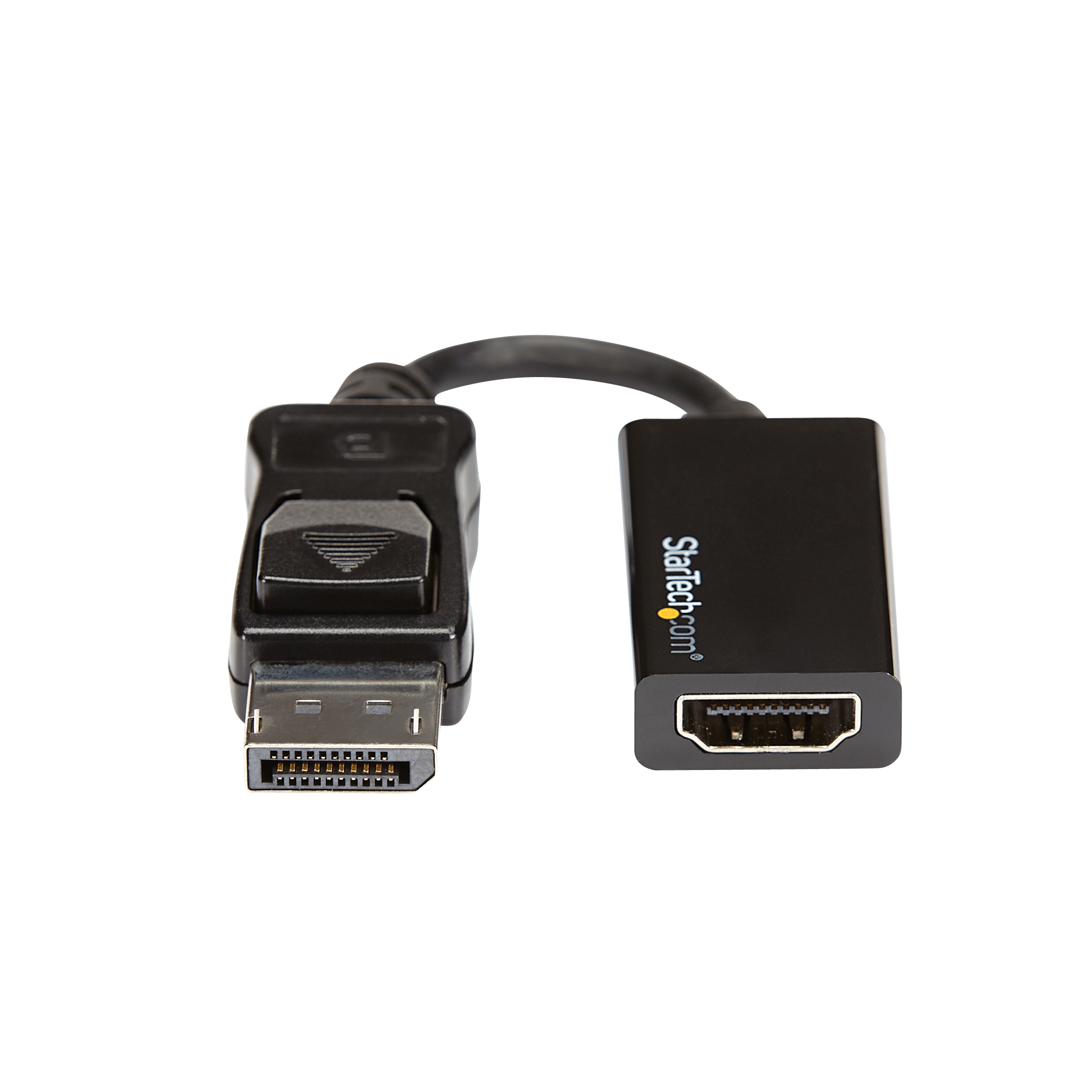

DP2HD4K60S
DisplayPort to HDMI 2 0

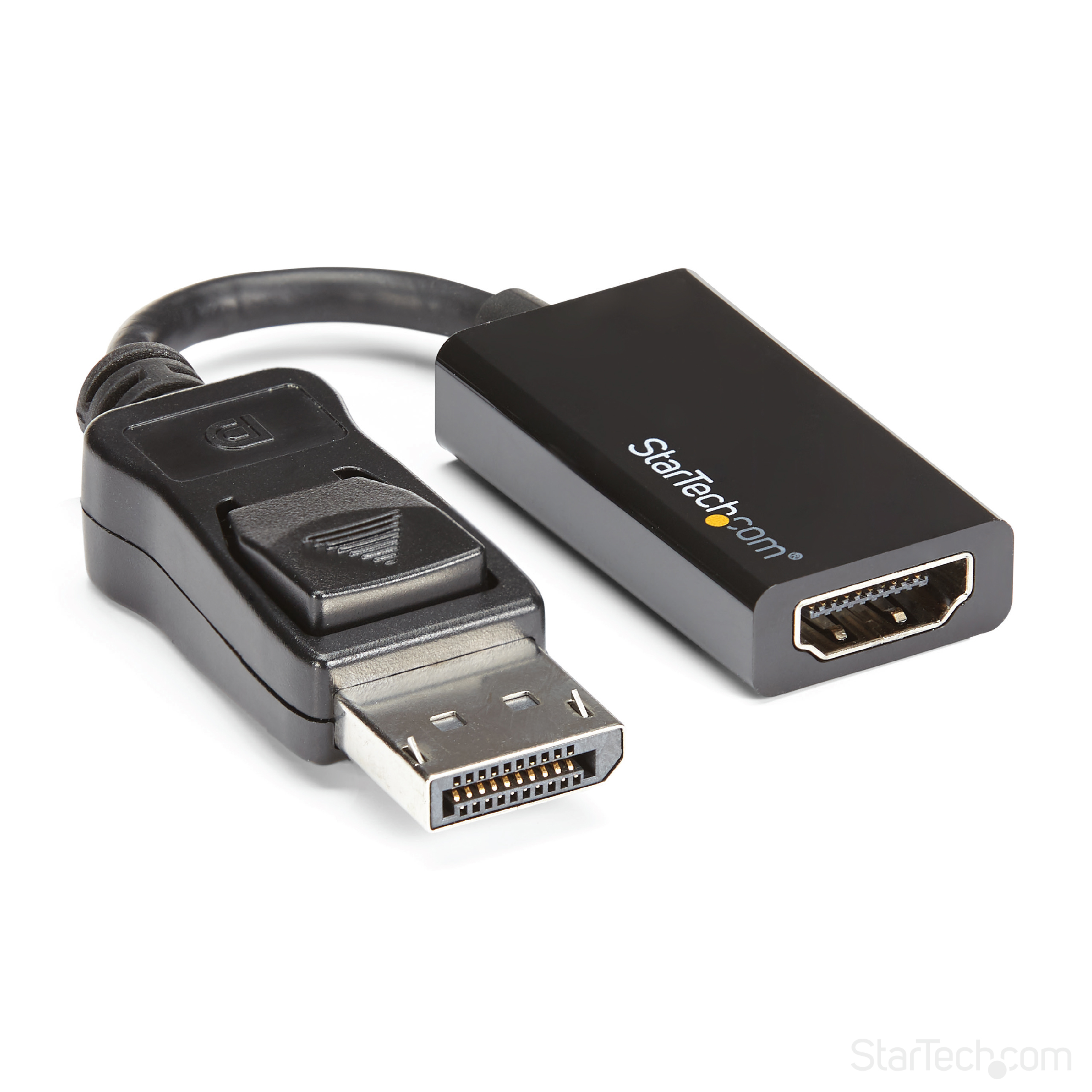

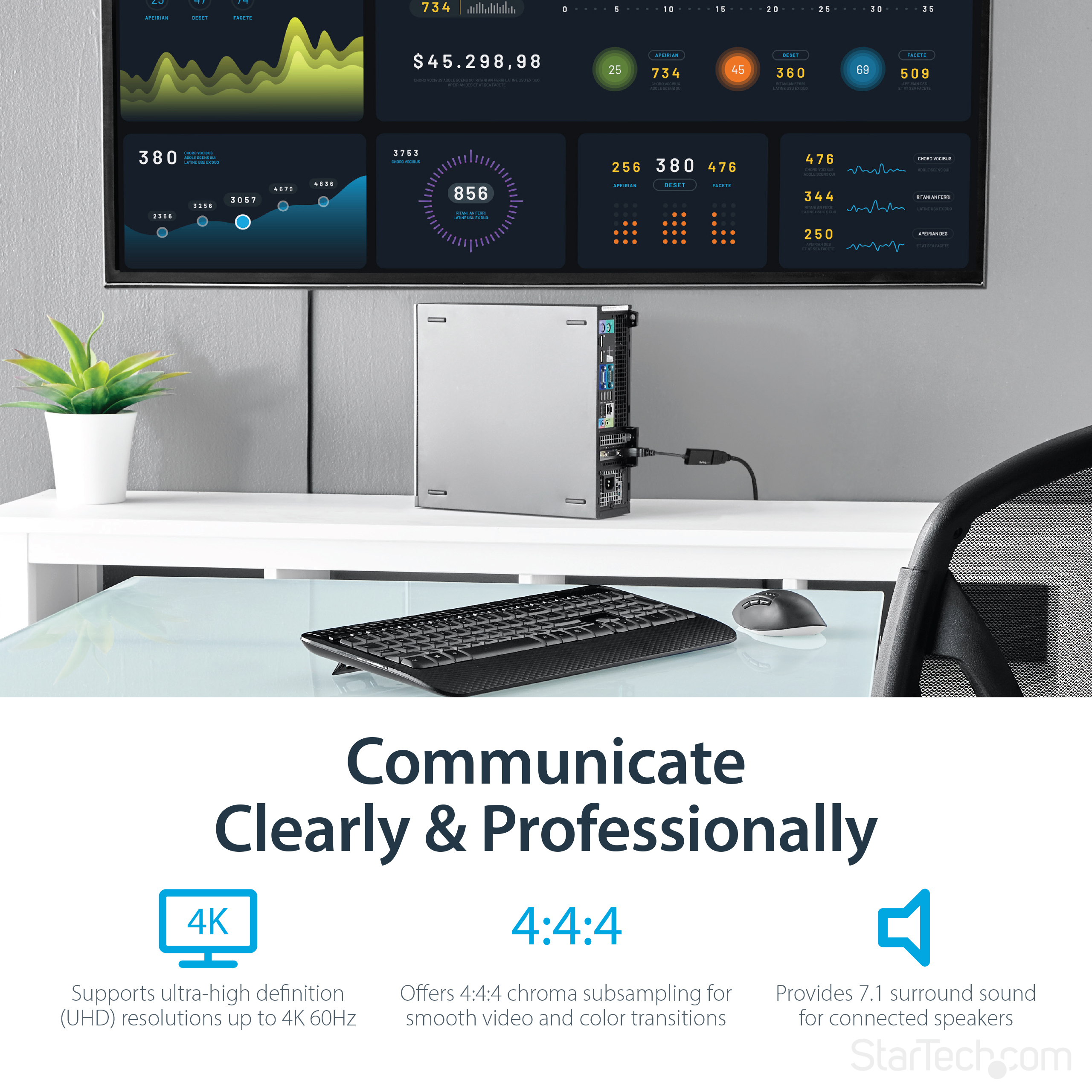

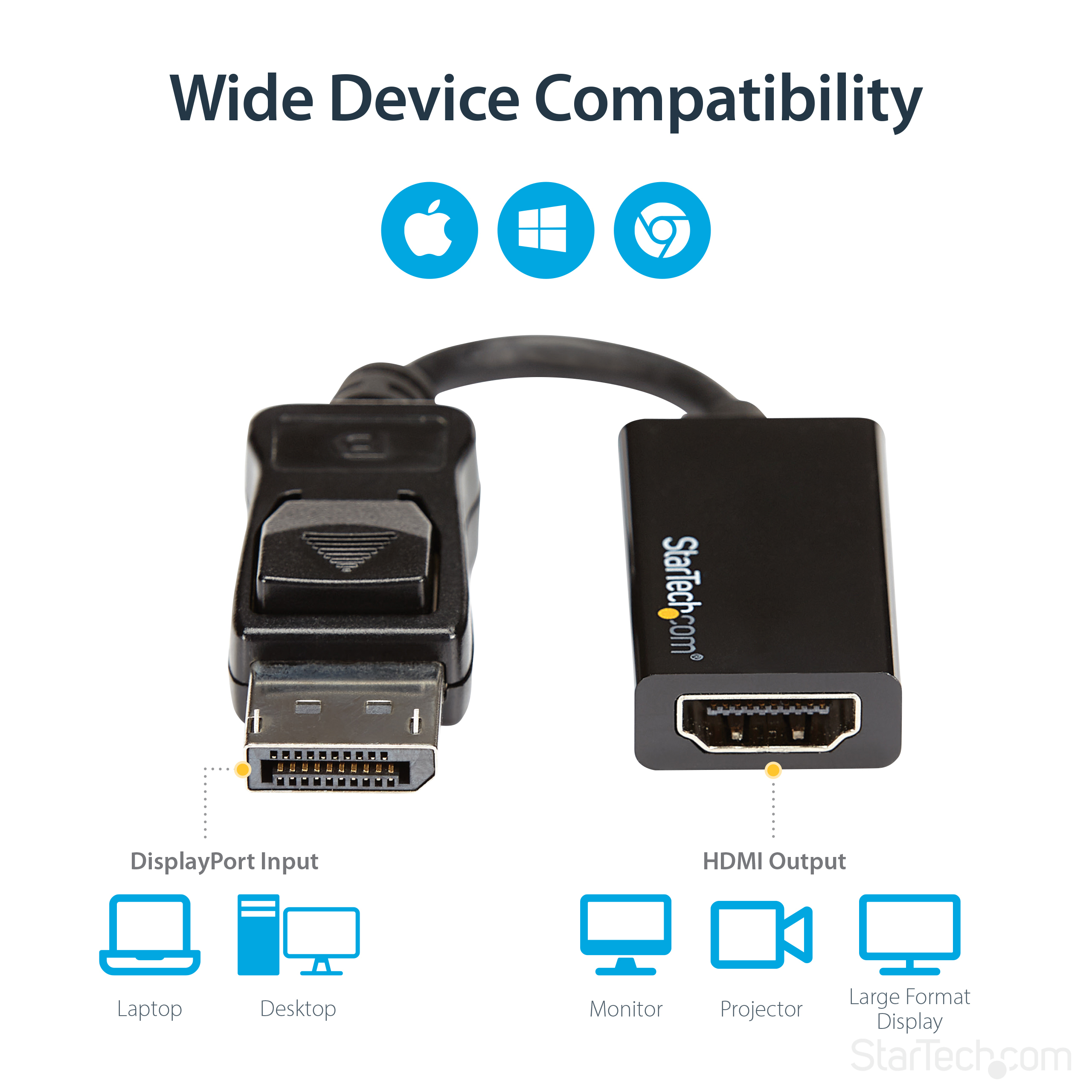

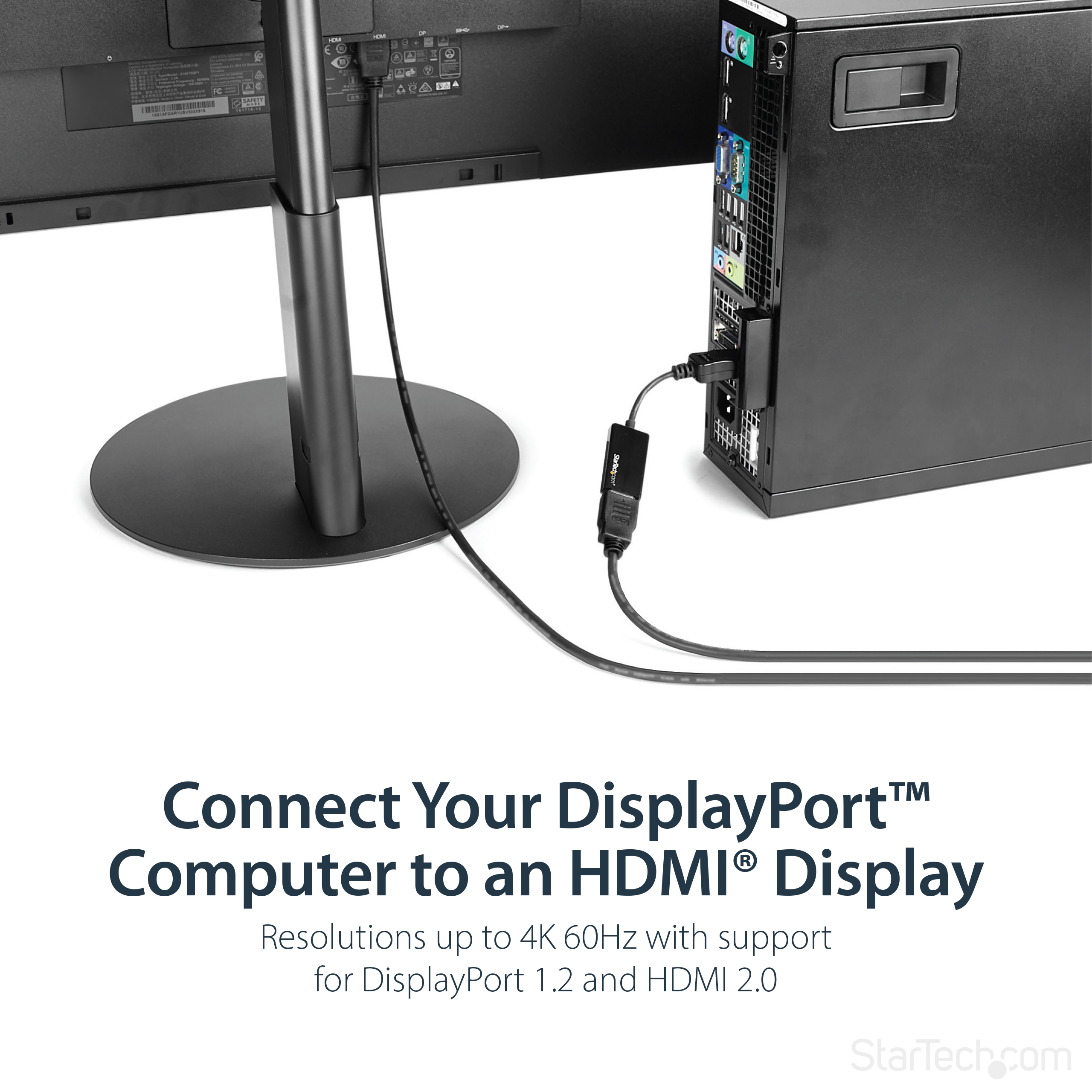

Connect your DP computer to an HDMI display using this converter, which supports UHD resolutions up to 4K at 60Hz
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube

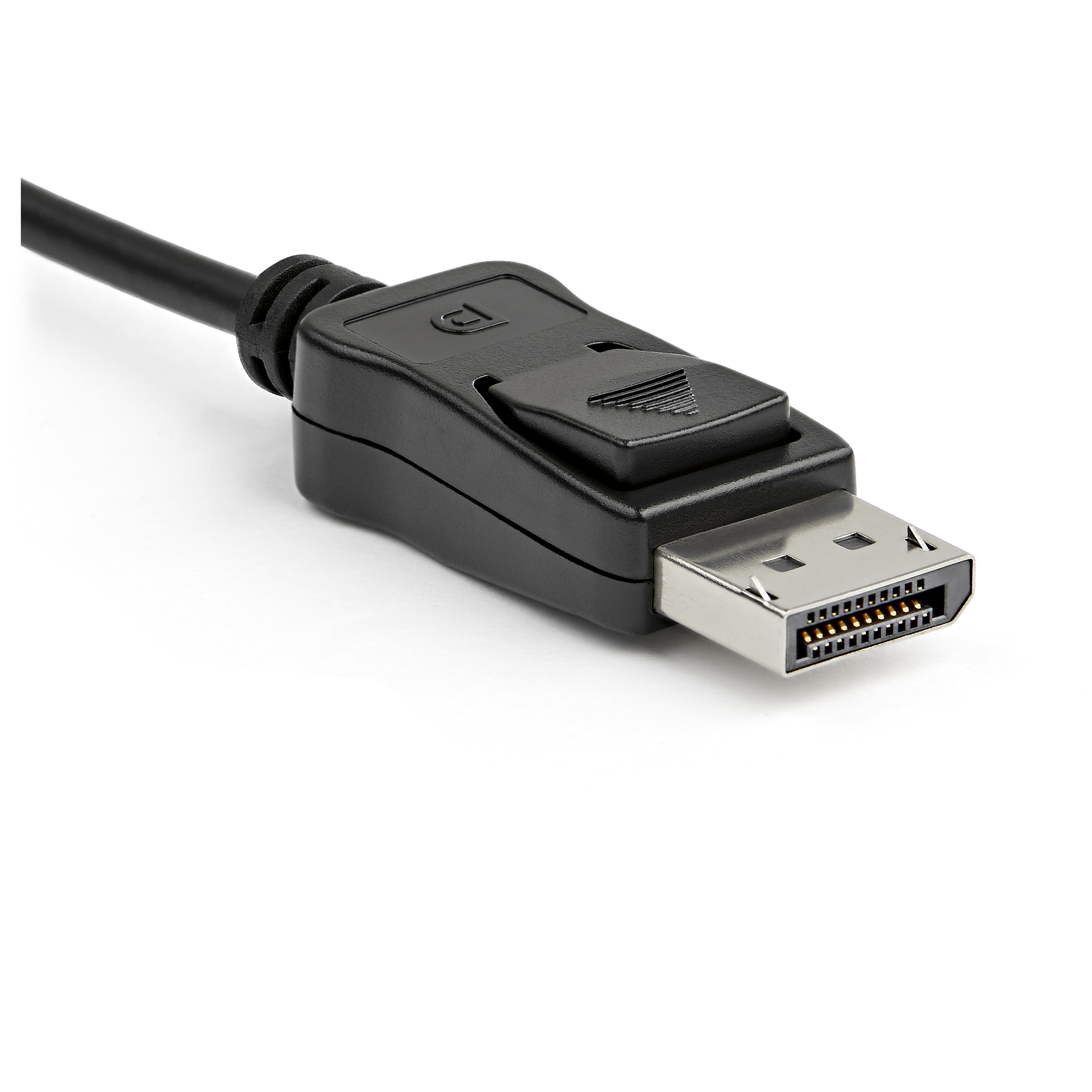

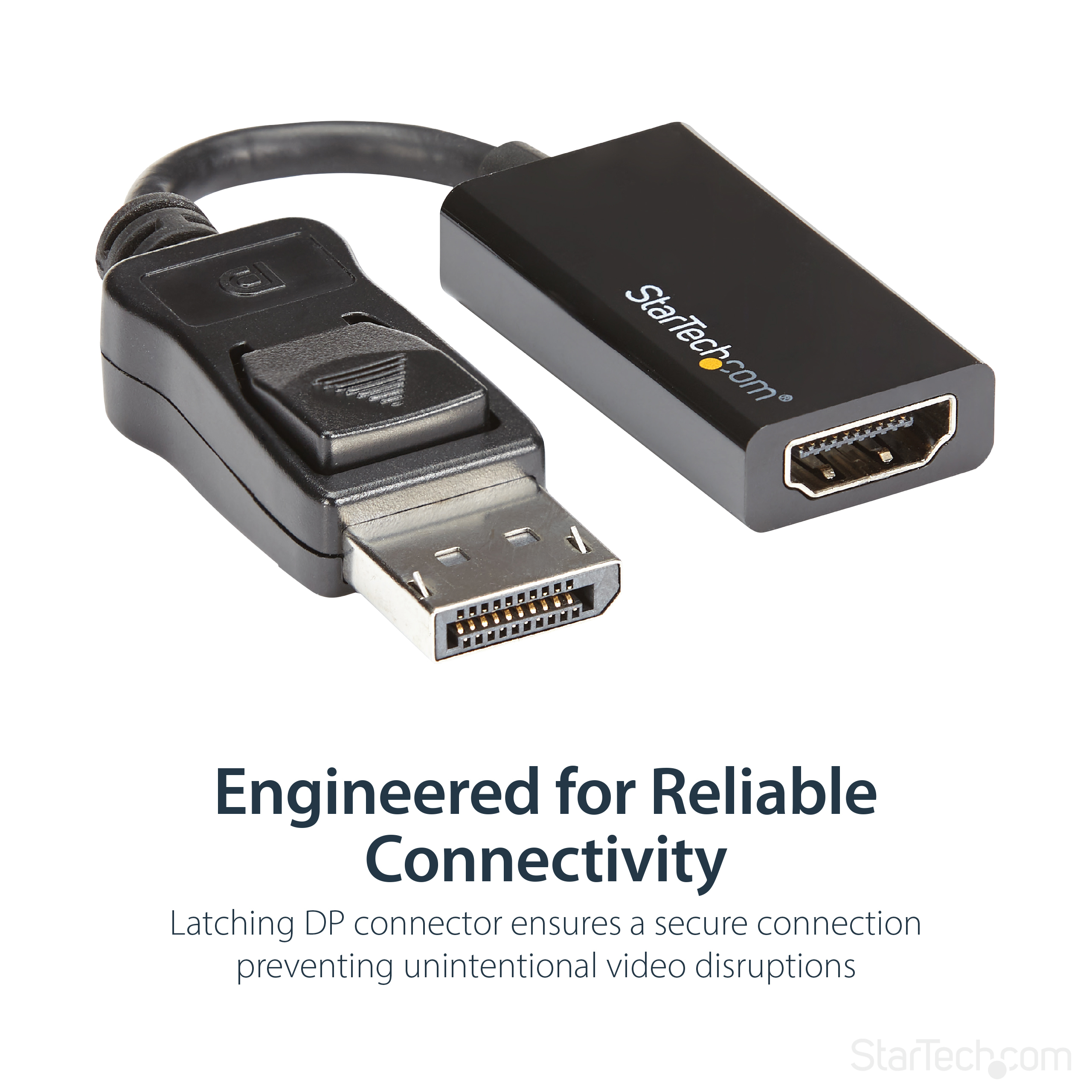

Product Name DisplayPort to HDMI 2 0 Product Number DP2HD4K60S UPC 065030865722 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to HDMI Family DP to HDMI 2.0 Adapters Country of Origin Europe & Japan China Country of Origin North America Hungary Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) DisplayPort to HDMI Product Title (Short) DisplayPort to HDMI Adapter 4K 60Hz Product Title (Medium) DisplayPort to HDMI Adapter - 4K DP to HDMI Converter - UHD 4K 60Hz Product Title (Standard) DisplayPort to HDMI Adapter, 4K 60Hz Active DP 1.4 to HDMI 2.0 Video Converter for Monitor/Display, Latching DP Connector Product Title (Long) DisplayPort to HDMI Adapter - 4K 60Hz Active DP 1.4 to HDMI 2.0 Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Latching DP Connector Product Title (AMZ) DisplayPort to HDMI Adapter - 4K 60Hz Active DP 1.4 to HDMI 2.0 Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Latching DP Connector (DP2HD4K60S) Title Ingram (Part 1) 4K DisplayPort to HDMI Converter Title Ingram (Part 2) UHD DP to HDMI Adapter - 4K 60Hz Website Product Headline Connect your DP computer to an HDMI display using this converter, which supports UHD resolutions up to 4K at 60Hz Bullet 1 PERFORMANCE: DisplayPort 1.4 to HDMI 2.0 adapter supports UHD 4K 60Hz (3840x2160), 7.1ch Audio, HDCP 2.2 & DPCP | 4.2in (11cm) attached cable | Backwards compatible w/ 1080p | DP 1.2 host and HDMI 2.0 display are a minimum requirement for 4K 60Hz video Bullet 2 HOST COMPATIBILITY: Active DisplayPort to HDMI adapter supports DP/DP++ source including workstations, desktops (AMD Radeon Pro Workstation Graphics, Nvidia RTX/Quadro), small form factor computers & docking stations | Tested w/ HDMI cables up to 23' Bullet 3 CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect an HDMI monitor, TV or projector, or add a second display to your workstation; Small form factor design makes it easy to carry around between home office and office Bullet 4 LATCHING DISPLAYPORT CONNECTOR: DP to HDMI adapter dongle has latching DP connector to ensure solid host connection | Features Electromagnetic Interference (EMI) shielding to protect from line noise/distortion Bullet 5 EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video converter works with any OS including macOS, Windows & Ubuntu; DP Male to HDMI Female Bullets (Compact) Active DisplayPort to HDMI adapter dongle - 4K 60Hz (3840x2160)/1080p/18Gbps/7.1ch Audio/HDCP 2.2/DPCP - Compact DP 1.4 to HDMI 2.0 video converter supports any DP/DP++ source incl workstations/desktop/laptops - Latching DP connector - OS Independent Bullets (Consolidated) DisplayPort 1.4 to HDMI 2.0 adapter supports 4K 60Hz (3840x2160)/1080p/18Gbps/7.1ch Audio/HDCP 2.2/DPCP - Active DisplayPort to HDMI adapter dongle supports DP/DP++ source incl workstations/desktops (AMD/Nvidia)/laptops/docks - Compact | 4.2" (11cm) cable | EMI shielding | Ideal for home/office to connect to HDMI monitor/display/TV - DP to HDMI adapter/video converter with latching DP connector | Tested with HDMI cables up to 23' | Male/Female - Driverless setup | OS independent Marketing Copy Marketing Copy (No HTML) Applications - Connect your 4K 60Hz HDMI display to a DisplayPort output port
- Deploy this adapter with company laptops to ensure your employees can interface with BYOD displays around the office

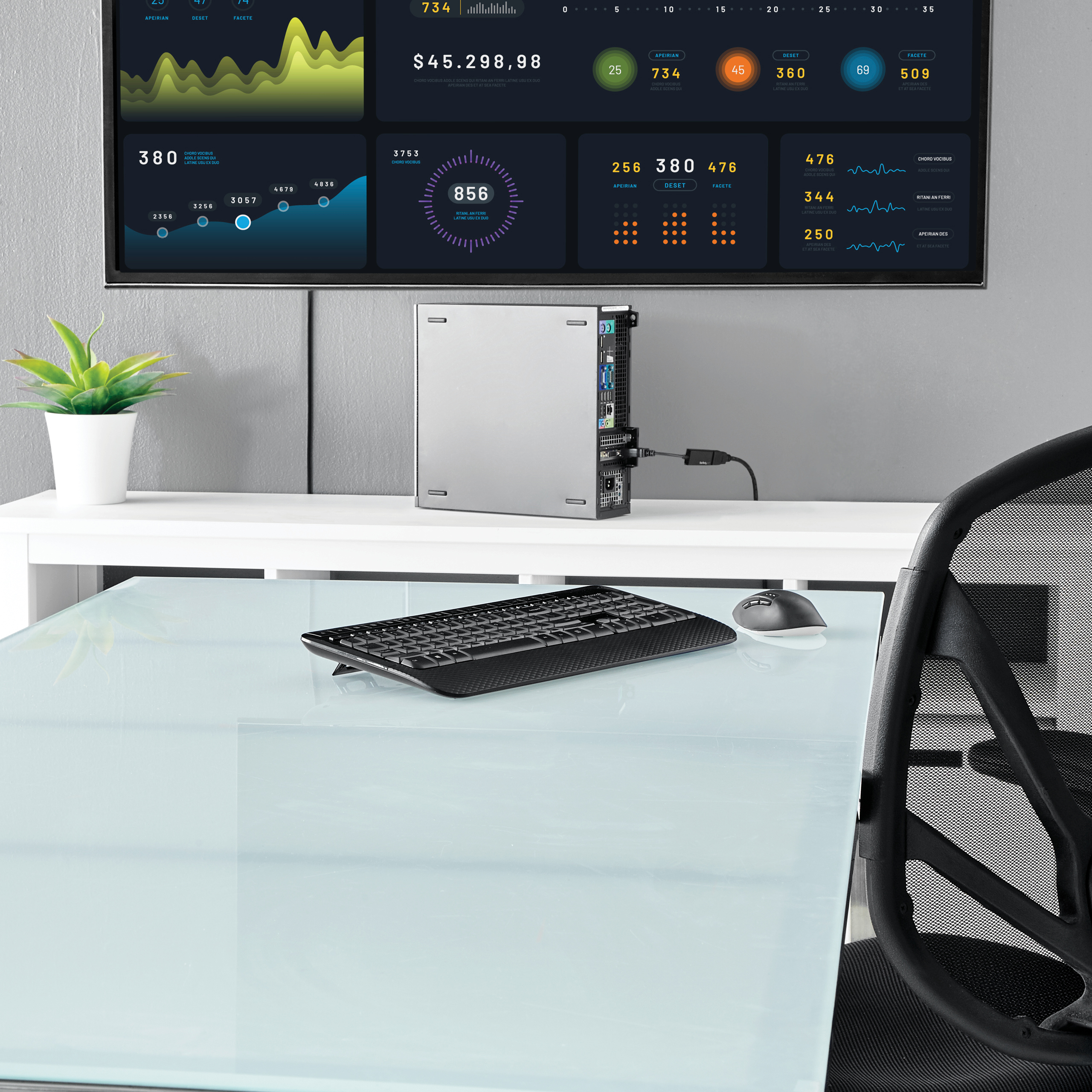

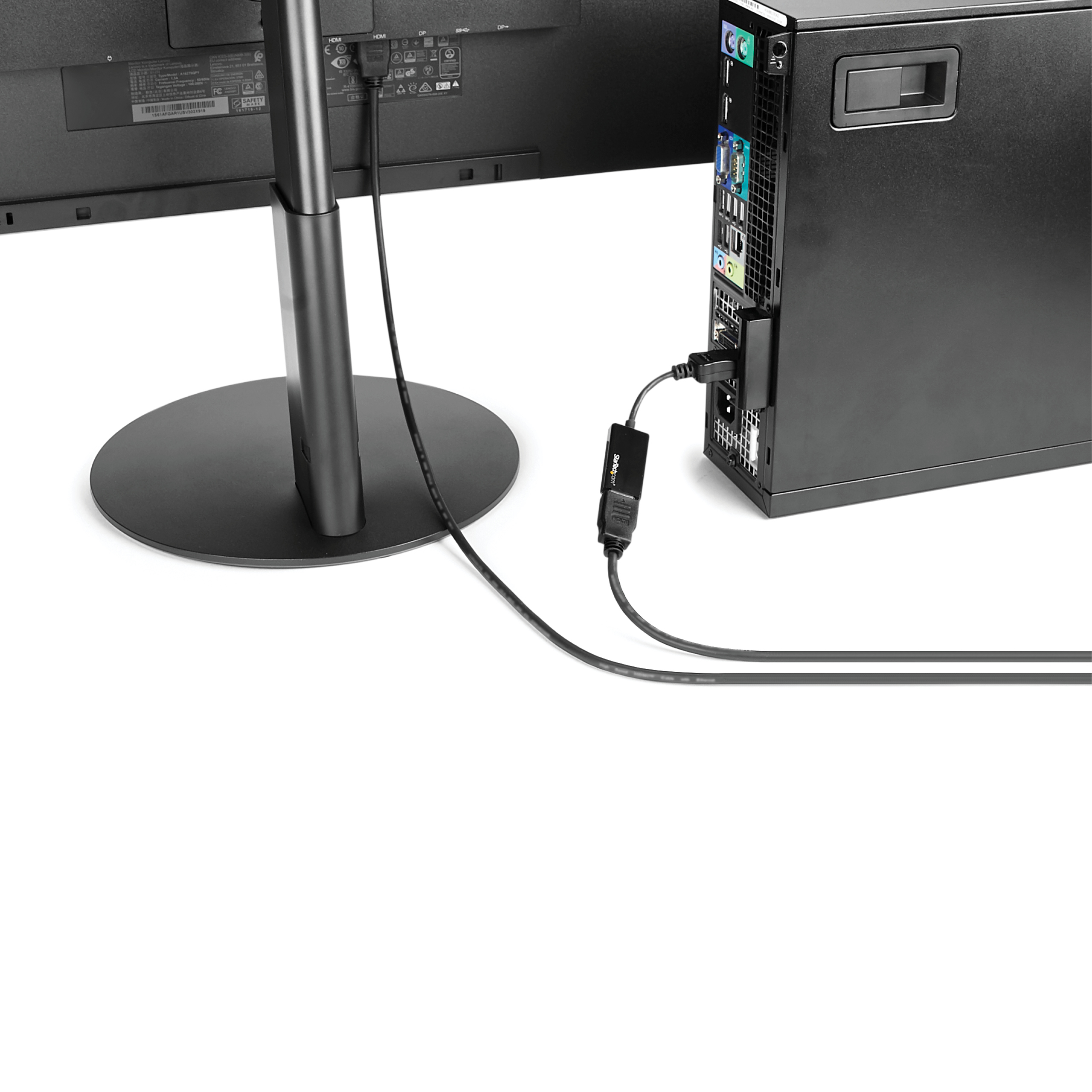

- Use an HDMI display as a secondary monitor for your DisplayPort computer
Website Search Keyword - Displayport to HDMI
- HDMI 2.0
- DP to HDMI
- 4K
- UHD 4K
- 4K 60Hz
- P136-06N-H2V2LB
Required Regulatory Compliance Marks - Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes This video adapter is not compatible with cables that use RedMere™ technology. Accessory Products - HDMM1MP
- RHDMM2MP
- HDMM3MP
- HDMMV2M
- HDMIDVIMM6
Related Products - MDP2HD4KS
- MDP2HD4K60S
Constrained SKU Alternatives (Limited Stock) - DP2HD4KS
- DP2HD4K60H
Cable Length (mm) 107.5 Color Black Humidity -25°C to 85°C (77°F to 185°F) at 80% - 95% Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 167 Product Width (mm) 28.7 Product Height (mm) 14.2 Product Weight (g) 36 Storage Temperature -25°C to 70°C (13°F to 149°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 7000 Maximum Digital Resolutions 4K x 2K @ 60 Hz Maximum Supported Resolution 4K 60Hz (3840x2160) Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input DisplayPort - 1.4 AV Output HDMI - 2.0 Chipset ID Parade - PS176 Converter Type Adapters Host Connection Port DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 507 Carton Height (mm) 228 Carton Quantity 120 Carton Weight Gross (g) 5796 Included in Package 1 - DisplayPort to HDMI adapter Included In Package for Label 1 - DisplayPort to HDMI converter Number of Sub-Cartons 12 Package Depth (mm) 195 Package Height (mm) 13 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 36 Packaging Description DisplayPort to HDMI® Adapter - 4K at 60Hz Packaging Description India DisplayPort to HDMI® Converter - 4K at 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 389 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-06-23 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-10-07 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist David Bromley Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2016-07-06 Target Production Release 2016-07-08 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Mainstream
