DP2HD4KADAP

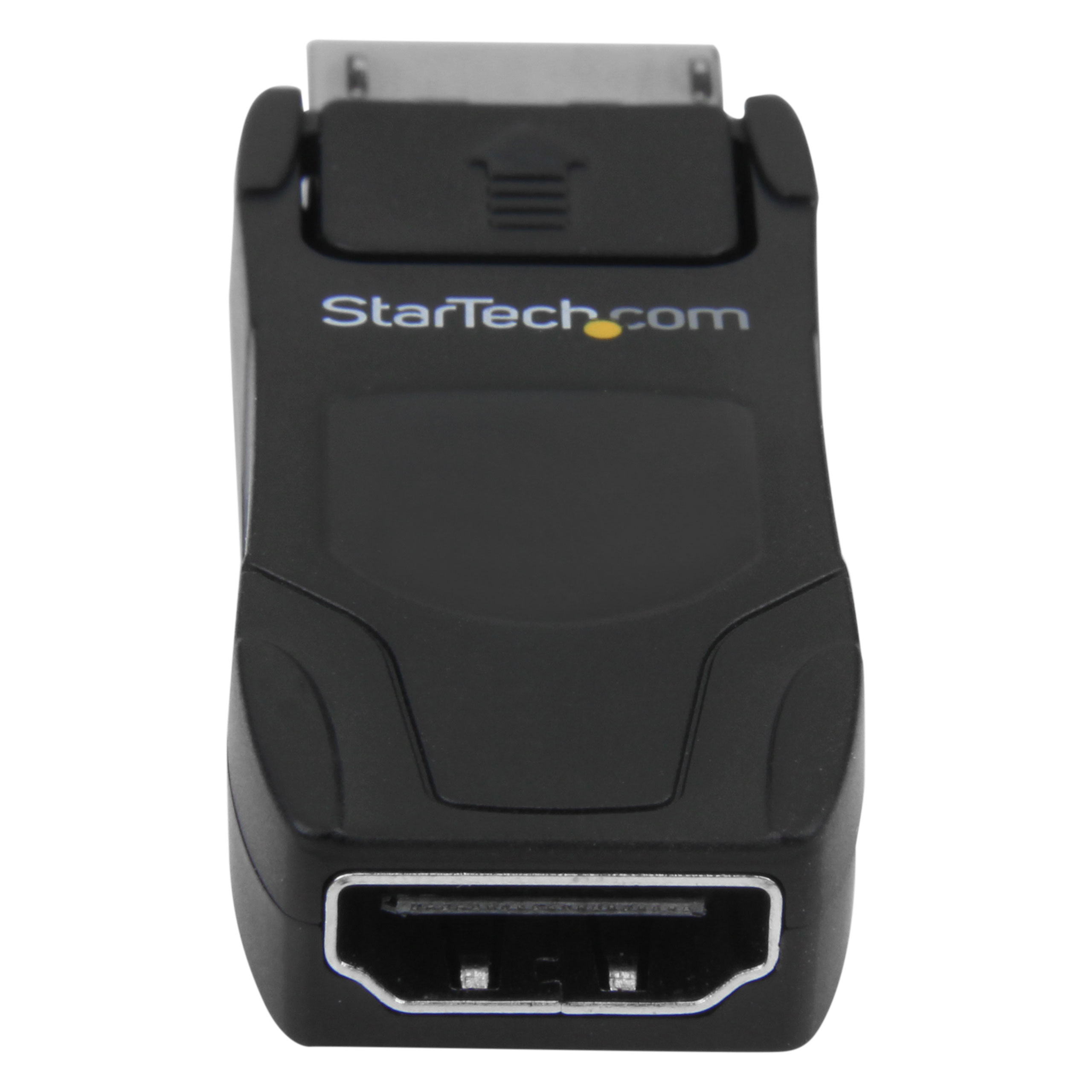

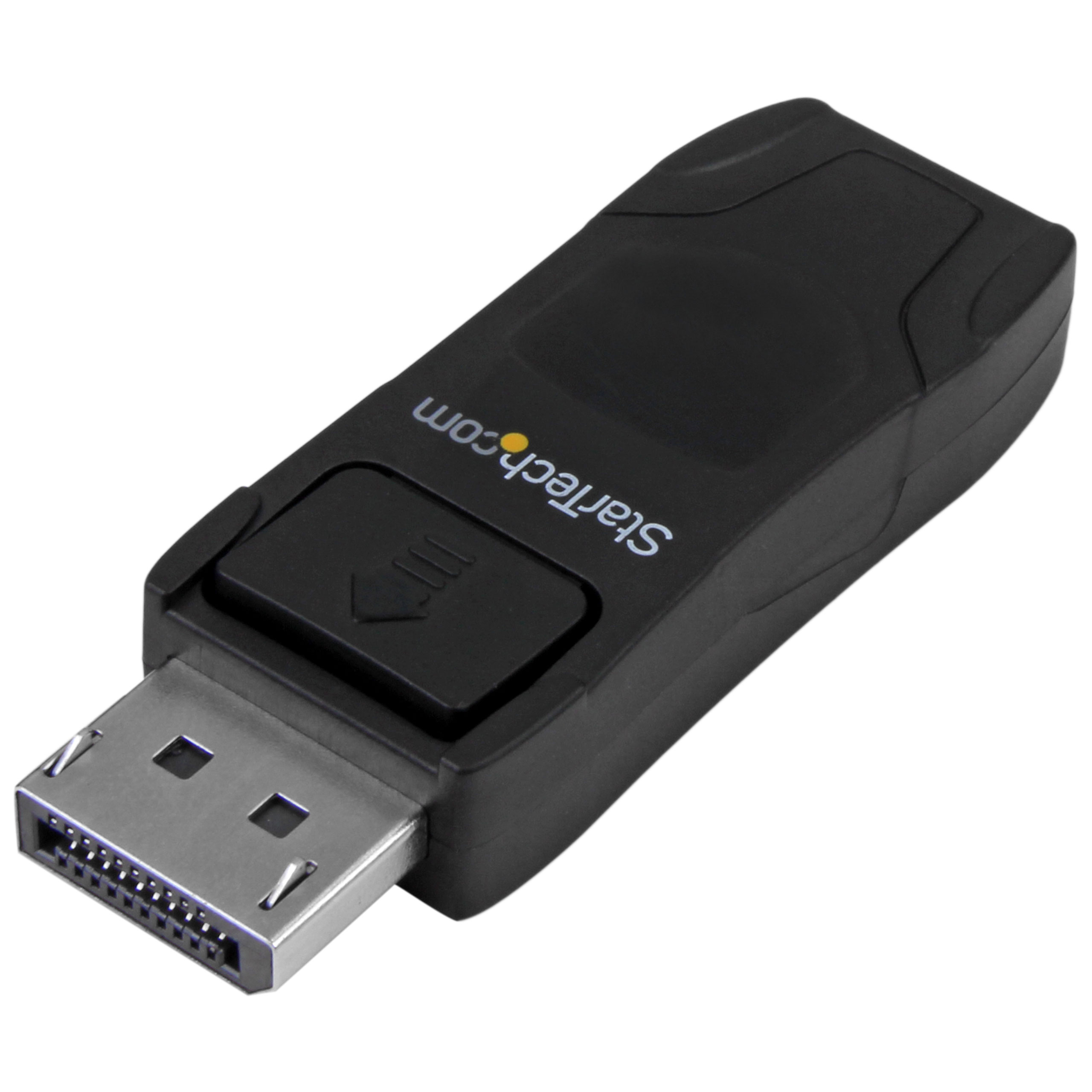

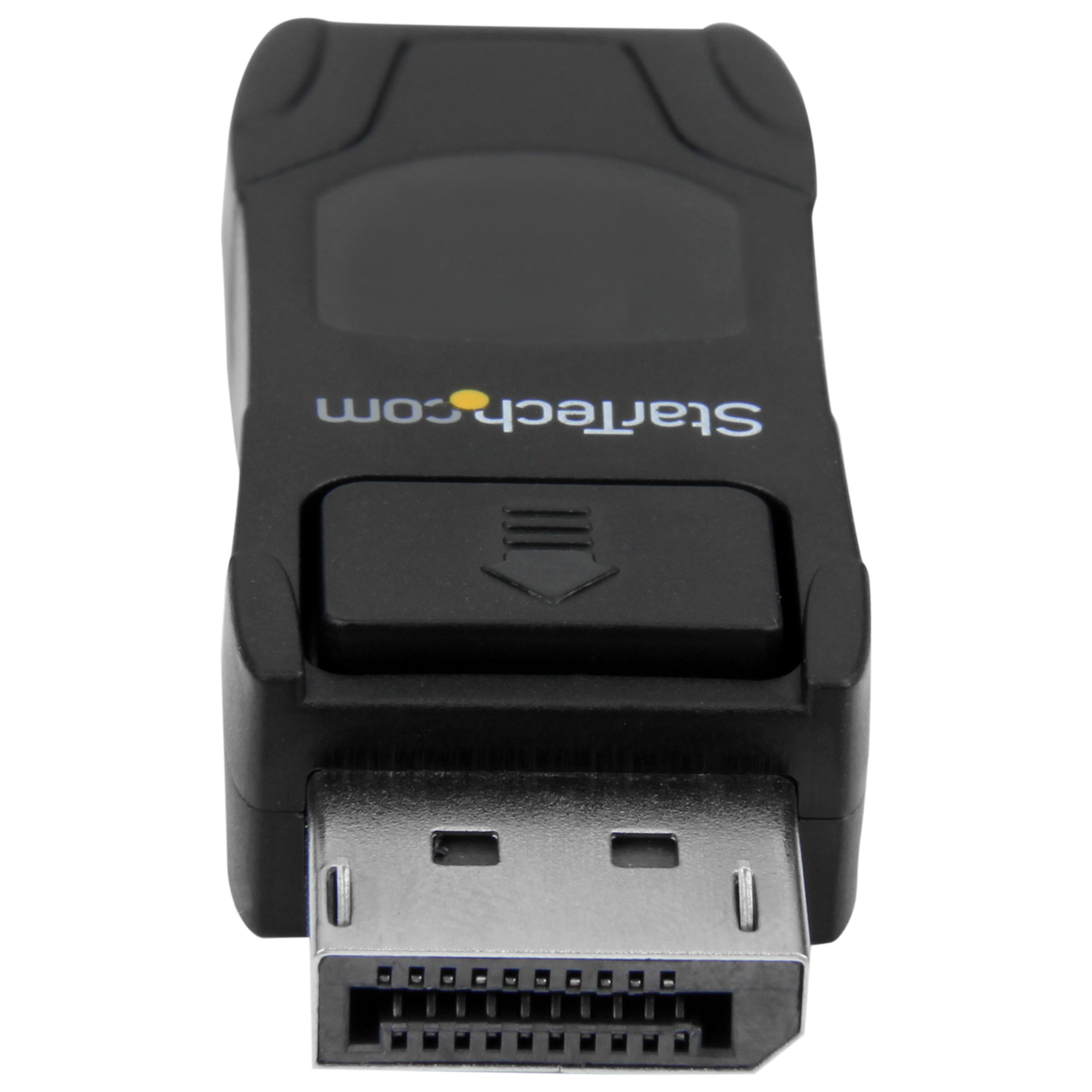

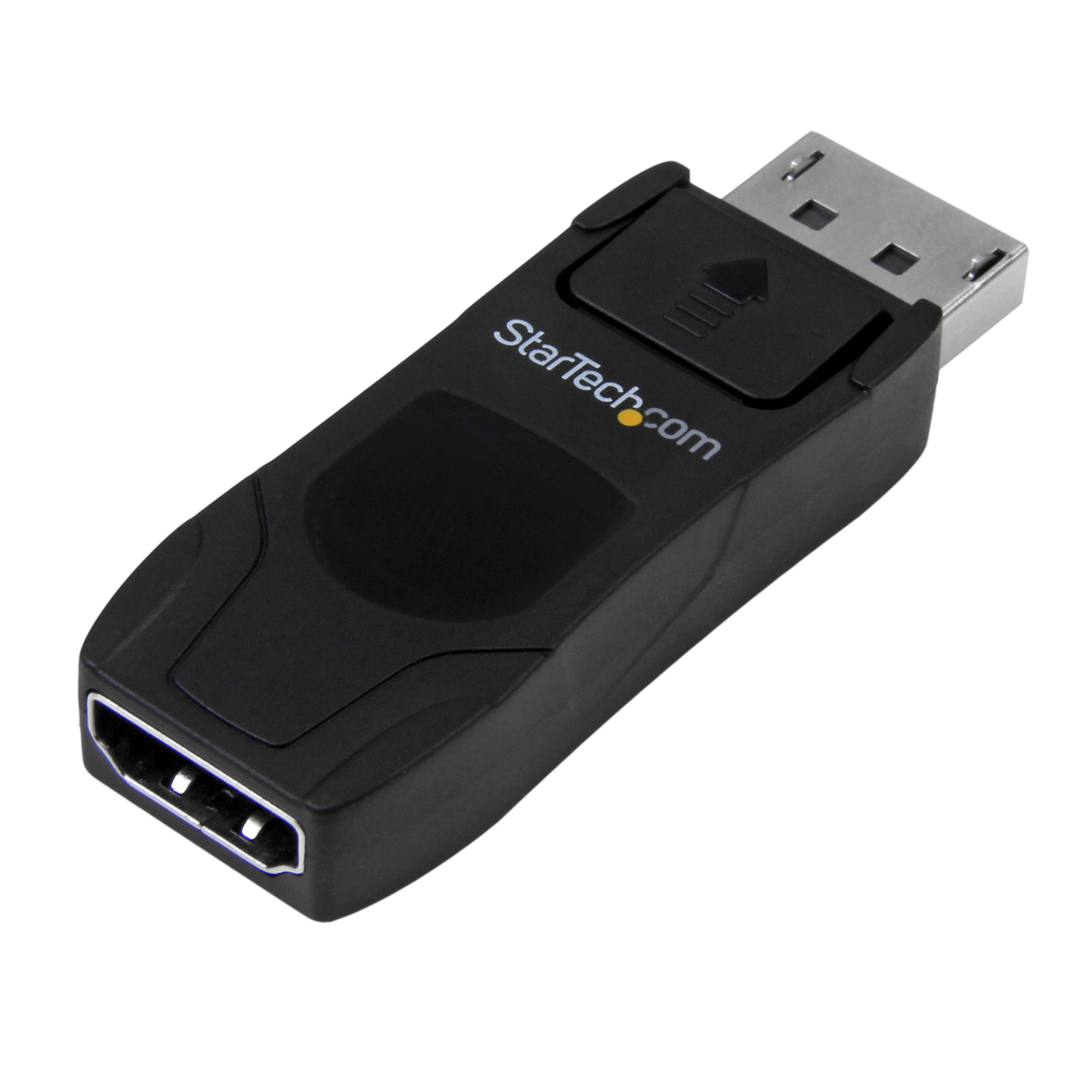

DP to HDMI Adapter - 4K - DisplayPort to HDMI
Connect your 4K HDMI display to a DP video source using this compact, passive adapter
Main Image
Product Images
Product Images
Product Images
Product Name DP to HDMI Adapter - 4K - DisplayPort to HDMI Product Number DP2HD4KADAP UPC 065030861908 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to HDMI Family DP to HDMI 1.4 Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) DP to HDMI - 4K Product Title (Short) DisplayPort to HDMI Adapter Converter 4K Product Title (Medium) DisplayPort to HDMI Converter - Passive DP to HDMI Adapter - 4K Product Title (Standard) DisplayPort to HDMI Adapter, 4K 30Hz Compact DP 1.2 to HDMI 1.4 Video Converter, Passive DP++ to HDMI Monitor/Display Adapter Product Title (Long) DisplayPort to HDMI Adapter - 4K 30Hz Compact DP 1.2 to HDMI 1.4 Video Converter - DP++ to HDMI Monitor/TV - Passive DP to HDMI Cable Adapter - Latching DP Connector Product Title (AMZ) DisplayPort to HDMI Adapter - 4K 30Hz Compact DP 1.2 to HDMI 1.4 Video Converter - DP++ to HDMI Monitor/TV - Passive DP to HDMI Cable Adapter - Latching DP Connector (DP2HD4KADAP) Title Ingram (Part 1) DP to HDMI Adapter - 4K - Title Ingram (Part 2) DisplayPort to HDMI Converter Website Product Headline Connect your 4K HDMI display to a DP video source using this compact, passive adapter Bullet 1 PERFORMANCE: DisplayPort 1.2 to HDMI 1.4 adapter directly connects your DP host to an HDMI display, monitor or TV | Supports Ultra HD (UHD) 4K 30Hz (3840x2160) and 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4 Bullet 2 HOST COMPATIBILITY: Passive DisplayPort to HDMI adapter requires DP++ source connector incl workstations, desktops (AMD Radeon Pro/Nvidia RTX/Quadro), laptops, small form factor computers & docking stations Bullet 3 SMALL FORM FACTOR: With no attached cable, the adapter is ideal for permanent setups in boardrooms, connecting directly to your HDMI cable | Use to connect primary or secondary display | Compact design makes it easy to carry between home and office Bullet 4 LATCHING DISPLAYPORT CONNECTOR: DP to HDMI adapter features a latching DisplayPort connector to ensure a solid host connection, helping to minimize signal loss| Tested with HDMI cables at extended lengths up to 35ft Bullet 5 EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video converter works with any OS including macOS, Windows & Ubuntu; DP Male to HDMI Female Bullets (Compact) Passive DisplayPort to HDMI adapter supports 4K 30Hz/1080p/7.1ch Audio/HDCP 1.4 – DP 1.2 to HDMI 1.4 video converter connects a HDMI monitor/display - Requires DP++ source - Compact design - No attached cable - Latching DP connector - OS Independent Bullets (Consolidated) Passive DisplayPort 1.2 to HDMI 1.4 adapter supports 4K 30Hz (3840x2160) and 1080p/7.1ch Audio/HDCP 1.4 - DisplayPort to HDMI adapter | Requires DP++ source incl workstations/desktops (AMD/Nvidia)/laptops/docking stations - Compact design | No attached cable | Ideal for permanent setups to connect to HDMI monitor/display/TV - DP to HDMI adapter/video converter with latching DP connector | Tested with HDMI cables up to 35ft - Driverless setup | OS independent Marketing Copy Applications - Connect your 4K HDMI display to a DisplayPort output port
- Carry with your laptop for BYOD office applications
- Use an HDMI display as a secondary monitor for your DisplayPort computer
Website Search Keyword - displayPort to HDMI
- DP to HDMI
- 4K displayport to HDMI
- 4K resolution
- 4K
- DisplayPort to HDMI adapter
- displayport to HDMI converter
- DP to HDMI adapter
- dp to hdmi converter
- P136-000-UHD-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) Accessory Products - HDMM6
- HDMM10
- HDMM3
Related Products DP2HD4KS Color Black Humidity 10%~85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 62.000 Product Width (mm) 22.000 Product Height (mm) 11.000 Product Weight (g) 12.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 3840x2160 30Hz (4K) Maximum Supported Resolution 4K 30Hz (3840x2160) MTBF (hours) 1,482,115 hours OS Compatibility OS Independent Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Passive Audio Yes AV Input DisplayPort - 1.2 AV Output HDMI - 1.4 Converter Type Adapters Host Connection Port DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 355 Carton Height (mm) 280 Carton Quantity 400 Carton Weight Gross (g) 8330 Included in Package 1 - DisplayPort to HDMI adapter Included In Package for Label 1 - Displayport To HDMI Converter Number of Sub-Cartons 40 Package Depth (mm) 92 Package Height (mm) 22 Package Width (mm) 50 Package Weight (g) 18 Packaging Description DisplayPort to HDMI Adapter - 4K Packaging Description India DisplayPort to HDMI Converter - 4K Sub-Carton Depth (mm) 155 Sub-Carton Height (mm) 66 Sub-Carton Width (mm) 144 Sub-Carton Quantity 10 Sub-Carton Weight (g) 160 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-04-14 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-05-15 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
