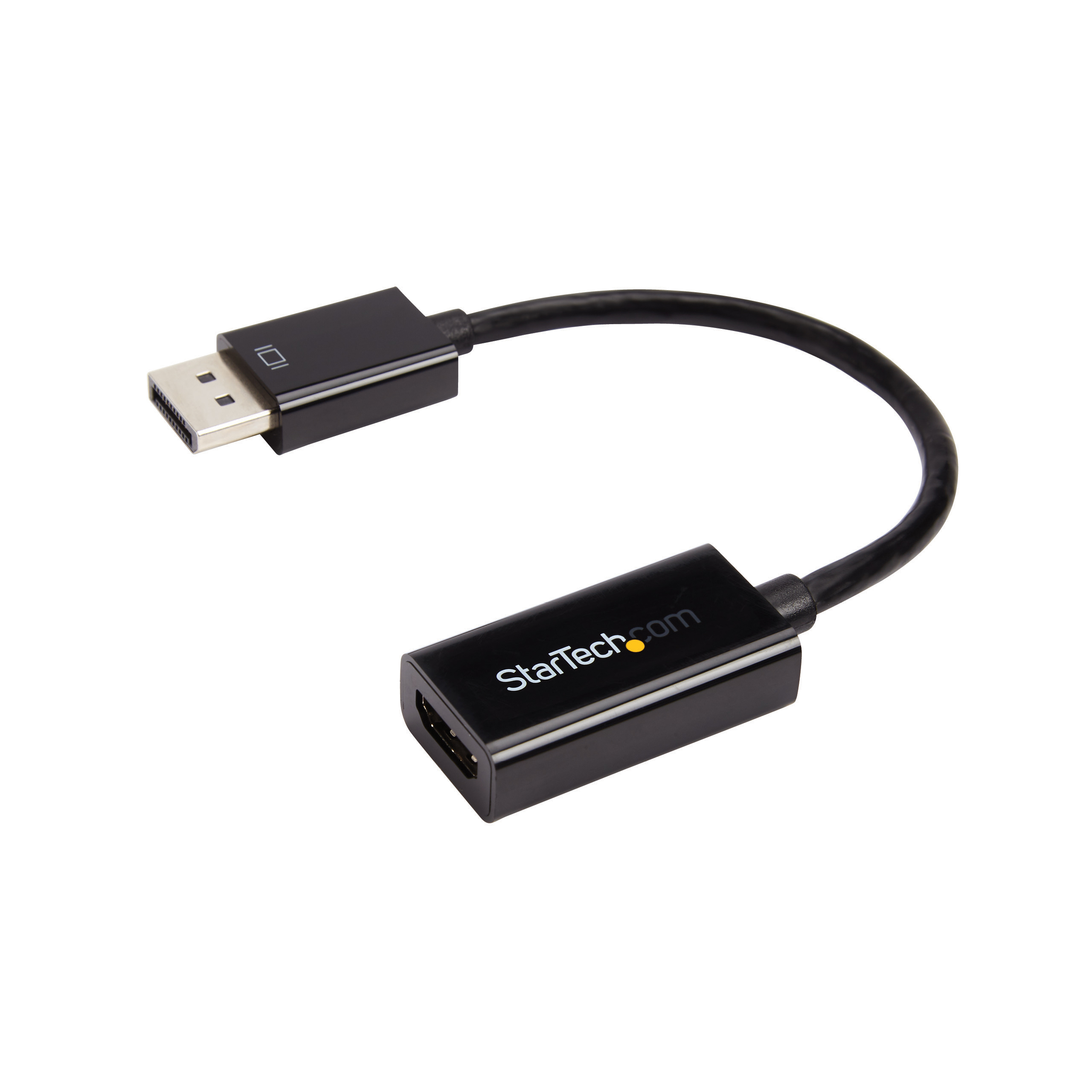

Main Image

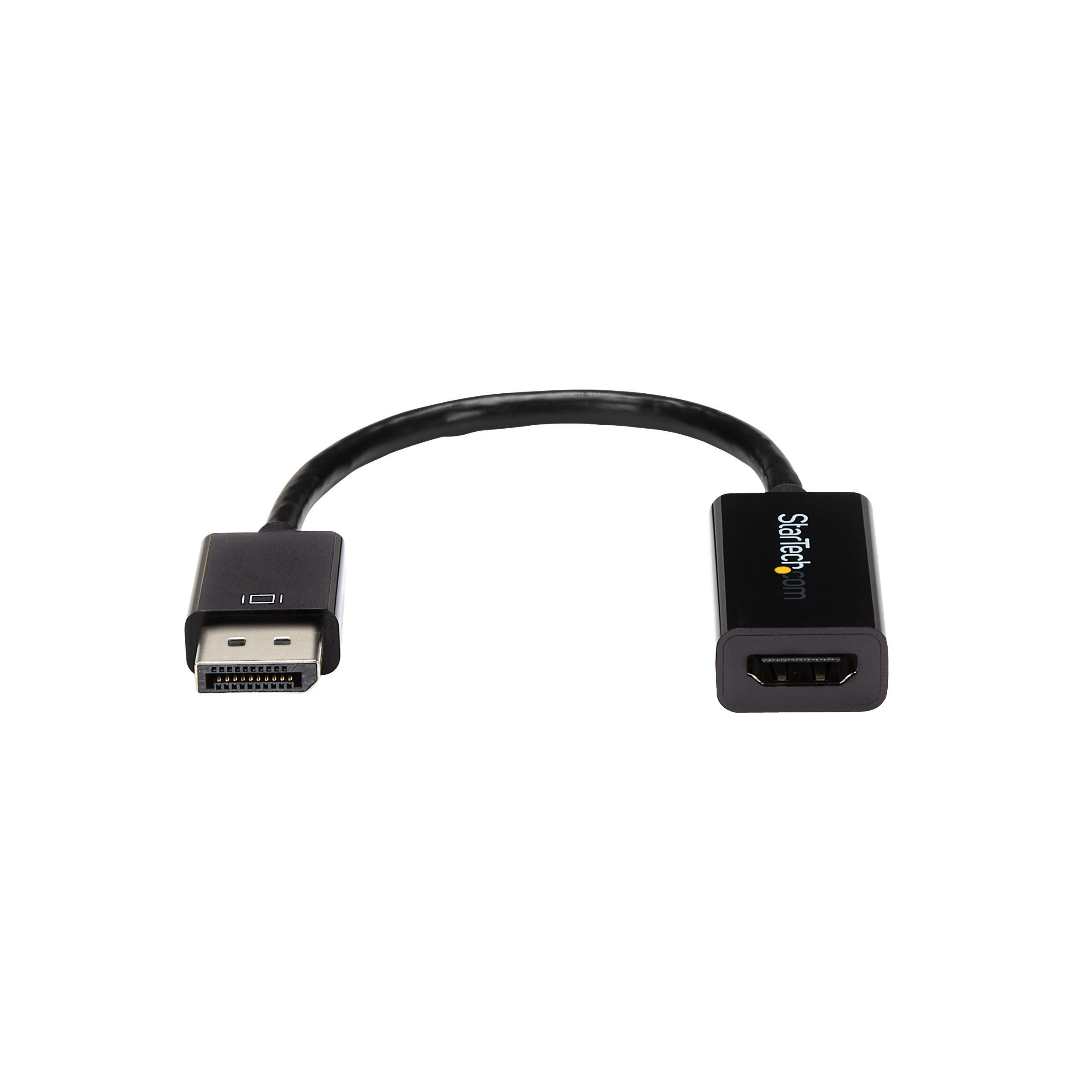

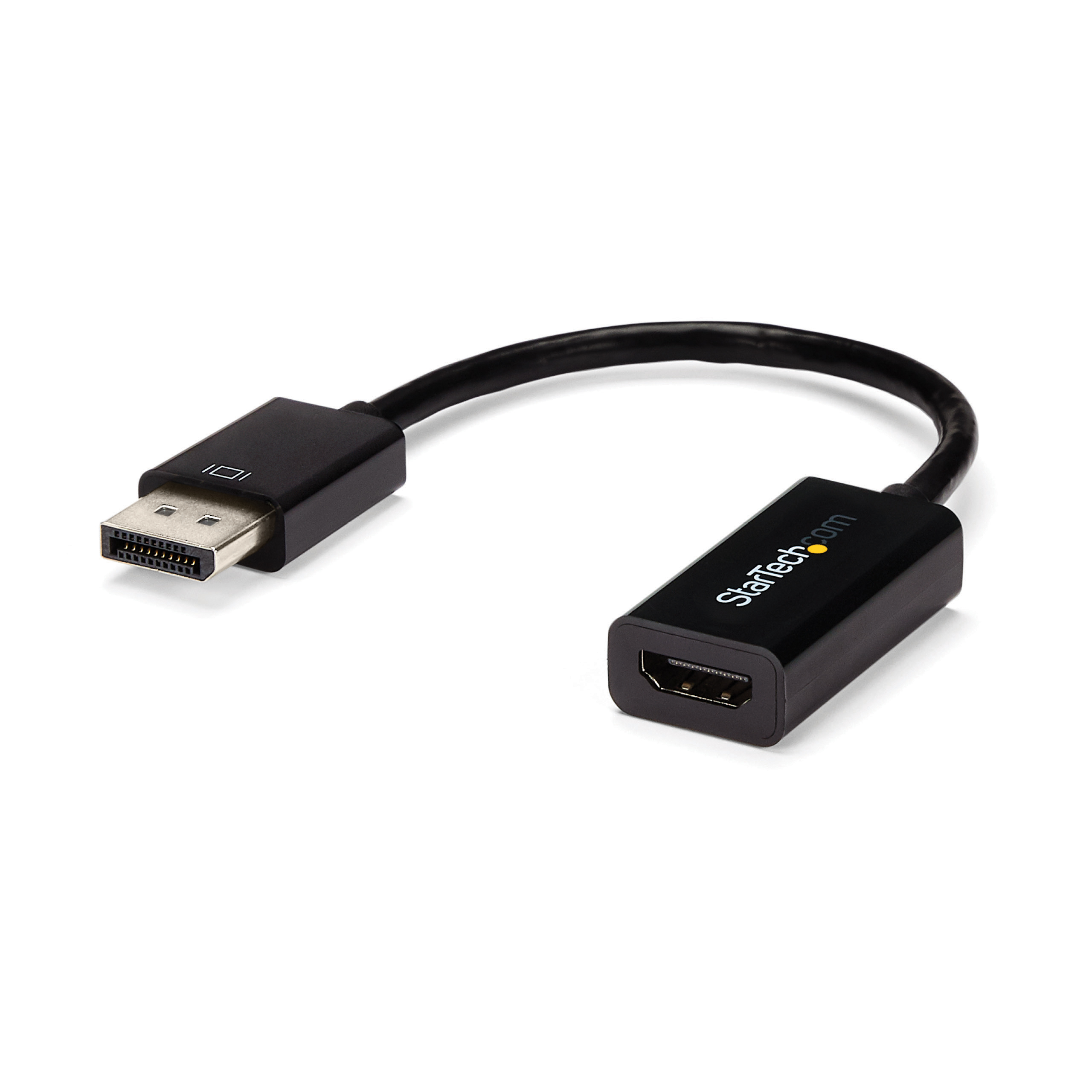

DP2HD4KS
DP 1 2 to HDMI 1 4 Active

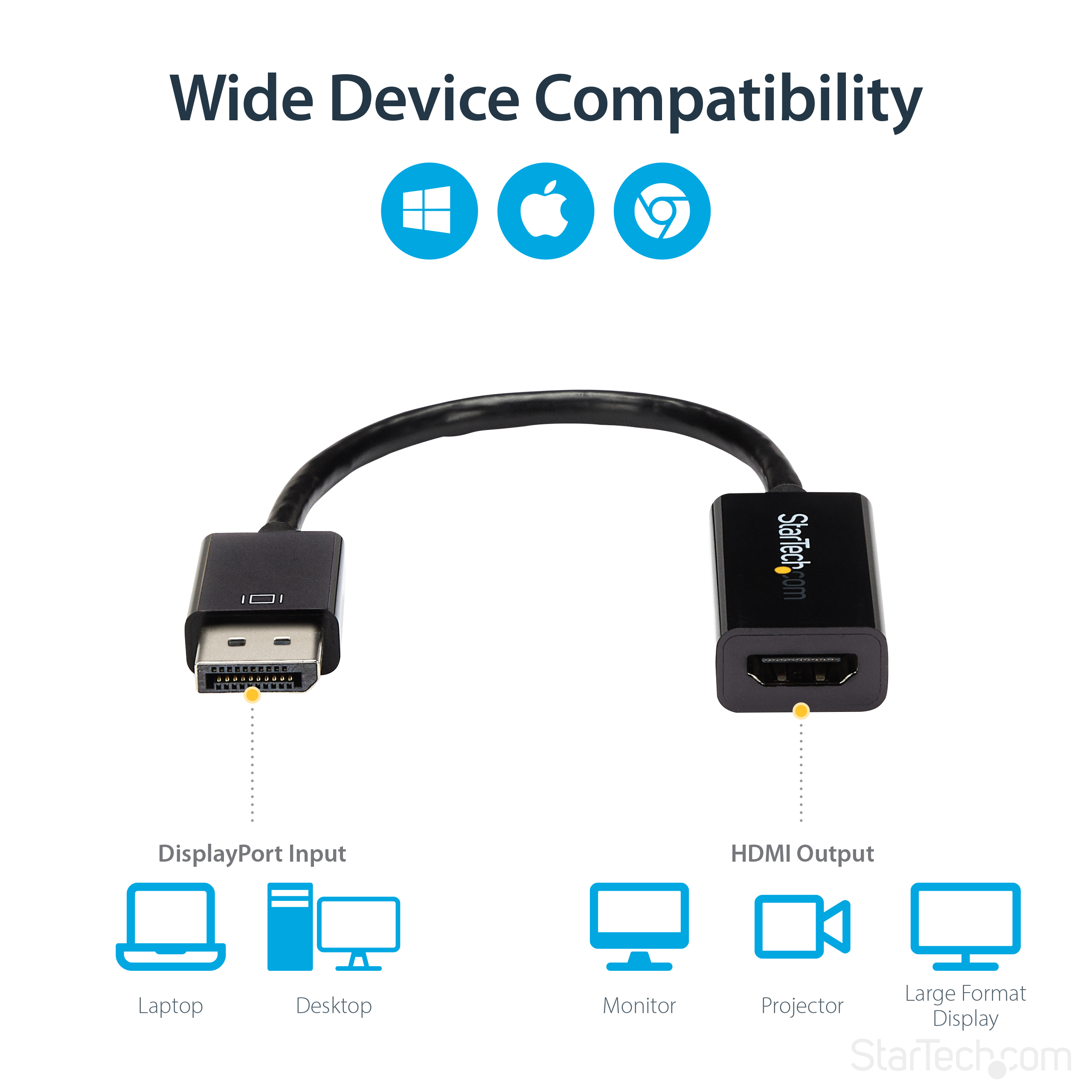

Connect an HDMI monitor to a DisplayPort video source
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name DP 1 2 to HDMI 1 4 Active Product Number DP2HD4KS UPC 065030857352 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to HDMI Family DP to HDMI 1.4 Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) DP HDMI 4K Adapter Product Title (Short) DisplayPort to HDMI Adapter 4K - Active Product Title (Medium) DisplayPort to HDMI 4K Converter – DisplayPort 1.2 to HDMI – 4K @ 30 Hz Product Title (Standard) DisplayPort to HDMI Adapter, 4K 30Hz Active DP to HDMI Video Converter, Ultra HD DP 1.2 to HDMI 1.4 Monitor Adapter Dongle Product Title (Long) DisplayPort to HDMI Adapter - 4K 30Hz Active DisplayPort to HDMI Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Ultra HD DP 1.2 to HDMI 1.4 Adapter Product Title (AMZ) DisplayPort to HDMI Adapter - 4K 30Hz Active DisplayPort to HDMI Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Ultra HD DP 1.2 to HDMI 1.4 Adapter (DP2HD4KS) Title Ingram (Part 1) DisplayPort 1.2 to HDMI Adapter Title Ingram (Part 2) - DP to HDMI 4K Converter @ 30Hz Website Product Headline Connect an HDMI monitor to a DisplayPort video source Bullet 1 PERFORMANCE: DisplayPort 1.2 to HDMI 1.4 adapter directly connects your DP host to a HDMI display | Supports Ultra HD (UHD) 4K 30Hz (3840x2160) & 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4, DPCP | 5.9" (15cm) attached cable Bullet 2 HOST COMPATIBILITY: Active DisplayPort to HDMI adapter supports DP/DP++ source connector & DP sources without DP++ compatibility incl workstations, desktops (AMD Radeon Pro/Nvidia RTX/Quadro), laptops, small form factor computers & docking stations Bullet 3 CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect an HDMI monitor, TV or projector, or add a second display to your workstation; Compact, small form factor design makes it easy to carry around between home office and office Bullet 4 STABLE CONNECTION: DP to HDMI adapter dongle features a non-latching DP connector that is easy to disconnect from a hard to reach source | Tested with HDMI cables at extended lengths up to 35ft Bullet 5 EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video adapter works with any OS including macOS, Windows & Ubuntu; DP Male to HDMI Female Bullets (Compact) Active DisplayPort to HDMI adapter - 4K 30Hz/1080p/7.1ch Audio/HDCP 1.4/DPCP – DP 1.2 to HDMI 1.4 video converter supports any DP/DP++ source incl workstations/desktops/laptops – Compact DP to HDMI adapter - Non-latching DP connector - OS Independent Bullets (Consolidated) Active DisplayPort 1.2 to HDMI 1.4 adapter supports 4K 30Hz (3840x2160) and 1080p/7.1ch Audio/HDCP 1.4/DPCP - DisplayPort to HDMI adapter dongle for any DP/DP++ source incl workstations/desktops/laptops/docks - Compact design | 5.9" (15cm) attached cable | Ideal for travel between home/office to connect to display/monitor/TV - DP to HDMI video converter | Non-latching DP connector | Tested with HDMI cables up to 35ft | Male/Female - Driverless setup | OS independent Marketing Copy Marketing Copy (No HTML) This DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. High Resolution Images This DP to HDMI adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound. With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p. Easy Installation For a hassle-free setup the DisplayPort to HDMI converter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability. To ensure compatibility with any DP output the monitor adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DisplayPort to HDMI dongle is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals. The DisplayPort adapter is backed by a 3-year StarTech.com warranty, and lifetime technical support. Applications - Carry with your laptop for BYOD office applications

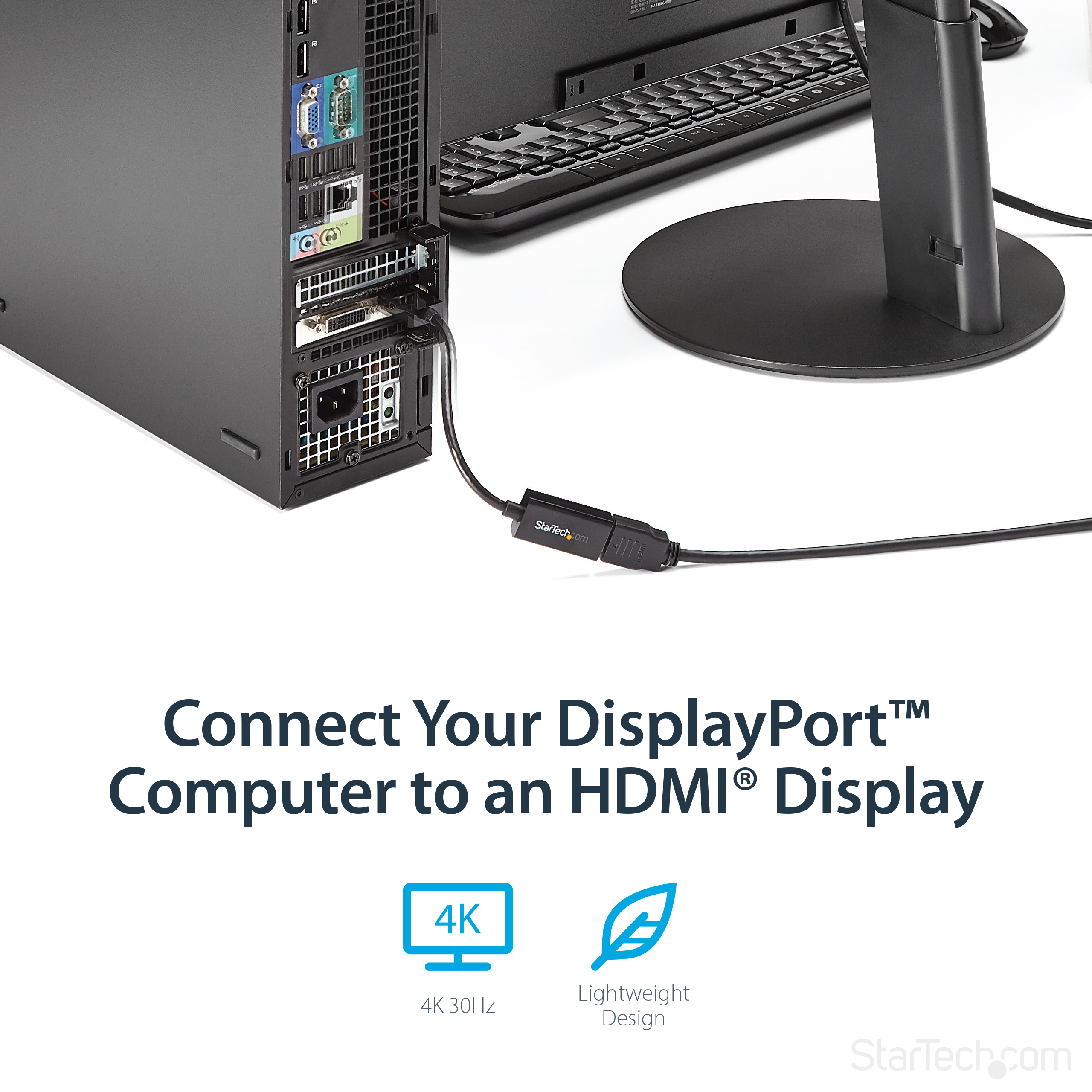

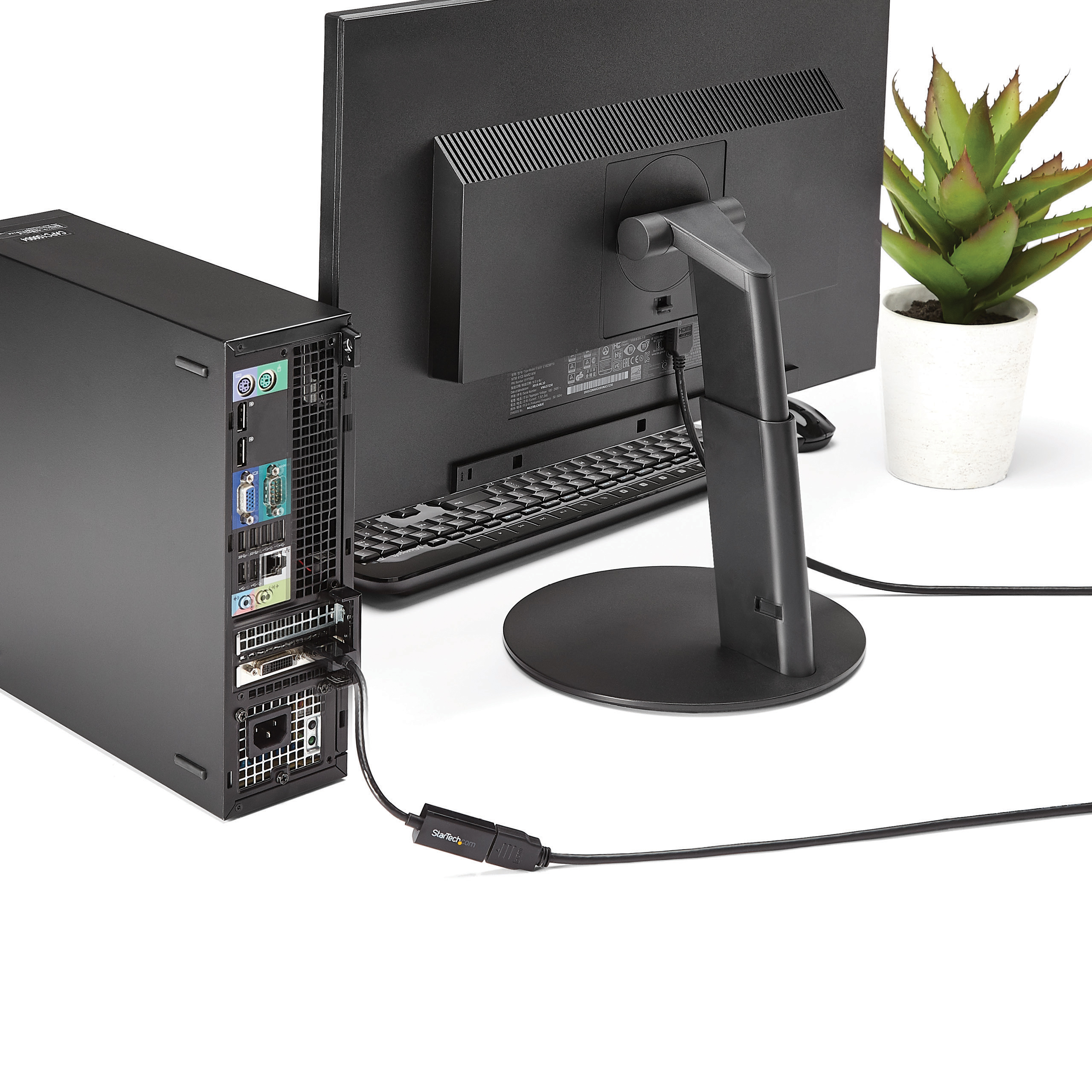

- Extend your Desktop onto a secondary HDMI display using an available DisplayPort port

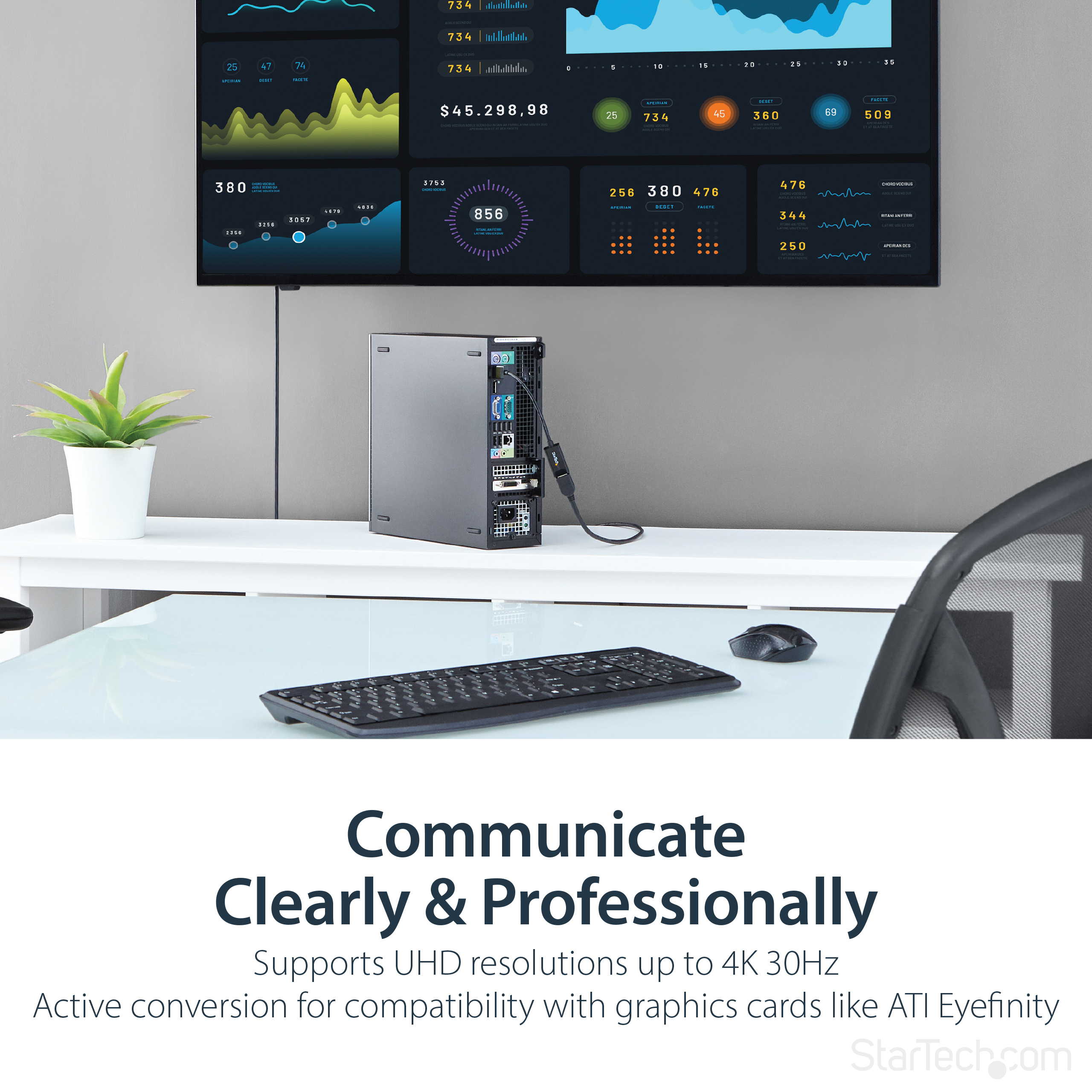

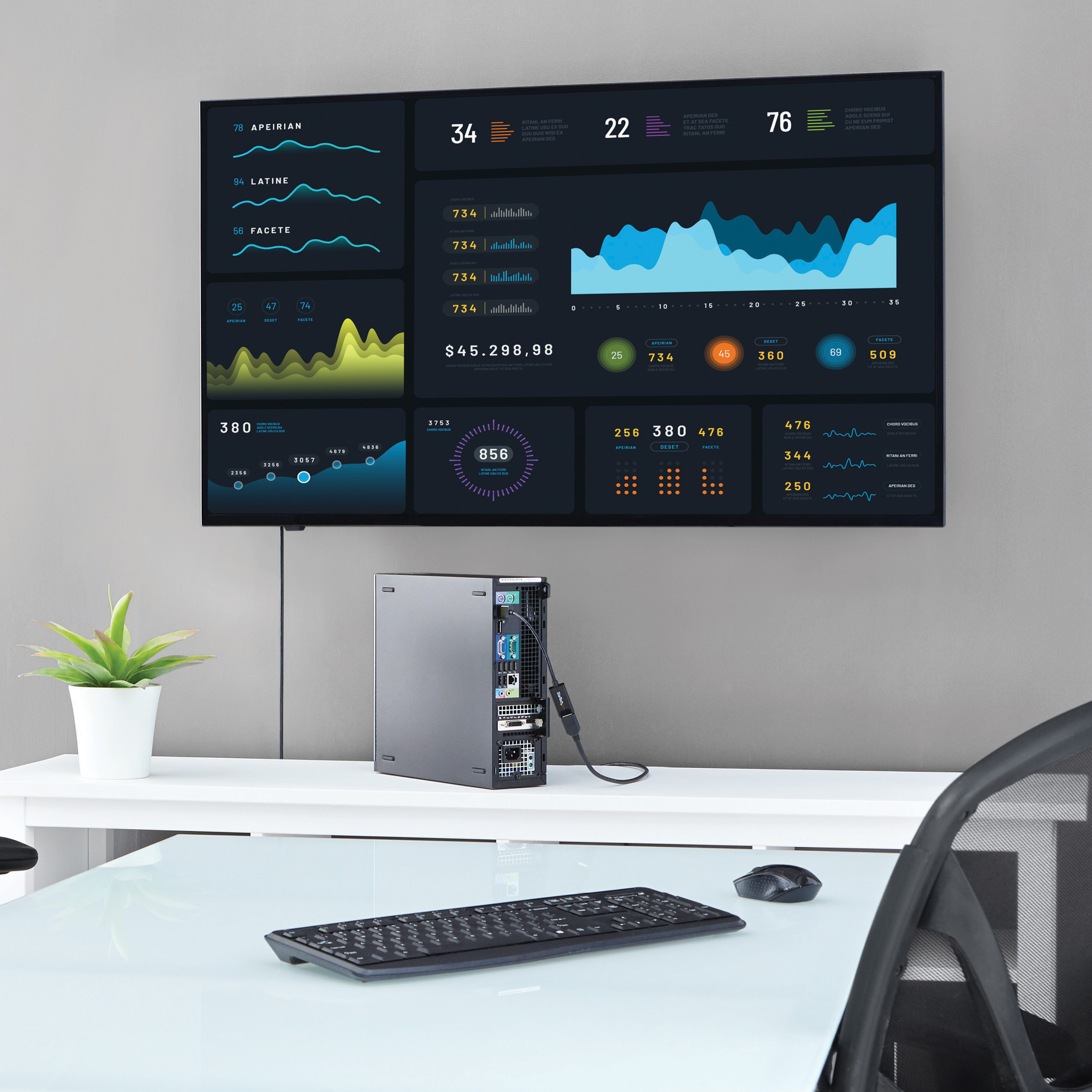

- Connect a DisplayPort 1.2 video source to a 4K HDMI display
Website Search Keyword - dp to hdmi
- 4k
- displayport to hdmi
- displayport 1.2
- HDMI 1.4
- displayport 1.2 to HDMI 1.4
- Active Adapter
- 4K video converter
- 4k dp to hdmi
- P136-06N-UHD-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- RHDMM2MP
- HDMM15
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMMV2M
Related Products - DP2HD4K60S
- DP2HD4KADAP
- DP2HDMM2MB
- DP2HDMM1MB
- DP2HDMM3MB
- DP2HDMM5MB
- DP2HDMI
- DP2HDMIADAP
- DP2HDMI2
- DP2HDMIUSBA
- SLMPT2HD
- DP2HDSW
Constrained SKU Alternatives (Limited Stock) - DP2HD4K60S
- DP2HD4K60H
Cable Length (mm) 150 Color Black Humidity 10%-85% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 215.000 Product Width (mm) 20.000 Product Height (mm) 11.000 Product Weight (g) 22.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 4K x 2K @ 30 Hz Maximum Supported Resolution 4K 30Hz (3840x2160) Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input DisplayPort - 1.2 AV Output HDMI - 1.4 Converter Type Adapters Host Connection Port DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 517 Carton Height (mm) 223 Carton Quantity 320 Carton Weight Gross (g) 10136 Included in Package 1 - DisplayPort® to HDMI® Active Adapter Included In Package for Label 1 - DisplayPort® to HDMI® Active Converter Number of Sub-Cartons 32 Package Depth (mm) 122 Package Height (mm) 16 Package Width (mm) 133 Package Quantity 1 Package Weight (g) 30 Packaging Description DisplayPort™ to HDMI® Active Adapter - 4K Packaging Description India DisplayPort to HDMI Converter - 4K Sub-Carton Depth (mm) 167 Sub-Carton Height (mm) 57 Sub-Carton Width (mm) 270 Sub-Carton Quantity 10 Sub-Carton Weight (g) 292 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-04-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
