Main Image
DP2HDMI2

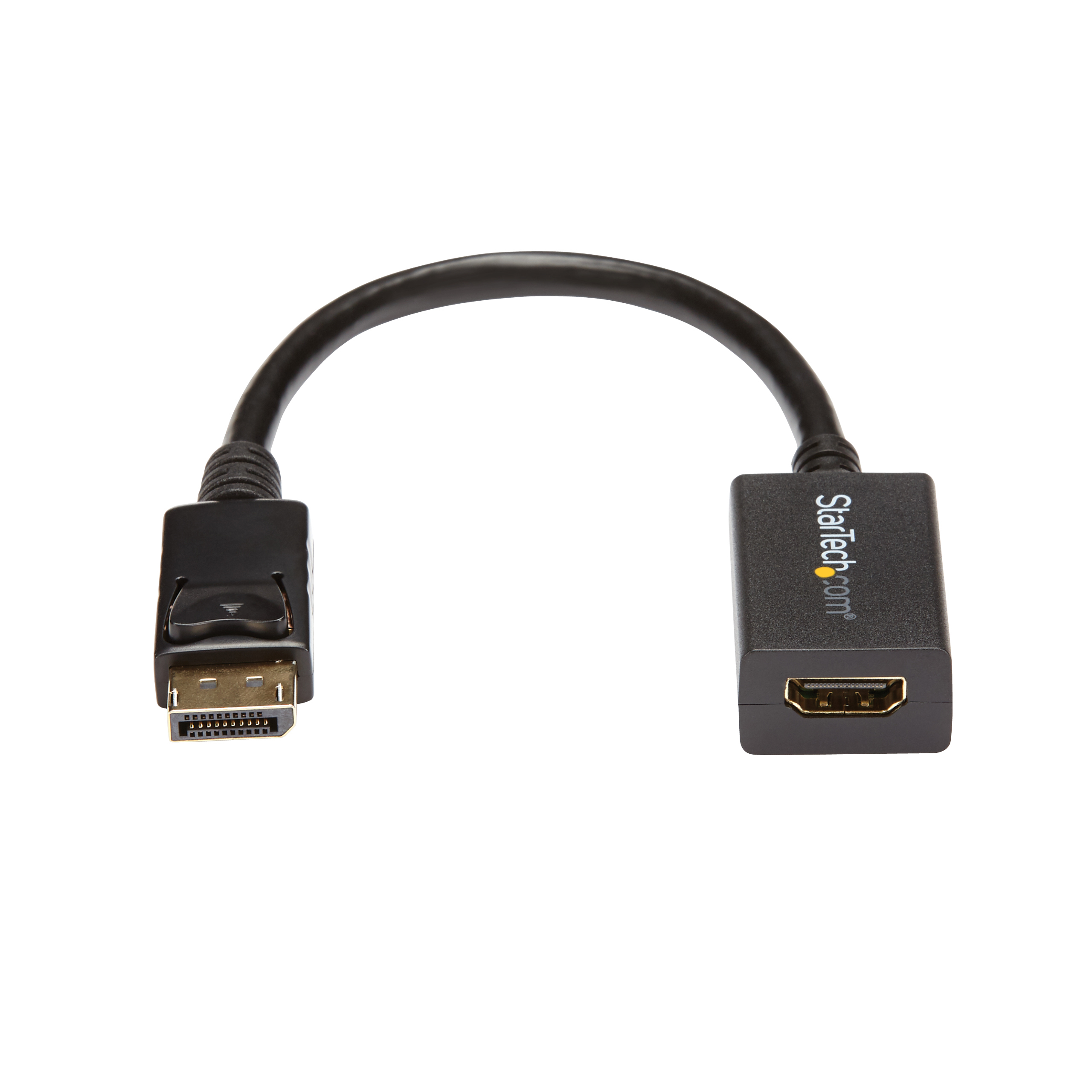

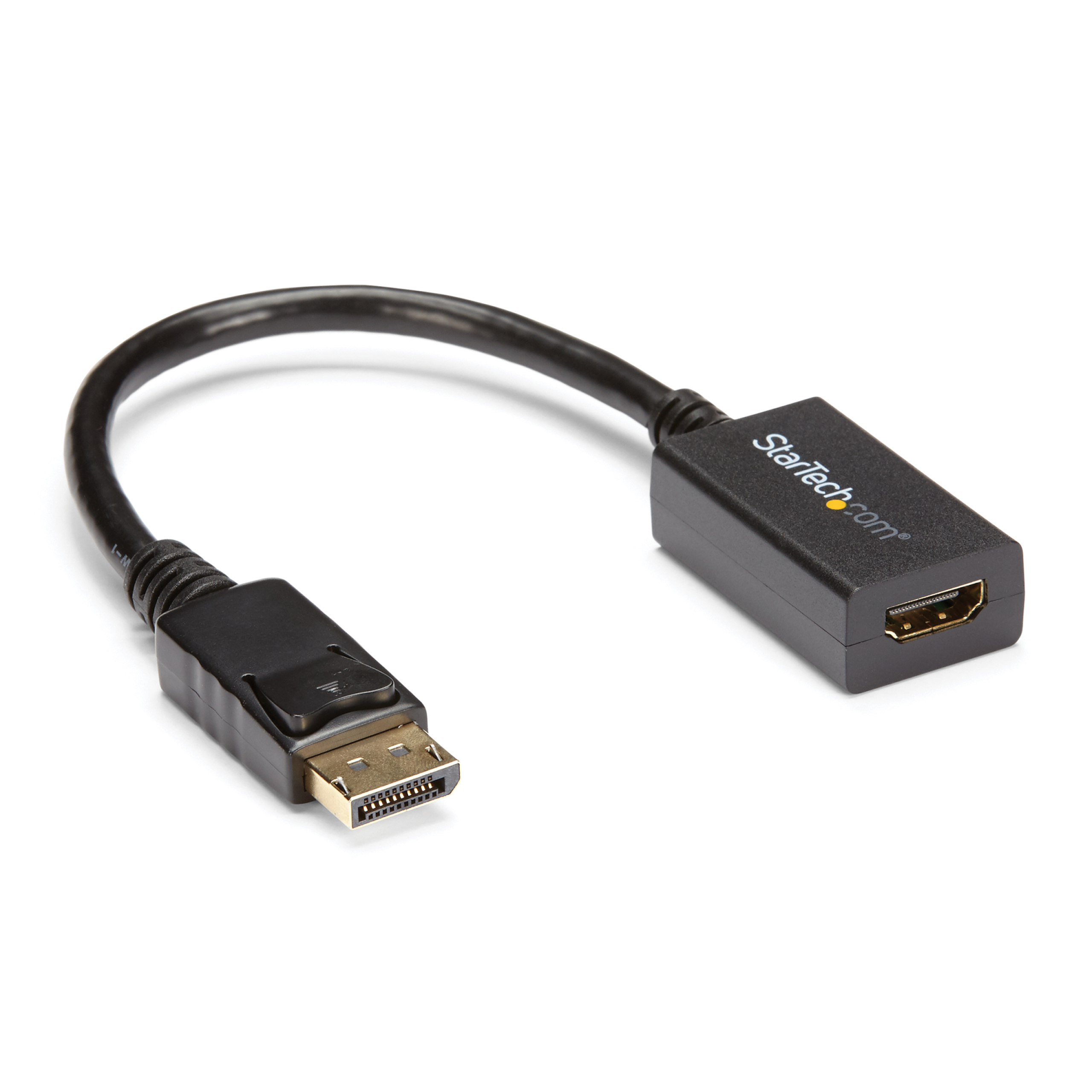

DisplayPort to HDMI Converter

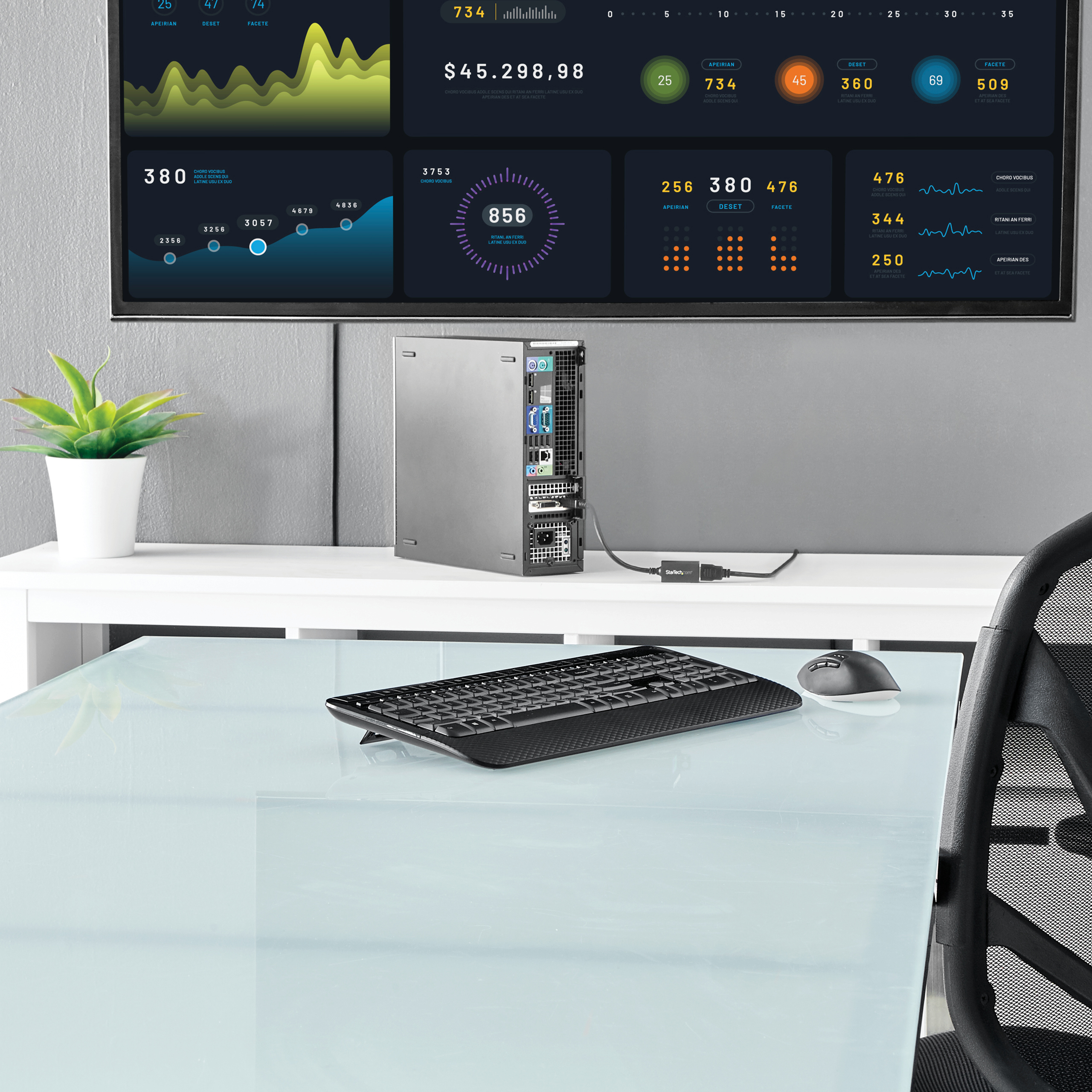

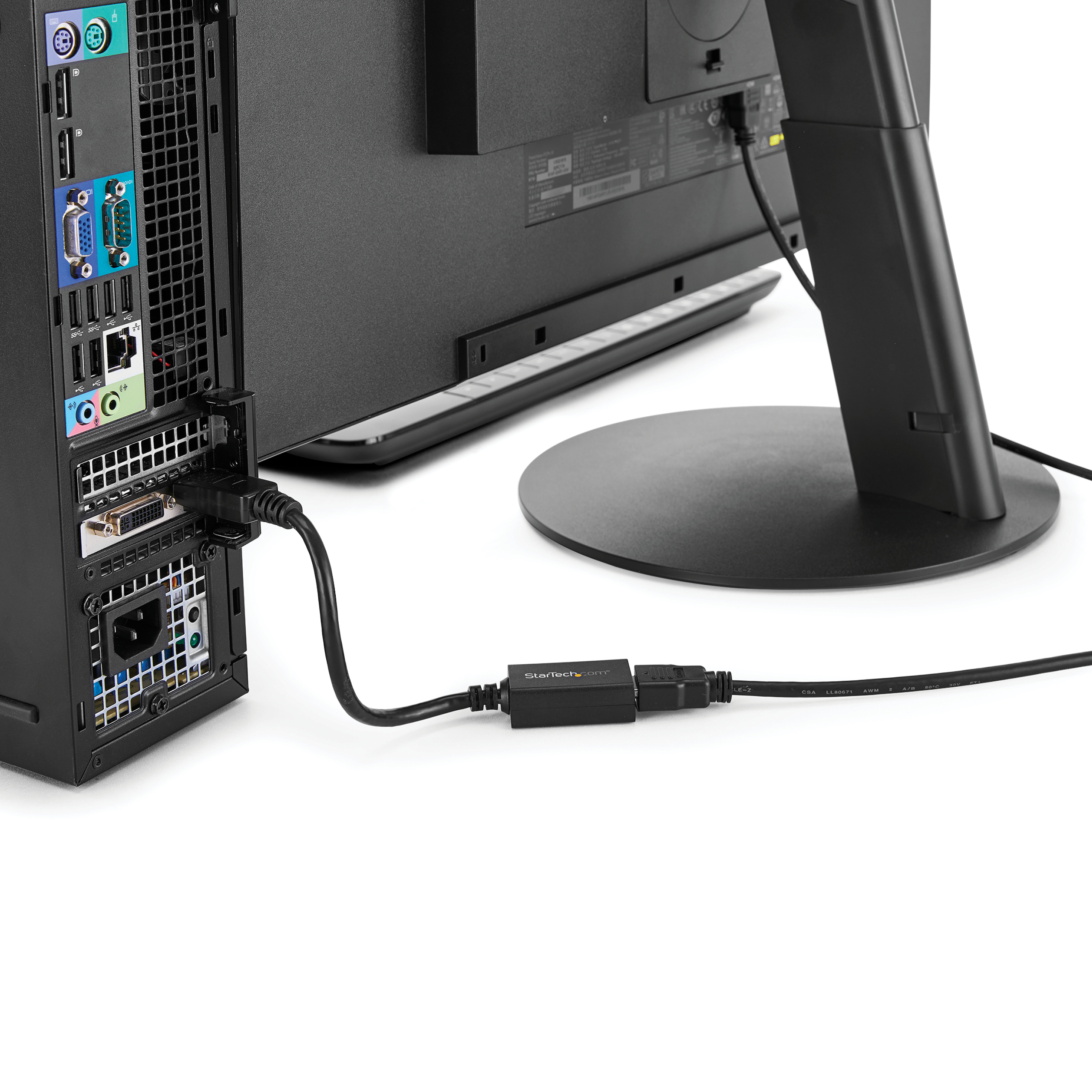

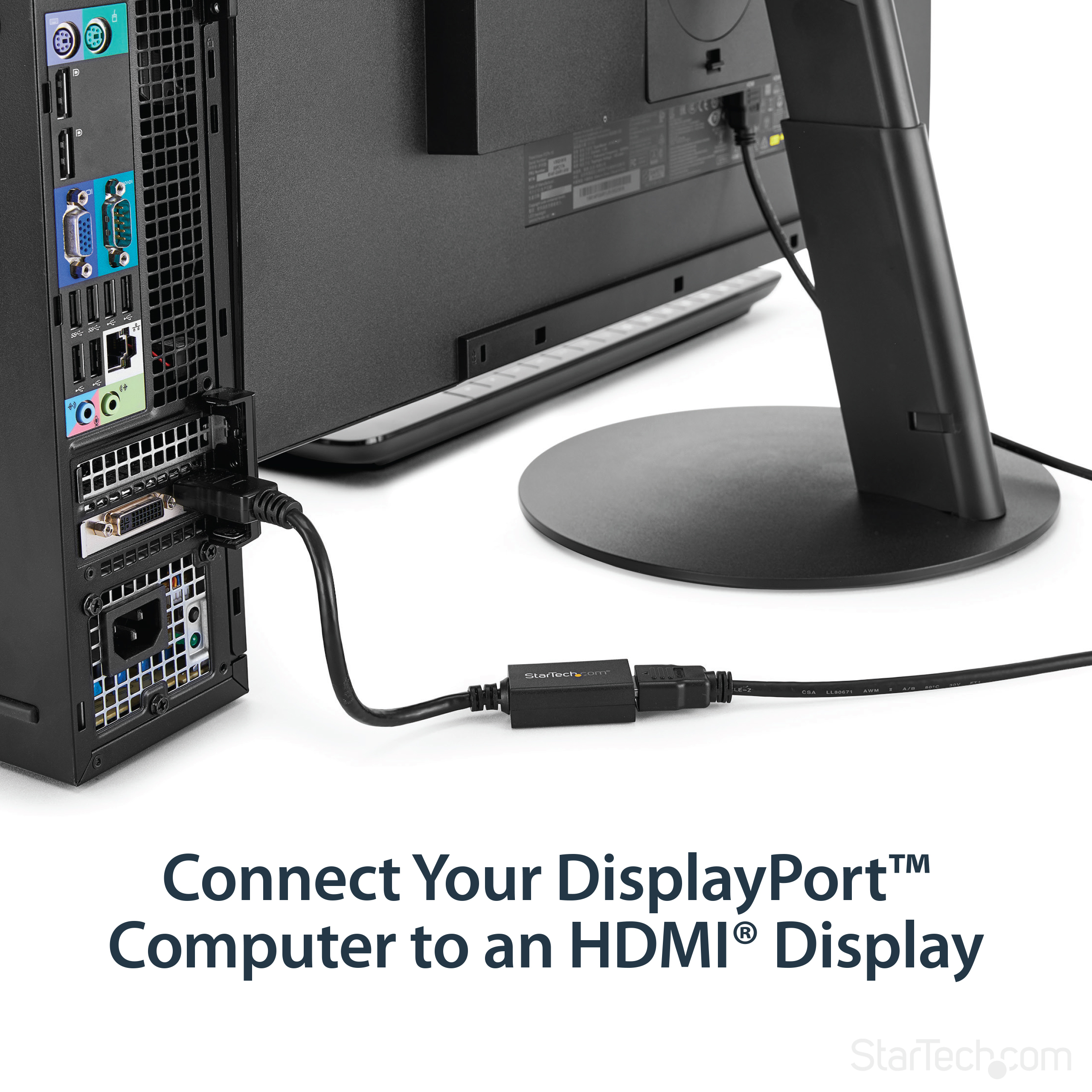

Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube

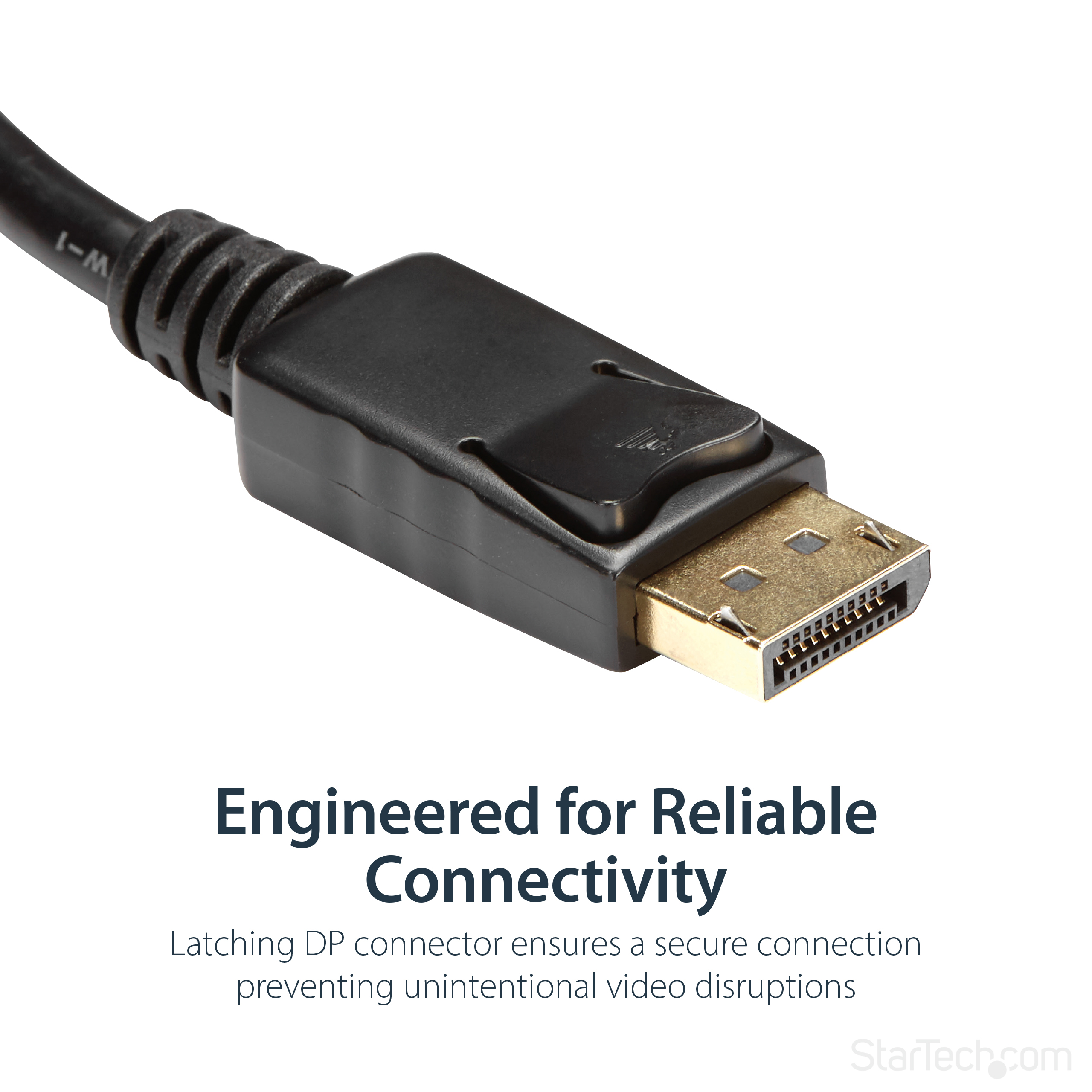

Product Name DisplayPort to HDMI Converter Product Number DP2HDMI2 UPC 065030836876 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to HDMI Family DP to HDMI 1.3 Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Short) DisplayPort to HDMI Adapter Converter Product Title (Medium) x Product Title (Standard) DisplayPort to HDMI Adapter, 1080p DP to HDMI Video Converter, DP to HDMI Monitor/TV Dongle, Passive, Latching DP Connector Product Title (Long) DisplayPort to HDMI Adapter - DP 1.2 to HDMI Video Converter 1080p - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Passive DP to HDMI Adapter - Latching DP Connector Product Title (AMZ) DisplayPort to HDMI Adapter - DP 1.2 to HDMI Video Converter 1080p - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Passive DP to HDMI Adapter - Latching DP Connector (DP2HDMI2) Title Ingram (Part 1) DisplayPort to HDMI Video Adapte Title Ingram (Part 2) r Converter Website Product Headline Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer Bullet 1 PERFORMANCE: DisplayPort 1.2 to HDMI adapter connects a DP desktop or laptop to an HDMI display, monitor, projector or TV | Supports HD 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4 | 8in (21cm) attached cable Bullet 2 HOST COMPATIBILITY: Tested for compatibility with DP++ source; Passive converter supports DP++ source connector incl workstations, desktops (AMD/Nvidia video cards), laptops, small form factor computers & docking stations Bullet 3 CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect an HDMI monitor, projector or TV, or add a second display to your workstation; Portable small form factor design makes it easy to carry between home office and office Bullet 4 LATCHING DISPLAYPORT CONNECTOR: DP to HDMI adapter dongle has latching DP connector to prevent accidental disconnection from the host DP port | Tested with HDMI cables at extended lengths up to 35ft Bullet 5 EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video adapter is OS independent; DP male to HDMI female Bullets (Compact) Passive DisplayPort to HDMI adapter - 1080p/7.1 Audio/HDCP 1.4/DP 1.2 - Connects DP source to an HDMI display/monitor/projector - 8in cable - Compact DP to HDMI adapter - Supports DP++ source - Video converter w/latching DP connector - OS Independent Bullets (Consolidated) DisplayPort 1.2 to HDMI adapter supports HD 1920x1200 (1080p)/7.1ch Audio/HDCP 1.4 - Passive DisplayPort to HDMI adapter dongle supports DP++ source incl workstations/desktops (AMD/Nvidia video cards)/laptops/docking stations - Compact design | 8in (21cm) cable | Ideal for travel between home and office | Connects DP computer to an HDMI display/monitor/TV/projector - DP to HDMI video converter with latching DP connector | Tested with HDMI cables up to 35ft - Driverless setup | OS independent Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Keep your existing HDMI® monitor to be used with your new DisplayPort® device
- Ideal for using your HDMI monitor as a secondary display
Website Search Keyword - Adapter
- Converter
- DisplayPort
- HDMI
- Video
- P136-001
- P136-000
- P136-000-BP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) Accessory Products - HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- RHDMM2MP
- HDMM15
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMMV2M
Related Products - DP2HD4K60S
- DP2HD4KADAP
- DP2HD4KS
- DP2HDMM1MB
- DP2HDMM3MB
- DP2HDMM5MB
- DP2HDMM2MB
- DP2HDMIADAP
- DP2HDMI
- DP2HDMIUSBA
- SLMPT2HD
- DP2HDSW

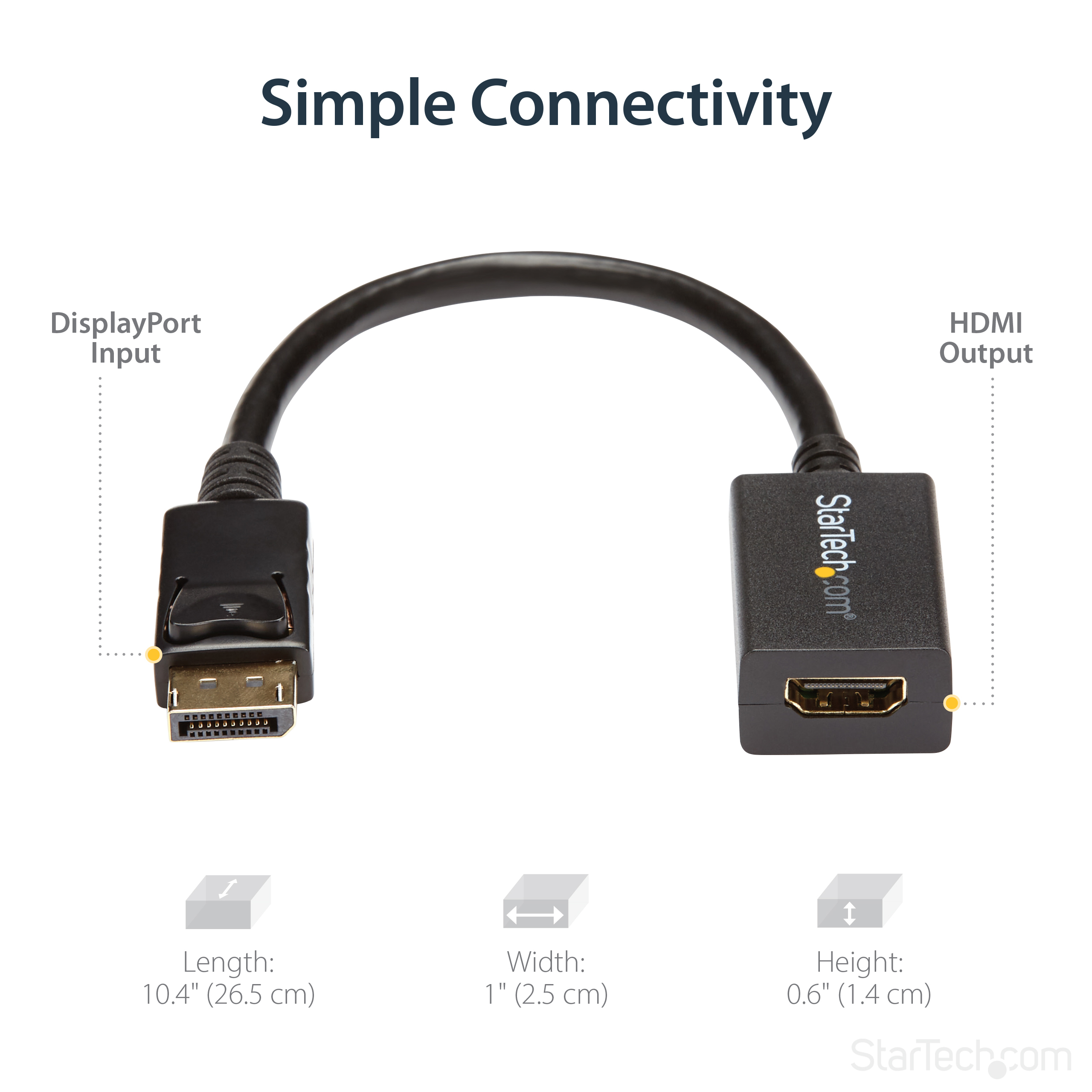

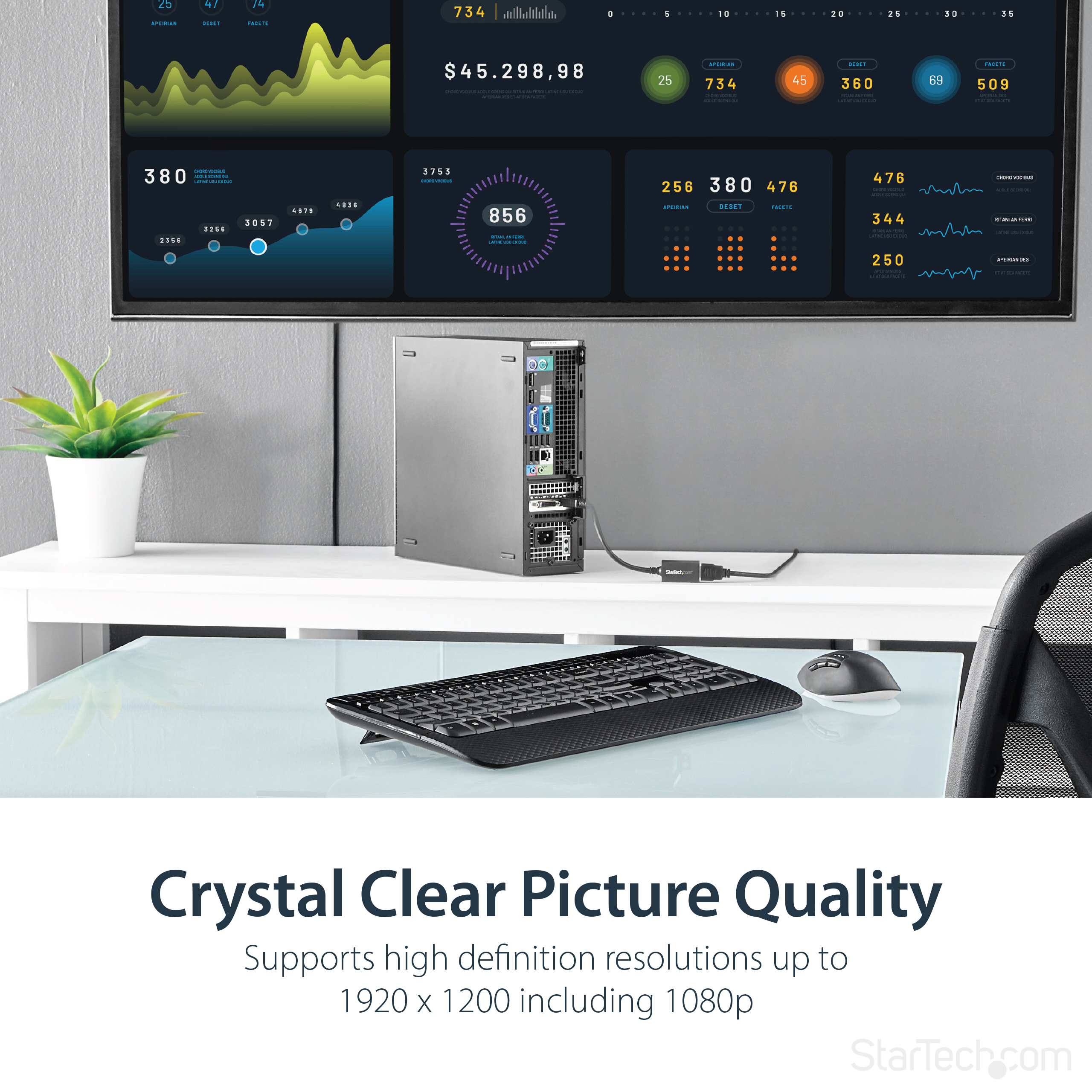

Cable Length (mm) 210 Color Black Humidity 10%-85%RH Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 265.000 Product Width (mm) 25.000 Product Height (mm) 14.000 Product Weight (g) 32.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p MTBF (hours) 93,353 hours Video Output Port HDMI Active or Passive Adapter Passive Audio Yes AV Input DisplayPort - 1.2 AV Output HDMI Chipset ID NXP Semiconductors PTN3361B Converter Type Adapters Host Connection Port DisplayPort Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 513 Carton Height (mm) 228 Carton Quantity 180 Carton Weight Gross (g) 8578 Included in Package 1 - DisplayPort to HDMI Converter Included In Package for Label 1 - DisplayPort to HDMI Converter Number of Sub-Cartons 18 Package Depth (mm) 198 Package Height (mm) 21 Package Width (mm) 115 Package Quantity 1 Package Weight (g) 54 Packaging Description DisplayPort® to HDMI® Video Adapter Packaging Description India DisplayPort to HDMI Converter Sub-Carton Depth (mm) 259 Sub-Carton Height (mm) 56 Sub-Carton Width (mm) 290 Sub-Carton Quantity 10 Sub-Carton Weight (g) 414 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Mainstream
