DP2MDPMF3

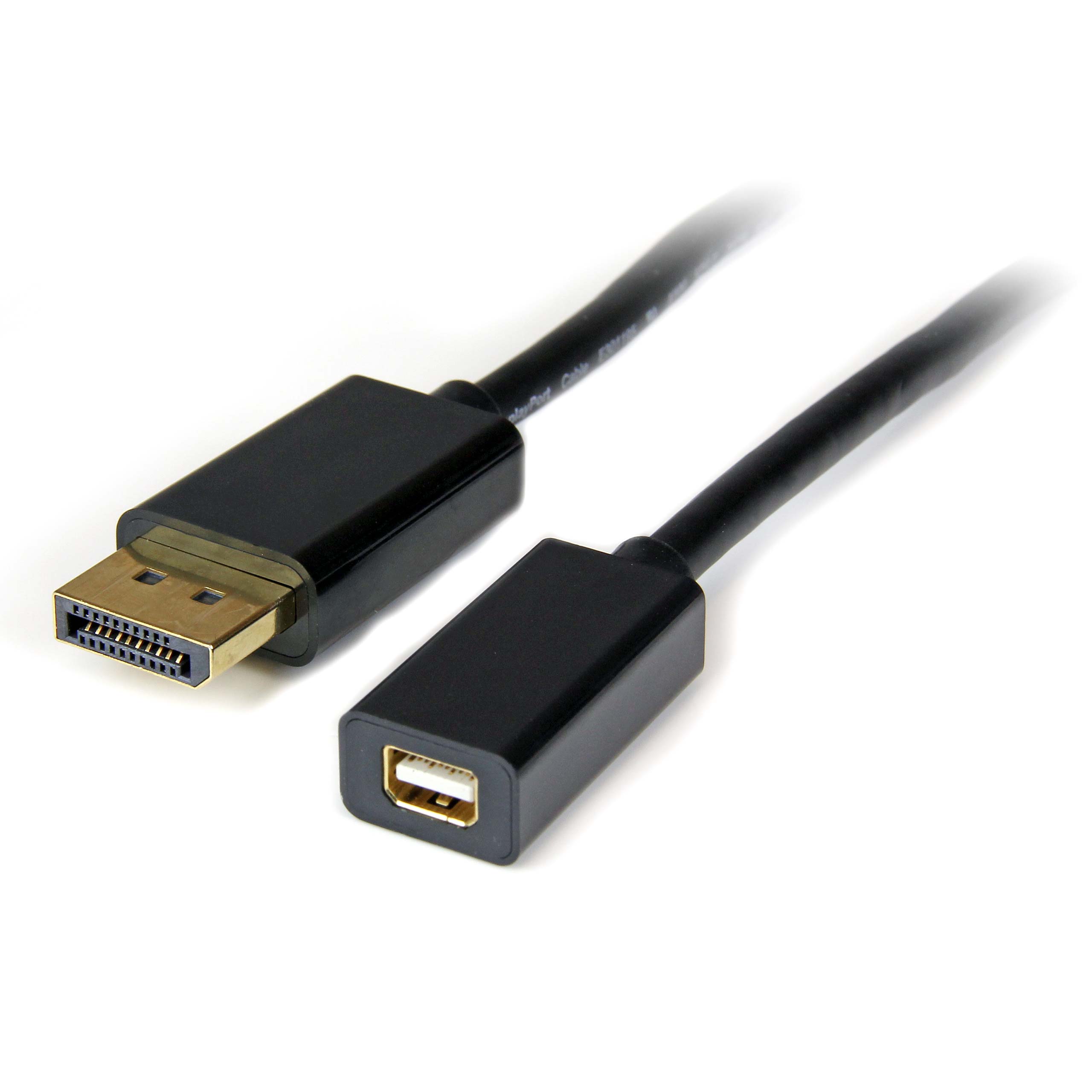

3ft DP to Mini DP 1 2 Adapter M F DisplayPort 4k

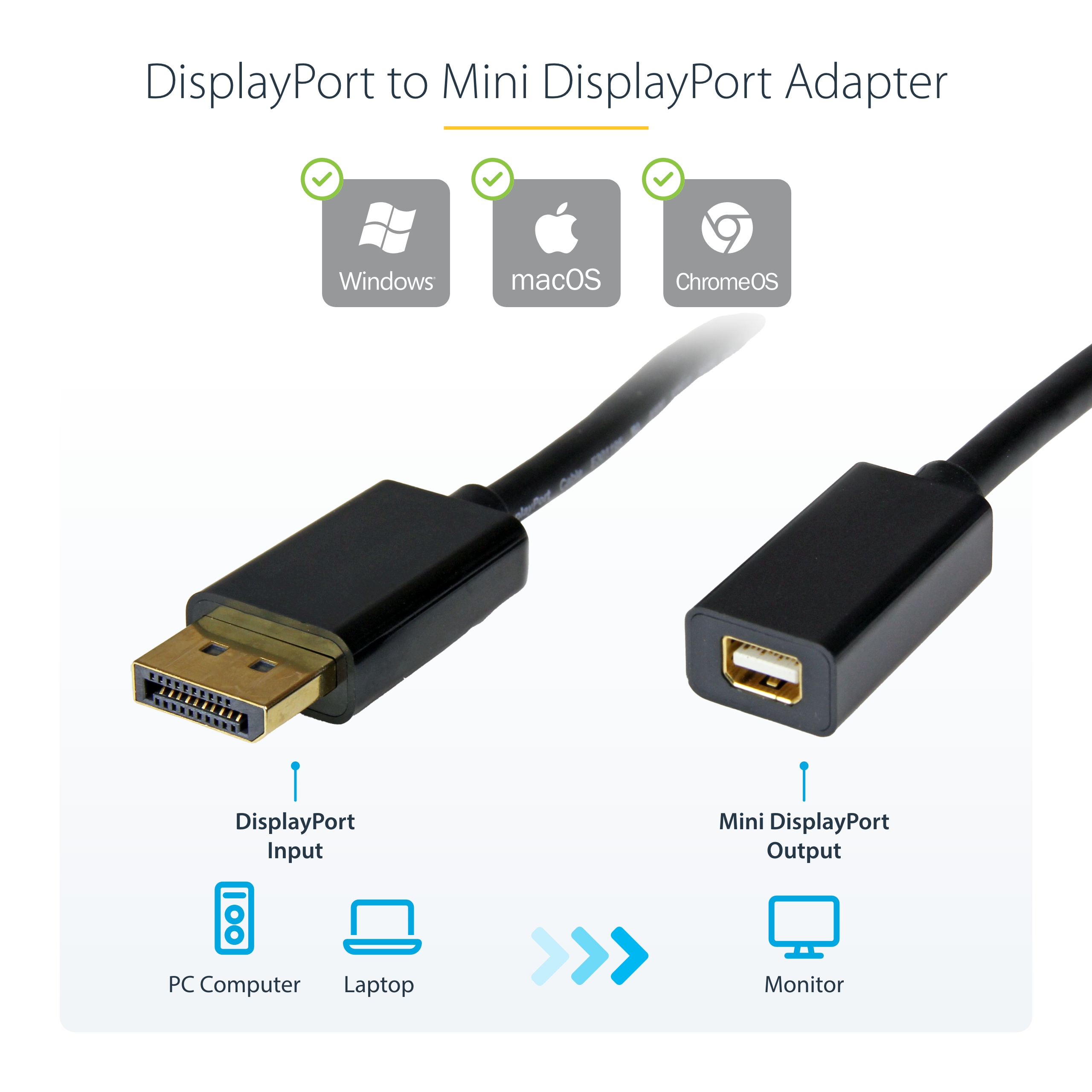

Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™ monitor and a DisplayPort source
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Name 3ft DP to Mini DP 1 2 Adapter M F DisplayPort 4k Product Number DP2MDPMF3 UPC 065030842747 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 Mini DP Cables - 1.2 Family DP 1.2 to mDP Adapter Dongles, 4K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Ultra-Short) 3ft DP / Mini DP 1.2 Product Title (Short) 3ft DisplayPort to Mini DP Cable M/F Product Title (Medium) 3 ft DisplayPort to Mini DisplayPort 1.2 Video Cable Adapter M/F - DP 4k Product Title (Standard) 3ft (1m) DisplayPort to Mini DisplayPort Cable, 4K x 2K Video, DP Male to Mini DP Female Adapter Cable, DP to mDP 1.2 Monitor Product Title (Long) 3ft (91cm) DisplayPort to Mini DisplayPort Cable - 4K x 2K UHD Video - DisplayPort Male to Mini DisplayPort Female Adapter Cable - DP Computer to mDP 1.2 Monitor Extension Cable Product Title (AMZ) 3ft (1m) DisplayPort to Mini DisplayPort Cable, 4K UHD Video, DP to mDP Adapter (Not compatible w/ Thunderbolt) Title Ingram (Part 1) 3 ft DP to Mini DP 1.2 Cable Title Ingram (Part 2) Adapter M/F - DisplayPort 4k Website Product Headline Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™ monitor and a DisplayPort source Bullet 1 DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: 3 ft (91 cm) DP male to mDP female extension cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz) Bullet 2 RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding Bullet 3 QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1 Bullet 4 COMPATIBILITY: This adapter is not compatible with Thunderbolt monitors (e.g., Apple A1407 Thunderbolt Display) and is not suitable for use with iMac in Target Display Mode; Designed to connect DisplayPort computers to Mini DisplayPort monitors Bullet 5 SPECS: 3 feet (91 cm); Color: Black; DP v1.2; Standard DP Male to Mini-DP Female Converter; 32 AWG PVC cable jacket, ABS connector shell; Shield: Aluminium foil with Braid; Protocols: HBR 2, MST, GTC Bullets (Compact) 3ft DisplayPort to Mini DisplayPort cable extension; 4K x 2K video (3840x2400p 60Hz); mDP 1.2/21.6 Gbps/HBR2/8Ch Audio - DisplayPort male to Mini DisplayPort female adapter cable w/PVC strain relief; Connect laptop w/ DP port to mDP monitor/projector Bullets (Consolidated) 3ft/91cm DisplayPort to Mini DisplayPort cable (male to female) | 4K x 2K video (3840x2400p 60Hz); 21.6 Gbps/HBR2/8Ch Audio/MST/GTC/3D Stereo (2560x1600p 120Hz) - DP to Mini DP 1.2 extension cable has durable ABS connectors w/ flexible PVC strain relief - Backwards compatible w/ DP 1.1 - DP to mDP adapter cable is ideal for home/office works w/ laptop w/Standard DP port (Toshiba Tecra)/workstations w/ FirePro™ S9000/7000 W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display Marketing Copy Applications Allows mini DisplayPort monitors, such as Apple Cinema Displays to be connected to computers equipped with standard DisplayPort connections Website Search Keyword - Converter adapter
- Display Port
- Mini DisplayPort
- Mini-DisplayPort
- Standard DisplayPort
- P134-003-MDP
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - DPEXT6L
- DPPNLFM3
- GCDPFF
- GCDPMFRA
- MDISPLPORT3
- MDISPLPORT6
- MDP2DPMM6
- MDP2DVI
- MDP2HDMI
- MDP2VGA
Related Products - DP2DVI
- DP2DVI2
- DP2DVIADAP
- DP2DVID
- DP2DVIMM10
- DP2DVIMM6
- DP2HDMI
- DP2HDMI2
- DP2HDMIADAP
- DP2HDMIMM10
- DP2HDMIMM6
- DP2VGA
- MDP2DPMM6
- SP123DP
- DP2MDPMF6IN

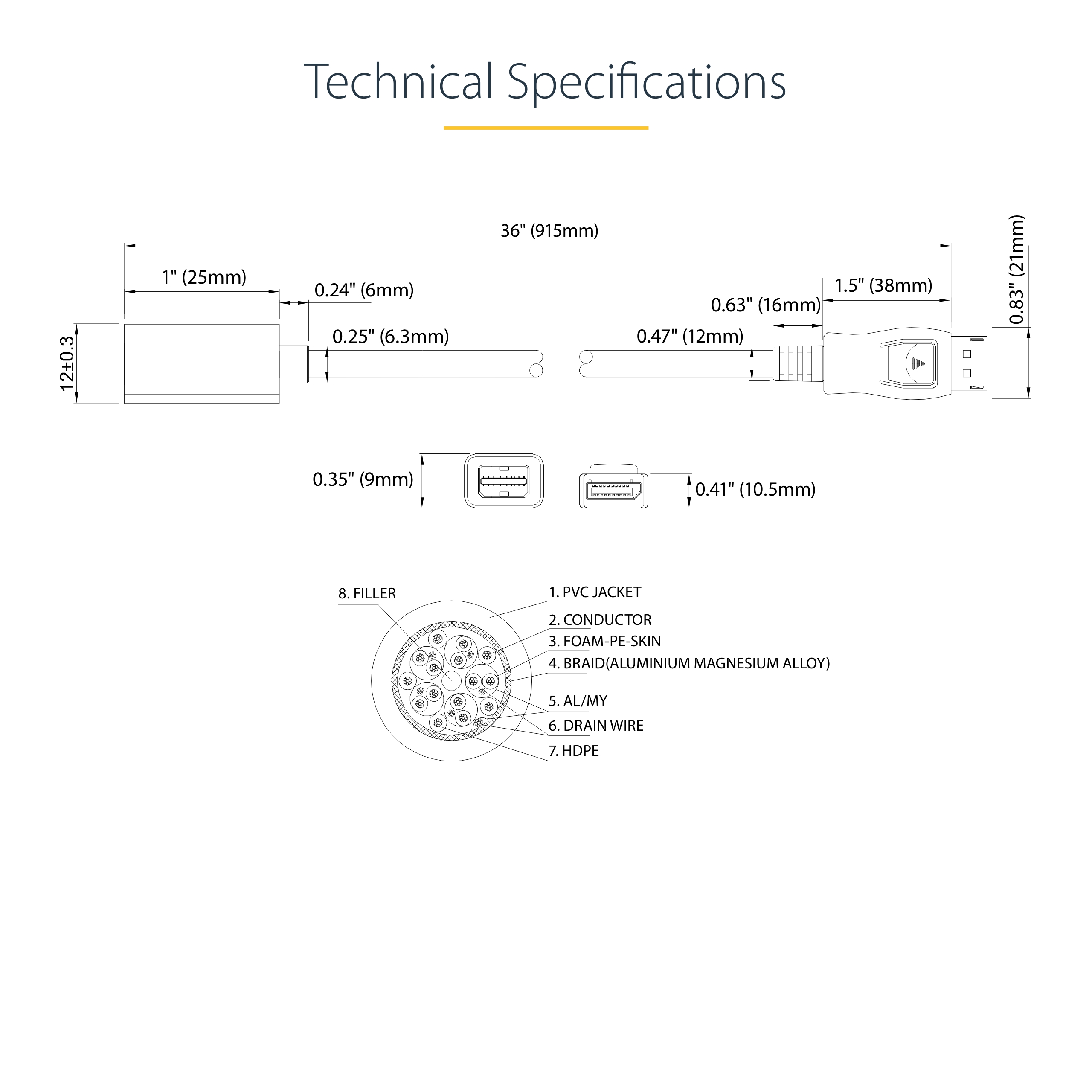

Cable Length (mm) 914.4 Color Black Humidity 0~80% RH Operating Temperature 0°:C to 35°C (32°F to 95°F) Primary Material Plastic Product Length (mm) 914.400 Product Width (mm) 20.000 Product Height (mm) 10.000 Product Weight (g) 48.000 Storage Temperature 0°:C to 70°C (32°F to 158°F) TAA Compliant No Wire Gauge 32 AWG DisplayPort Version DP 1.2 - (HBR2) Maximum Digital Resolutions 4k x 2k (3840 x 2160) @ 60Hz Cable Jacket Material PVC - Polyvinyl Chloride Connector Plating Gold Connectors DisplayPort to Mini DisplayPort Fire Rating CMG Number of Conductors 20 Carton Depth (mm) 372 Carton Height (mm) 282 Carton Quantity 200 Carton Weight Gross (g) 12130 Included in Package 1 - 3 ft DisplayPort™ to Mini DisplayPort Video Cable Adapter - M/F Number of Sub-Cartons 20 Package Depth (mm) 200 Package Height (mm) 24 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 60 Packaging Description DisplayPort® to Mini DisplayPort Cable Packaging Description India DisplayPort® to Mini DisplayPort Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 537 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 Mini DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,EU,IE,IN,NL,NZ,PE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
