DP2MDPMF6IN

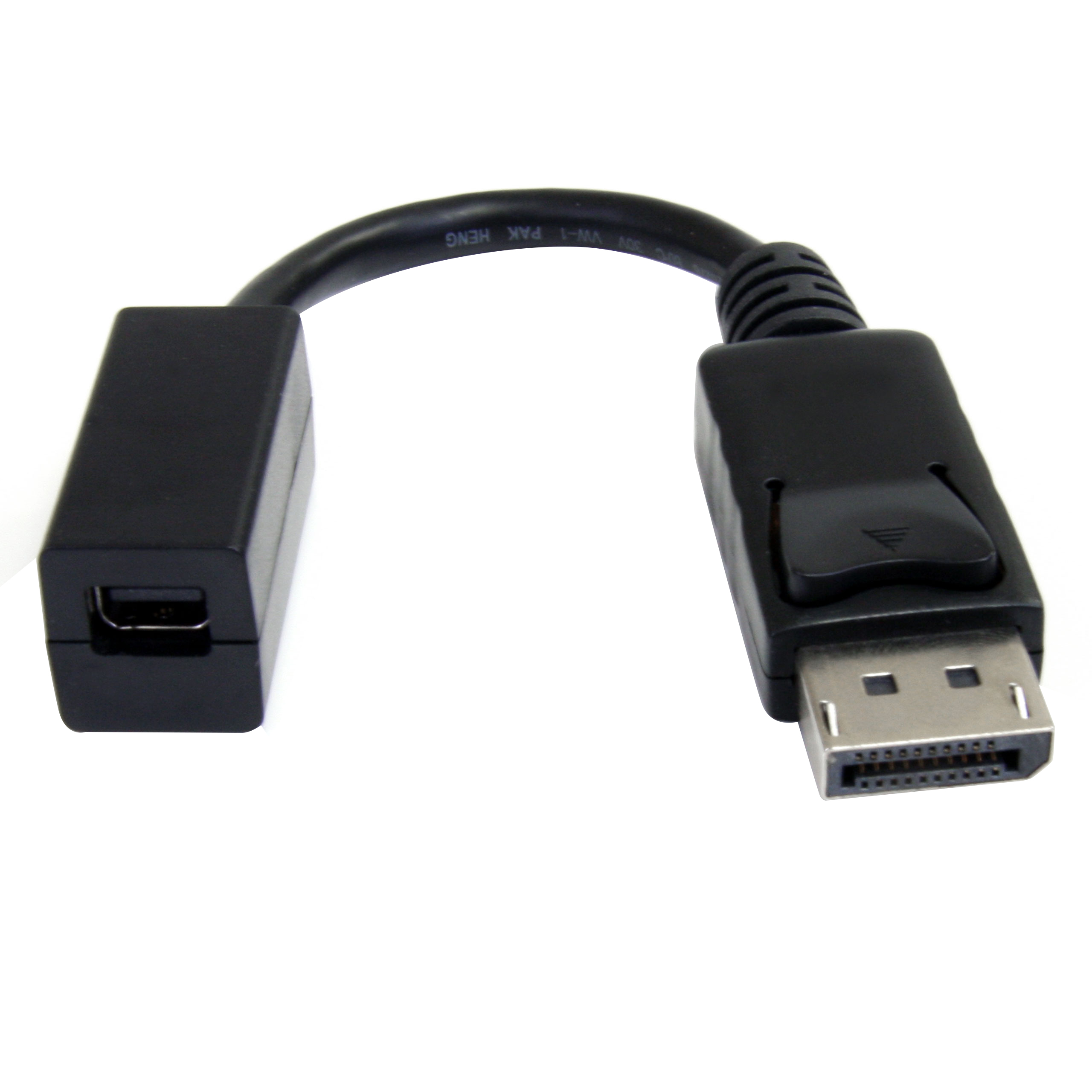

DisplayPort to Mini DisplayPort Cable

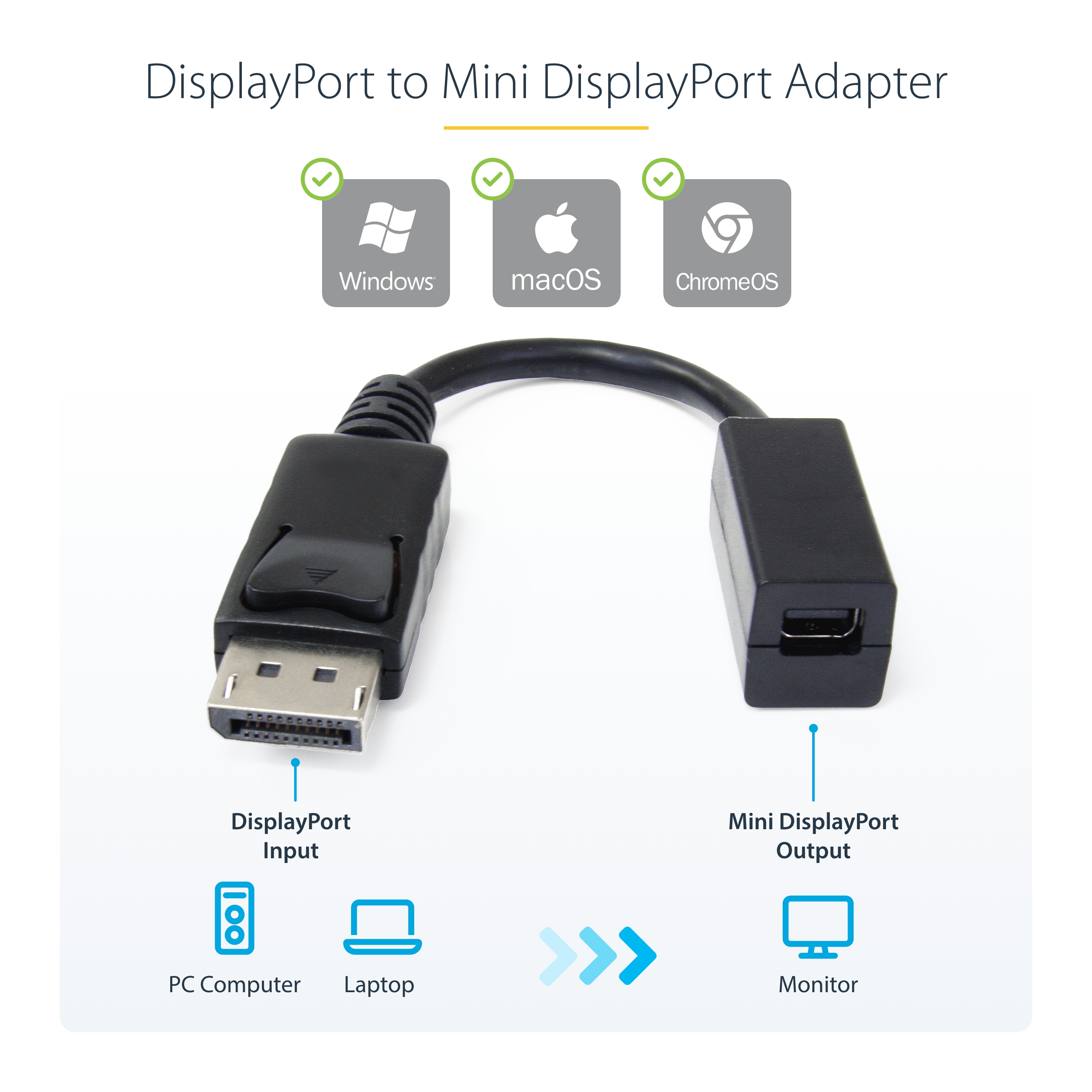

Connect your Mini DisplayPort® monitor to a standard DisplayPort source.
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Name DisplayPort to Mini DisplayPort Cable Product Number DP2MDPMF6IN UPC 065030839921 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 Mini DP Cables - 1.2 Family DP 1.2 to mDP Adapter Dongles, 4K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) . Product Title (Short) 6in DisplayPort to Mini DP Cable M/F Product Title (Medium) x Product Title (Standard) 6in (15cm) DisplayPort to Mini DisplayPort Cable, 4K x 2K Video, DP Male to Mini DP Female Adapter Cable, DP to mDP 1.2 Product Title (Long) 6in (15cm) DisplayPort to Mini DisplayPort Cable - 4K x 2K UHD Video - DisplayPort Male to Mini DisplayPort Female Adapter Cable - DP Computer to mDP 1.2 Monitor Extension Cable Product Title (AMZ) 6in (15cm) DisplayPort to Mini DisplayPort Adapter, 4K Video, DP to mDP Converter (Not compatible w/Thunderbolt) Title Ingram (Part 1) 6in DisplayPort to Mini DisplayP Title Ingram (Part 2) ort Video Cable Adapter M/F Website Product Headline Connect your Mini DisplayPort® monitor to a standard DisplayPort source. Bullet 1 DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: DP male to mDP female extension cable; 4K (3840x2400p 60Hz) x 2K (2560x1600p 120Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST); GTC for precise audio channel timing and 3D Stereo Bullet 2 RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding Bullet 3 QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1 Bullet 4 COMPATIBILITY: This adapter is not compatible with Thunderbolt monitors (e.g., Apple A1407 Thunderbolt Display) and is not suitable for use with iMac in Target Display Mode; Designed to connect DisplayPort computers to Mini DisplayPort monitors Bullet 5 SPECS: 6 inches (15 cm); Color: Black; DP v1.2; Standard DP Male to Mini-DP Female Converter; 32 AWG PVC cable jacket, ABS connector shell; Shield: Aluminium foil with Braid; Protocols: HBR 2, MST, GTC Bullets (Compact) 6in DisplayPort to Mini DisplayPort cable extension; 4K x 2K video (3840x2400p 60Hz); mDP 1.2/21.6 Gbps/HBR2/8Ch Audio - DisplayPort male to Mini DisplayPort female adapter cable w/PVC strain relief; Connect laptop w/ DP port to mDP monitor/projector Bullets (Consolidated) 6in/15cm DisplayPort to Mini DisplayPort cable (male to female) | 4K x 2K video (3840x2400p 60Hz); 21.6 Gbps/HBR2/8Ch Audio/MST/GTC/3D Stereo (2560x1600p 120Hz) - DP to Mini DP 1.2 extension cable has durable ABS connectors w/ flexible PVC strain relief - Backwards compatible w/ DP 1.1 - DP to mDP adapter cable is ideal for home/office works w/ laptop w/Standard DP port (Toshiba Tecra)/workstations w/ FirePro™ S9000/7000 W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display Marketing Copy Marketing Copy (No HTML) Applications Allows mini DisplayPort® monitors, such as Apple Cinema Displays to be connected to computers equipped with standard DisplayPort connections Website Search Keyword - Mini DisplayPort
- Mini-DisplayPort
- Display Port
- Converter adapter
- Standard DisplayPort
- P13906NDP
- P134-06N-MDP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - DPPNLFM3
- GCDPFF
- GCDPMFRA
- MDISPLPORT3
- MDISPLPORT6
- MDP2DPMM6
- DPEXT6L
- MDP2DVI
- MDP2HDMI
- MDP2VGA
Related Products - MDP2DPMM6
- DP2DVI
- DP2DVIMM10
- DP2HDMI
- DP2HDMIADAP
- DP2HDMIMM10
- DP2VGA
- DP2DVIADAP
- DP2DVID
- DP2HDMI2
- DP2DVI2
- DP2DVIMM6
- DP2HDMIMM6
- SP123DP

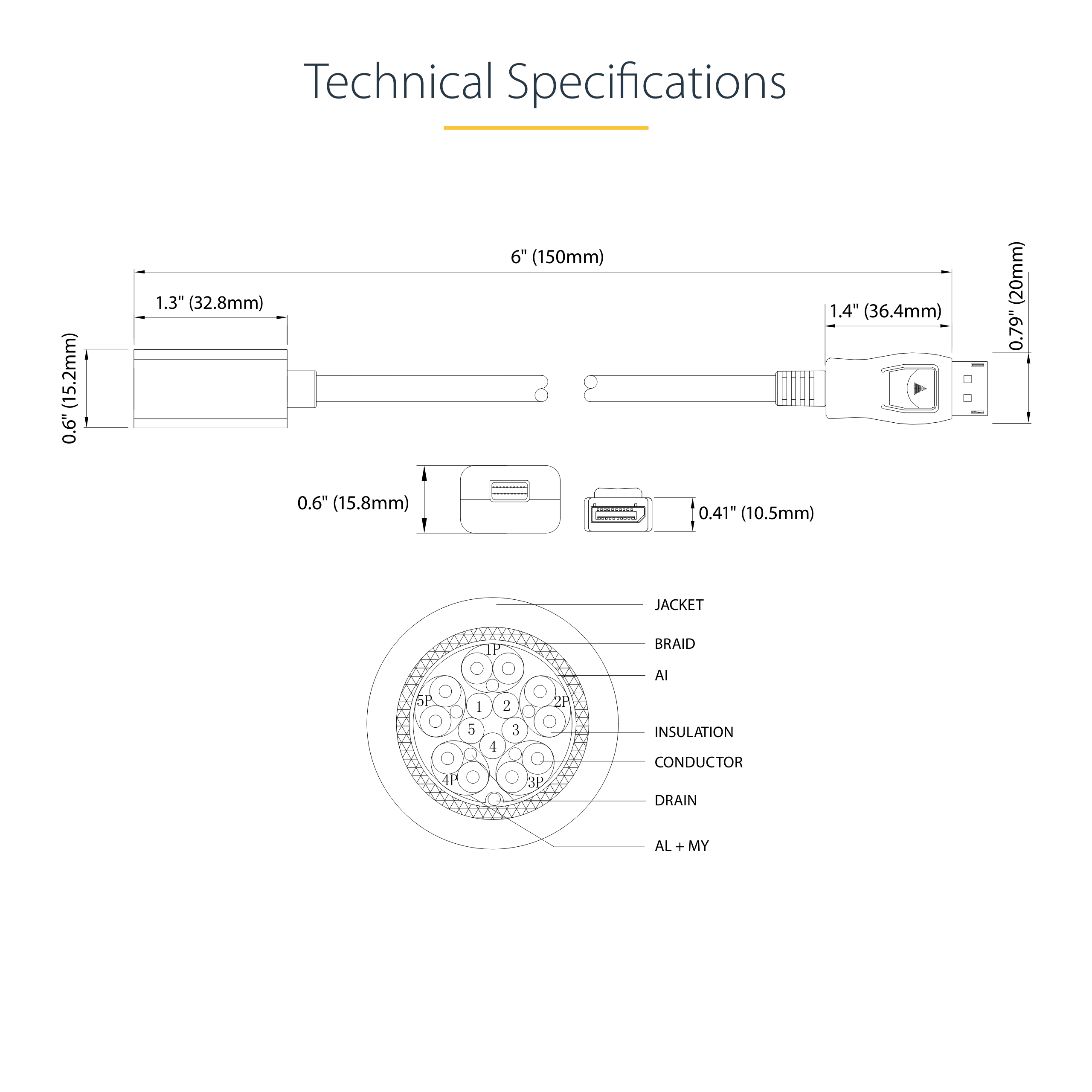

Constrained SKU Alternatives (Limited Stock) DP2MDPMF3 Cable Length (mm) 152.4 Cable OD 4.7 Color Black Humidity 5%-80% RH (no condensation) Operating Temperature 0°C to 35°C (32°F to 95°F) Primary Material Plastic Product Length (mm) 150.000 Product Width (mm) 19.900 Product Height (mm) 13.600 Product Weight (g) 14.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Wire Gauge 32 AWG DisplayPort Version DP 1.2 - (HBR2) Cable Jacket Material PVC - Polyvinyl Chloride Connector Plating Nickel Connectors DisplayPort to Mini DisplayPort Fire Rating CMG Number of Conductors 19 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 513 Carton Height (mm) 242 Carton Quantity 240 Carton Weight Gross (g) 8768 Included in Package 1 - 6in DisplayPort® to Mini DisplayPort Video Cable - M/F Included In Package for Label 1 - 6in DisplayPort® to Mini DisplayPort Video Cable - M/F Number of Sub-Cartons 24 Package Depth (mm) 200 Package Height (mm) 22 Package Width (mm) 99 Package Quantity 1 Package Weight (g) 26 Packaging Description DisplayPort® to Mini DisplayPort Cable Packaging Description India DisplayPort® to Mini DisplayPort Cable Sub-Carton Depth (mm) 278 Sub-Carton Height (mm) 60 Sub-Carton Width (mm) 211 Sub-Carton Quantity 10 Sub-Carton Weight (g) 312 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 Mini DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
