Main Image
DP2VGAMM10B

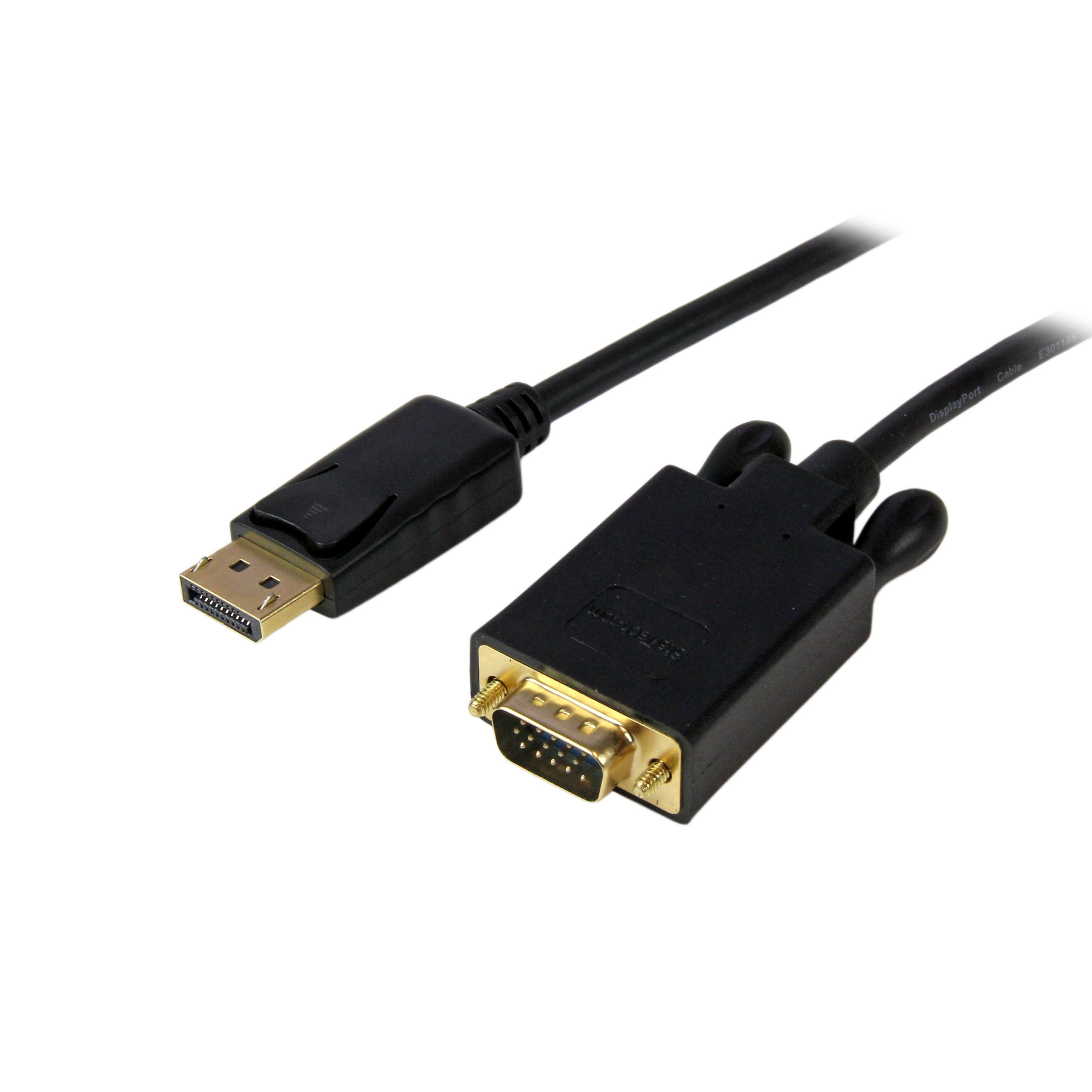

DisplayPort to VGA - 10ft - Active - Black
Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 10ft long cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name DisplayPort to VGA - 10ft - Active - Black Product Number DP2VGAMM10B UPC 065030852470 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to VGA Family DP to VGA Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 10ft DP to VGA Cable Product Title (Short) 10ft DisplayPort to VGA Cable - Active Product Title (Medium) x Product Title (Standard) 10ft (3m) DisplayPort to VGA Cable, Active DisplayPort to VGA Adapter Cable, 1080p Video, DP to VGA Monitor Converter Cable Product Title (Long) 10ft (3m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector Product Title (AMZ) 10ft (3m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector (DP2VGAMM10B) Title Ingram (Part 1) 10ft DisplayPort to VGA Adapter Title Ingram (Part 2) Converter - DP to VGA - Black Website Product Headline Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 10ft long cable Bullet 1 DISPLAYPORT TO VGA CABLE: 10ft (3m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display Bullet 2 COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations Bullet 3 INTEGRATED DISPLAY CABLE: Adapter cable has slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office; 10' length supports longer distance than traditional VGA cable Bullet 4 LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss | Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection Bullet 5 EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu | DP Source to VGA Monitor/Display/Projector| DisplayPort Male to VGA Male Cable Bullets (Compact) 10ft/3m Active DisplayPort to VGA cable HBR2 | 2048x1280/1080p 60Hz | EDID/DDC - Video adapter cable prevents signal loss - DP 1.2 to VGA monitor cable converter - For DP/DP++ source w/ standard DP connector - Latching DP connector - OS Independent Bullets (Consolidated) 10ft/3m DisplayPort 1.2 (HBR2) to VGA adapter cable connects VGA display/projector/monitor supporting 2048x1280/1920x1200/1920x1080 1080p 60Hz | EDID/DDC - Active digital to analog converter cable supports DP/DP++ source using standard DP connector incl workstations/desktops (AMD/Nvidia)/laptop/docks - DisplayPort to VGA cable w/integrated video adapter prevents signal loss/provides flexible install - Latching DP connector | Supports VGA screw locking cable - Driverless | Windows/macOS/Ubuntu Marketing Copy Applications - Connect your existing VGA display device (monitor, projector) to a DisplayPort output device (Desktop, Laptop computer)
- Use your VGA monitor as a secondary display, connected to a DisplayPort output
- Connect a DisplayPort computer to a VGA projector for presentations or meetings in a boardroom or auditorium setting
Website Search Keyword - display port to VGA
- dp to vga cable
- dp to vga adapter
- displayport to VGA adapter cable
- dp to VGA converter adapter cable
- dp to vga converter cable
- P581-010-VGA-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Related Products - DP2VGAMM3B
- DP2VGAMM6B
- DP2VGAMM15B
- MDP2VGAMM3B
- MDP2VGAMM6B
- MDP2VGAMM10B
- MDP2VGAMM15B
- MDP2VGAMM3W
- MDP2VGAMM6W
- MDP2VGAMM10W
- MDP2VGAMM15W
Constrained SKU Alternatives (Limited Stock) DP2VGAMM15B Cable Length (mm) 3048 Color Black Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 915 Product Width (mm) 33 Product Height (mm) 15 Product Weight (g) 148.5 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications VGA - No Audio Support HDR Support No Maximum Analog Resolutions 1920x1200 / 1080p (Output) Maximum Cable Length (mm) 3048 Maximum Digital Resolutions 1920x1200 / 1080p (Input) Maximum Supported Resolution 1080p MTBF (hours) 1,449,804 hours Video Output Port VGA Active or Passive Adapter Active Audio No AV Input DisplayPort - 1.2 AV Output VGA Chipset ID Analogix - 9832 Converter Type Cable Adapters Host Connection Port DisplayPort Number of Displays 1 Carton Depth (mm) 442 Carton Height (mm) 432 Carton Quantity 100 Carton Weight Gross (g) 17856 Included in Package 1 - DisplayPort™ to VGA Adapter Cable Included In Package for Label 1 - Displayport™ To VGA Converter Cable Package Depth (mm) 194 Package Height (mm) 31 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 162 Packaging Description 10ft (3m) DisplayPort™ to VGA Adapter Packaging Description India 10ft (3m) DisplayPort™ to VGA Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-07-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
