DP2VGAMM3B

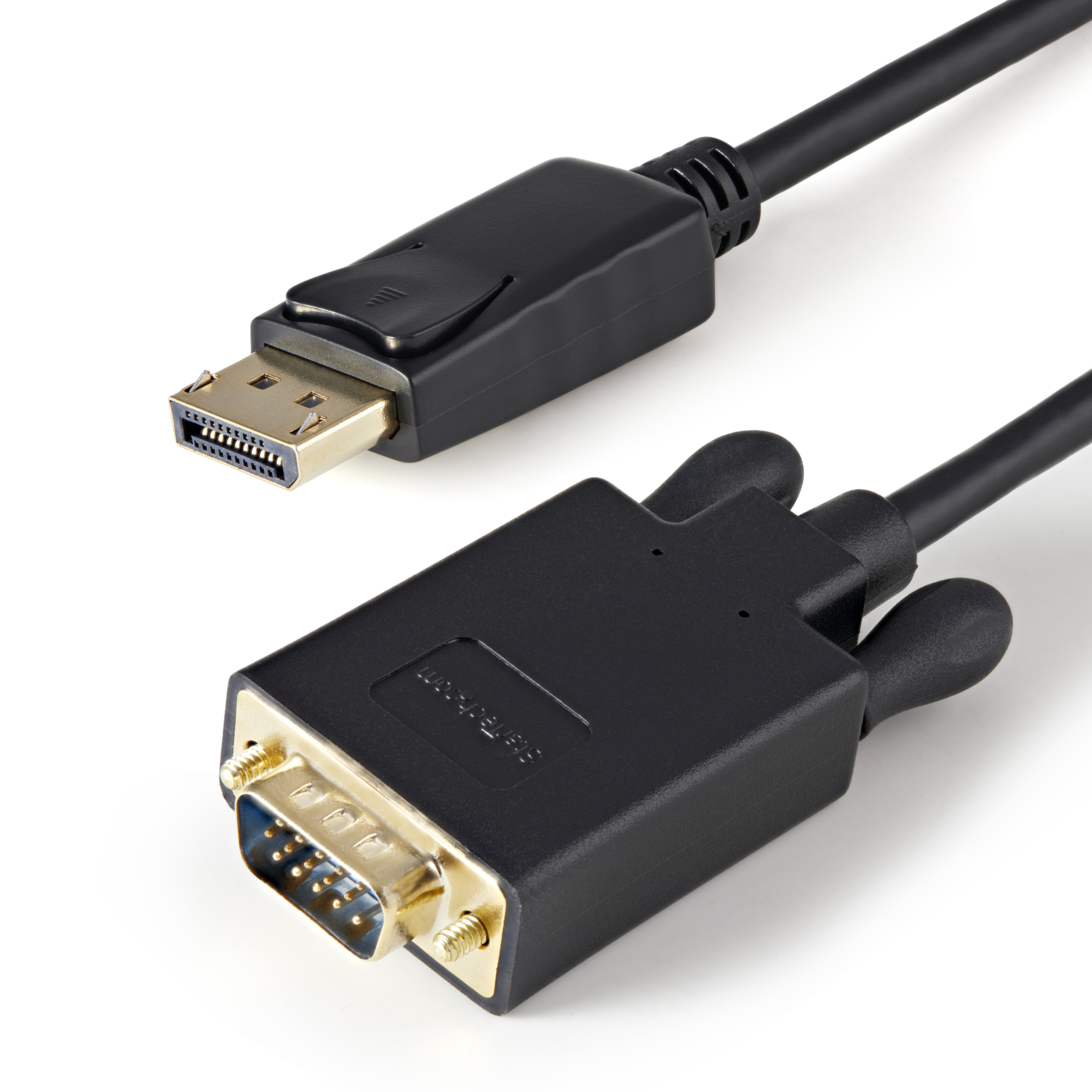

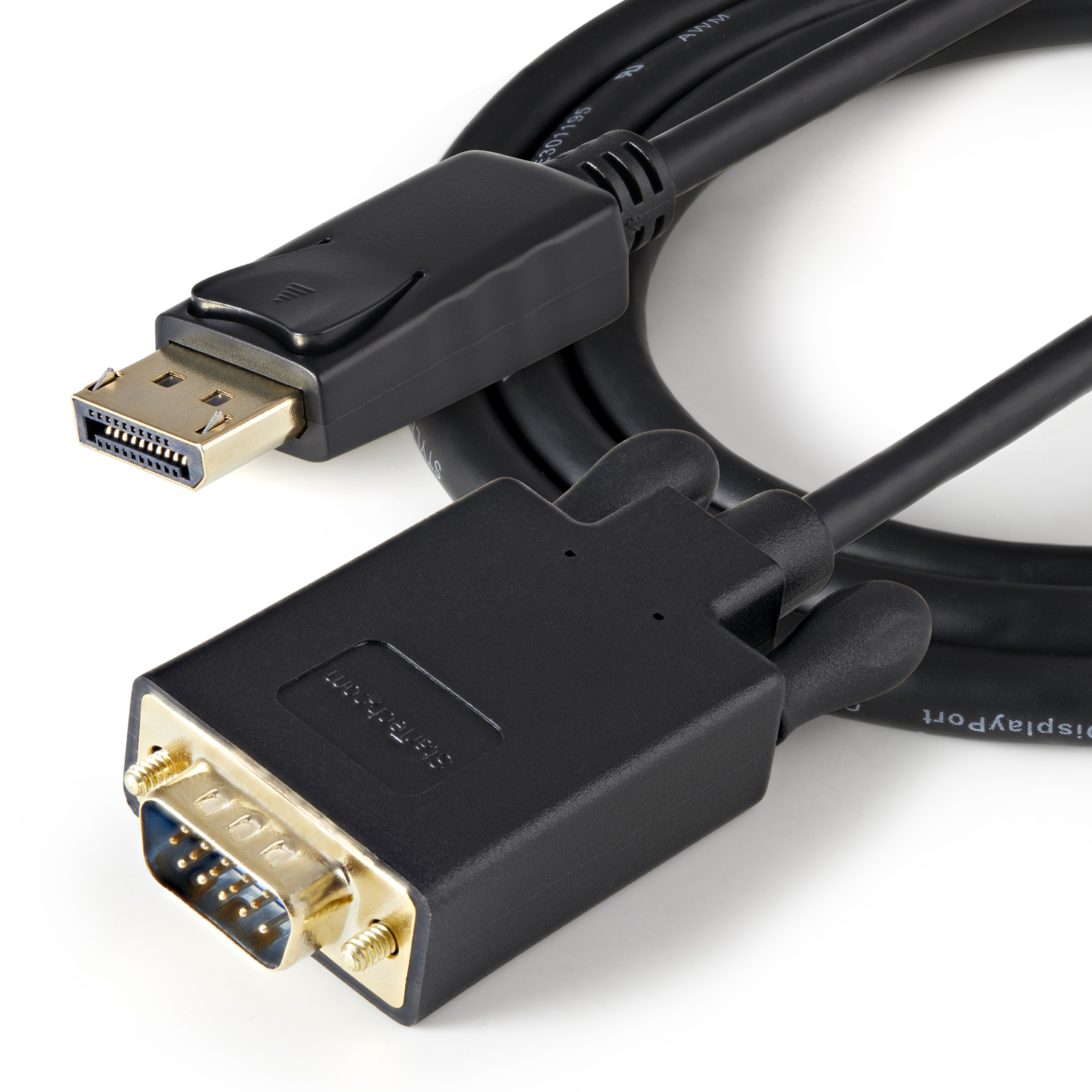

DisplayPort to VGA - 3ft - Active - Black
Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name DisplayPort to VGA - 3ft - Active - Black Product Number DP2VGAMM3B UPC 065030852456 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to VGA Family DP to VGA Adapter Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 3ft DP to VGA Cable Product Title (Short) 3ft DisplayPort to VGA Cable - Active Product Title (Medium) x Product Title (Standard) 3ft (1m) DisplayPort to VGA Cable, Active DisplayPort to VGA Adapter Cable, 1080p Video, DP to VGA Monitor Converter Cable Product Title (Long) 3ft (91cm) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector Product Title (AMZ) 3ft (1m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector (DP2VGAMM3B) Title Ingram (Part 1) 3 ft DisplayPort to VGA Adapter Title Ingram (Part 2) Converter - DP to VGA - Black Website Product Headline Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable Bullet 1 DISPLAYPORT TO VGA CABLE: 3ft (1m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display Bullet 2 COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations Bullet 3 INTEGRATED DISPLAY CABLE: Adapter cable has a slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install at your desk workstation in the office or home office Bullet 4 LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss | Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection Bullet 5 EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu | DP Source to VGA Monitor/Display/Projector| DisplayPort Male to VGA Male Cable Bullets (Compact) 3ft/1m Active DisplayPort to VGA cable HBR2 | 2048x1280/1080p 60Hz | EDID/DDC - Video adapter cable prevents signal loss - DP 1.2 to VGA monitor cable converter - For DP/DP++ source w/ standard DP connector - Latching DP connector - OS Independent Bullets (Consolidated) 3ft/1m DisplayPort 1.2 (HBR2) to VGA adapter cable connects VGA display/projector/monitor supporting 2048x1280/1920x1200/1920x1080 (1080p) 60Hz | EDID/DDC - Active digital to analog converter cable supports DP/DP++ source using standard DP connector incl workstations/desktops (AMD/Nvidia)/laptop/dock - DisplayPort to VGA cable w/integrated video adapter prevents signal loss/provides flexible install - Latching DP connector | Supports VGA screw locking cable - Driverless | Windows/macOS/Ubuntu Marketing Copy Marketing Copy (No HTML) Minimize Cost This 3ft DisplayPort to VGA cable allows you to connect your DisplayPort-equipped computer to a VGA monitor or projector, saving you the cost of upgrading your display. Streamline Your Setup As an active adapter, this DP converter eliminates the need for clunky additional adapters. Plus, with its short 3ft length, you can simplify cable management. Maintain Video Quality Because the converter cable supports video resolutions up to 1920x1200, you can convert a DisplayPort video source to VGA port without sacrificing video quality. This Display Port to VGA cable is backed by a 3-year StarTech.com warranty and free lifetime technical support. Applications - Connect your existing VGA display device (monitor, projector) to a DisplayPort output device (Desktop, Laptop computer)
- Use your VGA monitor as a secondary display, connected to a DisplayPort output
- Connect a DisplayPort computer to a VGA projector for presentations or meetings in a boardroom or auditorium setting
Website Search Keyword - display port to VGA
- dp to vga cable
- dp to vga converter cable
- dp to vga adapter
- displayport to VGA adapter cable
- dp to VGA converter adapter cable
- P581-003-VGA-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - DP2VGAMM6B
- DP2VGAMM10B
- DP2VGAMM15B
- MDP2VGAMM3B
- MDP2VGAMM6B
- MDP2VGAMM10B
- MDP2VGAMM15B
- MDP2VGAMM3W
- MDP2VGAMM6W
- MDP2VGAMM10W
- MDP2VGAMM15W
Cable Length (mm) 915 Color Black Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 915.000 Product Width (mm) 33.000 Product Height (mm) 14.400 Product Weight (g) 82.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications VGA - No Audio Support HDR Support No Maximum Analog Resolutions 1920x1200 / 1080p (Output) Maximum Cable Length (mm) 915 Maximum Digital Resolutions 1920x1200 / 1080p (Input) Maximum Supported Resolution 1080p MTBF (hours) 1,449,804 hours Video Output Port VGA Active or Passive Adapter Active Audio No AV Input DisplayPort - 1.2 AV Output VGA Chipset ID Analogix - 9832 Converter Type Cable Adapters Host Connection Port DisplayPort Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 420 Carton Height (mm) 420 Carton Quantity 200 Carton Weight Gross (g) 22250 Included in Package 1 - DisplayPort™ to VGA Adapter Cable Included In Package for Label 1 - Displayport™ To VGA Converter Cable Number of Sub-Cartons 20 Package Depth (mm) 200 Package Height (mm) 14.5 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 92 Packaging Description 3ft (0.9m) DisplayPort to VGA Adapter Packaging Description India 3ft (0.9m) DisplayPort to VGA Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 932 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-07-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,EU,FI,FR,HK,IE,IN,IT,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
