DPEXT6L

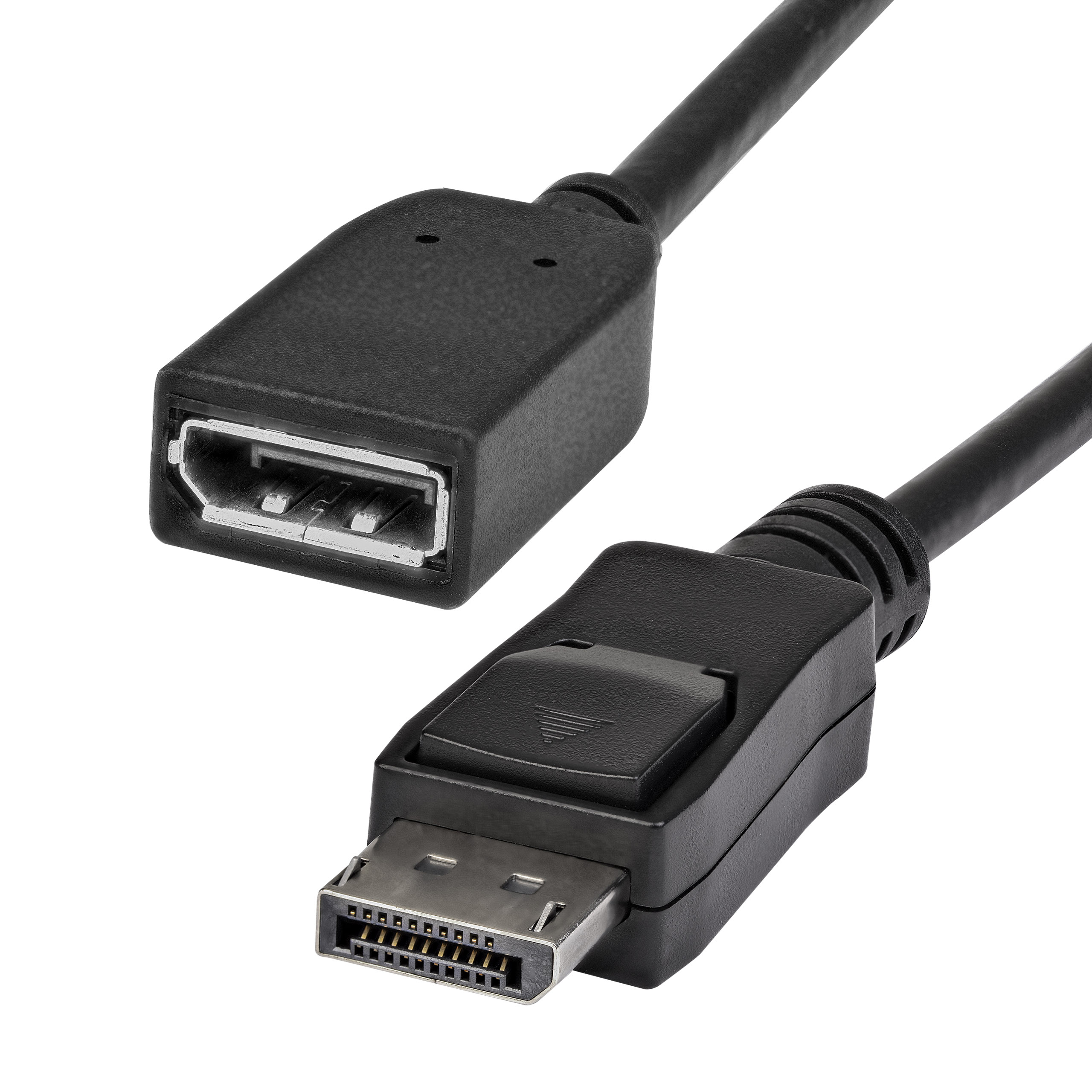

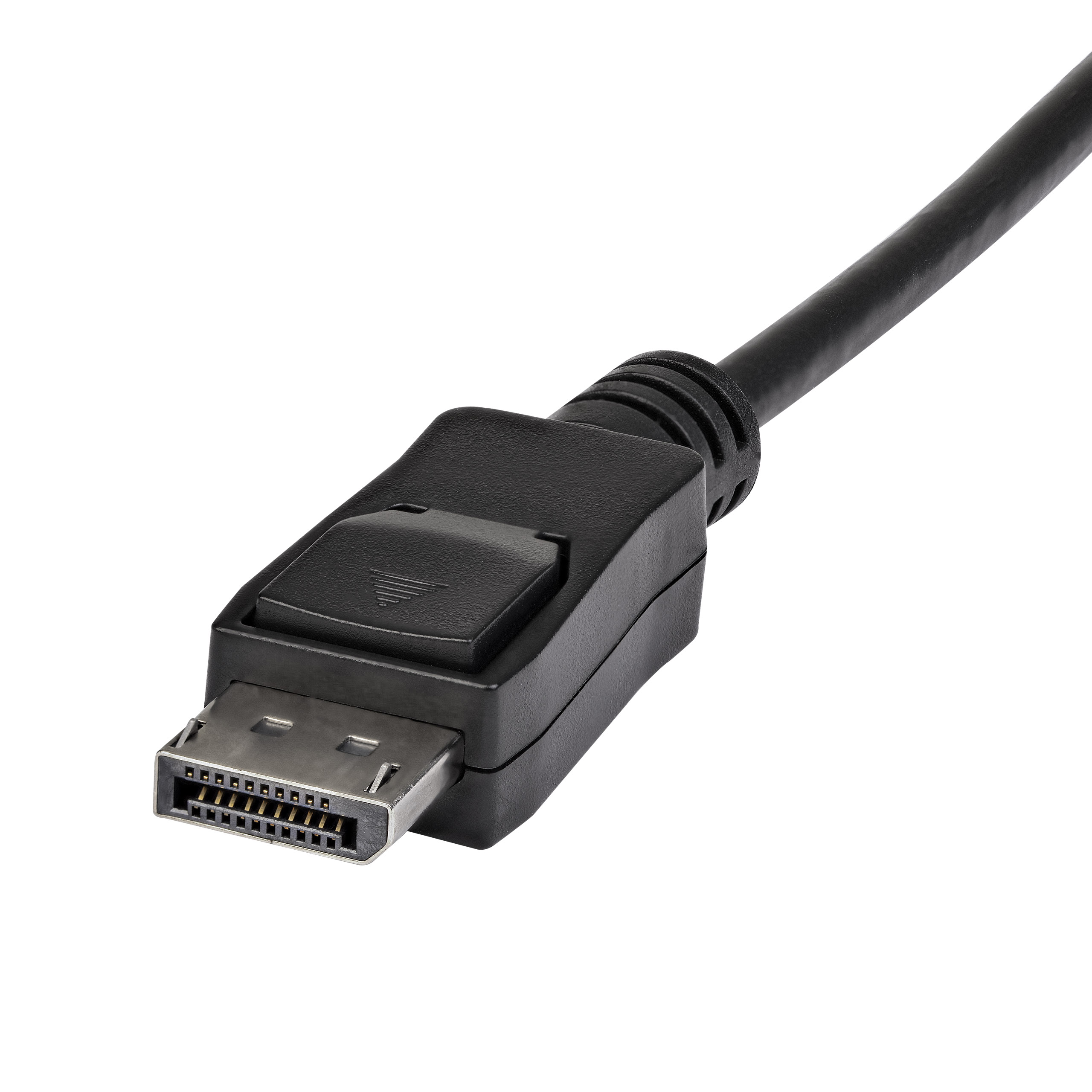

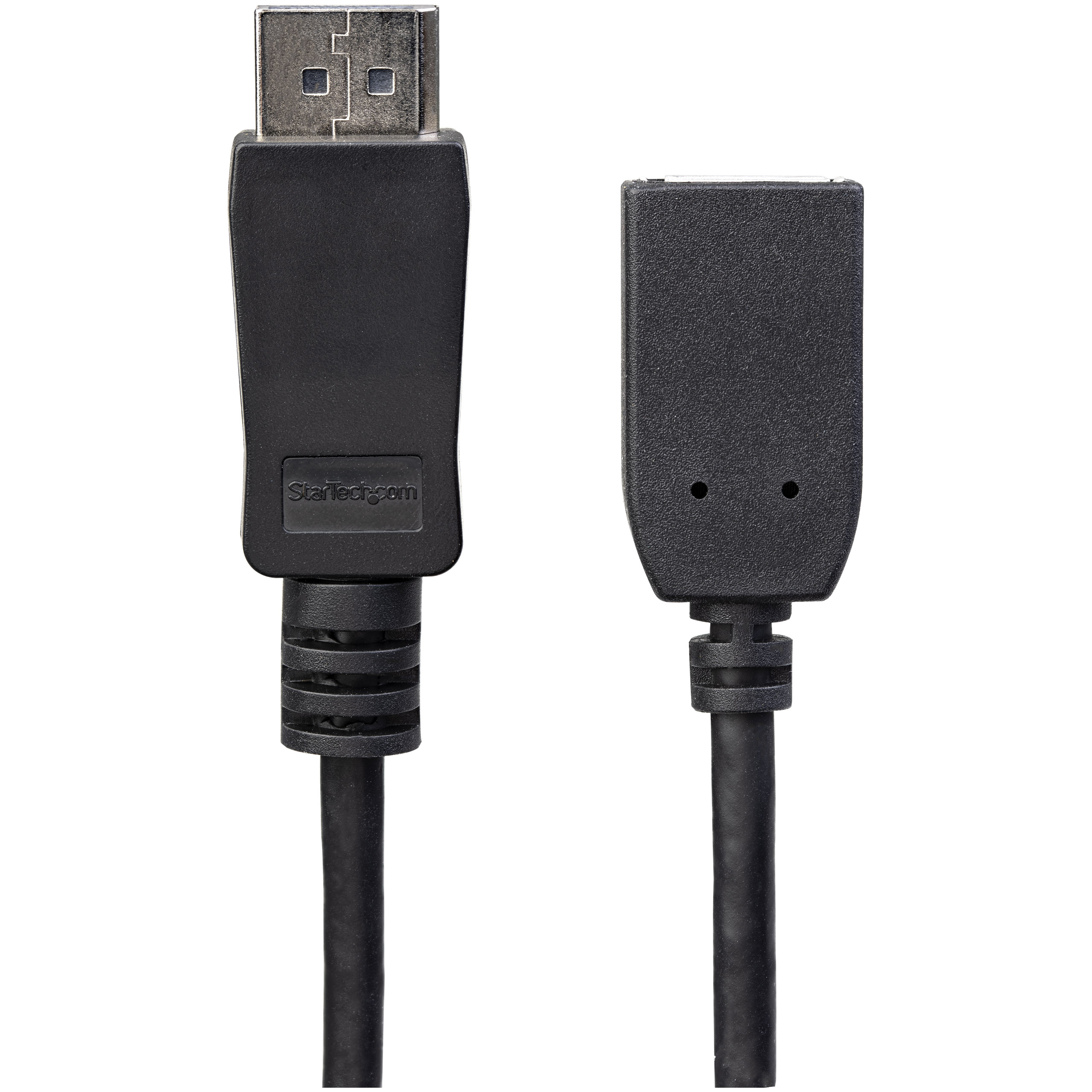

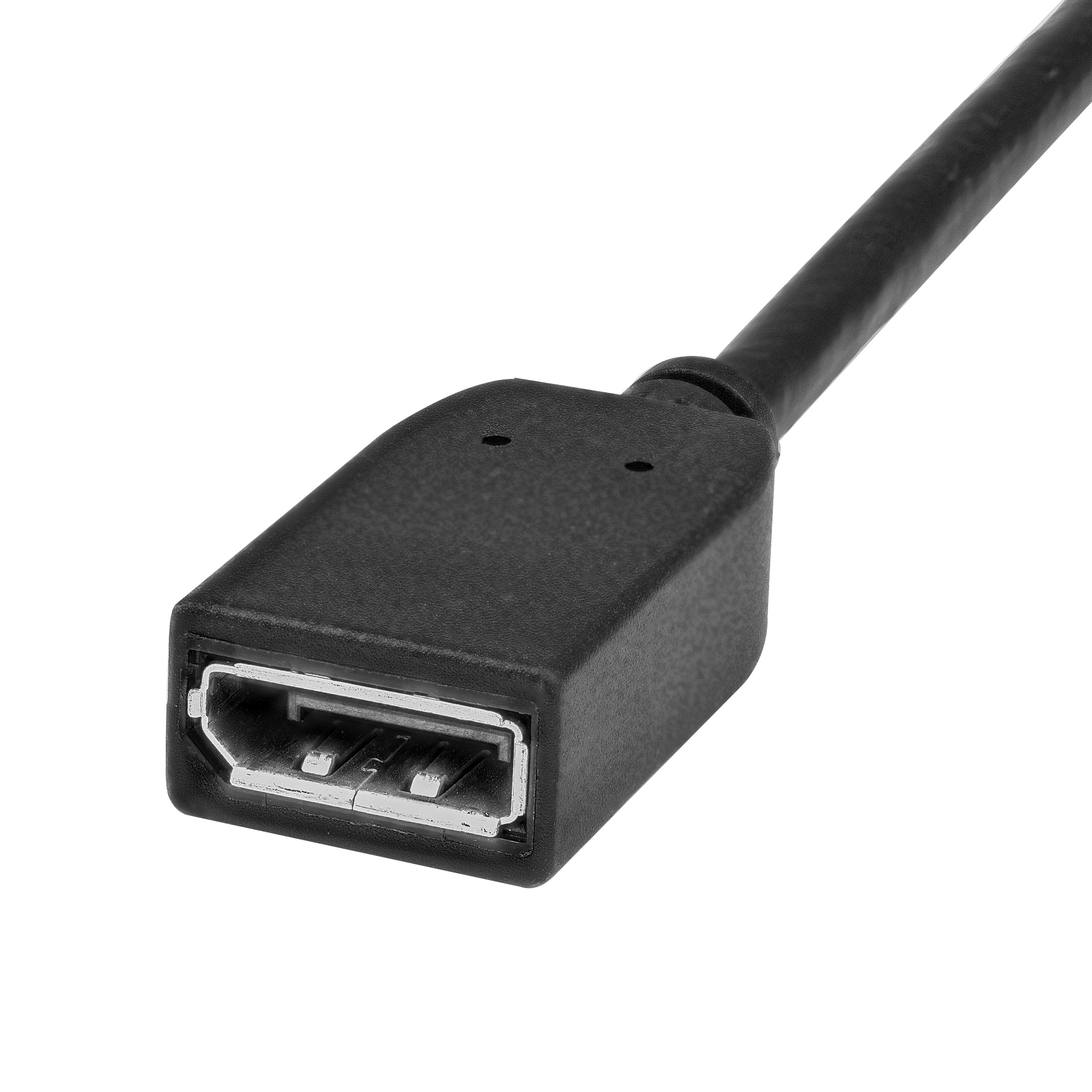

6ft DisplayPort Extension Video Cable
Extend the reach of your DisplayPort devices by 6ft
Main Image
Product Images
Product Images
Product Images
Product Name 6ft DisplayPort Extension Video Cable Product Number DPEXT6L UPC 065030835565 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - 1.2 Family DP 1.2 Extension Cables, 4K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan China Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) . Product Title (Short) 6ft DisplayPort Extension Cable M/F Product Title (Medium) . Product Title (Standard) 6ft (2m) DisplayPort Extension Cable, 4K x 2K Video, DisplayPort Male to Female Extension Cable, DP 1.2 Extender Cable / Cord Product Title (Long) 6ft (1.8m) DisplayPort Extension Cable - 4K x 2K Video - DisplayPort Male to Female Extension Cable - DP 1.2 Extender Cable / Cord - DP to DP Cable with Latching DP Connector Product Title (AMZ) 6ft (2m) DisplayPort Extension Cable - 4K x 2K Video - DisplayPort Male to Female Extension Cable - DP 1.2 Extender Cable / Cord - DP to DP Cable with Latching DP Connector (DPEXT6L) Title Ingram (Part 1) 1.8m Latching DisplayPort Video Title Ingram (Part 2) - Extension cable - DPCP/HDCP - M/F Website Product Headline Extend the reach of your DisplayPort devices by 6ft Bullet 1 QUALITY CONSTRUCTION: DP extension cable has 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort extender cable has superior EMI shielding with braided aluminum mylar foils to provide higher quality video and audio Bullet 2 DISPLAYPORT EXTENSION CABLE: 6 ft (1.8 m) DP v1.2 male to DP female cable / cord; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz) Bullet 3 RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching connector prevents accidental disconnection Bullet 4 APPLICATIONS: Add extra 6ft to your DP cables; Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with 1080p/UHD/4K monitors/projector/display Bullet 5 SPECS: 6 feet (1.8 m) | Black | DP v1.2 | DisplayPort Male to Female extension cable | 28 AWG | PVC cable jacket, ABS connector shell | Shield: braided aluminum mylar foil | HBR2, MST, GTC | Backward compatible w/ DP1.1 | Lifetime Warranty Bullets (Compact) 6ft/1.8m DisplayPort extension cable male to female; 4K x 2K video (3840x2400p 60Hz); DP 1.2/21.6 Gbps/HBR2/8Ch Audio - DP extension cable / cord to connect laptop w/standard DP port/workstations to UHD/4K monitor/display - DisplayPort Extender Cable Bullets (Consolidated) 6ft (1.8m) DisplayPort extension cable (male to female) | 4K x 2K video (3840x2400p 60Hz); DP 1.2/21.6 Gbps bandwidth/ HBR2/8Ch Audio/MST/GTC/3D Stereo (2560x1600p 120Hz) - DP extension cable has durable ABS connectors w/ flexible PVC strain relief | latching DP connector - DP extender cord for home/office | Connect laptop w/Standard DP port (Toshiba Tecra) or workstations w/ FirePro™ S9000/7000/W8100/7100 graphic cards to a UHD/4K monitor/projector/display - Backwards compatible with DP1.1 Marketing Copy Marketing Copy (No HTML) Applications Extend your DisplayPort® interface by 6ft Website Search Keyword - DisplayPort Video Extension Cable, DisplayPort to DisplayPort, Latching connector, latching displayPort
- P579-006
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Cable Length (mm) 1828 Color Black Humidity 40%-70%RH Operating Temperature -20°C to 80°C (-4°F to 158°F) Primary Material Plastic Product Length (mm) 1828.000 Product Width (mm) 20.900 Product Height (mm) 12.600 Product Weight (g) 91.000 Storage Temperature -25°C to 85°C (-13°F to 185°F) TAA Compliant No Wire Gauge 28 AWG DisplayPort Version DP 1.2 - (HBR2) Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Connectors DisplayPort to DisplayPort Fire Rating CMG Number of Conductors 20 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 338 Carton Height (mm) 290 Carton Quantity 70 Carton Weight Gross (g) 8276 Included in Package 1 - 6 ft DisplayPort Video Extension Cable - M/F Number of Sub-Cartons 7 Package Depth (mm) 165 Package Height (mm) 27 Package Width (mm) 177 Package Quantity 1 Package Weight (g) 98 Packaging Description 6ft (1.8m) DisplayPort 1.2 Extension Cable - 4K 60Hz Packaging Description India 6ft (1.8m) DisplayPort 1.2 Extension Cable - 4K 60Hz Sub-Carton Depth (mm) 242 Sub-Carton Height (mm) 109 Sub-Carton Width (mm) 225 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1038 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,EU,FR,IE,IN,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
