DPPNLFM3PW

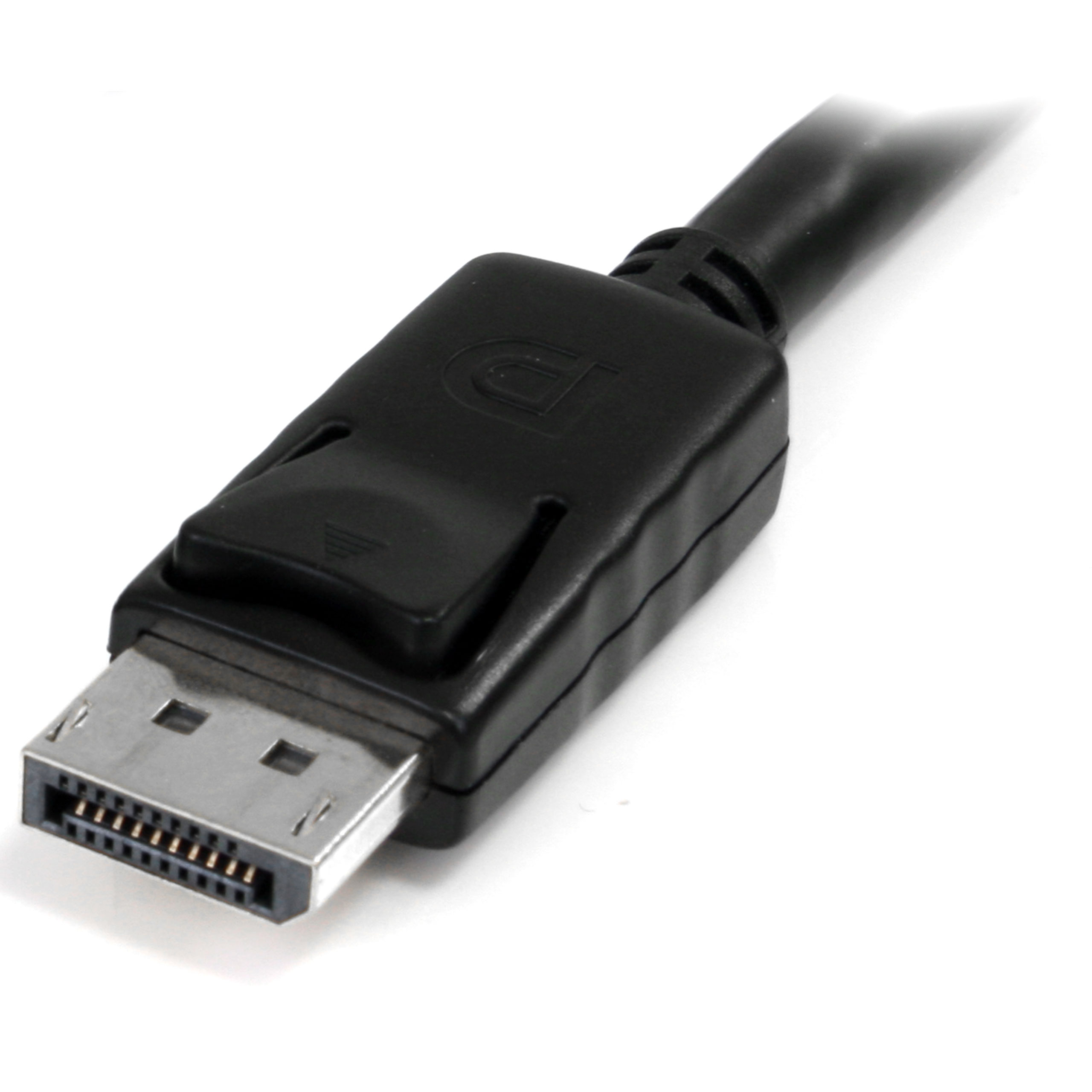

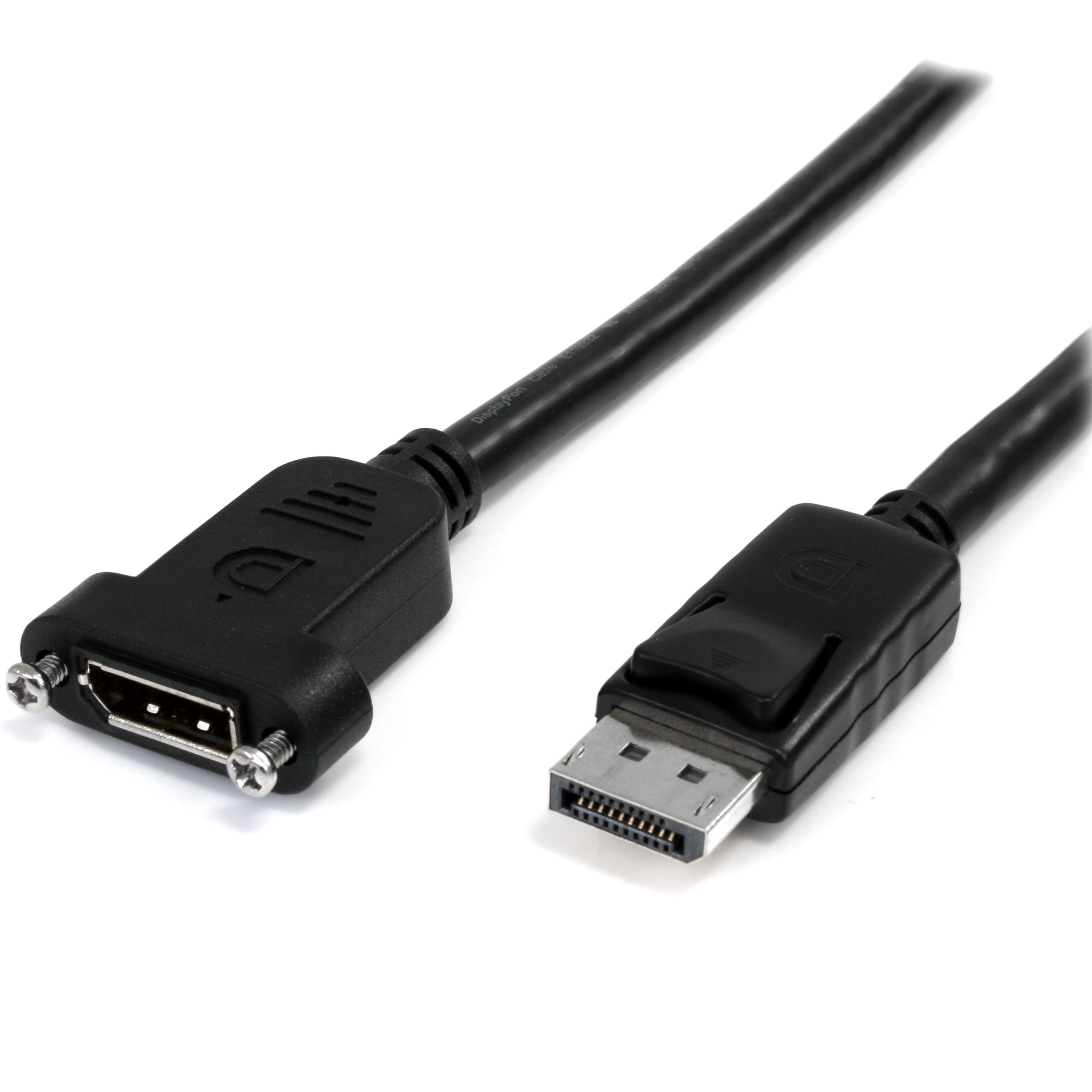

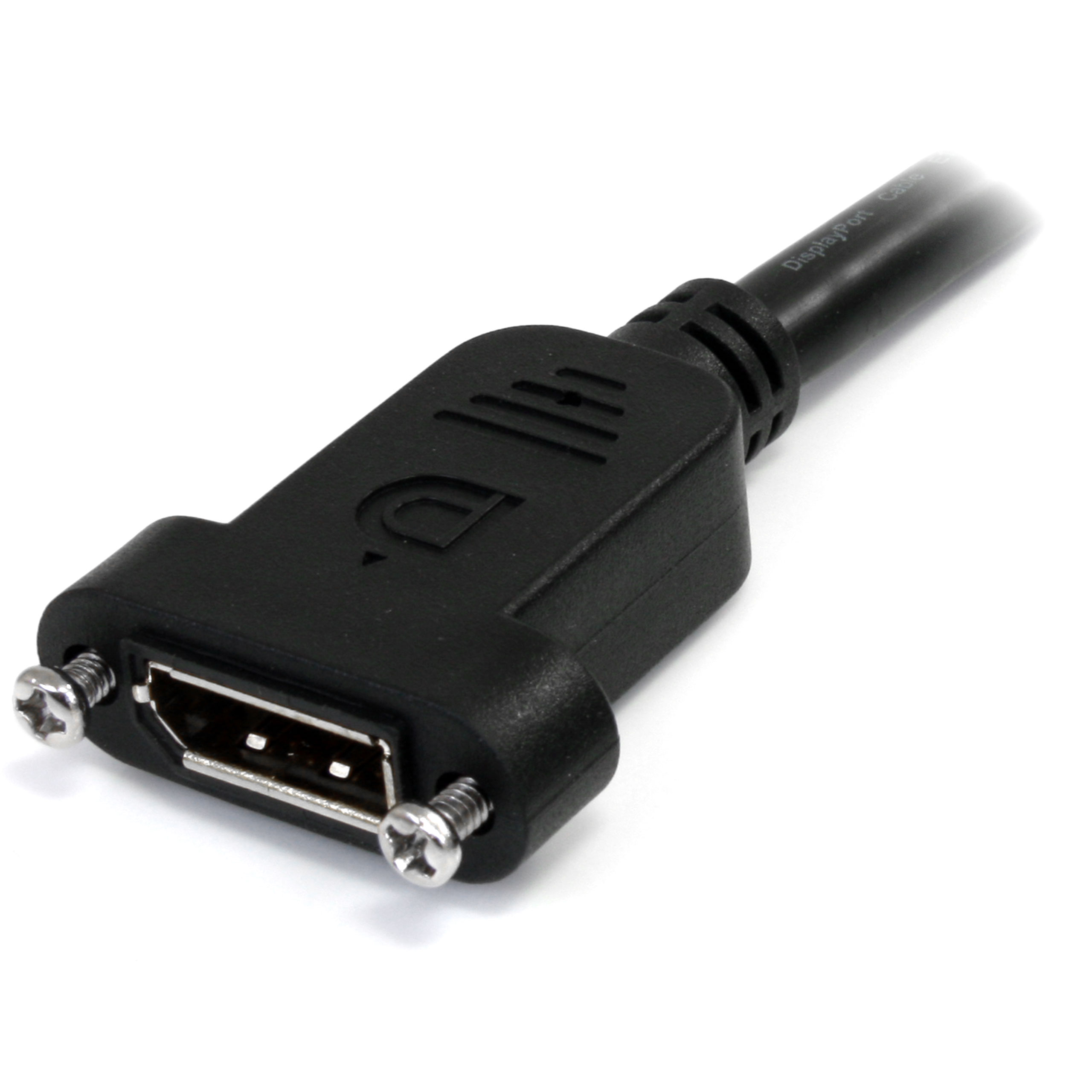

3ft DisplayPort Panel Mount Cable with Power
Allows a DisplayPort connection to be mounted on a secure easily accessible panel
Main Image
Product Images
Product Images
Product Name 3ft DisplayPort Panel Mount Cable with Power Product Number DPPNLFM3PW UPC 065030840866 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - 1.2 Family DP 1.2 Panel Mount Extension Cables, 4K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) DP Panel Mount Cable Product Title (Short) 3ft Panel Mount DisplayPort Cable M/F Product Title (Standard) 3ft (1m) Panel Mount DisplayPort Cable, 4K x 2K Video, DisplayPort 1.2 Extension Cable Male to Female, DP Extender Cord Product Title (Long) 3ft (91cm) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable Product Title (AMZ) 3ft (1m) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable (DPPNLFM3PW) Title Ingram (Part 1) DisplayPort Panel-Mount Digital Title Ingram (Part 2) Video Extension Cable 3ft 20pin Website Product Headline Allows a DisplayPort connection to be mounted on a secure easily accessible panel Bullet 1 PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz) Bullet 2 RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection Bullet 3 QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio Bullet 4 APPLICATIONS: Add extra 3ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display Bullet 5 SPECS: 3 foot (91 cm) | Black | DisplayPort 1.2 | DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Double sided copper foil | Backward compatible w/ DP1.1 | Lifetime Warranty Bullets (Compact) 3ft Panel mount DisplayPort cable (male to female); 4K x 2K video (3840x2400p 60Hz); DP 1.2/21.6 Gbps/HBR2/8Ch Audio - DisplayPort extension cable / cord w/ durable PVC strain relief - To connect workstations w/ standard DP port to a monitor/display Bullets (Consolidated) 3' (91cm) Panel mount DisplayPort cable (male to female)| 4K x 2K video (3840x2400p 60Hz)/DP 1.2/21.6 Gbps bandwidth/ HBR2/8Ch Audio/MST/GTC/3D Stereo (2560x1600p 120Hz) - DisplayPort extension cable has durable ABS connectors with flexible PVC strain relief | Molded female connector w/ 2x 4-40 screws to secure to a machine faceplate/port - DP extension cord for professional workstations w/Standard DP port | FirePro™ S9000/7000 / W8100/7100 graphic cards | Use with UHD/4K monitor/display Marketing Copy Applications Extend your DisplayPort interface and screw mount it to a panel Website Search Keyword Internal Cable Panel DisplayPort Display port extension panel mount Powered power Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - DP2HDMI
- DP2DVI
- DP2HDMIMM6
- DP2DVIMM6
- DP2HDMIMM10
- DP2DVIMM10
- DP2HDMIADAP
- DP2VGA
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT25L
Related Products - DPPNLFM3
- USBPNLAFAM1
- USBPNLAFHD1
- DPEXT6L
- GCDPMM
Cable Length (mm) 914.4 Color Black Humidity 0 to 85% RH Operating Temperature -10°C to 40°C (14°F to 104°F) Primary Material Plastic Product Length (mm) 920.000 Product Width (mm) 34.000 Product Height (mm) 12.000 Product Weight (g) 72.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Wire Gauge 28 AWG DisplayPort Version DP 1.2 - (HBR2) Maximum Digital Resolutions 4k x 2k (4096 x 2160) @ 60Hz Cable Jacket Material PVC - Polyvinyl Chloride Connector Plating Nickel Connectors DisplayPort to DisplayPort Fire Rating CMG Number of Conductors 20 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 320 Carton Height (mm) 210 Carton Quantity 80 Carton Weight Gross (g) 7440 Included in Package 1 - 3ft DisplayPort Extension Panel Mount Cable Included In Package for Label 1 - 3Ft Displayport Extension Panel Mount Cable Number of Sub-Cartons 8 Package Depth (mm) 125 Package Height (mm) 30 Package Width (mm) 147 Package Quantity 1 Package Weight (g) 78 Packaging Description 3ft (91cm) DisplayPort 1.2 Extension Panel Mount Cable with Power - M/F Packaging Description India 3ft (91cm) DisplayPort 1.2 Extension Panel Mount - M/F Sub-Carton Depth (mm) 202 Sub-Carton Height (mm) 99 Sub-Carton Width (mm) 256 Sub-Carton Quantity 10 Sub-Carton Weight (g) 780 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,SE,SG,UK,US Primary Technology None Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
