DRW110ATABK

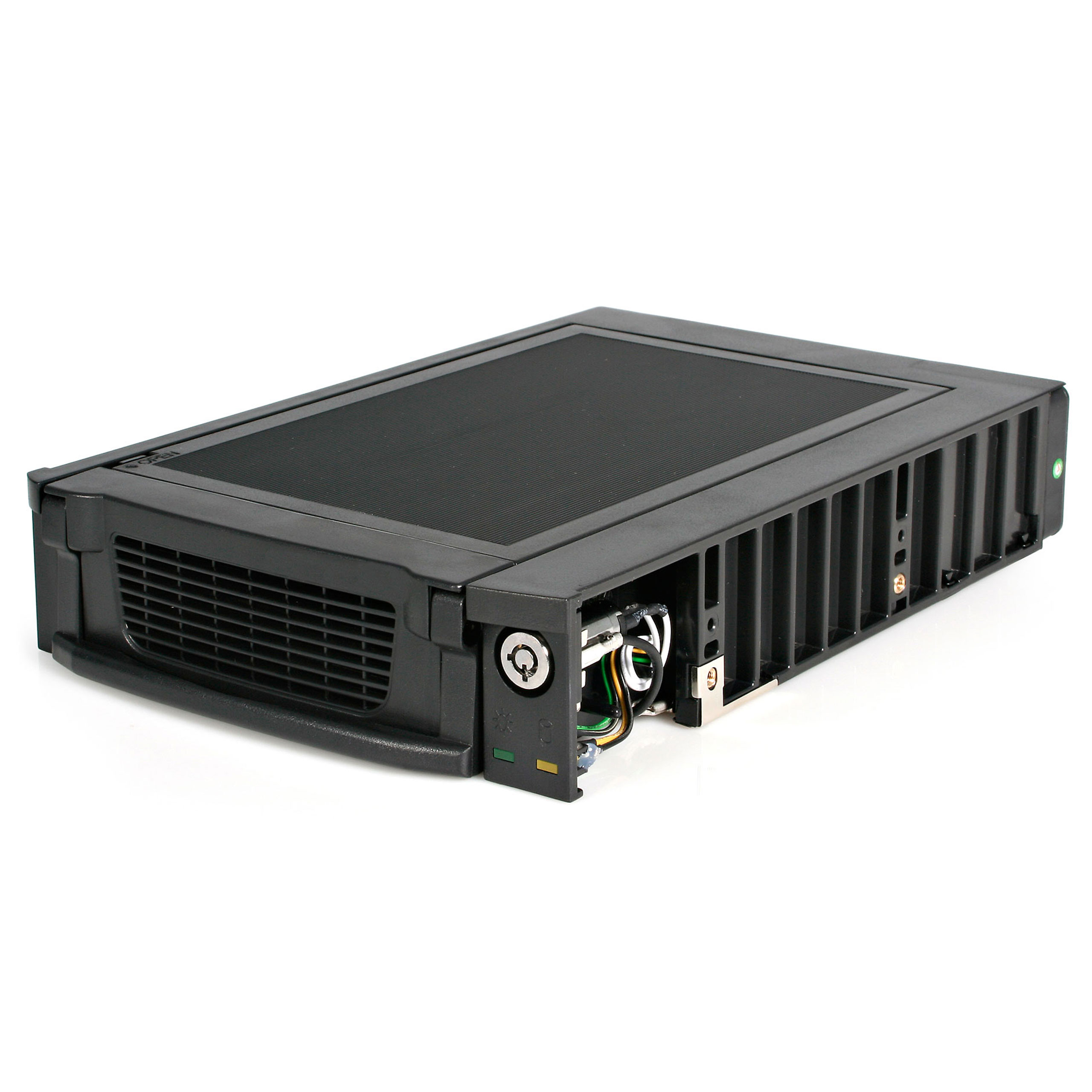

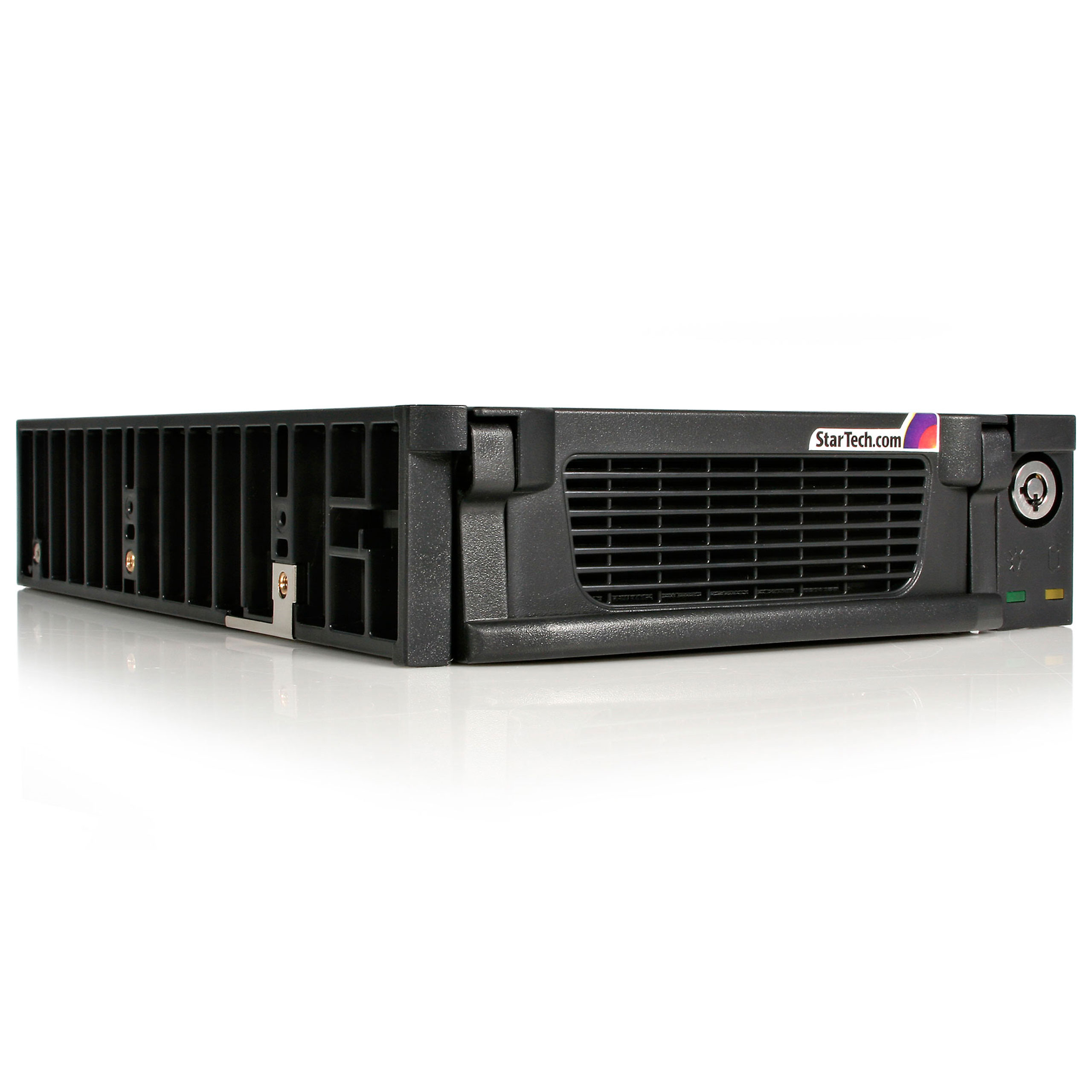

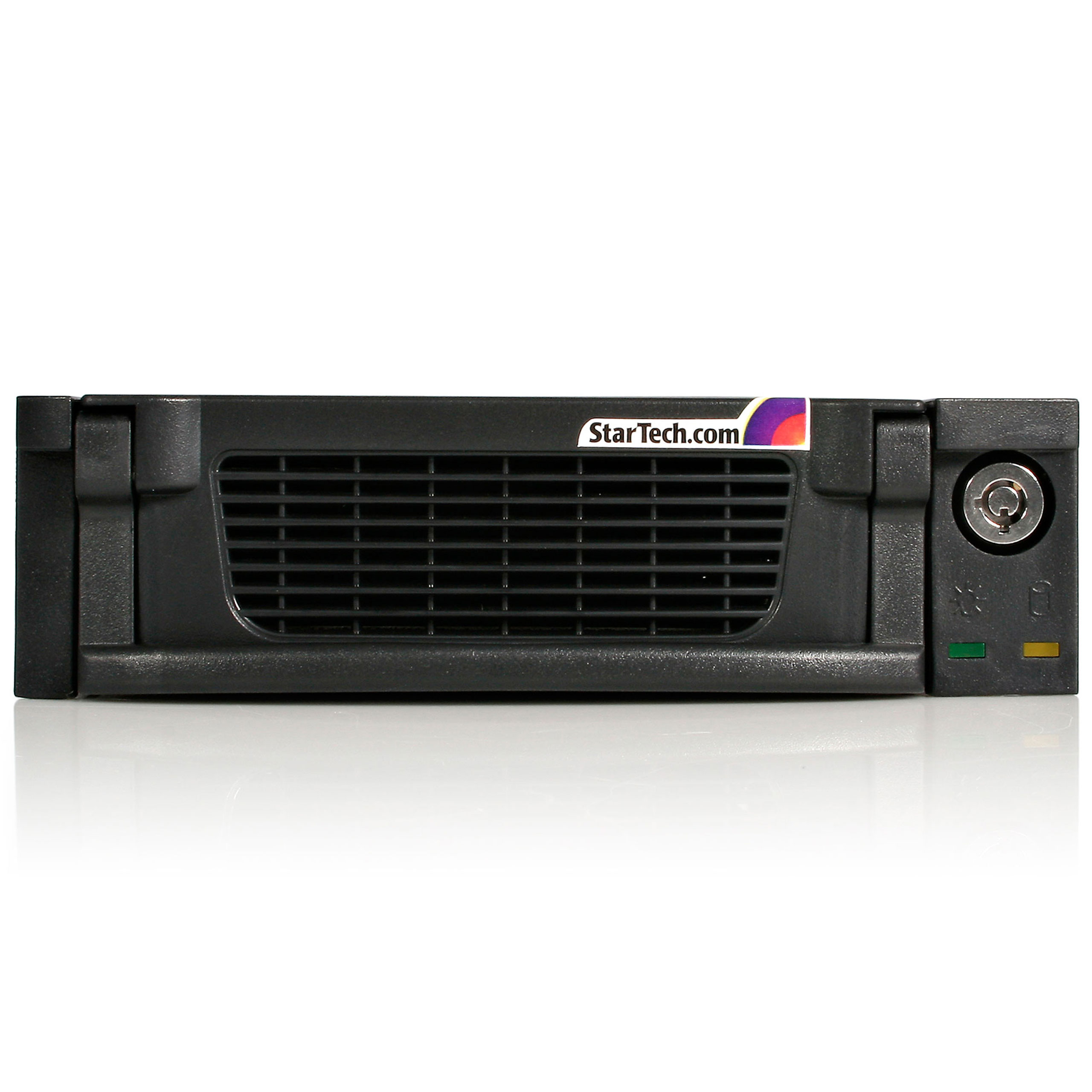

Black Value ATA133 Cushion Drive Drawer
Hot swap 3.5in IDE hard drives easily from a 5.25in front bay
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Black Value ATA133 Cushion Drive Drawer Product Number DRW110ATABK UPC 065030795388 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 3.5" IDE HDD Mobile Rack for 5.25" Bay Product Title (Standard) StarTech.com Black 3.5in IDE Hard Drive Mobile Rack for 5.25in Bay w/ fan - Plastic IDE Black Removable Hard Drive Drawer DRW110ATA - Storage mobile rack - black Product Title (Long) Black 3.5in IDE Hard Drive Mobile Rack for 5.25in Bay w/ fan Product Title (AMZ) Black 3.5in IDE Hard Drive Mobile Rack for 5.25in Bay w/ fan (DRW110ATABK) Title Ingram (Part 1) Black 3.5in IDE Hard Drive Mobil Title Ingram (Part 2) e Rack for 5.25in Bay w/ fan Website Product Headline Hot swap 3.5in IDE hard drives easily from a 5.25in front bay Bullet 1 Fits a single IDE drive into a front accessible 5.25" bay Bullet 2 Sturdy plastic construction for the drive caddy and bay Bullet 3 Key lockable drive caddy Bullet 4 Rubber shock absorbers Bullet 5 3,000+ insertion rating Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- System builders who need to image many drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Special Notes Accessory Products - DRW110CADBK
- DRW110BAYBK
Related Products - DRW113ATABK
- DRW115ATABK
Color Black Material Plastic Product Length (mm) 220 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 530 TAA Compliant No Hot Swap Capability Yes Compatible Drive Types IDE (ATA) Fan Bearing Type Ball Bearing Fans 1 - 40 mm Front Door Key Lock Yes Interface/Bridge IDE LED Indicators - 1 - Power (Green)
- 1 - Activity (Yellow)

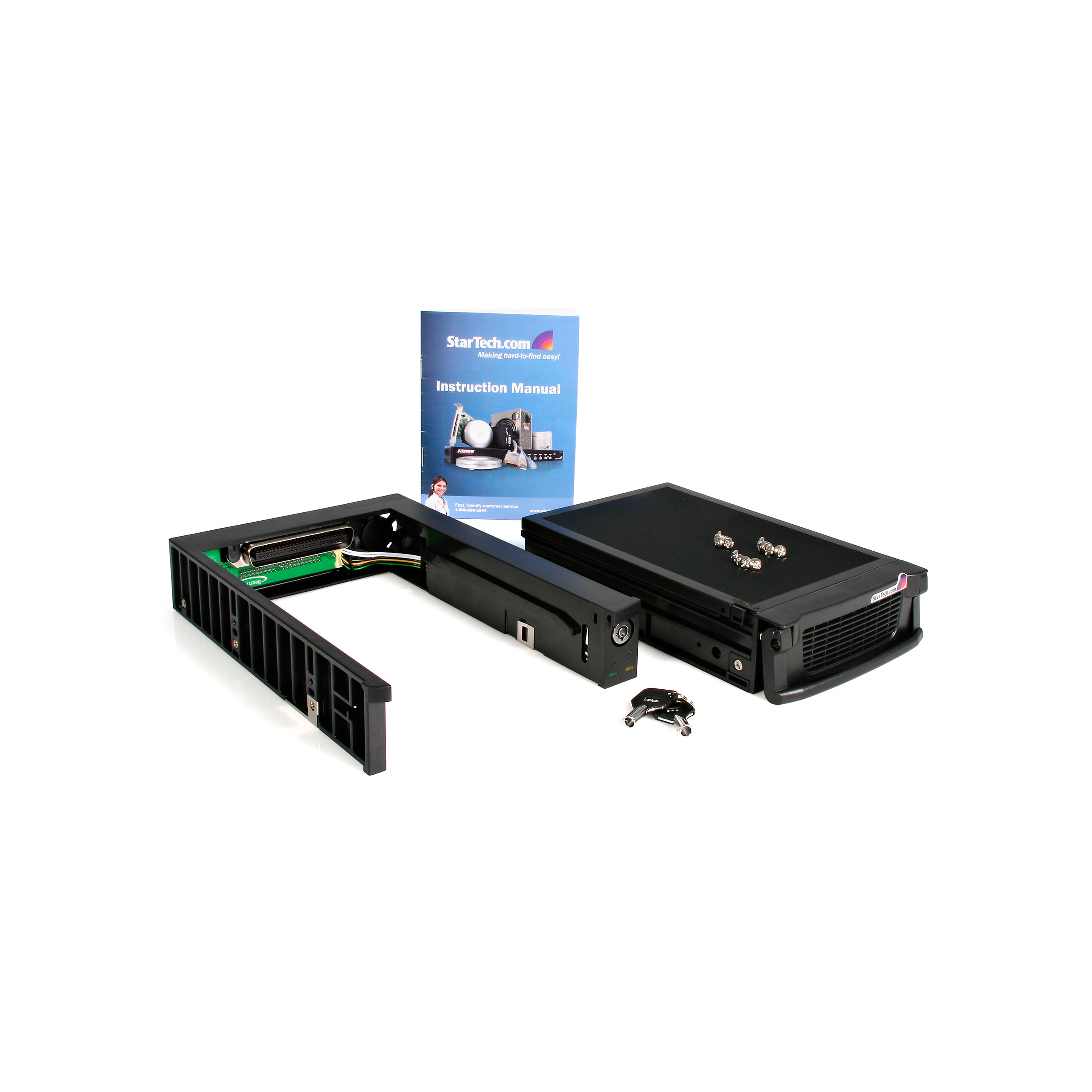

Number of Drives 1 Carton Depth (mm) 510 Carton Height (mm) 250 Carton Quantity 20 Carton Weight Gross (g) 13000 Included in Package - 1 - 5.25in Mobile Rack Bay
- 1 - 3.5in Mobile Rack Caddy
- 1 - Instruction Manual
- 2 - Keys
- 1 - Bag of mounting screws

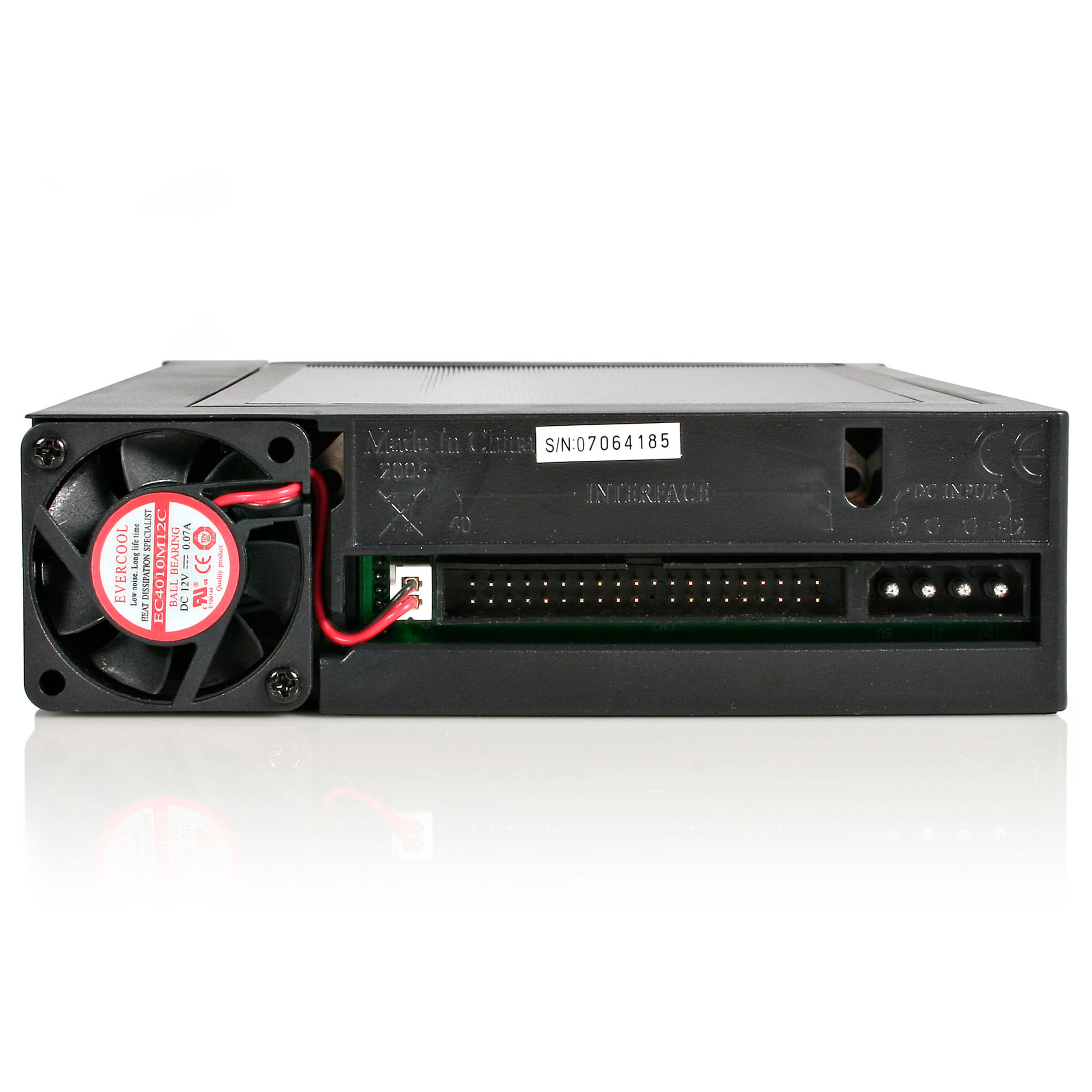

Package Depth (mm) 47 Package Height (mm) 235 Package Width (mm) 158 Package Weight (g) 590 Packaging Description 3.5" IDE HDD Mobile Rack for 5.25" Bay Packaging Description India 3.5" IDE HDD Mobile Rack for 5.25" Bay Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
