Main Image
DRW110SATBK
Black Value Serial ATA Cushioned Drive Drawer
Add safe and reliable swappable storage from a single 5.25in front bay
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Black Value Serial ATA Cushioned Drive Drawer Product Number DRW110SATBK UPC 065030799706 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) Black 5.25in SATA HDD Mobile Rack Drawer Product Title (Standard) StarTech.com SATA Hard Drive Mobile Rack Drawer with Shock Absorbers - Value Series - Storage bay adapter with fan - black Product Title (Long) Black 5.25in SATA Hard Drive Mobile Rack Drawer Product Title (AMZ) Black 5.25in SATA Hard Drive Mobile Rack Drawer - 3.5 SATA mobile Rack - removable HDD Bay (DRW110SATBK) Title Ingram (Part 1) Black 5.25in SATA Hard Drive Mob Title Ingram (Part 2) ile Rack Drawer Website Product Headline Add safe and reliable swappable storage from a single 5.25in front bay Bullet 1 Fits a single SATA drive into a front accessible 5.25" bay Bullet 2 Plastic construction for the drive caddy and bay Bullet 3 Key lockable drive caddy Bullet 4 Rubber shock absorbers Bullet 5 3,000+ insertion rating Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE backplane with a SATA backplane
- System builders who need to image many drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Special Notes Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated System and Cable Requirements PC or Mac with a 5.25 Inch Drive Bay Accessory Products - DRW110CADSBK
- DRW11XKEYS
- LSATA12
- LSATA18
- LSATA24
- LP4SATAFM
- LP4SATAFMD
Related Products - DRW110SAT
- DRW113SAT
- DRW113SATBK
- DRW115SAT
- DRW115SATBK
- DRW150SATBK
- DRW150SAT
- HSB100SATBK
- SAT3510U2REM

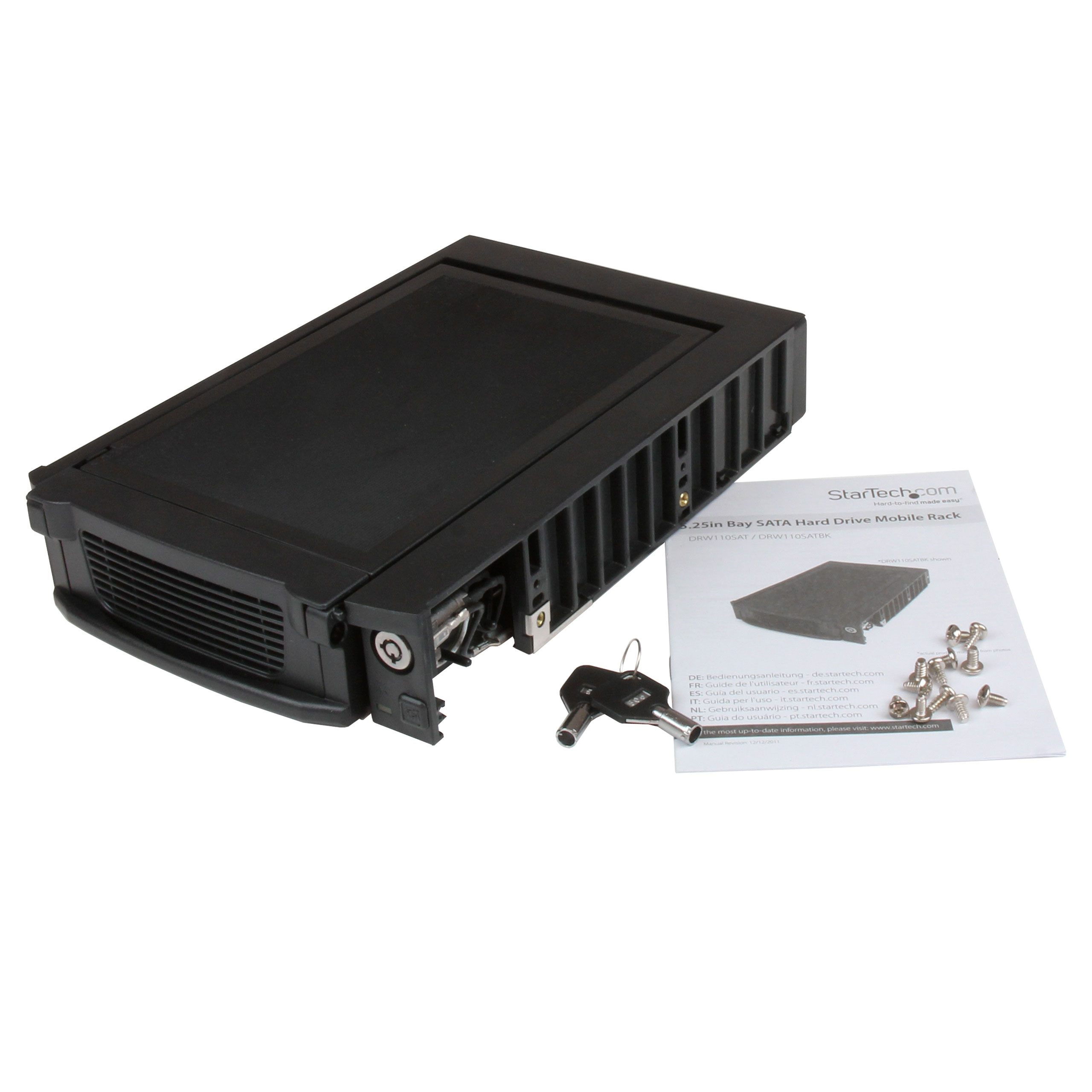

Replacement Product DRW115SATBK Color Black Material Plastic Product Length (mm) 220 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 530 TAA Compliant No OS Compatibility OS Independent Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 40 mm Fans Included? Yes/No Yes Front Door Key Lock Yes LED Indicators 1 - Power (Green) Number of Drives 1 Carton Depth (mm) 510 Carton Height (mm) 250 Carton Quantity 20 Carton Weight Gross (g) 12600 Included in Package - 1 - 5.25in Mobile Rack Bay
- 1 - Bag of mounting screws
- 1 - 3.5in Mobile Rack Caddy
- 1 - Instruction Manual
- 2 - Keys
Package Depth (mm) 48 Package Height (mm) 234 Package Width (mm) 154 Package Quantity 1 Package Weight (g) 570 Packaging Description Black 5.25in SATA Hard Drive Mobile Rack Packaging Description India Black 5.25in SATA Hard Drive Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
