Product Name Black Rugged ATA133 Cushion Drive Drawer Product Number DRW113ATABK UPC 065030795395 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) Black 3.5in IDE Hard Drive Mobile Rack Product Title (Standard) StarTech.com Black 3.5in IDE Hard Drive Mobile Rack for 5.25in Bay 2x fan - Storage mobile rack - black Product Title (Long) Black 3.5in IDE Hard Drive Mobile Rack for 5.25in Bay 2x fan Title Ingram (Part 1) Black 3.5in IDE Hard Drive Mobil Title Ingram (Part 2) e Rack for 5.25in Bay 2x fan Bullet 1 Secure and affordable solution to store and transfer data Bullet 2 Two Ball-bearing fans maintains optimum cooling and increased air flow Bullet 3 Bay is built with a key lock mechanism to prevent the hard drive form being accidentally removed while in operation Bullet 4 LED indicators continuously show operating status of the drive drawer Bullet 5 The caddy is constructed with aluminum for maximum durability Marketing Copy Applications - Medium duty model made out of Aluminum and plastic is ideal for use in homes, offices, schools and government institutions
- Can be conveniently used as a mobile back up system
- Fast and easy way to make backup copies of your files, applications, company’s critical data and for transporting databases and other large files from one location to another
- For use in servers and storage subsystems
- Perfect for mission critical control computers where downtime must be minimized
Accessory Products - DRW113CADBK
- DRW113BAYBK
Related Products - DRW110ATABK
- DRW115ATABK
Color Black Material Aluminum Product Length (mm) 220 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 660 TAA Compliant No General Specifications - HD Compatibility: All 3.5 Inch IDE Hard Drives
- CPU Compatibility: PC or MAC with a 5.25 Inch Drive Bay
- Weight (w/o drive): 1.15 lbs (0.53 kg)

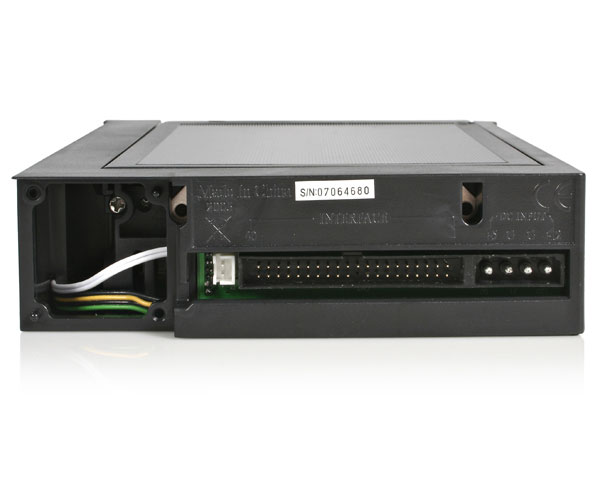

- Internal Connector:
- Header: 40 Pin Female
- LP4: 4 Pin Female
- External Connector:
- Header: 40 Pin Male
- LP4: 4 Pin Male
- Drive Drawer Dimensions:
- Inches: 8.6 x 5.75 x 1.61
- Millimeters: 220 x 148 x 41
- LED Indicators:
- Drive Activity: Yellow
- Drive Power: Green

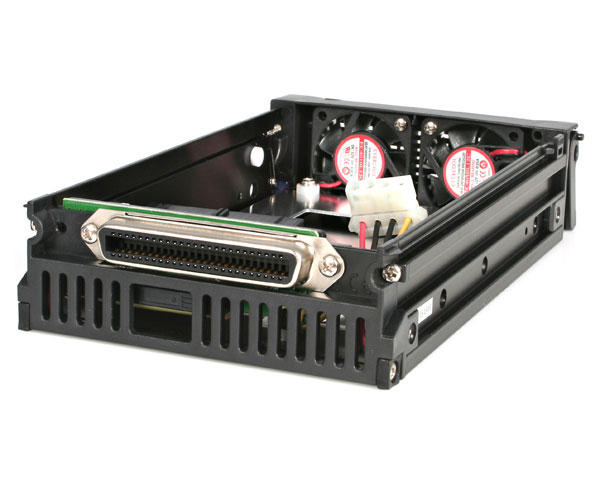

- Cooling Fan: Ball-Bearing Fan
- Fan Enclosure: Plastic
- Drive Drawer Enclosure: Aluminum
- Enclosure Color: Black
- Fan Dimensions:
- Inches: 1.57x1.57x0.39
- Millimeters: 40x40x10
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
- Drive Drawer Bay: Plastic
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
Carton Depth (mm) 550 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 16200 Package Depth (mm) 235 Package Height (mm) 54 Package Width (mm) 160 Package Weight (g) 750 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
