DRW113SATBK
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images

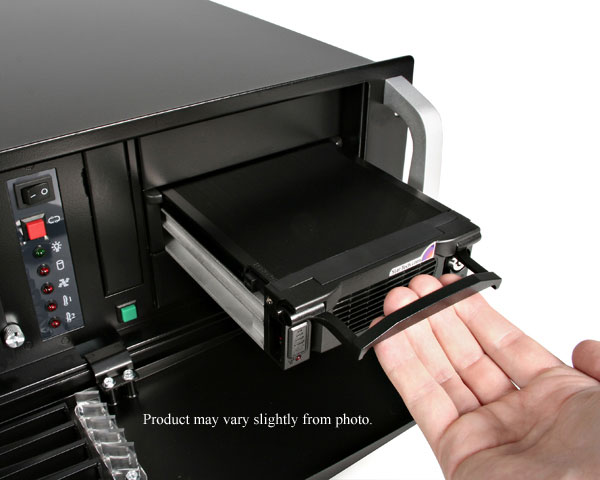

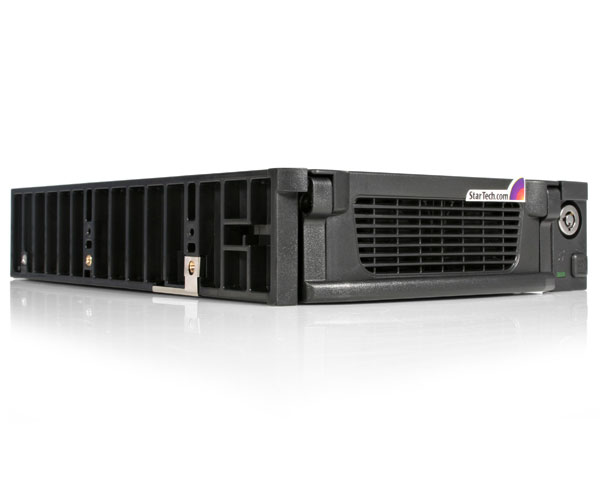

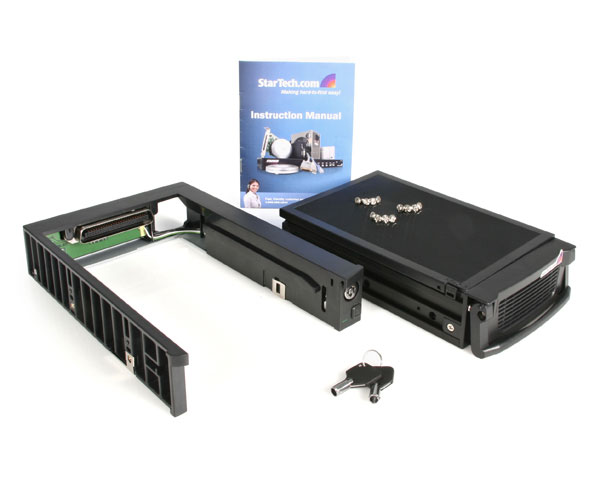

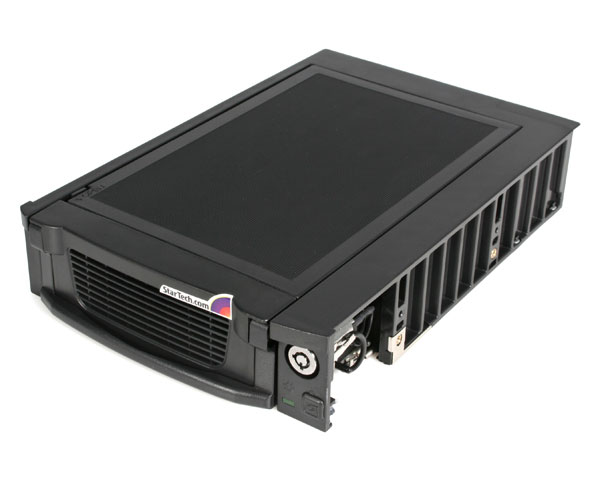

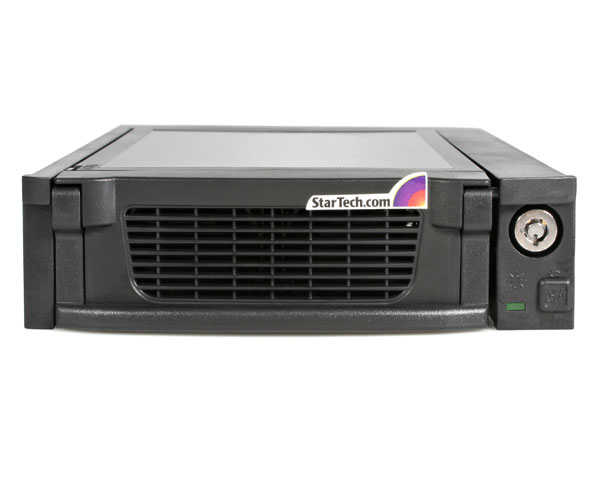

Product Name Black Rugged SATA150 Drive Drawer Product Number DRW113SATBK UPC 065030799720 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) Black 5.25in SATA HDD Mobile Rack Drawer Product Title (Standard) 5.25in Durable SATA Hard Drive Mobile Rack Drawer Product Title (Long) Black Aluminum 5.25in Durable SATA Hard Drive Mobile Rack Drawer Title Ingram (Part 1) Black Aluminum 5.25in Durable SA Title Ingram (Part 2) TA Hard Drive Mobile Rack Drawer Bullet 1 Fits a single SATA drive into a front accessible 5.25" bay Bullet 2 Aluminum and plastic construction for the drive caddy and bay Bullet 3 Key lockable drive caddy Bullet 4 Rubber shock absorbers Bullet 5 3,000+ insertion rating Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE backplane with a SATA backplane
- System builders who need to image many drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Accessory Products - DRW113CADSBK
- DRW11XKEYS
Related Products DRW113SAT Color Black Material Aluminum Product Length (mm) 220 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 660 TAA Compliant No General Specifications - HD Compatibility: All 3.5 Inch SATA, SATA II, SATA III Drives
- CPU Compatibility: PC or Mac with a 5.25 Inch Drive Bay
- Weight (w/o drive): 1.45 lbs (0.66 kg)

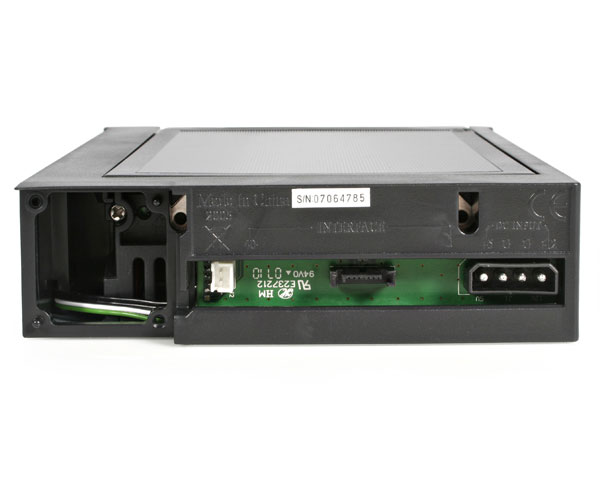

- Connectors:
- Internal: SATA Data Male + SATA Power Male
- External: Header – SATA Data Female + Molex Female (LP4)
- Temperature: Normal - Green & Overheat - Red
- Dimensions:
- : Inches: 8.6 x 5.75 x 1.61
- : Millimeters: 220 x 148 x 41

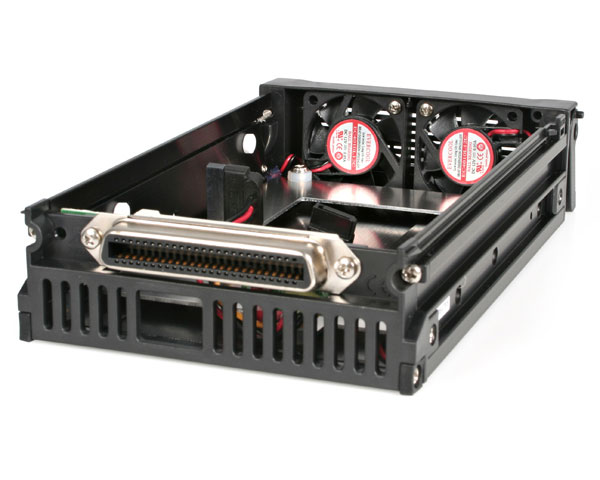

- Cooling Fan: 2 x Ball-Bearing Fan
- Fan Enclosure: Plastic
- Drive Drawer Enclosure: Plastic Bay with Aluminum Caddy
- Enclosure Color: Black
- Fan Dimensions: Inches: 1.57 x 1.57 x 0.39 Millimeters: 40 x 40x 10
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
MTBF (hours) 80,000 Hours Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators 1 - Power Carton Depth (mm) 550 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 16000 Package Depth (mm) 54 Package Height (mm) 238 Package Width (mm) 162 Package Weight (g) 740 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager David Muzinic
