Product Name Pro ATA133 Cushioned Drive Drawer Product Number DRW115ATA UPC 065030794794 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 5.25 Aluminum ATA Hard Drive Mobile Rack Product Title (Standard) StarTech.com Beige 5.25in Aluminum ATA Hard Drive Mobile Rack with 2x 40mm Fans - IDE Removable Hard Drive Drawer DRW115ATA - Storage mobile rack Product Title (Long) Beige 5.25in Aluminum ATA Hard Drive Mobile Rack with 2x 40mm Fans Title Ingram (Part 1) Beige 5.25" Aluminum ATA Hard Dr Title Ingram (Part 2) ive Mobile Rack w/ 40mm Fans Bullet 1 Can be mounted from the side or the bottom Bullet 2 Shock absorbers protect the hard drive Bullet 3 Dual front mounted ball bearing cooling fans keep the drive cool Bullet 4 Lock controlled drive power prevents hard drive damage from accidental removal Bullet 5 Power and activity lights report on the drive status Marketing Copy Applications - Heavy duty model is ideal for use in offices, large enterprises, universities, government institutions or other environments requiring heavy usage
- Fast and easy way to make backup copies of your files, applications, company’s critical data and for transporting databases and other large files from one location to another
- Great for use in servers and storage subsystems
- Perfect for mission critical control computers where downtime must be minimized
Website Search Keyword - RoHS
- IDE66PRODRWR
- DE100
- DE110
- DE1001-A100
- SC20B123
- S21B100
- SC21B100
- StorCase
Accessory Products - DRW115CAD
- DRW115BAY
Related Products - DRW110ATA
- DRW113ATA
Color Beige Material Aluminum Product Length (mm) 236 Product Width (mm) 146 Product Height (mm) 41 Product Weight (g) 980 TAA Compliant No General Specifications - Dimensions: 9.25 x 5.75 x 1.61 Inches (236 x 148 x 41 mm)
- Weight (without drive): 2.15 lbs (0.98 kg)
- Internal Connectors: 40 Pin Header Female, 4 Pin LP4 Female

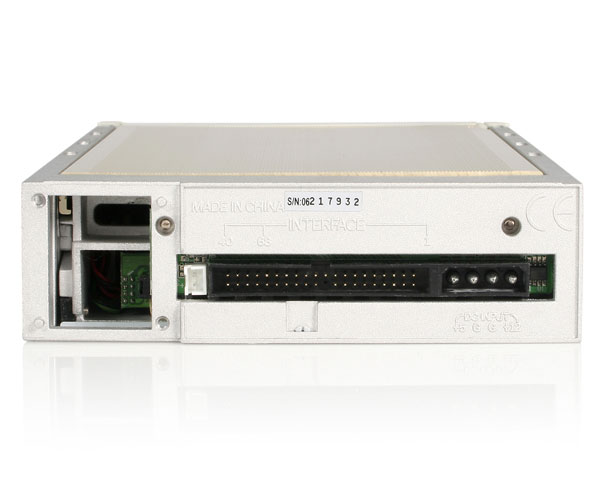

- External Connectors: 40 Pin Header Male, 4 Pin LP4 Male
- LEDs: Green - Drive power, Yellow - Drive Activity, Lower Red - Fan Status, Red “H” – High Temperature warning, Green “N” – Normal Operating Temperature
- Fans: Two front-mounted 4cm ball bearing fans
- System requirements: Any PC or Mac with an IDE Hard Drive interface and an available 5.25 inch drive bay
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Hot Swap Capability Yes Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Fan Failure
- 1 - Temperature Warning
Carton Depth (mm) 550 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 23200 Package Depth (mm) 50 Package Height (mm) 255 Package Width (mm) 160 Package Weight (g) 1100 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
