DRW115ATABK
Black Pro ATA133 Cushion Drive Drawer
Swap IDE hard drives in and out of a server, quickly and safely
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Black Pro ATA133 Cushion Drive Drawer Product Number DRW115ATABK UPC 065030795401 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 5.25 Aluminum ATA Hard Drive Mobile Rack Product Title (Standard) StarTech.com Professional 5.25in Aluminum ATA Hard Drive Mobile Rack w/ 2x 40mm Fan Product Title (Long) Professional 5.25in Aluminum ATA Hard Drive Mobile Rack w/ 2x 40mm Fan Product Title (AMZ) Professional 5.25in Aluminum ATA Hard Drive Mobile Rack w/ 2x 40mm Fan (DRW115ATABK) Title Ingram (Part 1) 5.25in Aluminum ATA Hard Drive M Title Ingram (Part 2) obile Rack w/ 40mm Fan Website Product Headline Swap IDE hard drives in and out of a server, quickly and safely Bullet 1 Can be mounted from the side or the bottom Bullet 2 Two ball-bearing fans maintain optimum cooling and increased air flow Bullet 3 Caddy is built with a key lock mechanism to prevent the hard drive form being accidentally removed while in operation Bullet 4 4 LED indicators continuously show operating status of the drive drawer Bullet 5 The frame and caddy is constructed with aluminium for maximum durability Marketing Copy Applications - Can be conveniently used as a mobile back up system
- Heavy duty model made out of aluminum is ideal for use in offices, enterprises, workstations, universities, government organizations or other environments with heavy work loads and usage
- For use in servers and storage subsystems
- Perfect for mission critical control computers where downtime must be minimized
Website Search Keyword - DE100
- DE110
- DE100I-A100/B
- SC20B126
- S21B103
- SC21B103
Special Notes Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated Accessory Products - DRW115CADBK
- DRW115BAYBK
Related Products - DRW110ATABK
- DRW113ATABK

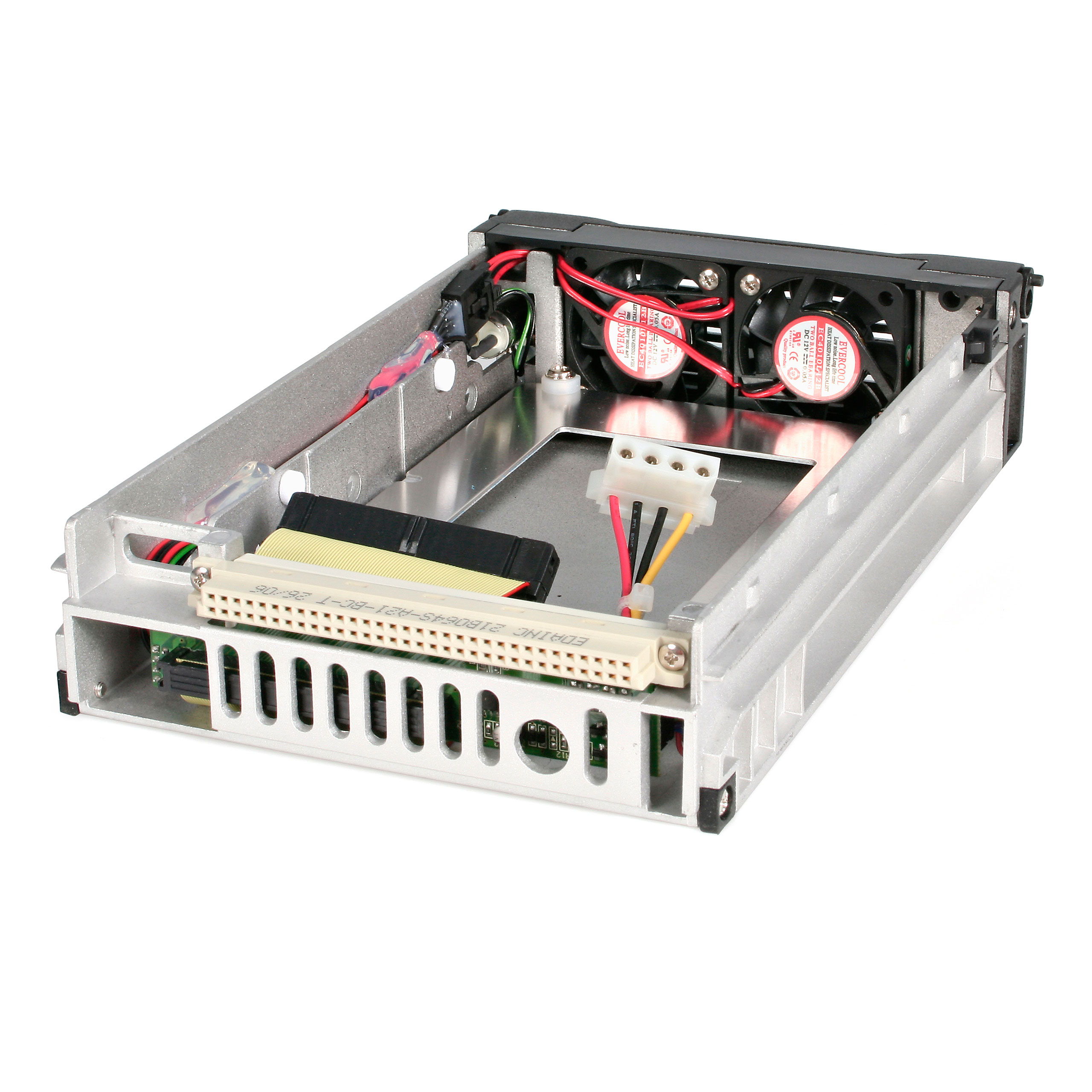

Color Black Material Aluminum Product Length (mm) 236 Product Width (mm) 146 Product Height (mm) 41 Product Weight (g) 980 TAA Compliant No Hot Swap Capability Yes Compatible Drive Types IDE (ATA) Fan Bearing Type Ball Bearing Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power (Green)
- 1 - Activity (Yellow)
- 1 - Fan Failure (Red)
- 1 - Temperature Warning (Green/Red)

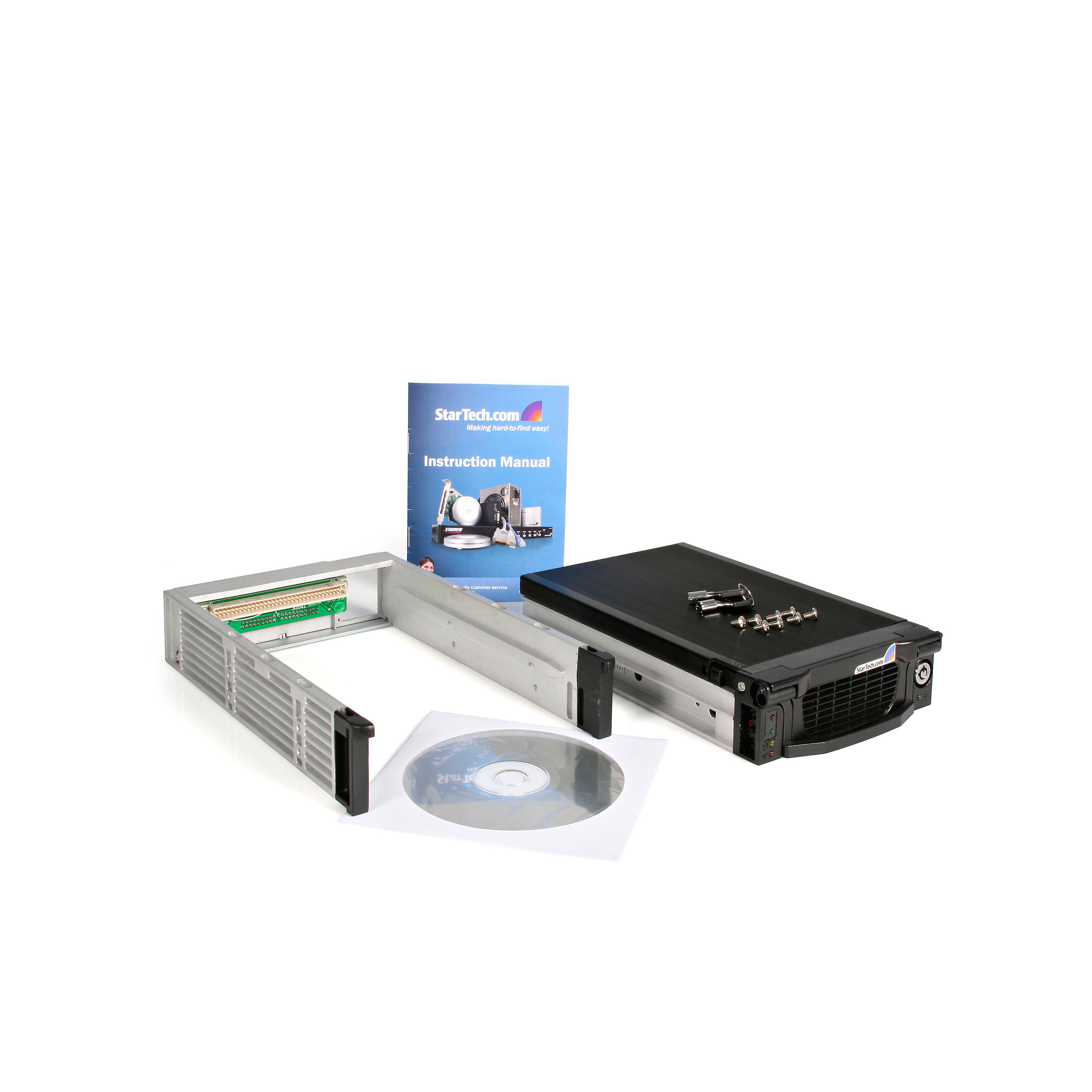

Carton Depth (mm) 550 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 23200 Included in Package - 1 - 5.25in Bay
- 8 - Mounting Screws
- 1 - Software CD
- 1 - Hard Drive Caddy
- 2 - Key
- 1 - Instruction Manual

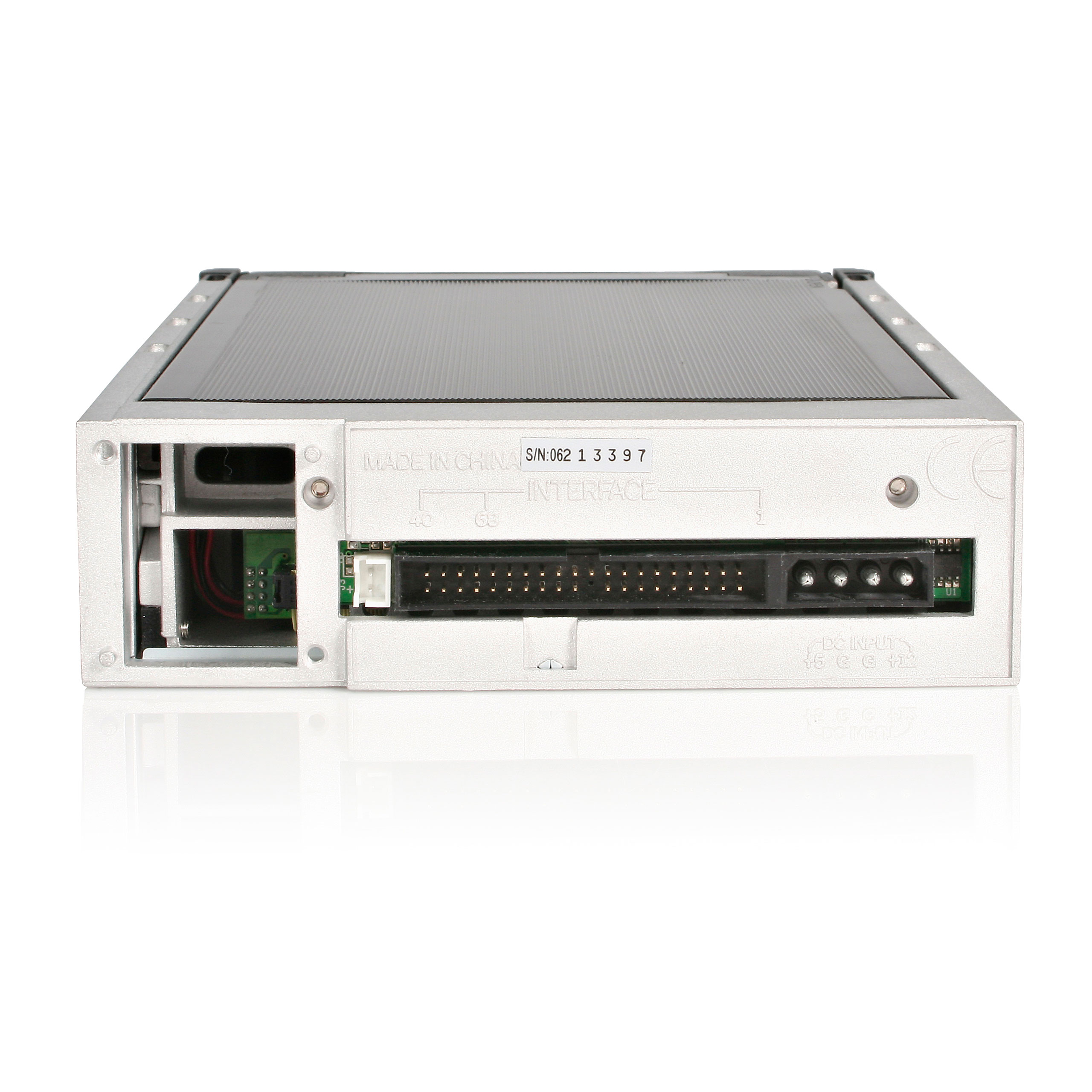

Package Depth (mm) 49 Package Height (mm) 255 Package Width (mm) 160 Package Weight (g) 1100 Packaging Description Aluminum 5.25 IDE Hard Drive Mobile Rack Packaging Description India Aluminum 5.25 IDE Hard Drive Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
