DRW115SATBK
Black Aluminum Serial ATA Cushioned Drive Drawer

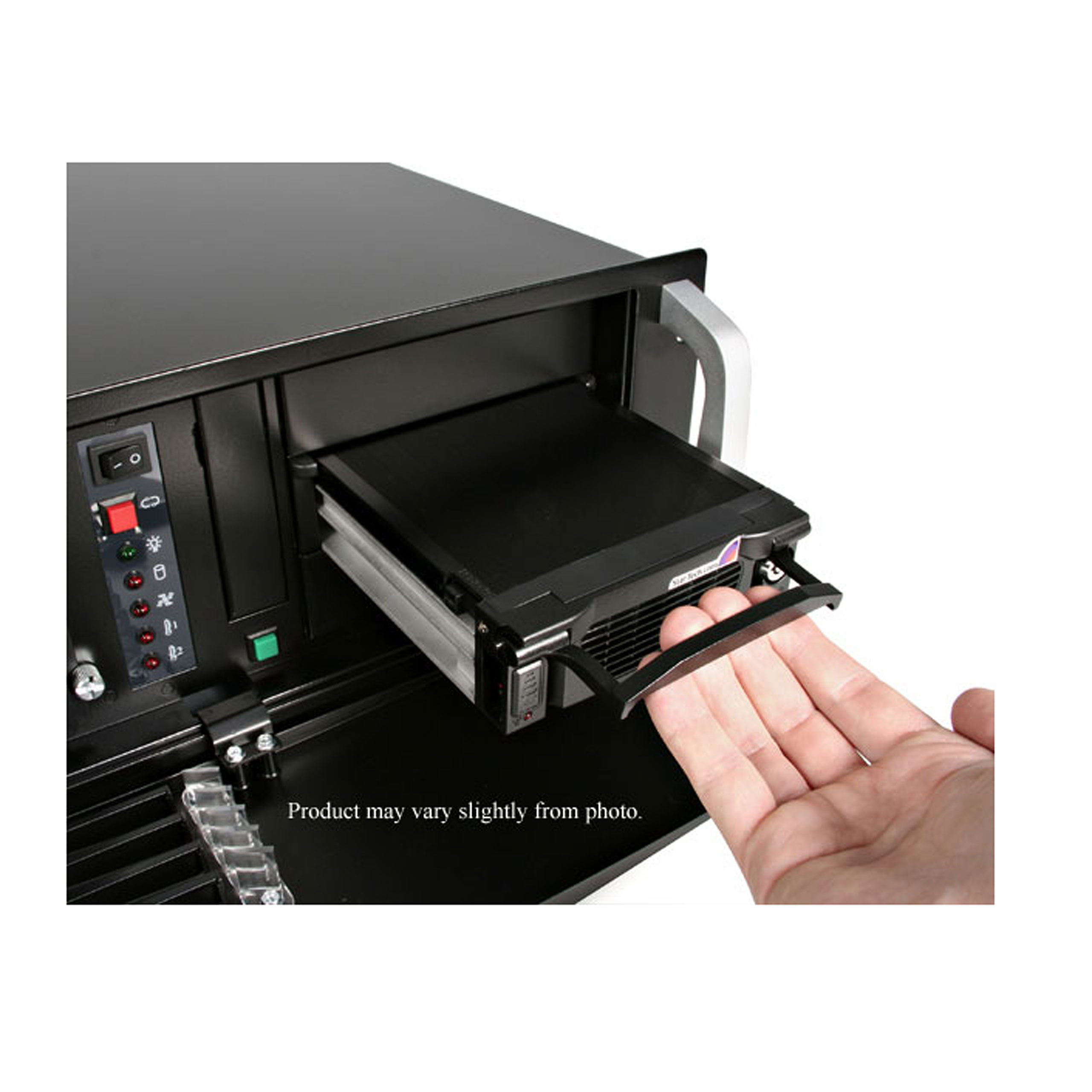

Swap SATA hard drives in and out of a PC or server, quickly and securely
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Black Aluminum Serial ATA Cushioned Drive Drawer Product Number DRW115SATBK UPC 065030799713 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) Black 5.25in SATA HDD Drawer Mobile Rack Product Title (Medium) x Product Title (Standard) StarTech.com SATA Hard Drive Mobile Rack Drawer with Shock Absorbers - Professional Series - Storage bay adapter with fan - black Product Title (Long) Black Aluminum 5.25in Professional SATA Hard Drive Mobile Rack Drawer Product Title (AMZ) Black Aluminum 5.25in Professional SATA Hard Drive Mobile Rack Drawer (DRW115SATBK) Title Ingram (Part 1) 5.25in Professional SATA Hard Dr Title Ingram (Part 2) ive Drawer Mobile Rack Website Product Headline Swap SATA hard drives in and out of a PC or server, quickly and securely Bullet 1 Fits a single SATA drive into a front accessible 5.25" bay Bullet 2 Heavy duty aluminum construction for the drive caddy and bay Bullet 3 Key lockable drive caddy Bullet 4 Rubber shock absorbers Bullet 5 7,000+ insertion rating Bullets (Consolidated) Swap SATA hard drives in and out of a PC or server - quickly and securely - 3.5in SATA Mobile Rack - Hard Drive Mobile Rack - HDD Mobile Rack -Removable Hard Drive Bay - Black Aluminum 5.25in Professional SATA Hard Drive Mobile Rack Drawer - Key Lockable Drive Caddy Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE backplane with a SATA backplane
- System builders who need to image many drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - DE110
- SC21J150
- S21J103
- StorCase
- DRW115SAT
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated System and Cable Requirements PC or Mac with a 5.25 Inch Drive Bay Accessory Products - DRW115CADSBK
- DRW11XKEYS

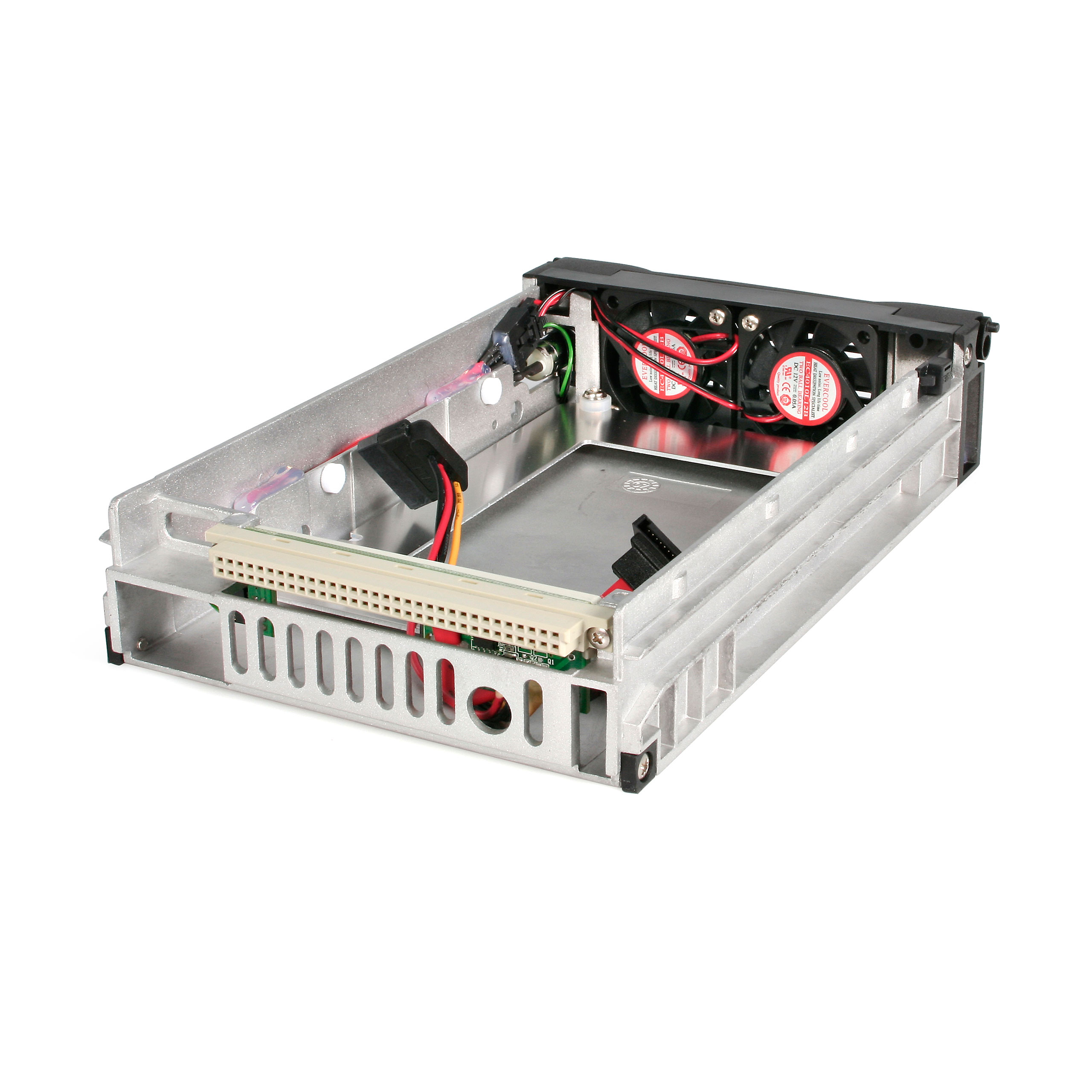

Related Products DRW115SAT Replacement Product DRW150SATBK Color Black Humidity 10% ~ 80% RH Material Aluminum Operating Temperature -5°C to 50°C (23°F to 122°F) Product Length (mm) 220.000 Product Width (mm) 148.000 Product Height (mm) 41.000 Product Weight (g) 956.000 Storage Temperature -20°C to 65°C (-4°F to 149°F) TAA Compliant No OS Compatibility OS Independent Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power (Green)
- 1 - Fan Failure (Red)

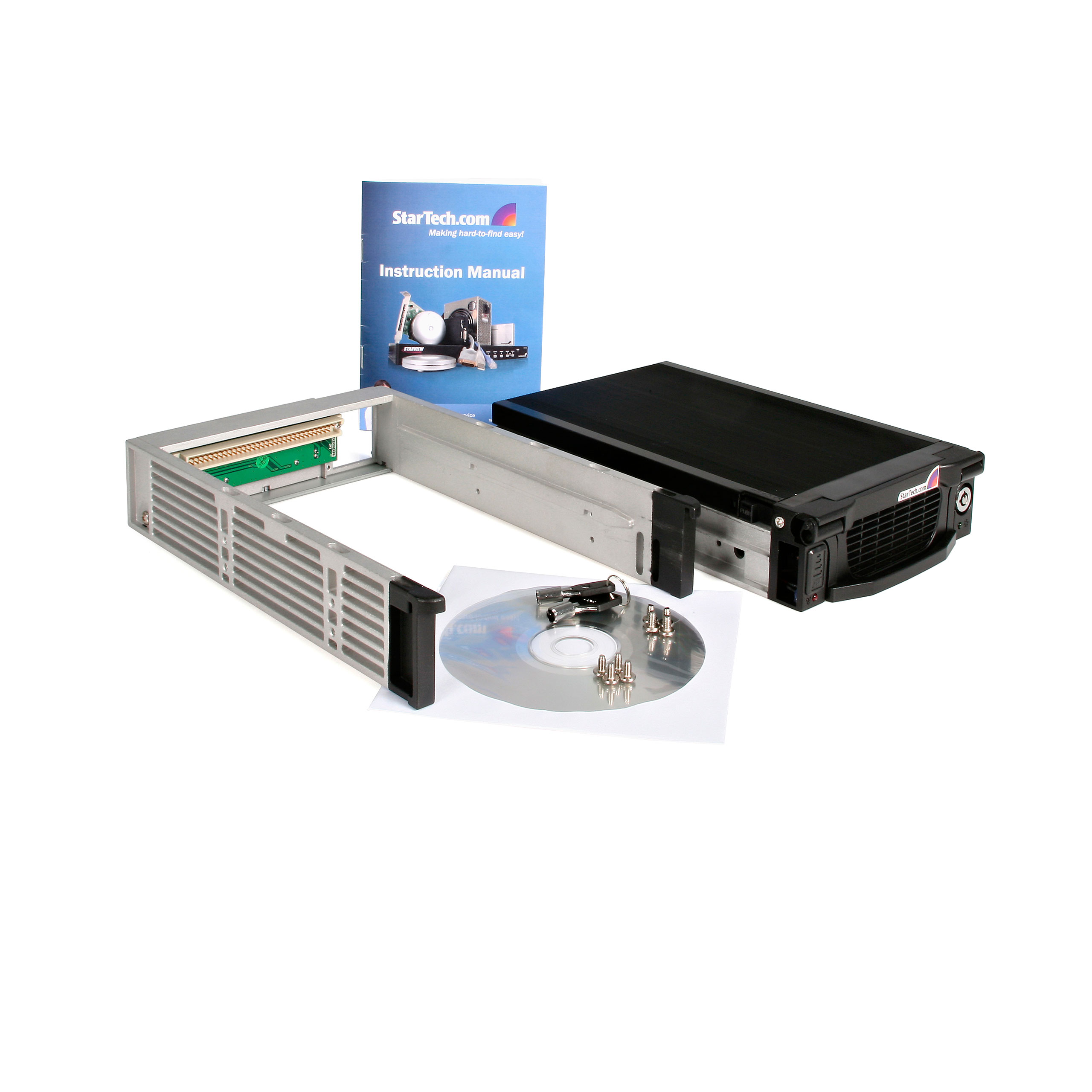

Carton Depth (mm) 277 Carton Height (mm) 353 Carton Quantity 20 Carton Weight Gross (g) 22134 Included in Package - 1 - 5.25" Mobile Rack Bay
- 2 - Key
- 1 - Instruction Manual
- 1 - Screw kit
- 1 - Mobile Rack Caddy
- 1 - Software CD

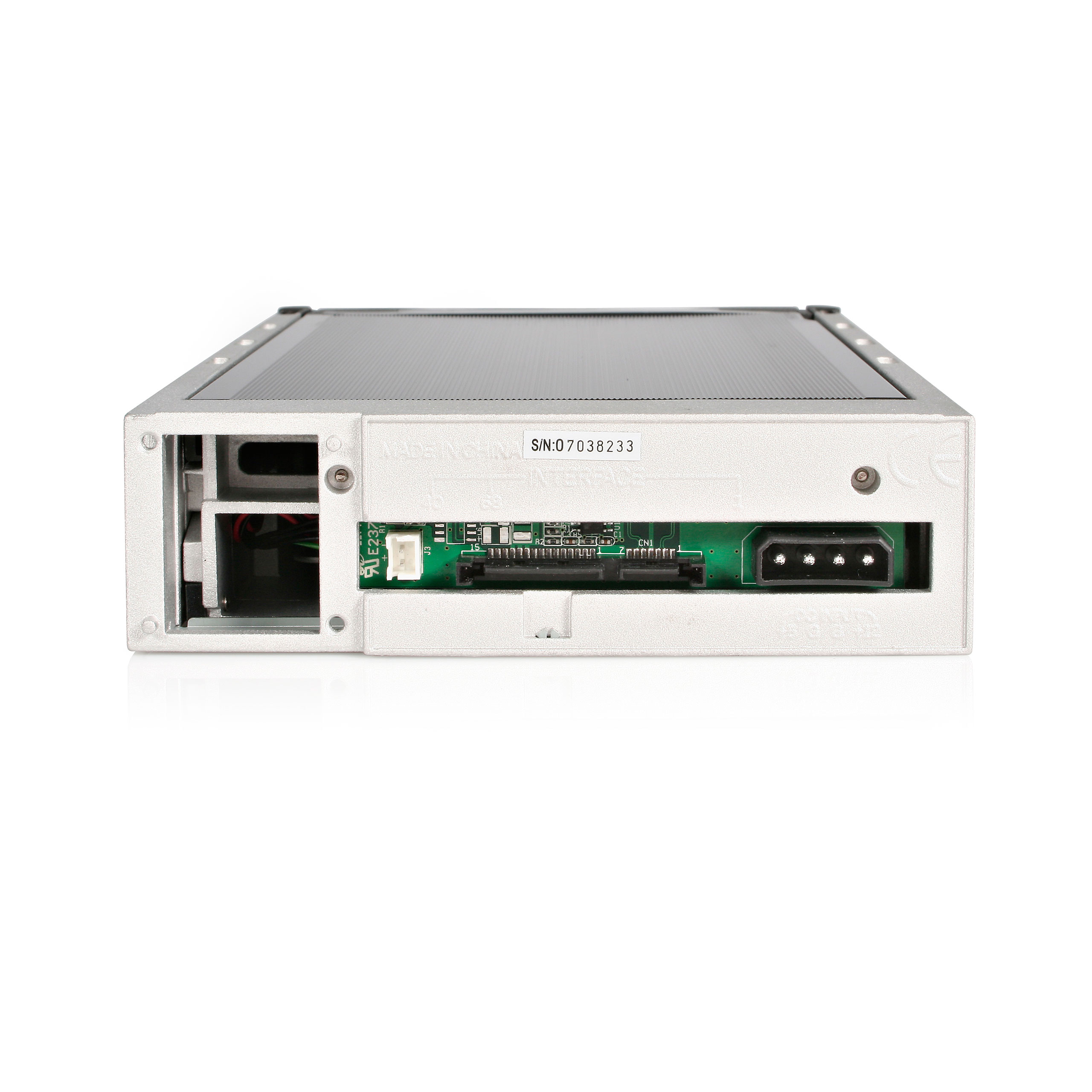

Package Depth (mm) 160 Package Height (mm) 47 Package Width (mm) 249 Package Quantity 1 Package Weight (g) 1057 Packaging Description Black 5.25in SATA HDD Mobile Rack Packaging Description India Black 5.25in SATA HDD Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Host Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 1 Host Connector 3 SATA (7-Pin) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
