DRW150SASBK

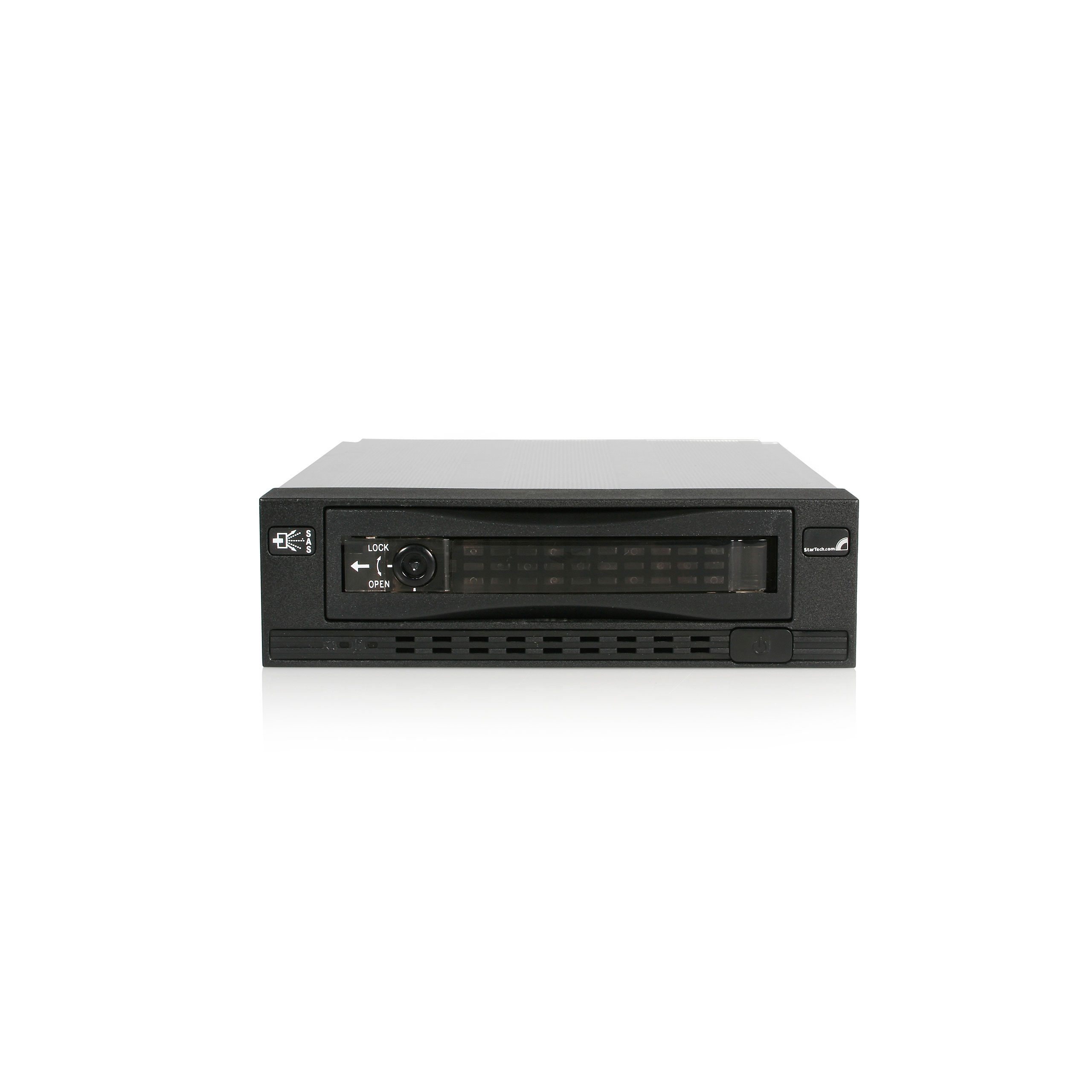

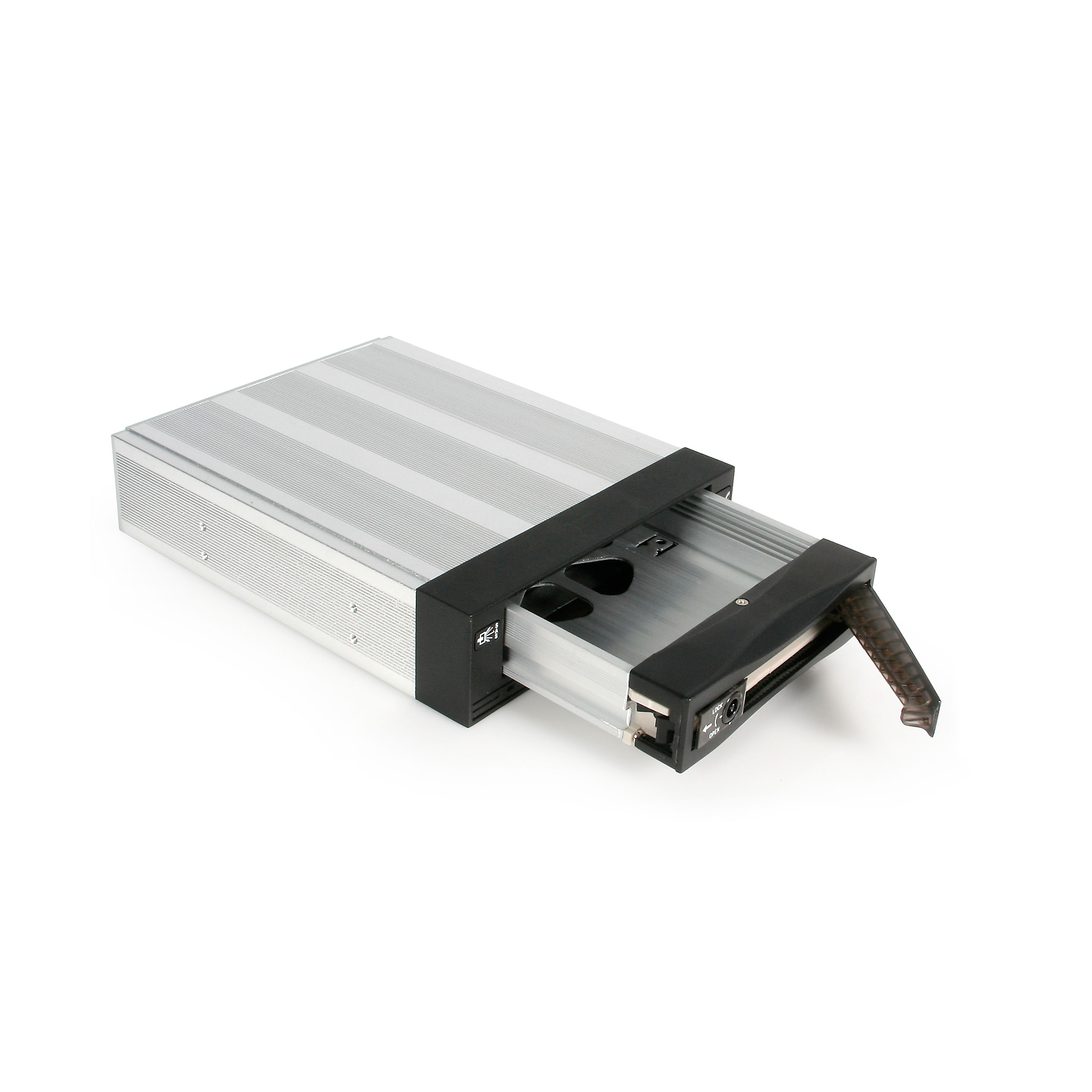

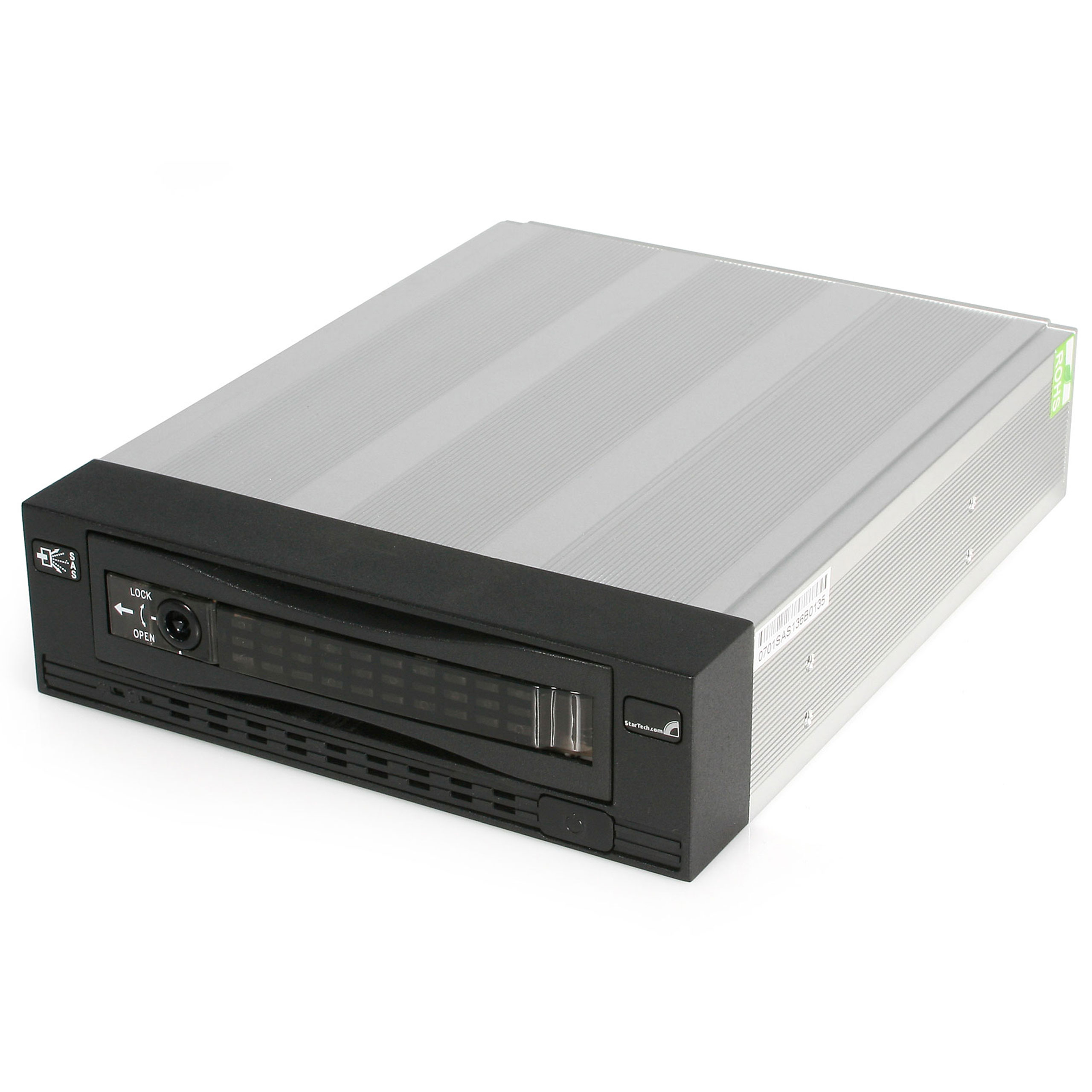

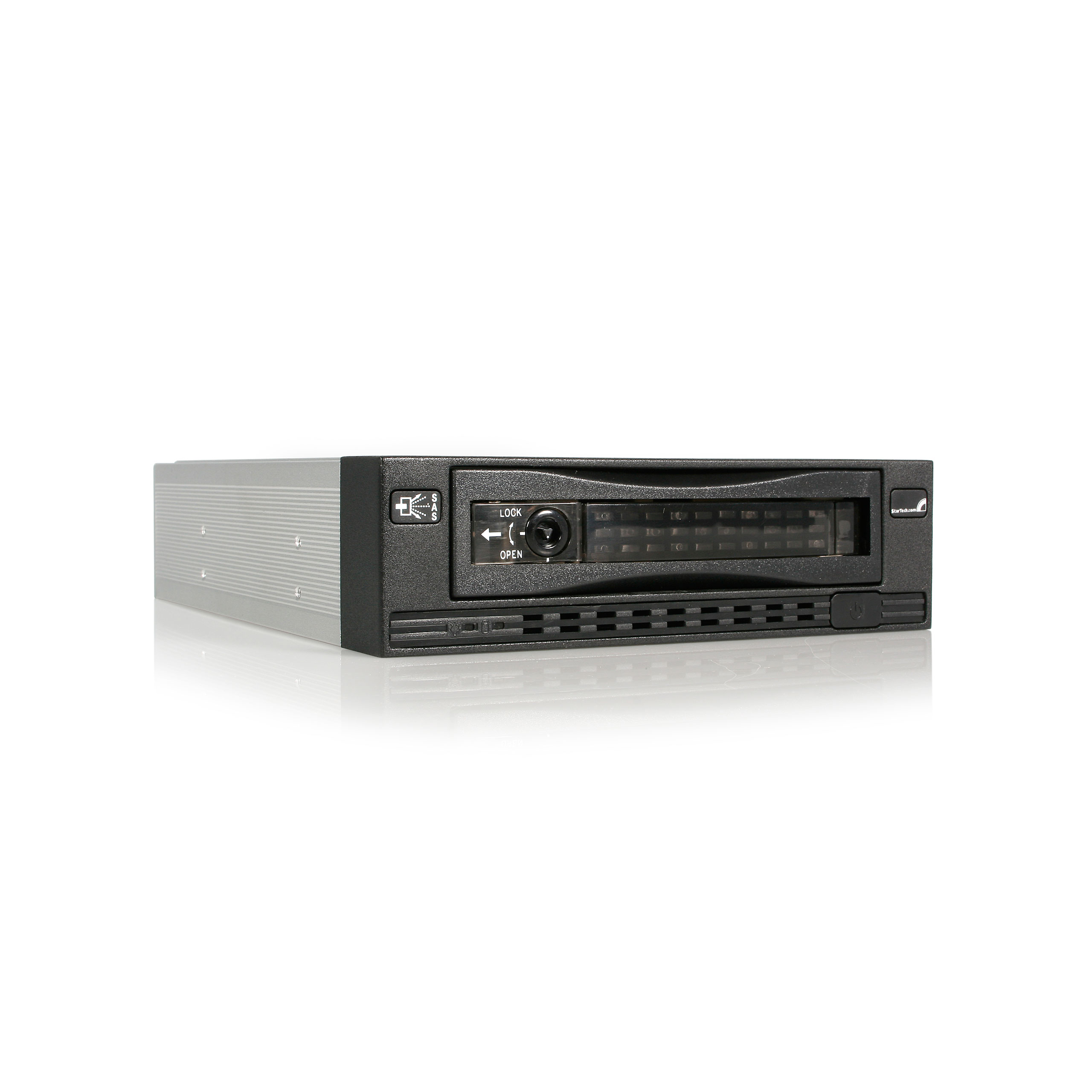

Black Serial Attached SCSI Removable Drive Drawer
Swap SATA/SAS hard drives in and out of a computer, quickly and securely
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Black Serial Attached SCSI Removable Drive Drawer Product Number DRW150SASBK UPC 065030820769 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Short) 3.5" SATA SAS Removable HDD Mobile Rack Product Title (Standard) Black 3.5in SATA SAS Removable Hard Drive Mobile Rack for 5.25in Bay Product Title (Long) Black 3.5in SATA SAS Removable Hard Drive Mobile Rack for 5.25in Bay Product Title (AMZ) Black 3.5in SATA SAS Removable Hard Drive Mobile Rack for 5.25in Bay - 3.5 SATA mobile Rack HDD Bay (DRW150SASBK) Title Ingram (Part 1) Black 3.5in SATA SAS Removable H Title Ingram (Part 2) ard Drive Mobile Rack Website Product Headline Swap SATA/SAS hard drives in and out of a computer, quickly and securely Bullet 1 Fits a single SATA drive into a front accessible 5.25" bay Bullet 2 Durable aluminum construction for the drive caddy and bay Bullet 3 Key lockable drive caddy Bullet 4 Rubber shock absorbers Bullet 5 25,000+ insertion rating Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE or SATA only backplane with a SAS/SATA backplane
- System builders who need to image many drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - SAS
- Serial Attached
- SCSI
- SATA
- RoHS
- DX115
- SC22M104
- StorCase
- removable drive enclosure
- mobile rack
- 1.5 terabyte hard drive
Special Notes Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated Accessory Products SATATRAYBK Related Products DRW150SCSI Color Black Material Aluminum Product Length (mm) 224 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 980 TAA Compliant No Insertion Rating 25, 000 Cycles Compatible Drive Types SAS Fan Bearing Type Ball Bearing Fans 1 - 40 mm LED Indicators - 1 - Activity (Yellow)
- 1 - Power (Green)

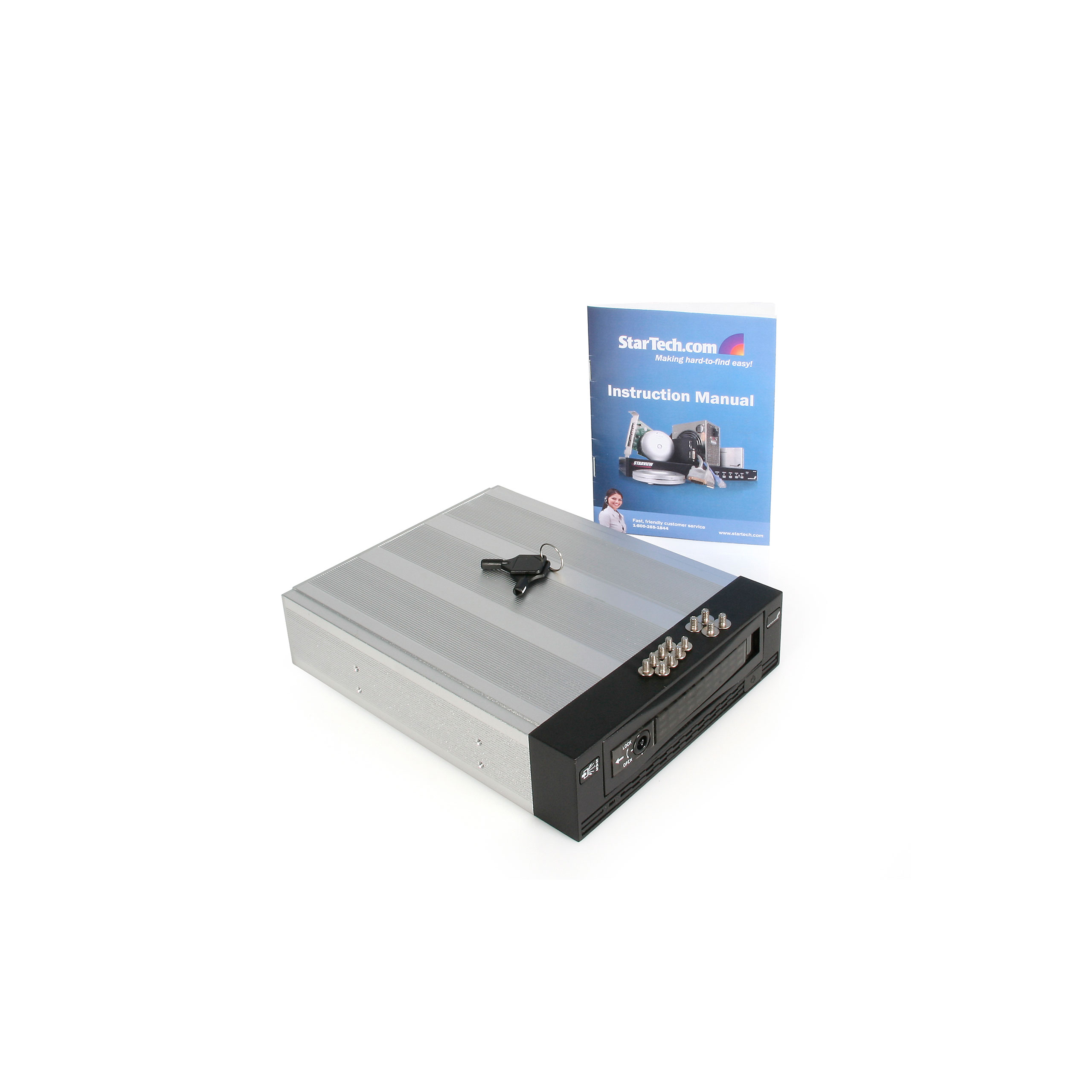

Number of Drives 1 Carton Depth (mm) 550 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 17200 Included in Package - 1 - SATA/SAS Mobile Rack
- 1 - Instruction Manual
- 1 - 7 pin SATA Data cable
- 1 - Screw Kit
- 1 - LED Cable
- 2 - Key
Package Depth (mm) 47 Package Height (mm) 152 Package Width (mm) 195 Package Weight (g) 800 Packaging Description 5.25" Bay to 3.5" SATA/SAS Mobile Rack Packaging Description India 5.25" Bay to 3.5" SATA/SAS Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8482 (29-Pin, SAS) Connector 1 (Quantity) 1 Host Connector 1 SFF-8482 (29-Pin, SAS) Host Connector 1 (Quantity) 1 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
