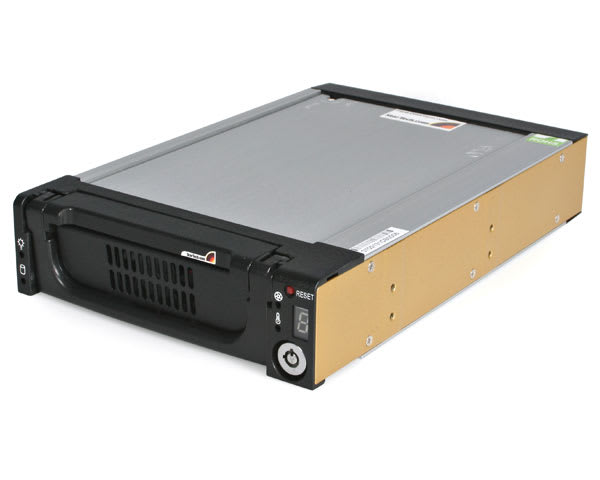

Product Name Black SCA 80 to 68 pin U320 Drive Drawer Product Number DRW150SCABK UPC 065030795487 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Long) Black 3.5in SCA 80 to 68 pin U320 Hard Drive Mobile Rack for 5.25in Bay Bullet 1 Supports Ultra 160 & 320 SCA hard drives with data transfer rates up to 320 MBytes/sec Bullet 2 Provides exceptional performance and value for servers, workstations and storage subsystems Bullet 3 Secure and affordable solution to store and transfer data Bullet 4 Two Ball Bearing fans, front and rear, maintain optimum cooling and increased air flow Bullet 5 Bay is built with a key lock mechanism to prevent the hard drive from being accidentally removed while in operation Marketing Copy Applications - Can be conveniently used as a mobile back-up system
- Excellent for use in servers, storage subsystems and high-end workstations
- Optimal for mission critical control PCs where downtime must be minimized
- Ideal for environments using RAID storage applications which includes multimedia, video streaming and digital broadcasting
Website Search Keyword - DE100
- DE200
- ino
- RJR110
- DE100I-SWC160/B
- DE200I-SWC160/B
- S21A110
- SC21A110
- StorCase
- removable drive enclosure
- mobile rack
Related Products DRW150SCA Color Black Material Aluminum Product Length (mm) 224 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 860 TAA Compliant No General Specifications - HD Compatibility: All 3.5 Inch SCSI Hard Drives including Ultra160 & Ultra320
- CPU Compatibility: PC or Mac with a 5.25 Inch Drive Bay
- Weight (w/o drive): 1.90 lbs (0.86 kg)

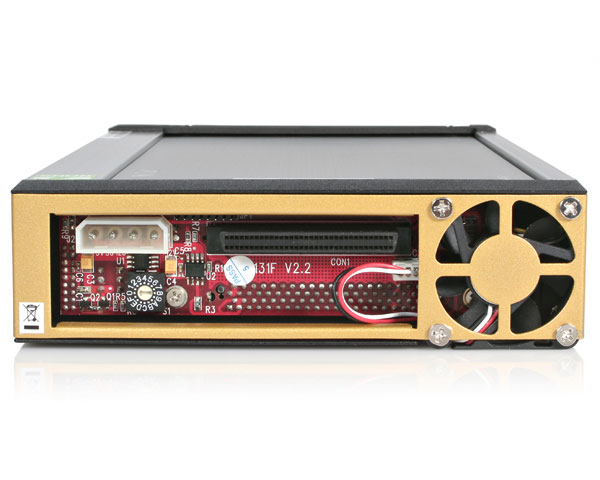

- Connectors:
- Internal: Header – 80 Pin Female & LP4 – 4 Pin Female
- External: Header – 68 Pin Male & LP4 – 4 Pin Male
- Drive Drawer Dimensions:
- Inches: 8.85 x 5.75 x 1.61
- Millimeters: 224 x 148 x 41
- LED Indicators:
- Drive Activity: Yellow
- Drive Power: Green
- Fan Status:: Fan Failure - Red & Standby Fan – Green
- Temperature: Normal - Green & Overheating – Red
- Cooling Fan: 2 Ball-Bearing Fans
- Drive Drawer Enclosure: Aluminum
- Enclosure Color: Black
- Fan Dimensions: Inches: 1.57 x 1.57 x 0.39 (40 x 40 x 10 mm)
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Fan Failure
- 1 - Temperature Warning
Carton Depth (mm) 550 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 20800 Package Depth (mm) 46 Package Height (mm) 238 Package Width (mm) 156 Package Weight (g) 980 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SCA SCSI (80-Pin) Connector 1 (Quantity) 1 Connector 2 HPDB68 SCSI-3 (68-Pin) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
