DS128
1 to 8 Digital Signage Distribution Amp
Extend and centrally manage VGA video, audio and RS232 control signals to multiple displays
Main Image
Product Images
Product Images
BOM Image
Product Name 1 to 8 Digital Signage Distribution Amp Product Number DS128 UPC 065030837477 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 8 Port VGA Digital Signage Broadcaster Product Title (Standard) StarTech.com 8 Port Cat 5 VGA Digital Signage Broadcaster Product Title (Long) 8 Port VGA over Cat5 Digital Signage Broadcaster with RS232 & Audio Product Title (AMZ) 8 Port DS Series VGA over Cat5 Digital Signage Broadcaster with RS232 & Audio (DS128) Title Ingram (Part 1) 8 Port Cat 5 VGA Digital Signage Title Ingram (Part 2) Broadcaster with Audio Website Product Headline Extend and centrally manage VGA video, audio and RS232 control signals to multiple displays Bullet 1 DS Series 8 Port Broadcaster is able to send out VGA, Audio, and RS-232 signals to the DSRXL receiver Bullet 2 Supports resolutions up to 1600x1200 at 100m / 300ft distance. Ability to go up to a total maximum 300m / 900ft when daisy chaining a maximum of five DSRXL receivers Bullet 3 Included DSNet Manager JAVA based software puts you in control. Software allows access to each receiver to configure system, image quality, power on/off receivers, and turn video or audio off. Marketing Copy Applications - Use digital signage to catch the attention of your audience and deliver up to date content the way you want it to be seen and heard.
- The DS Series can be used in education, healthcare, retail, hospitality, and other environments.
- Broadcast up to 80 displays when daisy chaining receivers. Deliver a VGA, audio and serial signal to each display along with the DSRXL receivers. With RS-232 controls you can control displays from the PC or media player.
Website Search Keyword - 8 Port Broadcaster
- 8 Port Transmitter
- VGA Extender
- VGA and Audio Extender
- VGA, audio, and serial extender
- Video Extender
- Video over Cat5
- Video over Cat 5
- VGA over Cat5
- VGA over Cat 5
- Multi-Media Broadcaster
- Multi-Media Transmitter
- Multi-Media Extender
- Digital Signage System
- VGA Broadcaster
- DS Vision 3000
- Digital Signage Narrowcasting
- Serial controlled
- RS-232 controlled
- Ethernet Control
- LAN Control
- JAVA software
- Control Software
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Up to 5 receiver units can be daisy-chained from the broadcaster unit extending to a maximum distance of 300m System and Cable Requirements Accessory Products - DSRXL
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- MXT101HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- MXT101MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- MXT101MMH100
- SVA5M3NEUA
Related Products - ST128UTPEA
- ST128UTPE
- STUTPEALR
- STUTPRXL

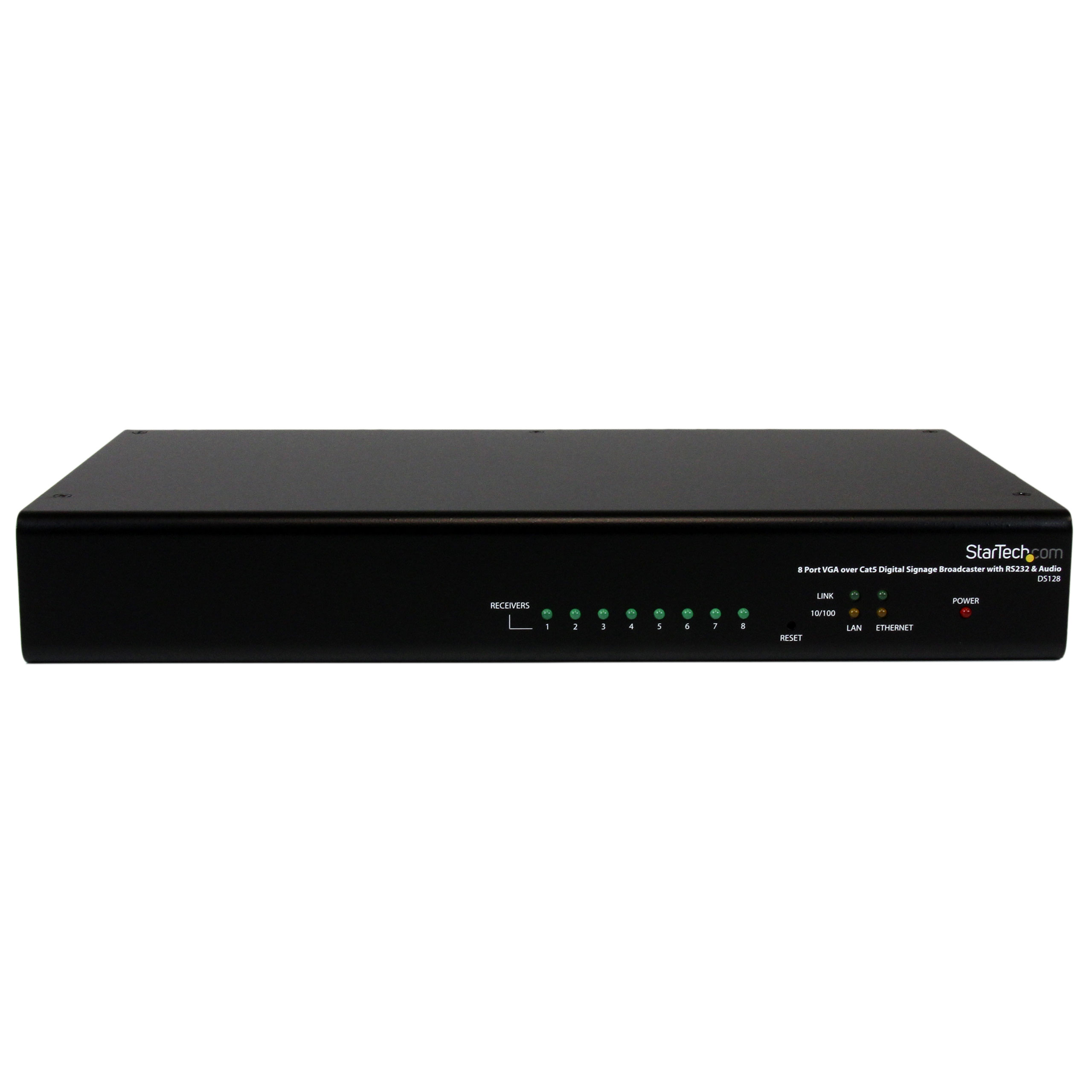

Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~90% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 300.000 Product Width (mm) 160.000 Product Height (mm) 40.000 Product Weight (g) 1400.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Max Distance 300m [984ft] Maximum Analog Resolutions 1600x1200 Maximum Cable Length (mm) 10000 Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP Cascadable Yes Industry Standards DDC/EDID Emulation for port 1 monitor LED Indicators - 1 - Power (Red)
- 2 - Link (Green) - LAN link status
- 2 - 10/100 (Red) - LAN speed
- 8 - Receiver (Green) - Receiver link status
Rack-Mountable Yes Carton Depth (mm) 397 Carton Height (mm) 284 Carton Quantity 2 Carton Weight Gross (g) 6540 Included in Package - 1 - Instruction Manual
- 1 - Digital Signage 8 Port Transmitter
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - DSNet Manager Software CD
- 2 - Rack Mounting Brackets (w/ Screws)
- 1 - VGA Cable
- 1 - 3.5mm Audio Cable
Package Depth (mm) 249 Package Height (mm) 172 Package Width (mm) 320 Package Quantity 1 Package Weight (g) 2670 Packaging Description 8 Port VGA Cat5 Digital Signage Broadcaster Packaging Description India 8 Port VGA Cat5 Digital Signage Broadcaster Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 10 Host Connector 2 VGA Host Connector 2 (Quantity) 1 Host Connector 3 VGA Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 2 Host Connector 5 DB-9 Serial Host Connector 5 (Quantity) 1 Host Connector 6 DB-9 Serial Host Connector 6 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
