DS16100
Main Image

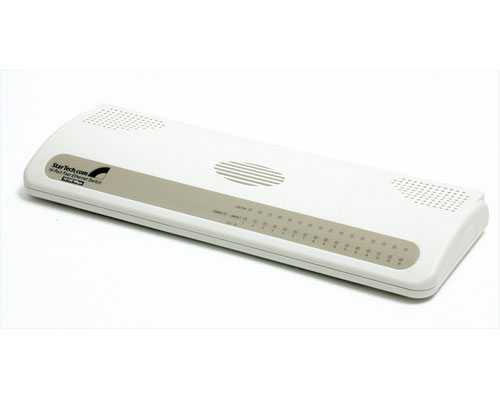

Product Name *Replaced by DS16105* 16 Port Desk 10/1 Product Number DS16100 UPC 065030788564 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Product Title (Long) *D**Replaced by DS16105* 16 Port Desk 10/100 Fast Ethernet Switch Bullet 1 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards Bullet 2 Simple and economical way to bridge 10BaseT network and 100BaseTX network Bullet 3 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex Bullet 4 All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. Bullet 5 Supports store-and-forward switching architecture Marketing Copy Whether you need to mix 10Mbps and 100Mbps connections, or want to extend your network beyond your current cabling length limitations, the StarTech.com full-duplex, 16-Port 10/100-Mbps Ethernet switch will be an invaluable addition to your expanding network. Up to 16 Fast Ethernet hubs or segments can be connected via RJ-45 ports and LED's for each port indicate network status at a glance. Applications - Connect 16 PCs at Full-Duplex 200Mbps speeds
- Easily connect and segment 16 Fast Ethernet hubs
Accessory Products - ET9003SC
- ET9003ST
Related Products - DS8100
- DS5102
TAA Compliant No General Specifications - Standards: IEEE 802.3 10BaseT and 802.3u 100BaseTX
- 10/100Mbps Ports: (16) RJ-45 + 1 uplink
- Switching Architecture: Store and Forward
- Filter/Forward Rate: 148,800 packets/sec.
- MAC Address: 8K
- Buffer Size: 1MB
- Nway Auto-negotiation: on all ports
- Full-Duplex/Half-Duplex: on all ports
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - 16 Port Desk 10/100 Fast Ethernet Switch
- 1 - DC12V Adapter
- 1 - Instruction Manual
- 1 - Bag of screws
Package Depth (mm) 0 Package Height (mm) 0 Package Width (mm) 0 Package Weight (g) 1106.78 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
