DS16105GB
Main Image

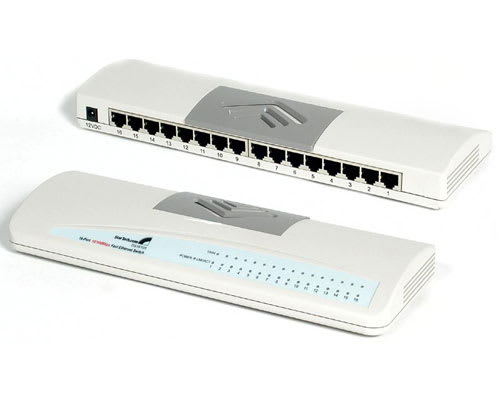

Product Name 16 Port Desk 10/100 Fast Ethernet Switch Product Number DS16105GB UPC 065030811088 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 16 Port Desktop 10/100 Fast Ethernet Switch Bullet 1 2-year Warranty Bullet 2 All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. Bullet 3 Auto MDIX (crossover) function provides automatic crossover when cascading switches or hubs - crossover cables or special uplink ports are no longer required Bullet 4 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards Bullet 5 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex Marketing Copy Whether you need to mix 10Mbps and 100Mbps connections, or want to extend your network beyond your current cabling length limitations, the StarTech.com full-duplex, 16-Port 10/100-Mbps Ethernet switch will be an invaluable addition to your expanding network. Up to 16 Fast Ethernet hubs or segments can be connected via RJ-45 ports and LED's for each port indicate network status at a glance. The auto crossover feature allows you to cascade another switch from any port without the need for a special crossover cable. This product replaces Switch DS16100, and Hubs 16PORT10BT, ED1516SX. Applications - An easy way to expand your network by cascading from another backbone switch
- Connect 16 PCs at Full-Duplex 200Mbps speeds
Accessory Products - ET9003SC
- ET9003ST
Related Products - DS5105
- DS8105
- ES3124R
- ES3132R
Input Voltage 12V DC Color Beige Product Length (mm) 290 Product Width (mm) 660 Product Height (mm) 34 Product Weight (g) 100 TAA Compliant No Auto MDIX Yes Buffer Size 1 MB Full Duplex Support Yes General Specifications - 10/100Mbps Ports: (16) RJ-45 Auto-MDIX
- Buffer Size: 1MB
- Dimensions: 11.5"L x 3.875"W x 1.25"H (290mm x 100mmx x 34mm)
- Filter/Forward Rate: 148,800 packets/sec.
- Full-Duplex/Half-Duplex: on all ports
- MAC Address: 8K
- Nway Auto-negotiation: on all ports
- Standards: IEEE 802.3 10BaseT and 802.3u 100BaseTX
- Switching Architecture: Store and Forward
- Weight: 1.45 lbs (0.66 kg) unit without power adapter
Switching Architecture Store and Forward Industry Standards IEEE 802.3x Carton Depth (mm) 332 Carton Height (mm) 322 Carton Quantity 15 Carton Weight Gross (g) 18150 Included in Package - 1 - 16 Pt Desk 10/100 Fast Ethernet Switch
- 1 - Instruction Manual
- 1 - Rubber feet (4 circles)
Package Depth (mm) 98 Package Height (mm) 114 Package Width (mm) 310 Package Weight (g) 1130 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
