DS5100
Main Image

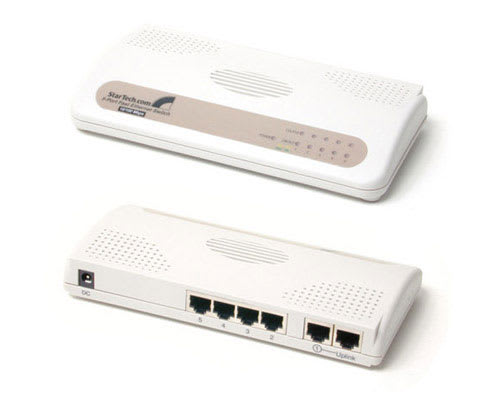

Product Name *D*5-Port Desktop 10/100 Mbps Fast Ethernet Switch Product Number DS5100 UPC 065030785662 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*5-Port Desktop 10/100 Mbps Fast Ethernet Switch Bullet 1 Supports full duplex connections of up to 200Mbps Bullet 2 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards. Bullet 3 Simple and economical way to bridge 10BaseT network and 100BaseTX network. Bullet 4 Easily connect and segment eight Fast Ethernet hubs. Bullet 5 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex. Marketing Copy Include this Fast Ethernet Switch in your networking solution if you need to extend your connection distance, segment network traffic, or bridge both 10BaseT and 100BaseTX together. One set of status leds for each of the 5 half/full duplex RJ45 ports, indicate network connections, activity, collisions, and full duplex mode at a glance. Applications - Segmenting hubs to improve network performance
- Providing a 200Mbps channel for servers
TAA Compliant No General Specifications - Standards: IEEE 802.3, IEEE 802.3u
- Connectors: 5 x RJ-45
- Dimensions: 7.4 x 3.94 x 1.18 Inches (18.7 x 10.0 x 3.0 cm)
- Weight: 0.70 lbs ( 0.320 kg )
- Warranty: 2 years
- Buffer: 256 kB
Included in Package - 1 - Ethernet Switch
- 1 - Power Adapter
- 1 - Bag containing rackmounts
- 1 - Instruction Manual
en-US Content Approved Yes
