DS51002
5 Port Gigabit Ethernet Desktop Switch
Network up to 5 Ethernet devices through a single, energy-efficient Gigabit desktop switch - Wall Mountable
Main Image
Product Images
Product Images
BOM Image
Product Name 5 Port Gigabit Ethernet Desktop Switch Product Number DS51002 UPC 065030854610 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) 5Pt Gigabit Switch Product Title (Short) 5 Port Unmanaged Gigabit Ethernet Switch Product Title (Medium) 5 Port Unmanaged Energy-Efficient Gigabit Ethernet Switch - Desktop / Wall Mount Product Title (Standard) 5 Port Unmanaged Energy-Efficient Gigabit Ethernet Switch - Desktop / Wall Mount Network Switch Product Title (Long) 5 Port Unmanaged Energy-Efficient Gigabit Ethernet Switch - Desktop / Wall Mount Network Switch Product Title (AMZ) 5 Port Unmanaged Energy-Efficient Gigabit Ethernet Switch - Desktop / Wall Mount Network Switch - 802.3az Gigabit Switch (DS51002) Title Ingram (Part 1) 5Port 10/100/1000 Mbps Gigabit Title Ingram (Part 2) Switch - 802.3az Compliant Website Product Headline Network up to 5 Ethernet devices through a single, energy-efficient Gigabit desktop switch - Wall Mountable Bullet 1 5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports Bullet 2 Wall-mounted or desktop installation options Bullet 3 Auto-negotiation and Auto-MDIX detection on each port Bullet 4 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex operation Bullet 5 Supports automatic MAC address learning and aging Bullets (Consolidated) Network up to 5 Ethernet devices through a single, energy-efficient Gigabit desktop switch - 5 Port Unmanaged Energy-Efficient Gigabit Ethernet Switch - Desktop/Wall Mount Network Switch - 802.3az Gigabit Switch - 5 Port 10/100/1000 Mbps Switch Marketing Copy Applications - Expand on the number of ports of an existing router / switch in office and home scenarios
- Create a small local network of computers for data transfer / sharing
- Wall-mount a switch in your server room or test lab environment for additional connectivity
Website Search Keyword - Ethernet Switch
- Network Switch
- Gigabit Switch
- 5 port switch
- 5 Port Gigabit Switch
- Unmanaged Ethernet Switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - M45PATCH3BL
- 45PATCH10BK
- 45PATCH15GN
- M45PATCH25RD
- M45CROSS35YL
- FLAT45GR6
- SVA5H2NEUA
Related Products - DS51072
- DS81072
- IES5100
- IES51000POE
Equivalent Part Number in the EU DS51002EU Equivalent Part Number in the UK DS51002GB Input Current 0.3 A Input Voltage 110V-240V AC Output Current 0.6 A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 140.000 Product Width (mm) 90.000 Product Height (mm) 25.000 Product Weight (g) 114.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Flow Control Half-duplex back-pressure and IEEE802.3x full-duplex Full Duplex Support Yes General Specifications Power adapter specifications refer to DS51002 rev. 2. Prior to rev. 2, the DS51002 power adapter specifications included: 9V output voltage, 0.6A output current, and M plug type. Maximum Data Transfer Rate 2 Gbps (Full-Duplex) OS Compatibility OS Independent Switching Architecture Store-and-Forward Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3az Energy-Efficient Ethernet LED Indicators - 1 - Power
- 5 - Link / Act

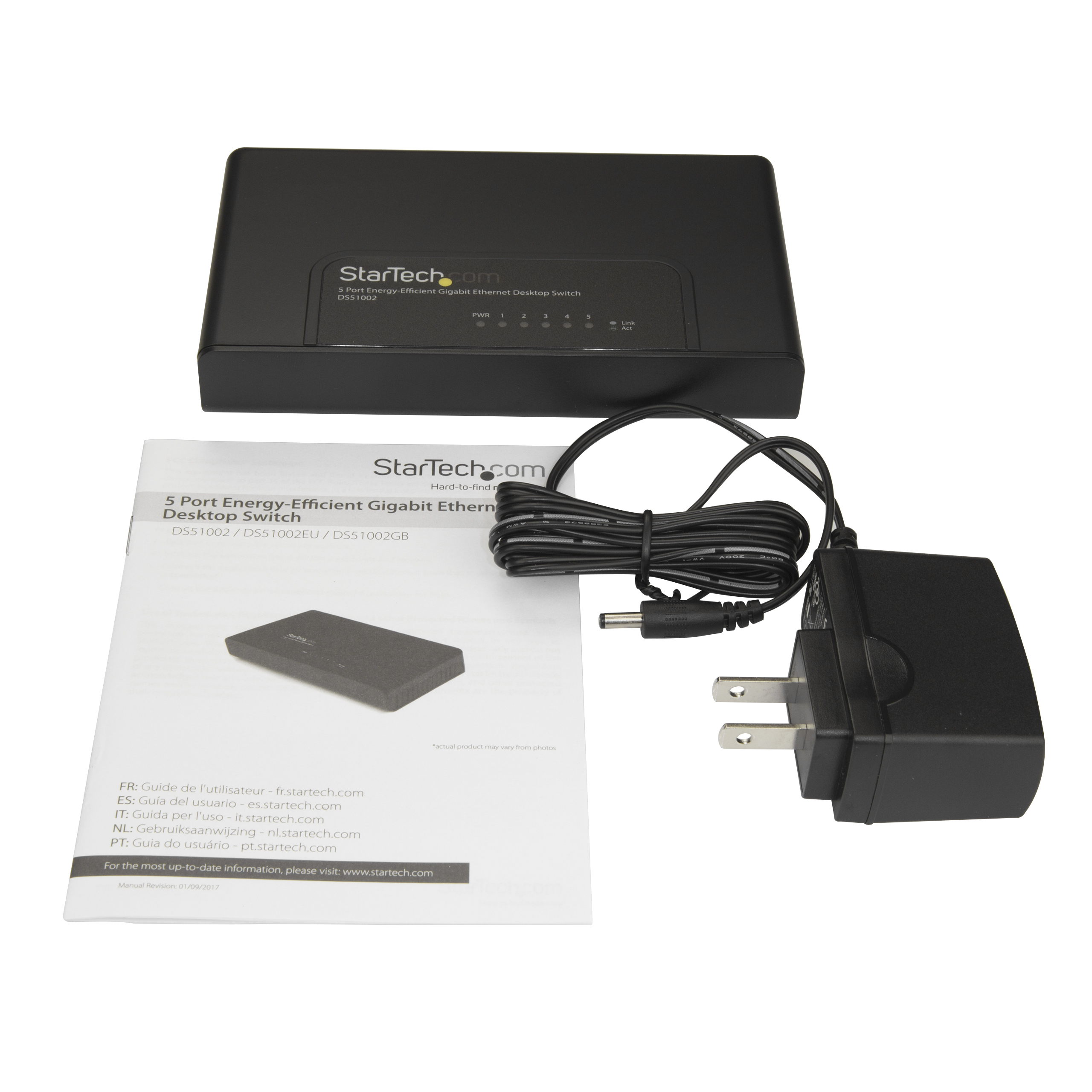

Carton Depth (mm) 425 Carton Height (mm) 355 Carton Quantity 30 Carton Weight Gross (g) 10875 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Ethernet Switch
Package Depth (mm) 168 Package Height (mm) 65 Package Width (mm) 207 Package Weight (g) 319 Packaging Description 5 Port Gigabit Ethernet Desktop Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-02-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
