DS5102
Main Image

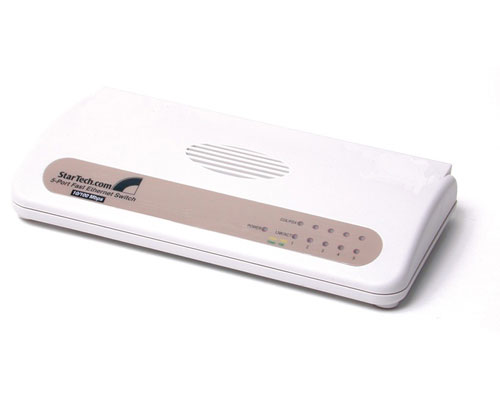

Product Name *D**Replaced By DS5105* 5 Port Mini Desktop 10/100 Ethernet Switch Product Number DS5102 UPC 065030788670 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D**Replaced By DS5105* 5 Port Mini Desktop 10/100 Ethernet Switch Bullet 1 Supports full duplex connections of up to 200Mbps Bullet 2 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards. Bullet 3 Simple and economical way to bridge 10BaseT network and 100BaseTX network. Bullet 4 Easily connect and segment five Fast Ethernet hubs. Bullet 5 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex. Marketing Copy Include this Fast Ethernet Switch in your networking solution if you need to extend your connection distance, segment network traffic, or bridge both 10BaseT and 100BaseTX together. One set of status leds for each of the 5 half/full duplex RJ45 ports, indicate network connections, activity, collisions, and full duplex mode at a glance. Applications - Segmenting hubs to improve network performance
- Providing a 200Mbps link for servers
- An extremely fast small business network
Accessory Products - ET9003ST
- ET9003SC
Related Products DS8100 Replacement Product DS51072 TAA Compliant No General Specifications - Standards: IEEE 802.3, IEEE 802.3u
- Connectors: 5 x RJ-45
- Dimensions: 127 x 83 x 30 mm / 5 x 3.27 x 1.2 Inches
- Weight: 200g / 0.5 lb
- Buffer: 256 kB
Included in Package - 1 - 5 Pt. Mini Desktop 10/100 Ethernet Hub
- 1 - DC12V Adapter
- 1 - Bag of screws
- 1 - Instruction Manual
- 4 - Rubber feet
