DS5105
Main Image

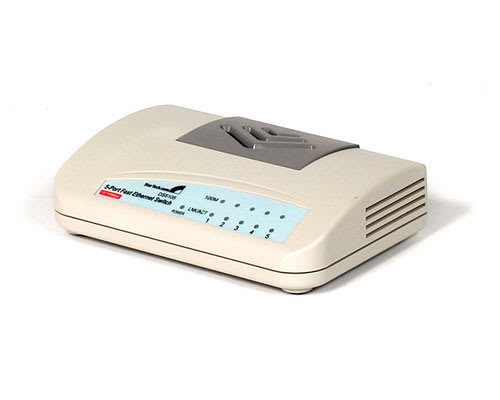

Product Name 5 Pt Mini Desktop 10/100 Ethernet Switch Product Number DS5105 UPC 065030794510 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 5 Port Mini Desktop 10/100 Ethernet Switch Bullet 1 Supports full duplex connections of up to 200Mbps Bullet 2 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards Bullet 3 Simple and economical way to bridge 10BaseT network and 100BaseTX network. Bullet 4 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex. Bullet 5 All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. Marketing Copy Include this Fast Ethernet Switch in your networking solution if you need to extend your connection distance, segment network traffic, or bridge both 10BaseT and 100BaseTX together. One set of status leds for each of the 5 half/full duplex RJ45 ports, indicate network connections, activity, collisions, and full duplex mode at a glance. This product replaces Switch DS5100, DS5102 and Hub DS5102E. Applications - An extremely fast small business network
- Provides a 200Mbps link for servers
- Segmenting hubs to improve network performance
Accessory Products - ET9003SC
- ET9003ST
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH100B
Related Products - DS8105
- 5PORT
- M45PATCH10BL
- RJ45PATCH10
Replacement Product DS51072 Input Current 0.5 Input Voltage 12V DC Power Source AC Adapter Included Color Beige Product Length (mm) 127 Product Width (mm) 83 Product Height (mm) 30 Product Weight (g) 180 TAA Compliant No Auto MDIX Yes Full Duplex Support Yes General Specifications - Dimension: 127 x 83 x 30 mm (5.0 x 3.27 x 1.18 inches).
- Weight: 180g (0.40lbs).
- Port Led's: LNK/ACT(Link/Activity) Yellow--100Mbps, Green--10Mbps, COL/FDX(Collision/Full Duplex)
Switching Architecture Store and Forward Industry Standards IEEE 802.3x Carton Depth (mm) 707 Carton Height (mm) 203 Carton Quantity 25 Carton Weight Gross (g) 14200 Included in Package 1 - 5 Port Desk 10/100 Fast Ethernet Switch Package Depth (mm) 64 Package Height (mm) 138 Package Width (mm) 181 Package Weight (g) 520 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 en-US Content Approved Yes Product Manager Daryl Hunt
