Main Image
DS5105GB
Main Image

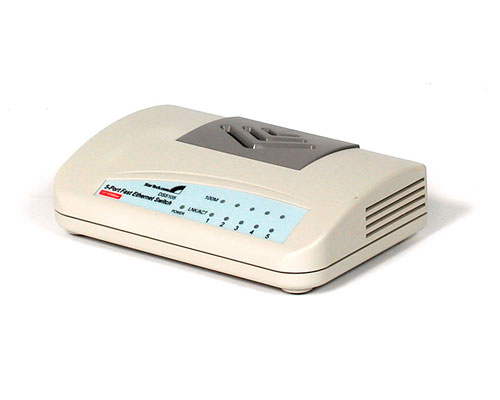

Product Name 5 Port Desk 10/100 Fast Ethernet Switch for UK Product Number DS5105GB UPC 065030797238 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Country of Origin History (2) China Product Title (Long) 5 Port Desk 10/100 Fast Ethernet Switch for UK Bullet 1 Supports full duplex connections of up to 200Mbps Bullet 2 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards Bullet 3 Simple and economical way to bridge 10BaseT network and 100BaseTX network. Bullet 4 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex. Bullet 5 All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. Marketing Copy Include this Fast Ethernet Switch in your networking solution if you need to extend your connection distance, segment network traffic, or bridge both 10BaseT and 100BaseTX together. One set of status leds for each of the 5 half/full duplex RJ45 ports, indicate network connections, activity, collisions, and full duplex mode at a glance. This product replaces Switch DS5100, DS5102 and Hub DS5102E. Applications - An extremely fast small business network
- Provides a 200Mbps link for servers
- Segmenting hubs to improve network performance
Power Source AC Adapter Included TAA Compliant No General Specifications - Dimension: 127 x 83 x 30 mm (5.0 x 3.27 x 1.18 inches).
- Weight: 180g (0.40lbs).
- Port Led's: LNK/ACT(Link/Activity) Yellow--100Mbps, Green--10Mbps, COL/FDX(Collision/Full Duplex)
- Power: 12V DC, 0.5A
Connector 1 RJ-45 Connector 1 (Quantity) 1 en-US Content Approved Yes
