DS5107

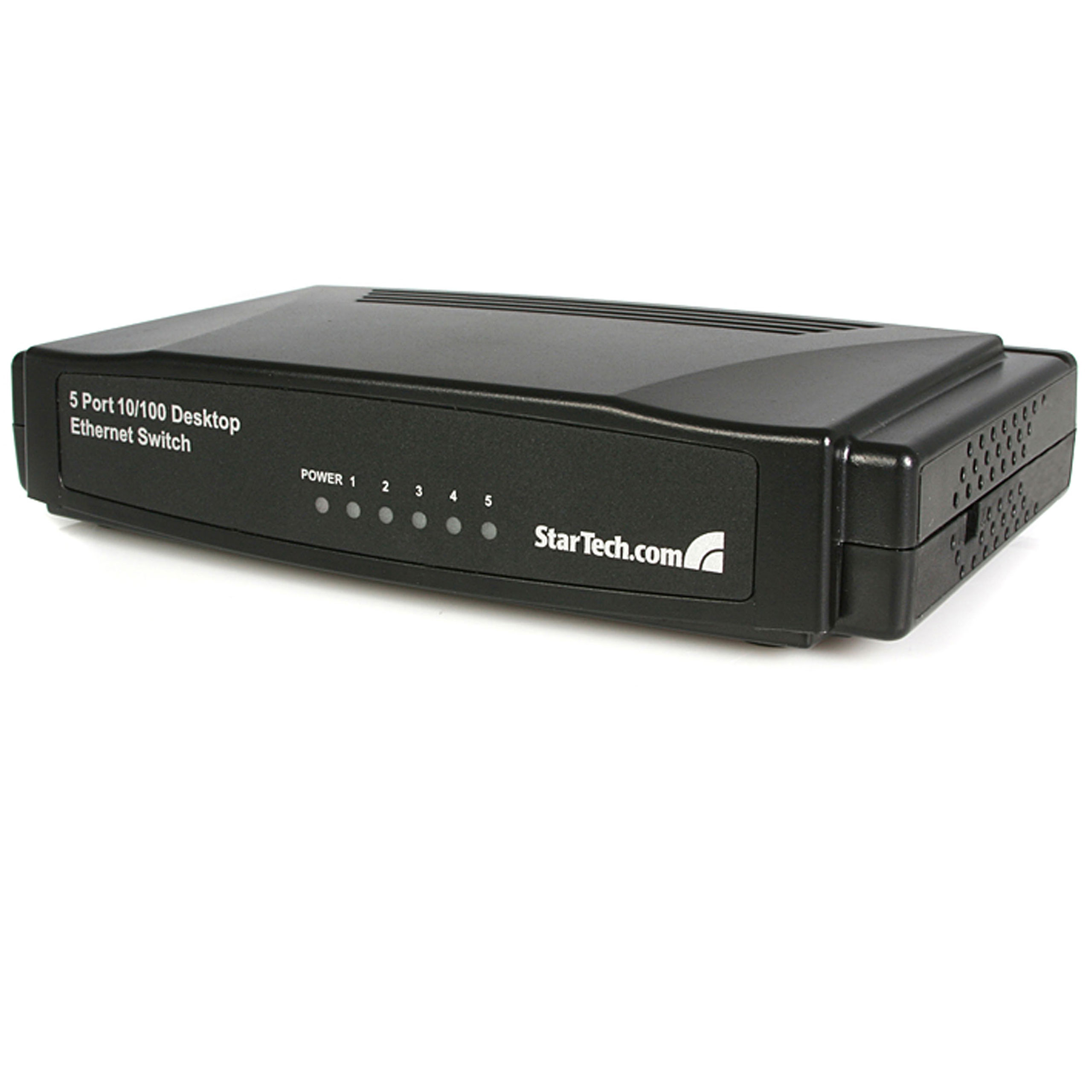

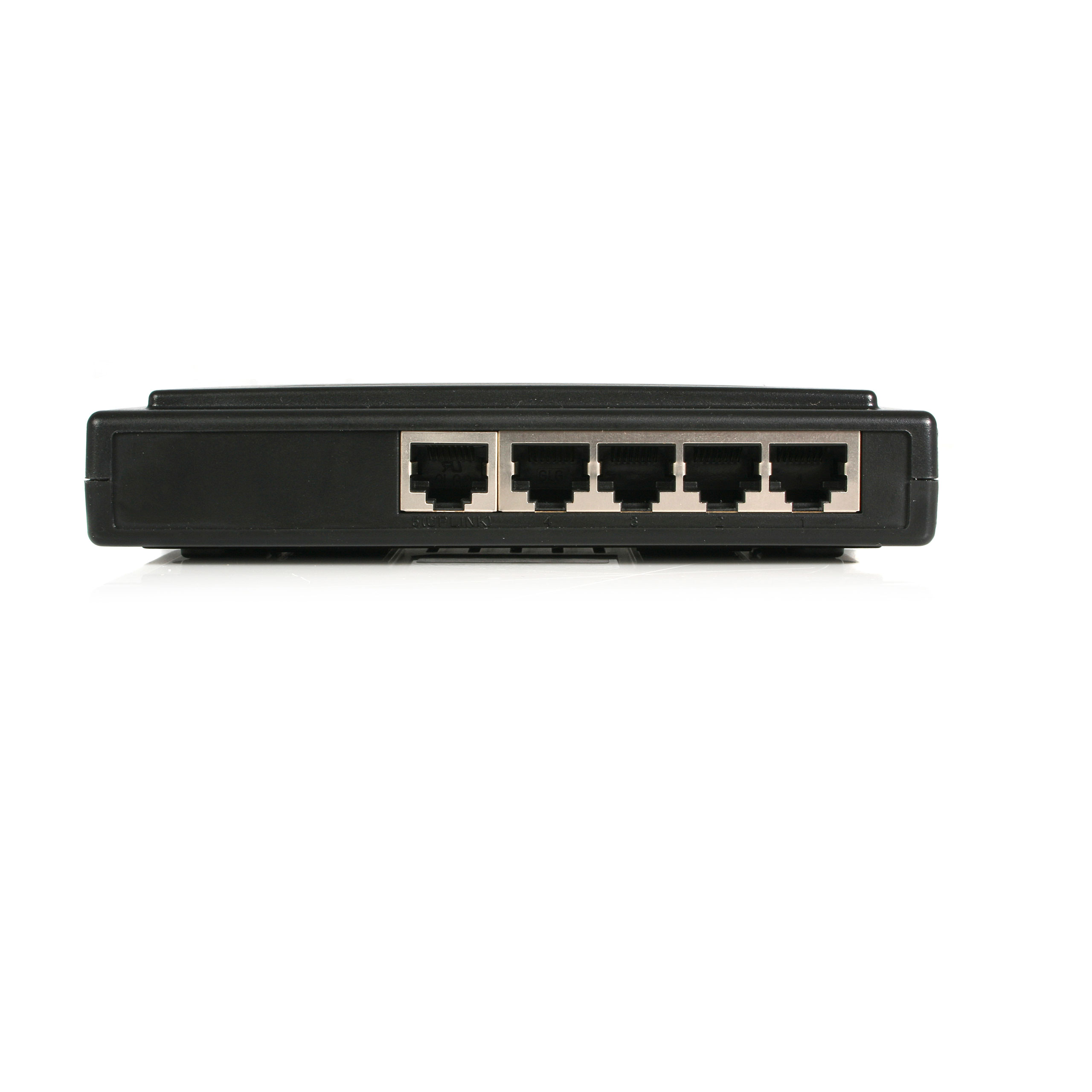

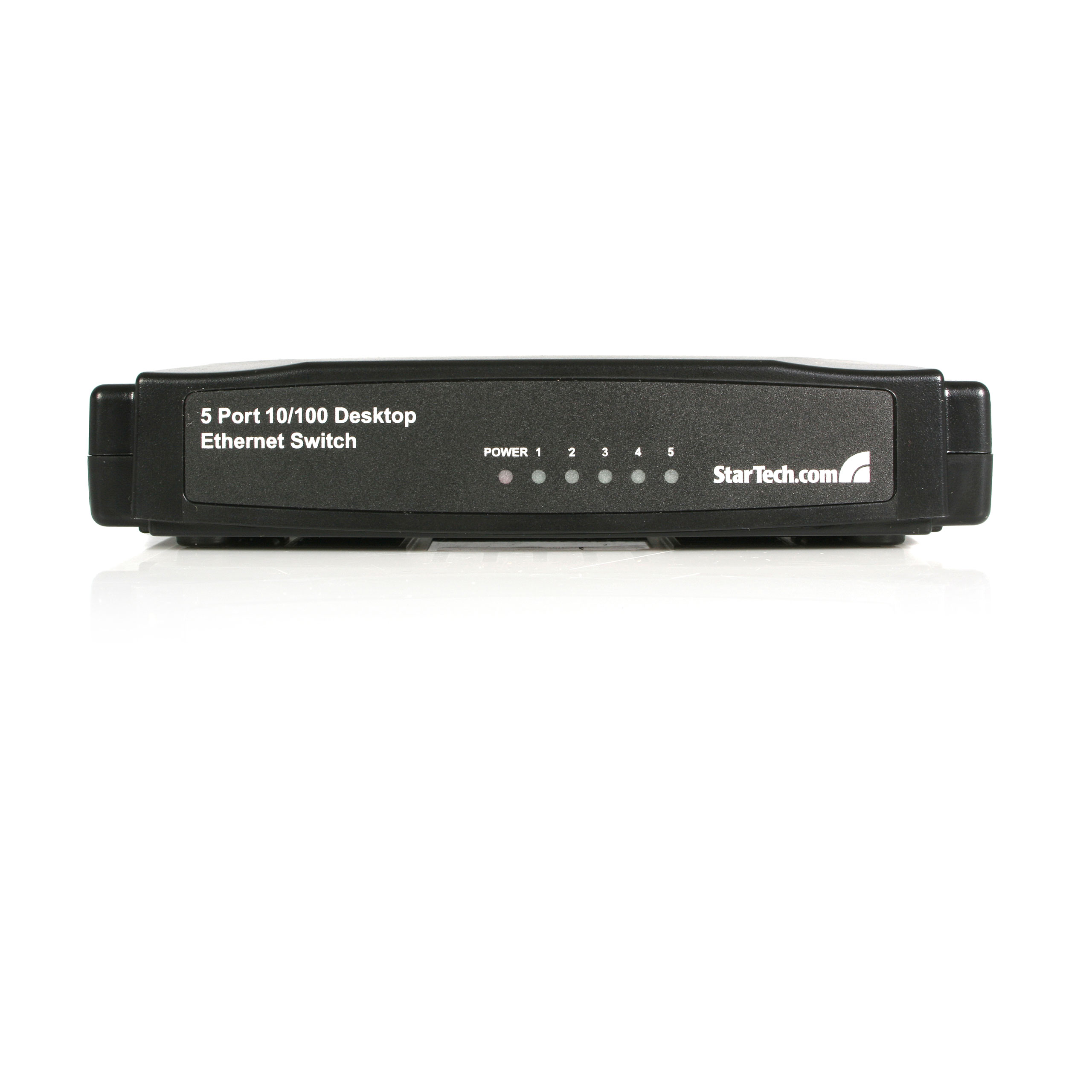

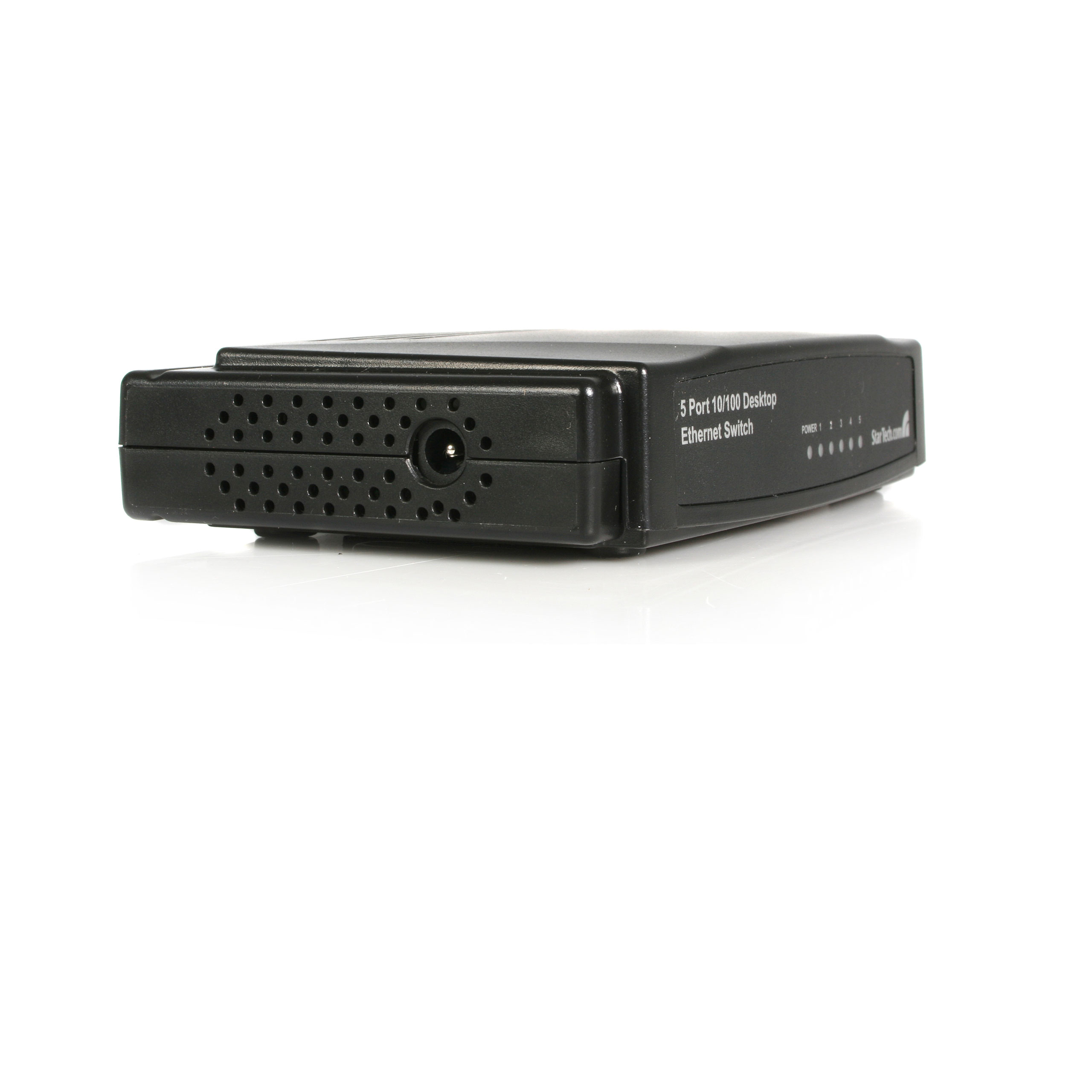

5 Port 10/100 Desktop Ethernet Switch
Connect and network up to 5 Ethernet devices from a single desktop switch
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 5 Port 10/100 Desktop Ethernet Switch Product Number DS5107 UPC 065030824200 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 5 Port 10/100 Mbps Fast Ethernet Switch Product Title (Standard) StarTech.com 5 Port 10/100 Desktop Ethernet Switch - Switch - 5 ports - EN, Fast EN - 10Base-T, 100Base-TX Product Title (Long) 5 Port 10/100 Mbps Desktop Fast Ethernet Switch Title Ingram (Part 1) 5 Port 10/100 Mbps Desktop Fast Title Ingram (Part 2) Ethernet Switch Website Product Headline Connect and network up to 5 Ethernet devices from a single desktop switch Bullet 1 All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function. Bullet 2 Auto MDIX (crossover) function provides automatic crossover when cascading switches or hubs - crossover cables or special uplink ports are no longer required Bullet 3 Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards Bullet 4 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex Bullet 5 Simple and economical way to bridge 10BaseT network and 100BaseTX network. Marketing Copy Applications - Small business networks requiring fast data transfer
- Provides a 200Mbps link for servers
- Segmenting hubs to improve network performance
Website Search Keyword - 10/100
- Ethernet Switch
- 5 Port Ethernet Switch
Accessory Products - ET90110SC
- ET90110ST
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH100B
Related Products DS8107 Replacement Product DS51072 Input Voltage 115V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Product Length (mm) 80 Product Width (mm) 14 Product Height (mm) 20 Product Weight (g) 294 TAA Compliant No Auto MDIX Yes Full Duplex Support Yes Maximum Data Transfer Rate 100 Mbps Supported Protocols CSMA/CD, Port Auto Sensing/Auto Negotiation Industry Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX LED Indicators - 1 - Power
- 5 - Link/ACT

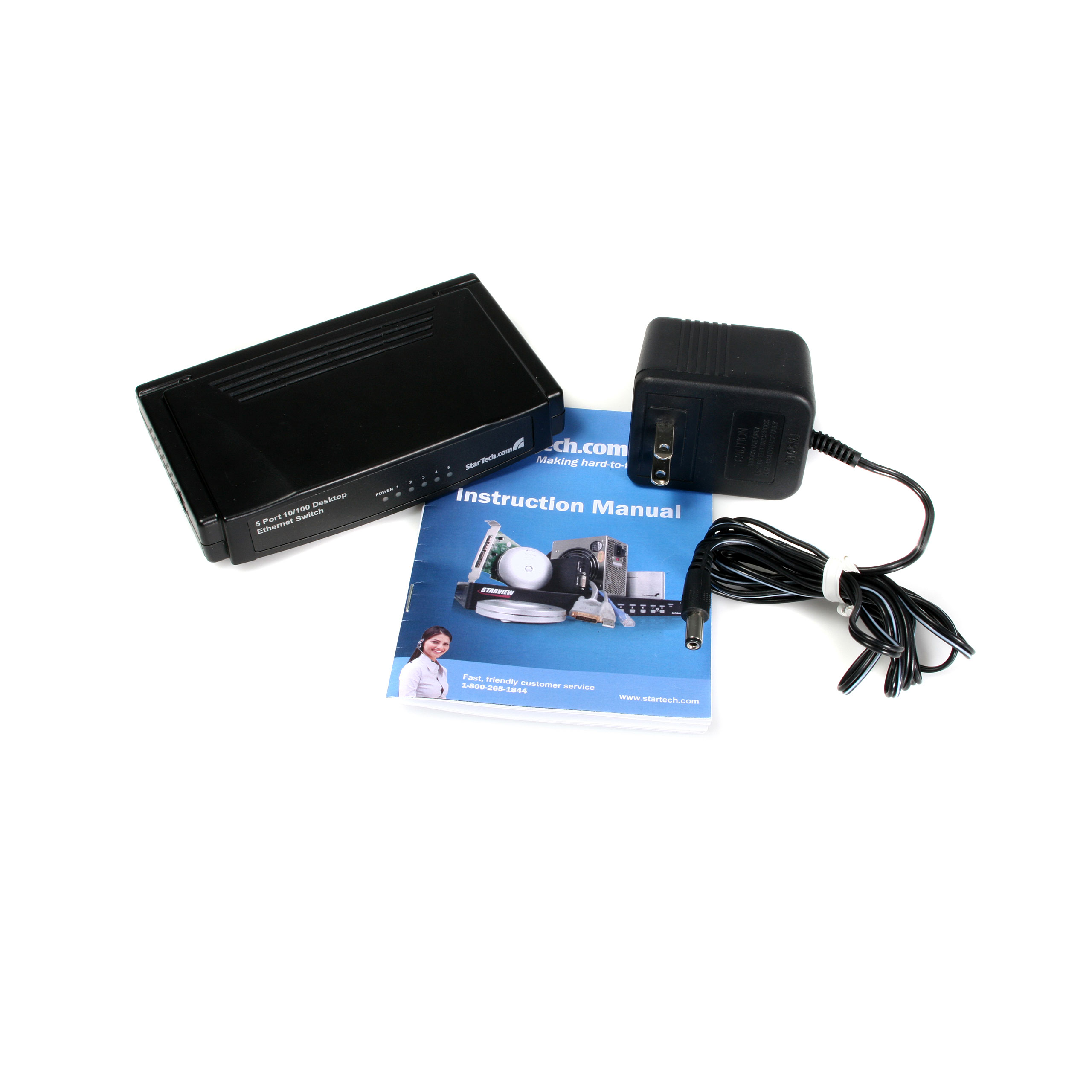

Carton Depth (mm) 545 Carton Height (mm) 380 Carton Quantity 20 Carton Weight Gross (g) 9100 Included in Package - 1 - 5 Port Ethernet Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 74 Package Height (mm) 170 Package Width (mm) 265 Package Weight (g) 530 Packaging Description 5 Port 10/100 Mbps Ethernet Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 en-US Content Approved Yes Product Manager Daryl Hunt
