DS51072
5Port 10/100 Switch - Ethernet Desktop Switch
Connect and network up to 5 Ethernet devices through a single 10/100 Mbps desktop switch
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 5Port 10/100 Switch - Ethernet Desktop Switch Product Number DS51072 UPC 065030848213 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 5 Port 10/100 Fast Ethernet Switch Product Title (Standard) 5 Port Fast Ethernet Switch - 10/100 Desktop Wall Mount Network Switch Product Title (Long) 5 Port Fast Ethernet Switch - 10/100 Desktop Wall Mount Network Switch Product Title (AMZ) 5 Port Fast Ethernet Switch - 10/100 Desktop Wall Mount Network Switch - 5-Port 10/100 Desktop Switch (DS51072) Title Ingram (Part 1) 5Port 10/100 Switch - Ethernet D Title Ingram (Part 2) esktop Switch Website Product Headline Connect and network up to 5 Ethernet devices through a single 10/100 Mbps desktop switch Bullet 1 Five 10/100 Mbps capable RJ45 Ethernet ports Bullet 2 IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex operation Bullet 3 Auto-negotiation and Auto-MDIX detection on each port Bullet 4 Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards Bullet 5 Compact, desktop-style form factor, with rubber stabilizer feet Bullets (Consolidated) Connect and network up to 5 Ethernet devices through a single 10/100 Mbps desktop switch - 5 Port Ethernet Switch - 5 Port 10/100 Switch - 5 Port Network Switch - 5 Port Desktop Switch - 5 Port Fast Ethernet Switch - Wall Mount Network Switch Marketing Copy Applications - For use as a Home Network Switch or for SOHO users who need to expand on the number of ports of an existing router/switch
- Users who want to create a small local network of computers for data transfer/sharing, streaming or gaming
- Network multiple devices in different rooms together with a single UTP Ethernet cable between locations
Website Search Keyword - ethernet switch
- rj45 switch
- network switch
- 10/100 switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - M45PATCH3BL
- 45PATCH10BK
- 45PATCH15GN
- M45PATCH25RD
- M45CROSS35YL
- FLAT45GR6
- SVA5H2NEUA
Related Products - DS5107
- IES5100
- 410VDSLEXT
- IES8100POE
- DS8107
Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 5 DC Power Consumption (In Watts) 3 Power Source AC Adapter Included Plug Type H Color Black Humidity 10 ~ 90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 140.000 Product Width (mm) 90.000 Product Height (mm) 25.000 Product Weight (g) 113.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Flow Control IEEE 802.3x Full Duplex Support Yes Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 100 Mbps OS Compatibility OS Independent Supported Protocols CSMA/CD Switching Architecture Store and Forward Chipset ID Atheros - AR8236 Industry Standards IEEE 802.3, IEEE 802.3u LED Indicators - 1 - Power (green)
- 5 - Link/ Activity (green)

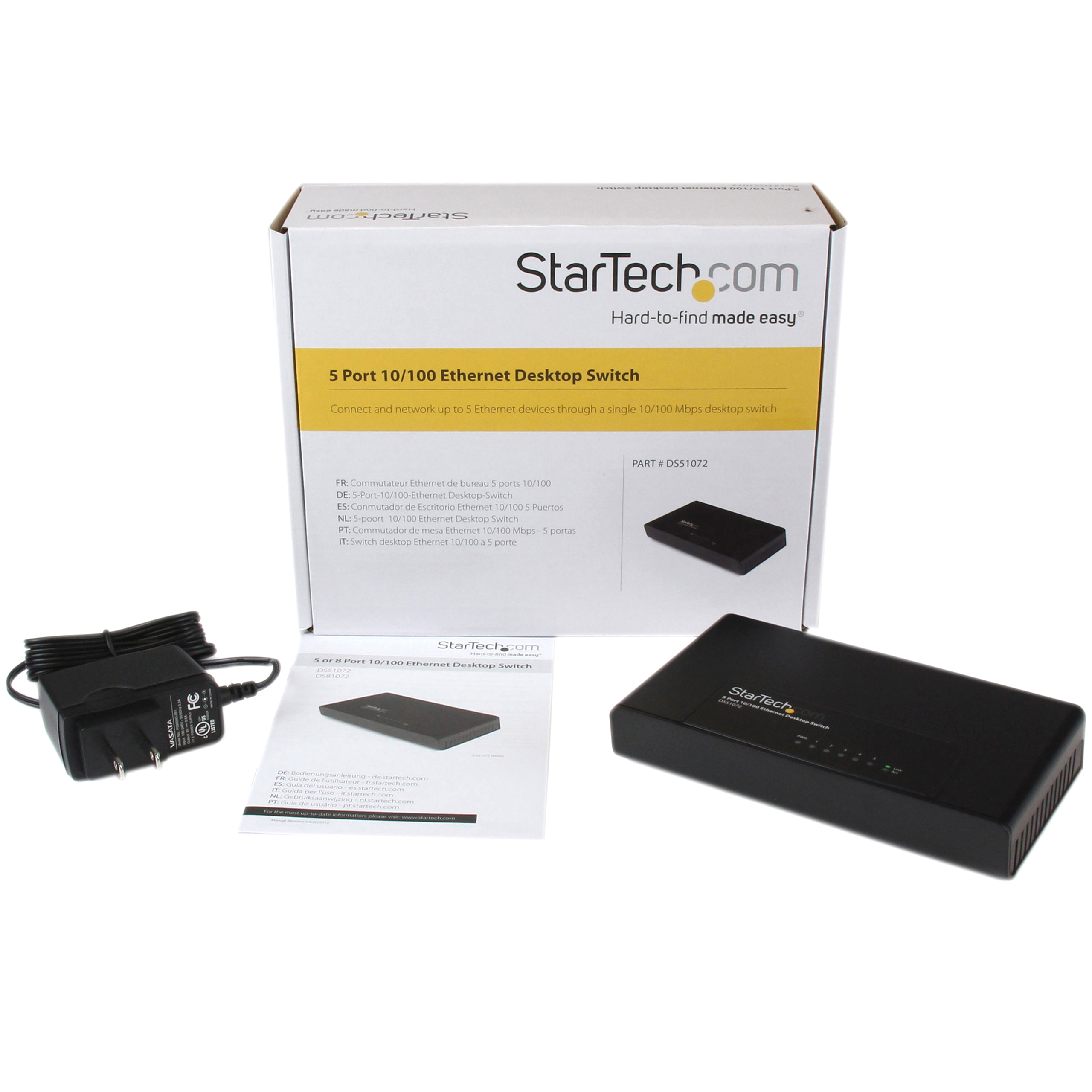

Carton Depth (mm) 435 Carton Height (mm) 350 Carton Quantity 30 Carton Weight Gross (g) 10785 Included in Package - 1 - Ethernet Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 166 Package Height (mm) 65 Package Width (mm) 205 Package Weight (g) 315 Packaging Description 5 Port 10/100 Ethernet Desktop Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,NZ,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
