DS52000
5 Port 2 5G Unmanaged Multi Gigabit Ethernet Switch Deskto
2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 5 Port 2 5G Unmanaged Multi Gigabit Ethernet Switch Deskto Product Number DS52000 UPC 065030893183 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family No family Country of Origin Europe & Japan China Country of Origin North America Malaysia Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) 2.5G Switch Product Title (Short) Unmanaged 2.5G Switch, 5 Ethernet Ports Product Title (Medium) StarTech.com Unmanaged 2.5G Switch - 5 Port 2.5GBASE-T Unmanaged Ethernet Switch Product Title (Standard) Unmanaged 2.5G Switch, 5 Port 2.5GBASE-T Unmanaged Ethernet Switch, Din Rail | Wall Mount, Multi-Gigabit, Auto-MDIX, 9K Jumbo Product Title (Long) Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo Product Title (AMZ) Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo (DS52000) Title Ingram (Part 1) Unmanaged 2.5G Switch 5 Port - Title Ingram (Part 2) Multi-gigabit, Fanless, Wall kit Website Product Headline 2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot Bullet 1 BOOST YOUR BANDWIDTH: The 5 port network switch supports four speeds 10/100/1000/2500 Mbps over Ethernet Cat5e/Cat6/Cat6a cable. Reduce wait times for content sharing, media streaming, 802.11ax access points, NAS, or other high bandwidth applications Bullet 2 HASSLE-FREE: Quickly and easily add support for up to 2.5GBASE-T speeds for enhanced data transfer rates. The unmanaged switch requires no setup, automatically determines the best speed for the devices connected, and has clear front-facing diagnostic LEDs Bullet 3 SPECIFICATIONS: 5 port multi-gigabit switch | 10/100/1000/2500 Mbps auto-negotiation | Unmanaged | 0C to 50C operating temp. | All-metal housing | 9K Jumbo frame support | Wall mounting kit | Diagnostic LEDs | Fanless | Power adapter included (12VDC/1A) Bullet 4 FLEXIBLE DEPLOYMENT: The compact, all-metal case design uses minimal space on your desk or use the included kit to mount it to a wall. For enhanced security, the LAN switch has a k-slot as well. The non-disruptive fanless design makes it ideal for SoHo Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years, this unmanaged ethernet switch is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Support for 2.5GBASE-T - 5 port network switch supports 10/100/1000/2500 Mbps over Ethernet Cat5e/Cat6/Cat6a - Unmanaged switch requires no setup | All-metal; Wall mount kit; K-slot | 0-50C temp | 9K Jumbo | Auto-MDIX | Diagnostic LEDs | Fanless Bullets (Consolidated) Quickly and easily add support for up to 2.5GBASE-T speeds for enhanced data transfer rates - The 5 port network switch supports 10/100/1000/2500 Mbps speeds over Ethernet Cat5e/Cat6/Cat6a cable - The unmanaged switch requires no setup; Automatically determines the best speed for the devices - Compact all-metal case; Wall mount kit included; For enhanced security the LAN switch has a k-slot - Unmanaged | 0C to 50C temp | 9K Jumbo frame | Diagnostic LEDs | Fanless | Power adapter (12VDC/1A) Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 10/100/1000 ethernet switch
- 2.5g switch
- 2.5GBASE-T
- 5 port gigabit switch
- din rail mount ethernet switch
- ethernet splitter
- gigabit switch
- unmanaged ethernet switch
- unmanaged switch
- wall mount ethernet switch
- wall mount network switch

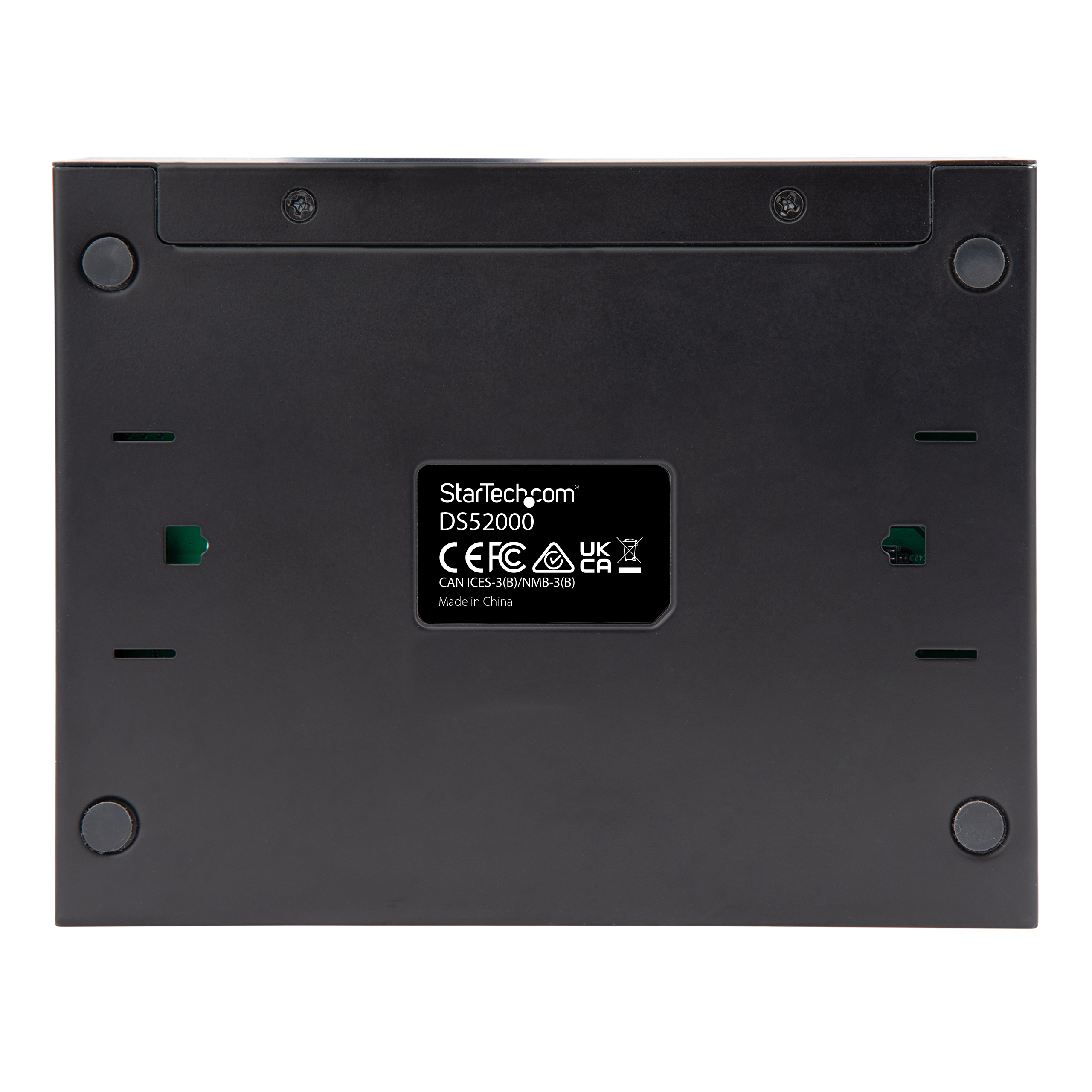

Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - M45PATCH3BL
- 45PATCH10BK
- 45PATCH15GN
- C6PATCH50BL
- MCM110SC2P
Related Products - IES61002POE
- IES81000POE
- IES51000
- IES5102

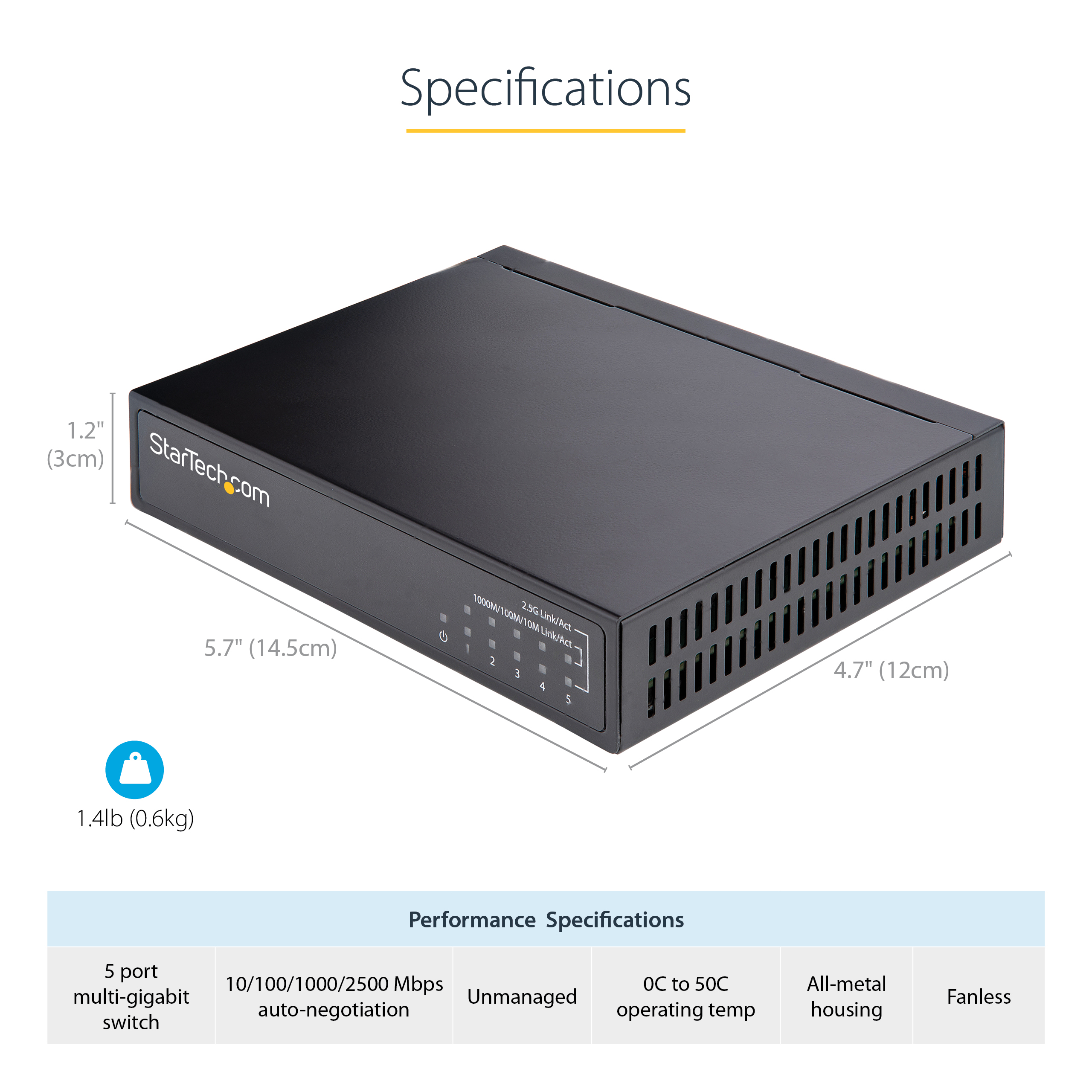

Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.0 A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Steel Product Length (mm) 120.000 Product Width (mm) 155.000 Product Height (mm) 30.000 Product Weight (g) 638.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Flow Control IEEE 802.3x Full-Duplex Full Duplex Support Yes Jumbo Frame Support 9K max. Max Distance 100m [328ft] Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2.5 Gbps OS Compatibility OS Independent Switching Architecture Store-and-Forward Chipset ID - Realtek RTL8371
- Realtek RTL8226B

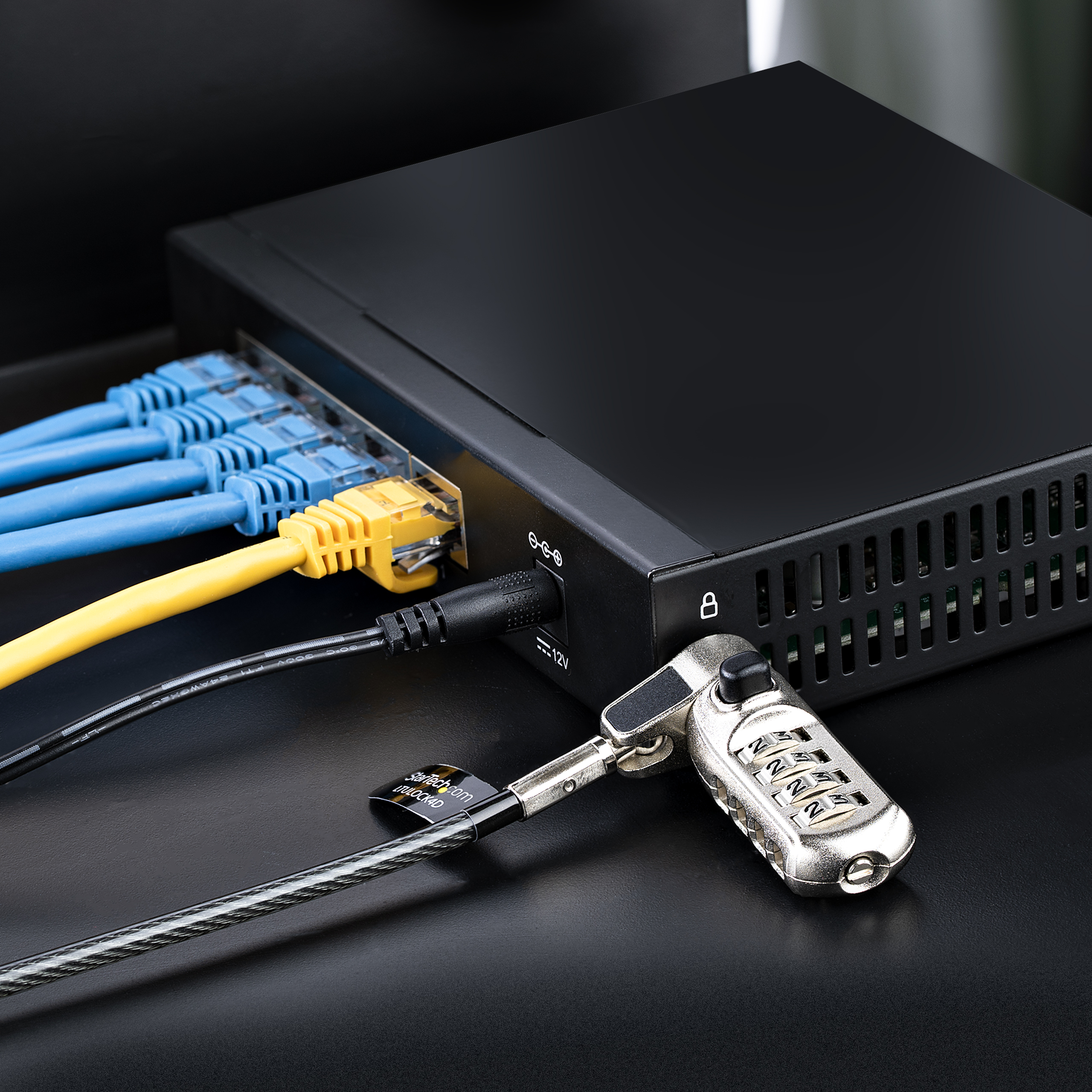

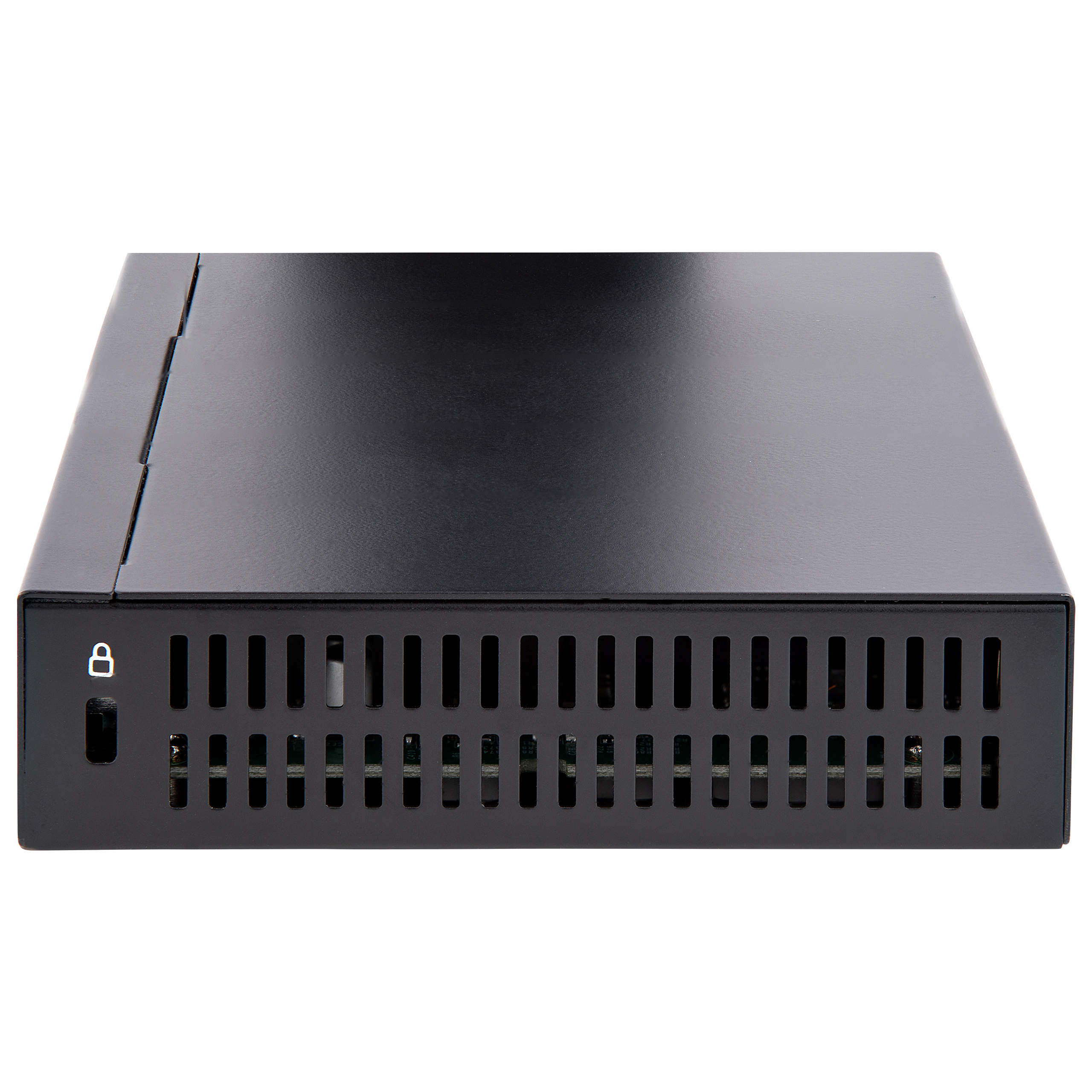

Compatible Lock Slot Kensington Standard Slot (K-Slot) Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3bz 2.5GBASE-T
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.1p (QoS)
- IEEE 802.3x (Full-Duplex)

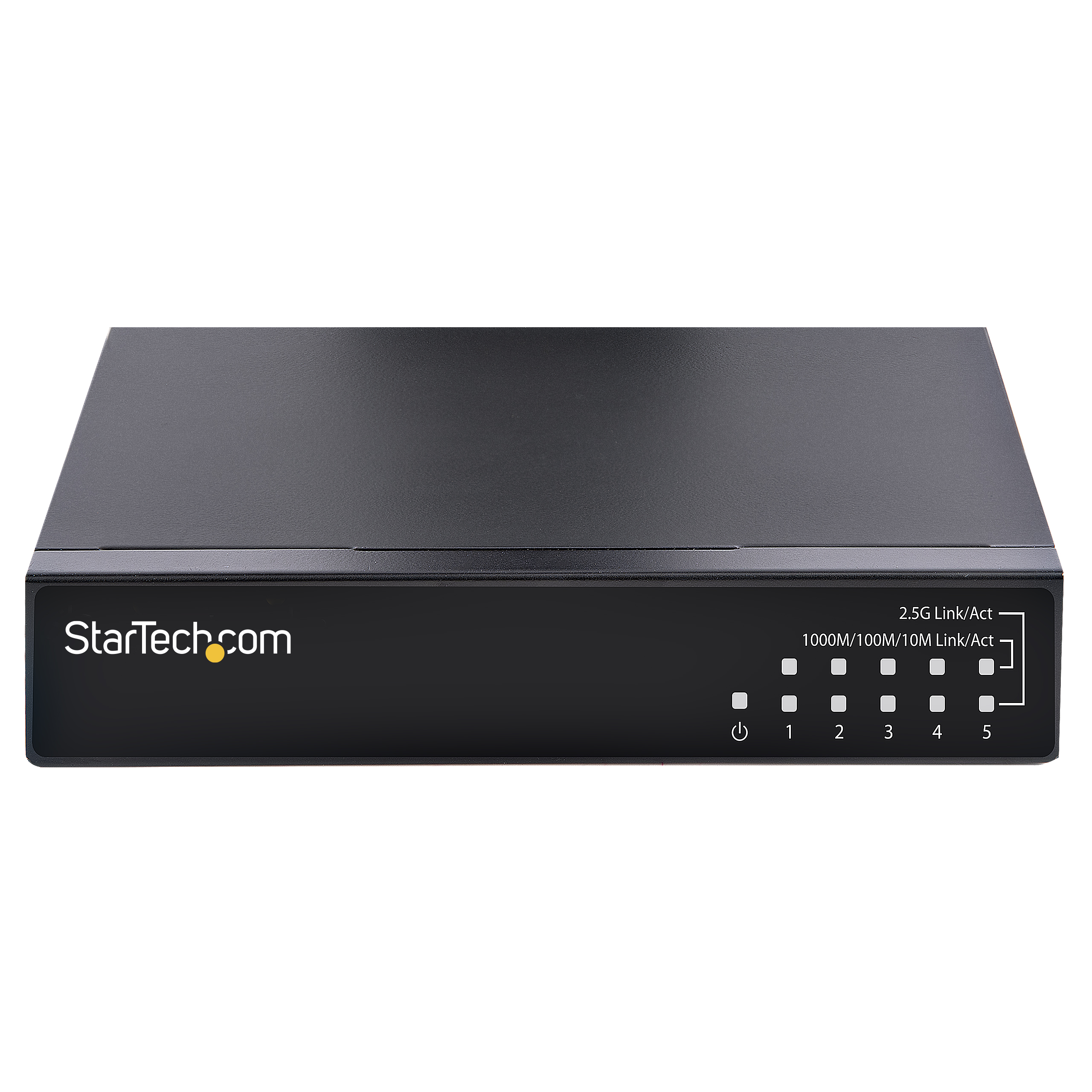

Interface/Bridge RJ45 (2.5G Ethernet) LED Indicators - 1 - Power LED - Green
- 5 - Top Row LEDs - Green
- 5 - Bottom Row LEDs - Green

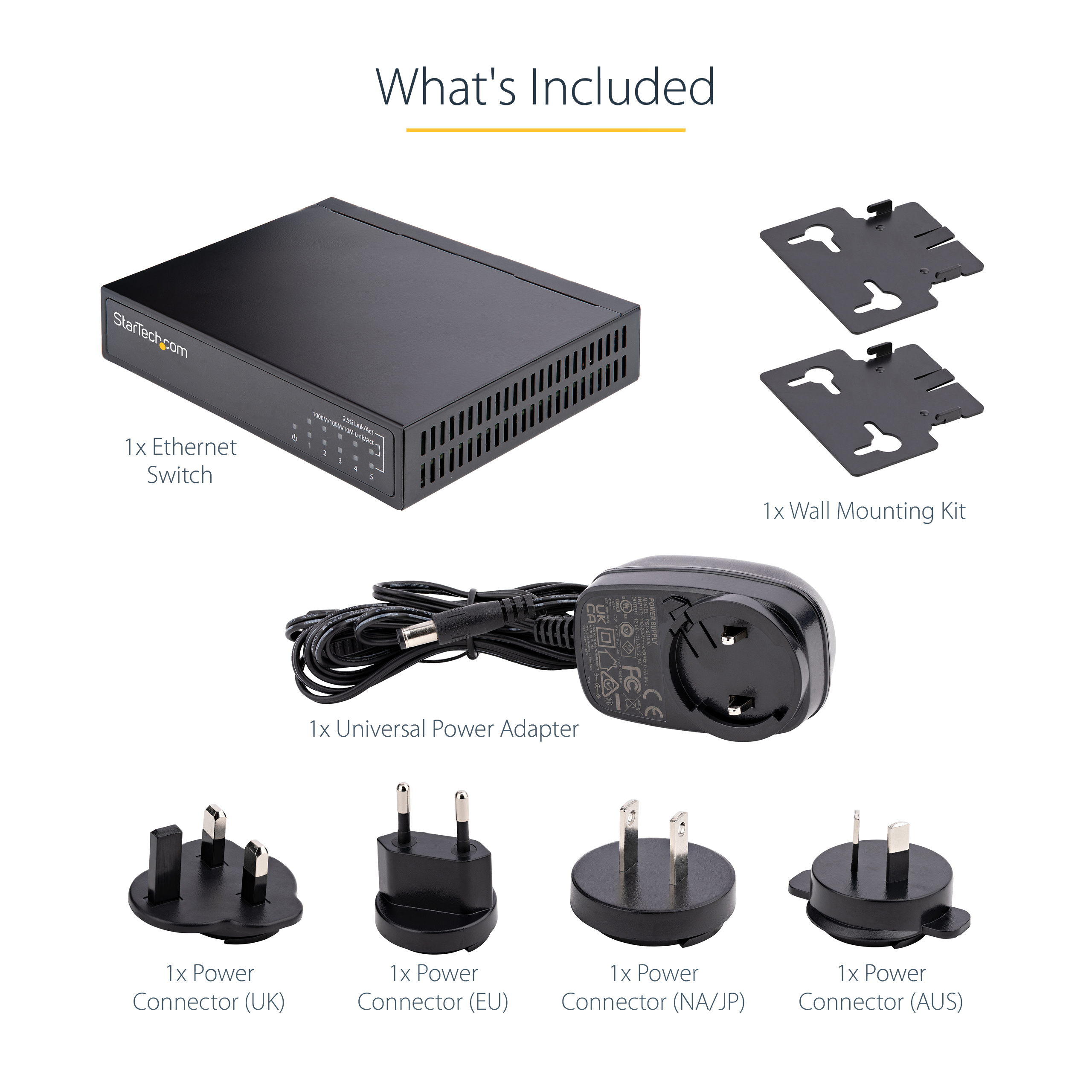

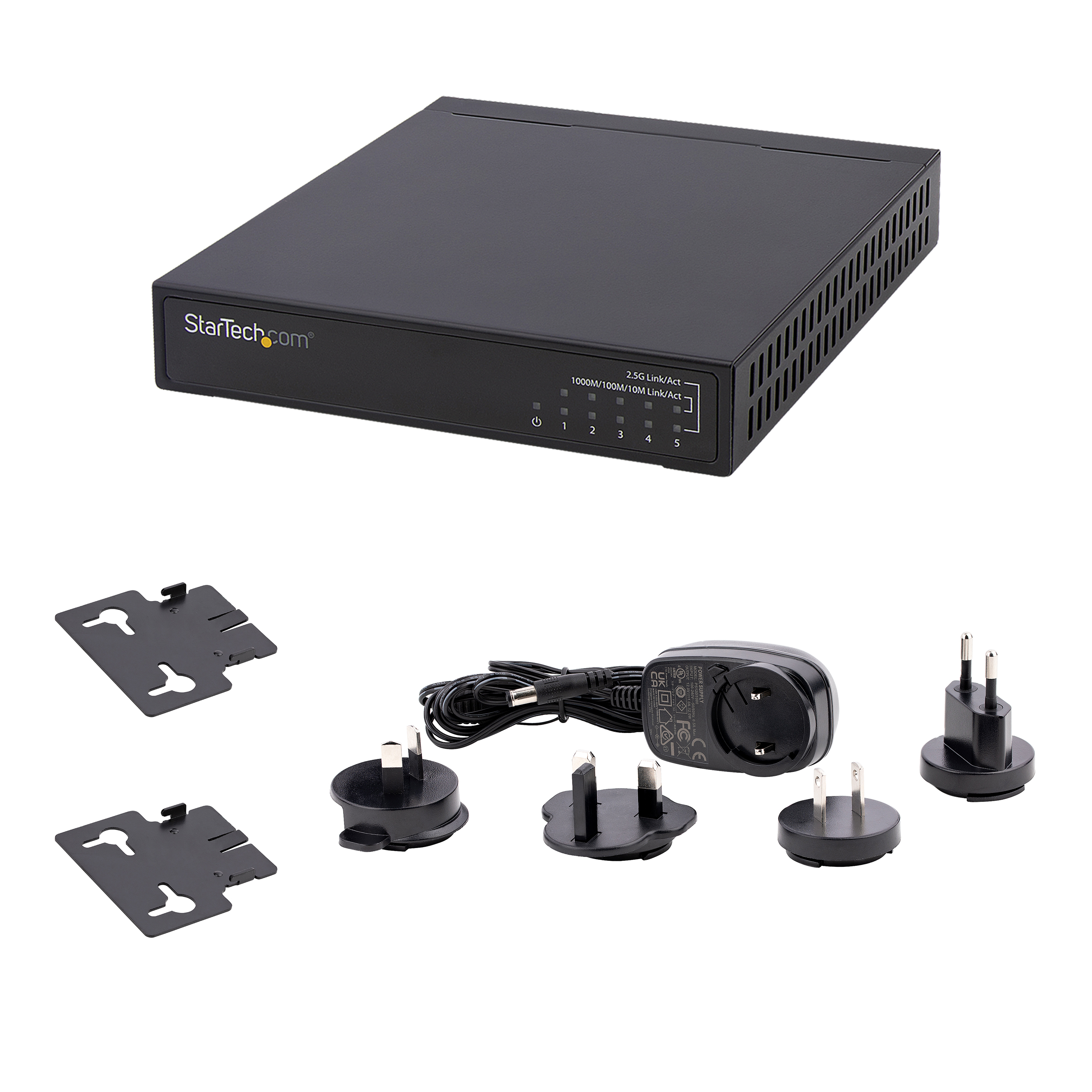

Carton Depth (mm) 305 Carton Height (mm) 290 Carton Quantity 10 Carton Weight Gross (g) 9998 Included in Package - 1 - Ethernet Switch
- 1 - Universal Power Adapter

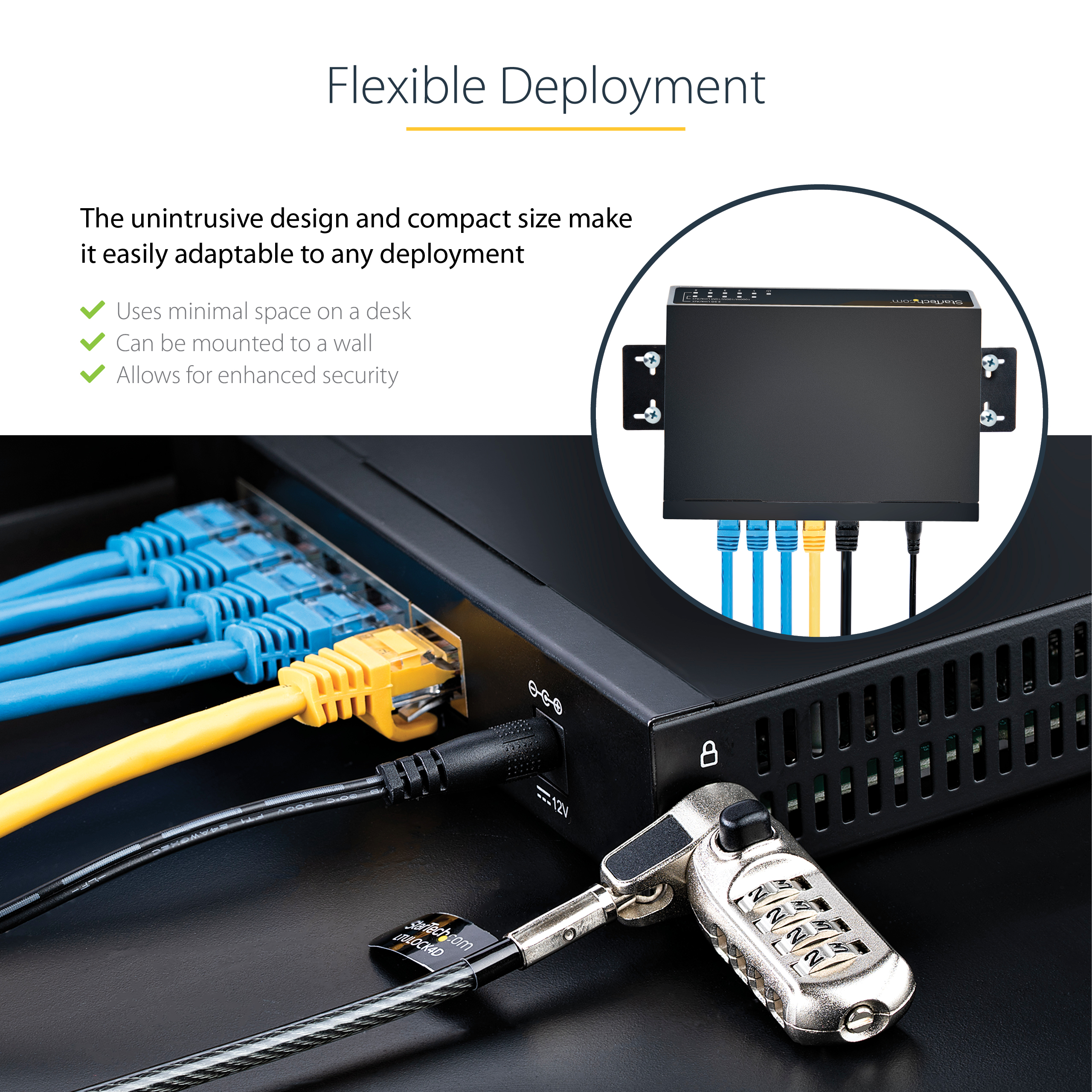

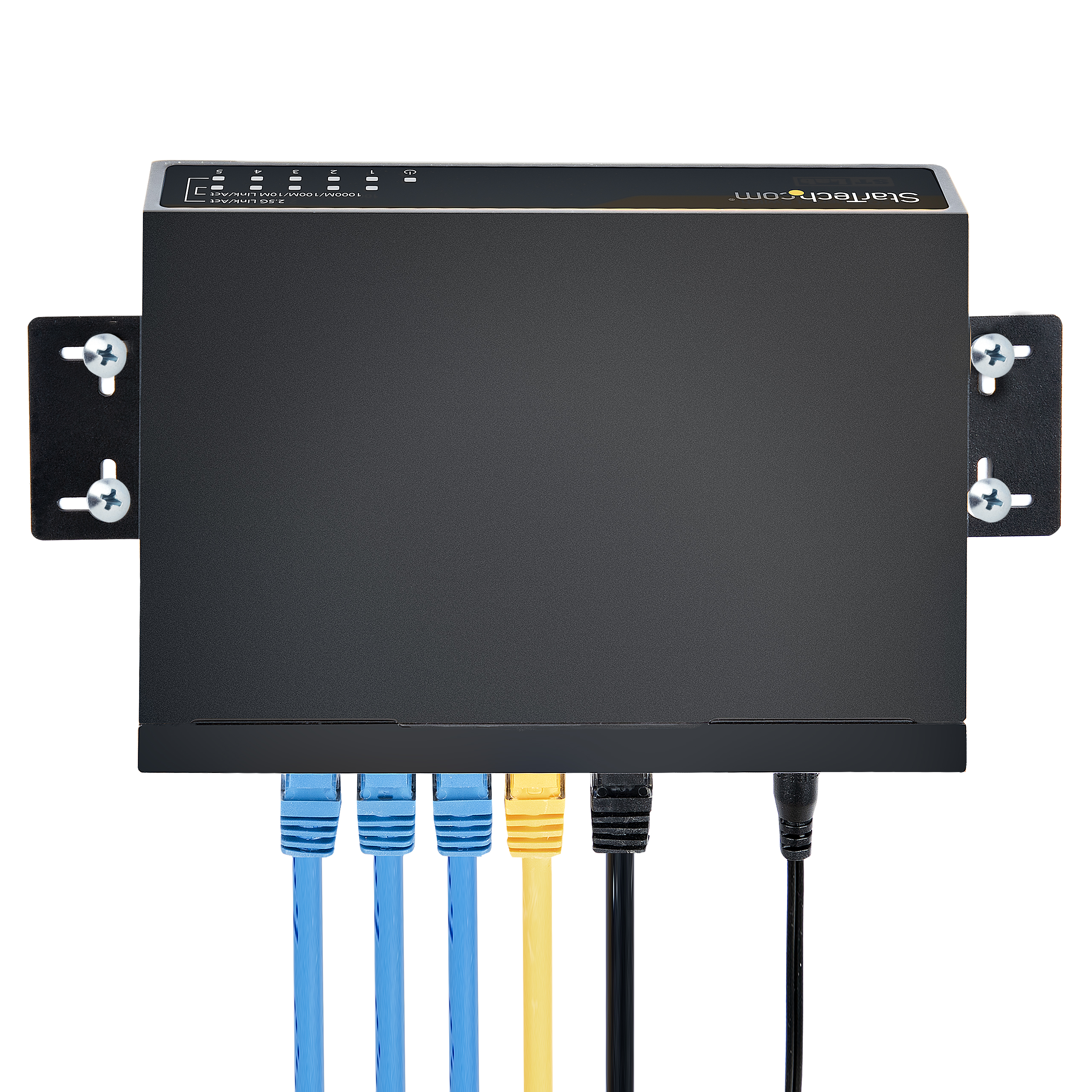

- 1 - Wall Mounting Kit
- 1 - Quick-Start Guide

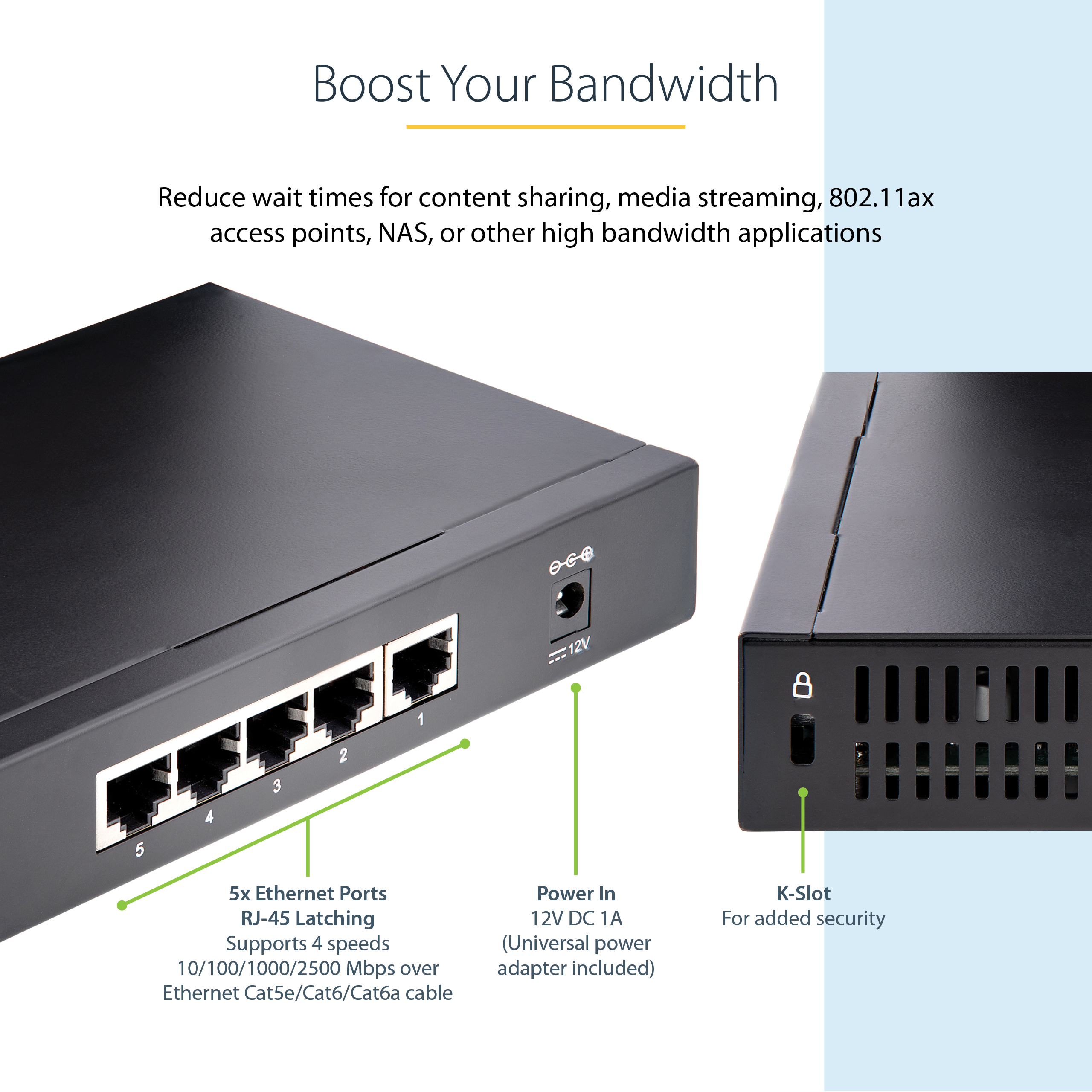

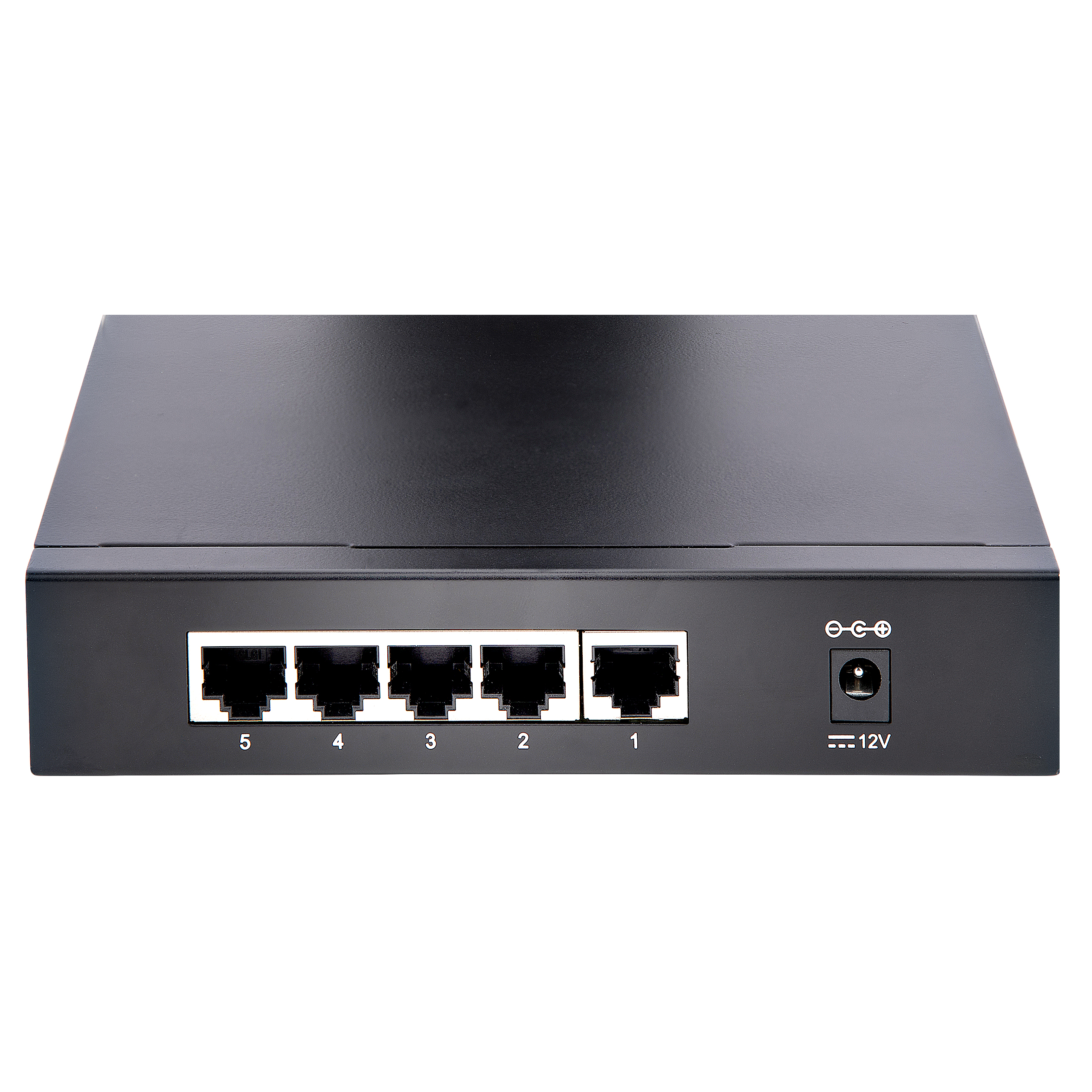

Package Depth (mm) 134 Package Height (mm) 70 Package Width (mm) 286 Package Quantity 1 Package Weight (g) 954 Packaging Description 5 Port Unmanaged Multi-Gigabit Ethernet Switch Packaging Description India 5 Port Unmanaged Multi-Gigabit Ethernet Switch Sub-Carton Depth (mm) 440 Sub-Carton Height (mm) 320 Sub-Carton Width (mm) 420 Sub-Carton Weight (g) 1500 Connector 1 RJ-45 Connector 1 (Quantity) 5 Connector 2 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 2 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2021-04-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2021-12-23 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,SE,UK,US Primary Technology NBaseT Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-06-17 Target Production Release 2021-07-08 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
