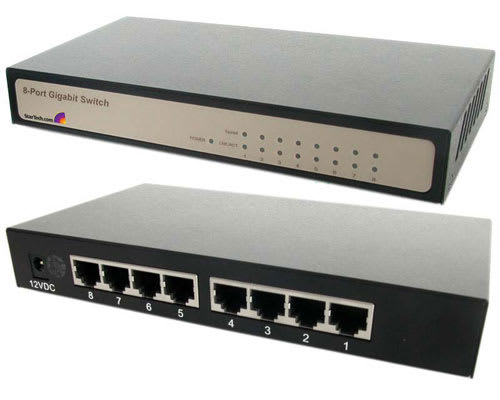

8 port Desktop 10/100/1000 Mbps Gigabit Desktop Switch

Main Image

Product Name	8 port Desktop 10/100/1000 Mbps Gigabit Desktop Switch
Product Number	DS81000
UPC	065030802086
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1
Country of Origin History (2)	Taiwan

Manual https://images.salsify.com/image/upload/s--dlwt_2OD--/c9a38a752f0455425c36e9ea7914f06cd4188166.pdf

Product Title (Long)	8 port Desktop 10/100/1000 Mbps Gigabit Desktop Switch
Bullet 1	8 Gigabit ports allow simultaneous data transmission through internal high speed data channel
Bullet 2	All Gigabit ports are backward compatible and automatically adjust speed to 10 / 100 / 1000 Mbits/sec
Bullet 3	All Gigabit ports support half duplex and full duplex modes for bandwidth of up to 2000 Mbits/sec
Bullet 4	Auto MDI/MDI-X crossover eliminate need for crossover cables or uplink ports
Bullet 5	Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks
Marketing Copy
Applications	Compact Gigabit Desktop Switch designed for small-to-medium business, SOHO, and data center environments High Gigabit capability at the desktop supports high bandwidth applications such as video conferencing, advanced graphics and CAD Systems Increases performance by expanding application and device capabilities including file transfers, databases, gaming networks, and more 12VDC (1A)

Accessory Products	C6PATCH100BL C6PATCH100GR C6PATCH50GR C6PATCH50BL C6PATCH35BL C6PATCH35GR C6PATCH25BL C6PATCH25GR C6PATCH20BL C6PATCH20GR C6PATCH15BL C6PATCH15GR C6PATCH10BL C6PATCH10GR
Related Products	DS51000 DS5105 DS8105

Auto MDIX	Yes
Full Duplex Support	Yes
General Specifications	Gigabit Port: 8 x 1000/100/10 Mbps ports with RJ-45 connectors Standards: IEEE802.3, IEEE802.3u & IEEE802.3ab MAC Address: 8K Buffer Memory: 256 Kbytes/sec Network Cable Type: : 10Base-T: UTP/STP category 3 or 5 cable : 100Base-TX: UTP/STP category 5 cable : 1000Base-TX: 4 pairs category 5 cable (Optional - Category 6) LED Indicators: System status: 1 x Power Indicator Gigabit Ports: 8 x Activity status, & 8 x Speed status Switching Architecture: Store and Forward Duplex Mode: Supports both Half-Duplex and Full-Duplex Certifications: FCC Class B & CE Mark & C-Tick Weight: .99 Lbs(450 Grams) Dimensions: : Length: 7.3 Inches (187mm) : Width: 3.9 Inches (100 mm) : Height: 1.1 Inches (30 mm)
Switching Architecture	Store and Forward

Color	Gray
TAA Compliant	No

Industry Standards	IEEE 802.3u
U Height	1U

Connector 1	RJ-45
Connector 1 (Quantity)	8
